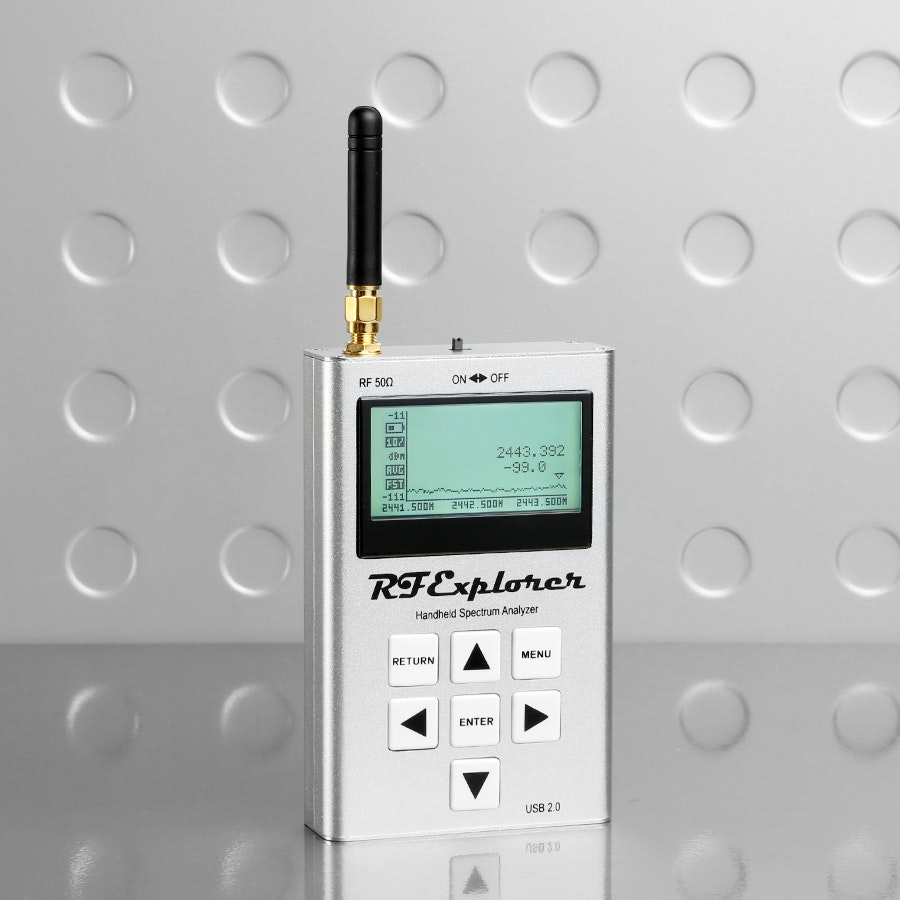

Seeed RF Explorer 2.4G Spectrum Analyser
Seeed RF Explorer 2.4G Spectrum Analyser
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
12 Sold
Product Description
The RF Explorer 2.4G is a digital spectrum analyzer with a built-in signal generator that allows you to see the bandwidth of digital signals and produce RF signals. Based on a highly integrated frequency synthesizer and double balanced mixer, it offers superior performance in a compact, portable package Read More
Analyze and Generate RF Signals

The RF Explorer 2.4G is a digital spectrum analyzer with a built-in signal generator that allows you to see the bandwidth of digital signals and produce RF signals. Based on a highly integrated frequency synthesizer and double balanced mixer, it offers superior performance in a compact, portable package. Connect it to your PC with a USB cable for extra functionality and better signal viewing.

Features & Functions

Designed to function in both indoor and outdoor environments, the RF Explorer features several different modes to track different frequencies including Peak Max and Hold, Normal, Overwrite, and Averaging modes—just like a standard spectrum analyzer, only smaller. With a Wi-Fi analyzer, a configurable calculator, and free lifetime firmware upgrades, it’s designed to take your DIY projects to the next level.

Specs
  • SEEED
  • Material: Solid aluminum casing
  • Frequency band: 2400-2485 MHz
  • Frequency span: 2-85 Mhz
  • LCD display: 128 x 64 pixels
  • PC Windows client supports Windows XP/Vista/Win7 both 32 and 64 bits
  • Standard SMA 50 ohms connector, a matching antenna is included
  • Amplitude resolution: 0.5 dBm
  • Dynamic range: -105dBm to -15dBm
  • Average noise level: -100 dBm
  • Absolute Max input power: +5dBm
  • Frequency stability and accuracy (typical): +-10 ppm
  • Amplitude stability and accuracy (typical): +-3 dBm
  • RF Generator amplitude: -30dBm to +1dBm
  • Frequency resolution: 1 Khz
  • Resolution bandwidth (RBW): automatic 58 Khz to 812 Khz
  • Lifetime free firmware upgrades
  • USB Rechargeable
  • 16 hrs runtime
  • Supports all popular ISM frequency bands worldwide
  • Windows PC client Open Source
  • Size: 4.4 x 2.8 x 1  in (11.3 x 7 x 2.5 cm)
  • Weight: 6.5 oz (185g)
Shipping

All orders will be shipped by Drop.

Estimated ship date is Apr 19, 2016 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
