KBD661 Custom Mechanical Keyboard Kit
01 / 19
KBD661 Custom Mechanical Keyboard Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
763 requests
·
29 Sold
Product Description
The KBD661 stands out for a few key reasons. First is the case: Machined from solid aluminum in your choice of five colors, it’s got an aggressively slanted angle from front to back Read More
search
close
Sort by: Newest
keyboard_arrow_down
breitling88
389
Aug 3, 2018
The plate isn't pictured, but I would like to know if it is a suspended plate design (screwed into the top of case) or is the pcb going to be screwed down into the botton/base of the case like a standard 60%?
meatloaf
182
Aug 4, 2018
breitling88 The plate mounts to the bottom of the case by four little pegs just line them up with the four holes on the plate (there's one each corner), then the top piece goes over it and then just screw it in from underneath.
SnailEDK
3
Aug 2, 2018
Anywhere I can just get the cap set and/or the case? I have a Leopold F660 and this looks like the exact same layout.
meatloaf
182
Aug 2, 2018
SnailEDKDifferent profile but there's an IC for GMK Chocolatier over on GH right now.
https://geekhack.org/index.php?topic=96481.0
MortalKonga
39
Aug 2, 2018
Seeing the "supported layouts" section made me wonder, does this pcb support ISO/IEC layout?
bboltn
261
Jun 25, 2018

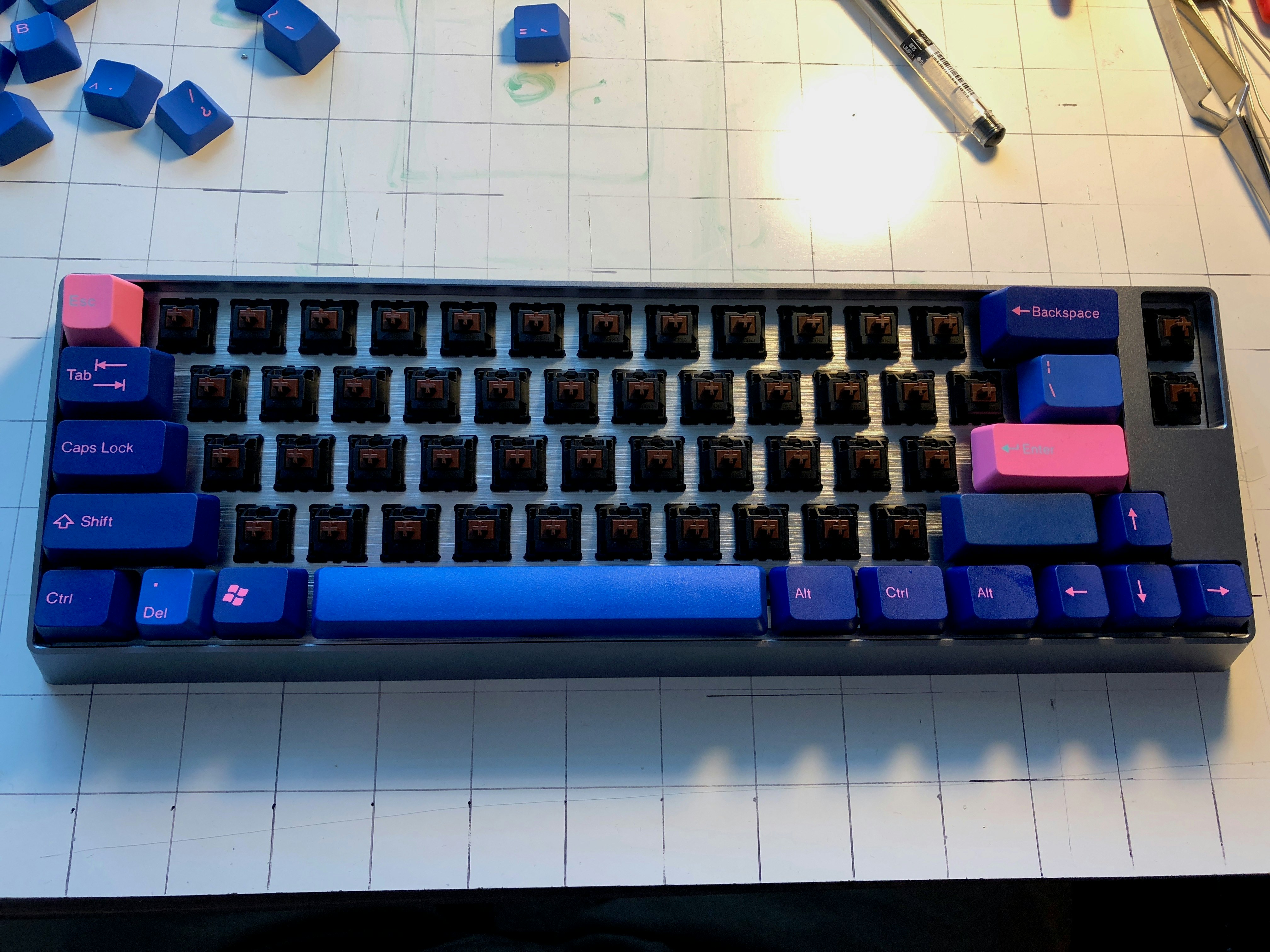

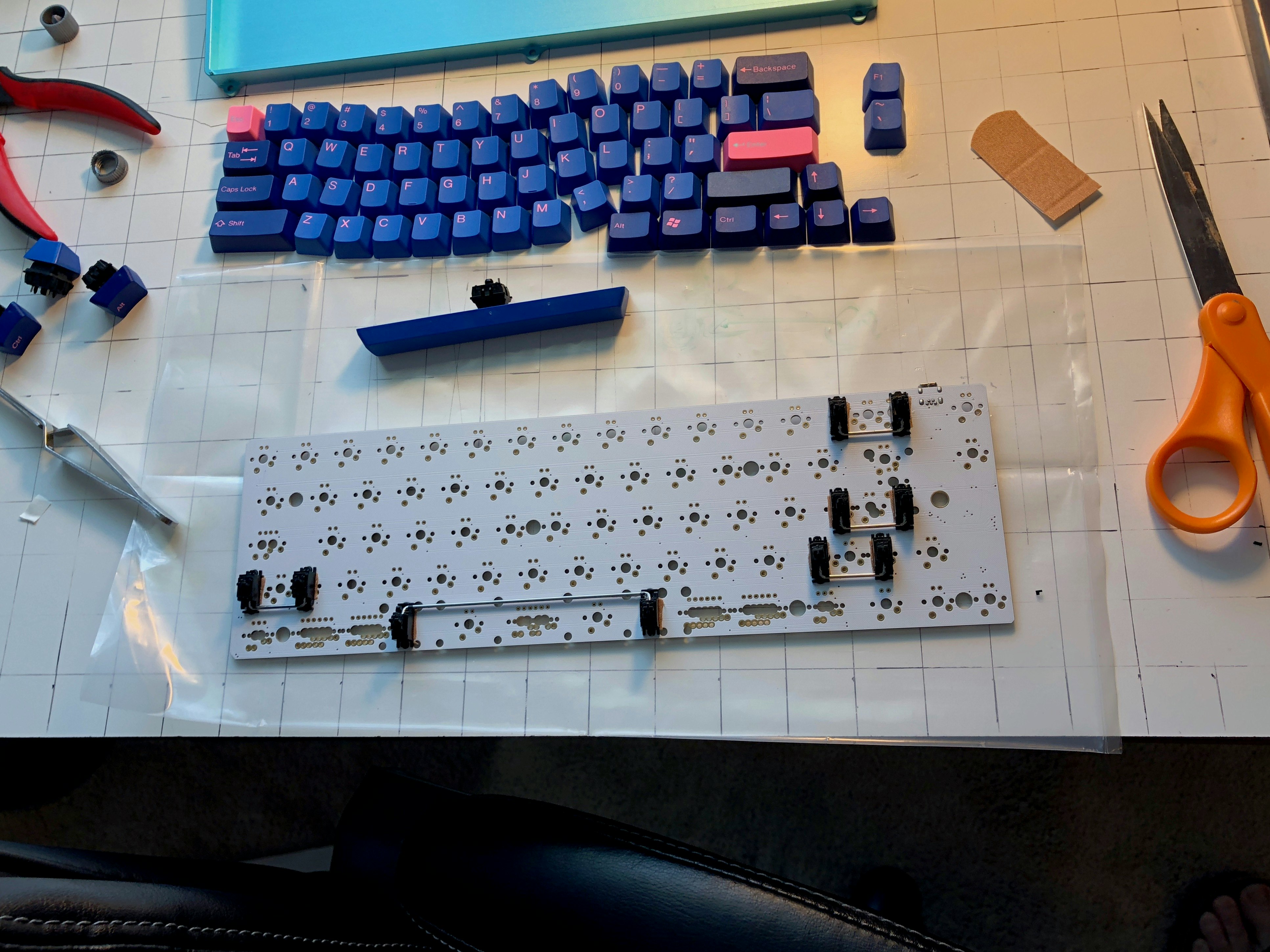

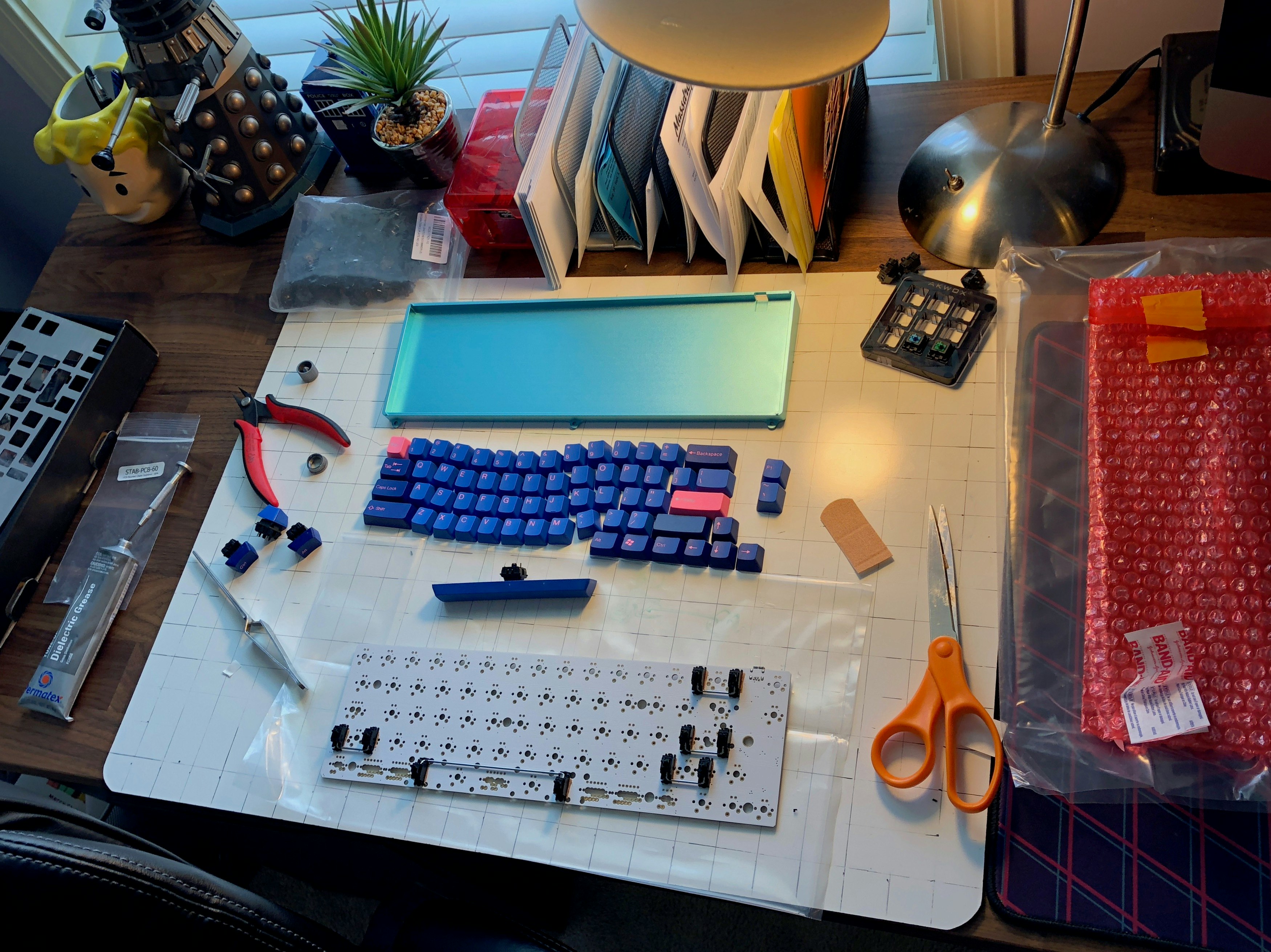

I put this keyboard together yesterday. It looks great and it feels well built. I haven't had a chance to use it for an extended period. So far the cherry browns feel nice (I've never used that switch before). I also used bandaids for my stabs which really does make them quieter.
I like my keycaps but they are not complete. I need a smaller 1U alt and a right shift -- something else to buy.
As always, the firmware is a pain in the ass on MacOS. Once you get it programmed, you're fine, but actually getting the flasher software to recognize your keyboard is hit or miss. I ended up having to program it using my Windows PC even though I plan on using it only on MacOS. Just a word of warning if you only have access to Macs.
I like my keycaps but they are not complete. I need a smaller 1U alt and a right shift -- something else to buy.
As always, the firmware is a pain in the ass on MacOS. Once you get it programmed, you're fine, but actually getting the flasher software to recognize your keyboard is hit or miss. I ended up having to program it using my Windows PC even though I plan on using it only on MacOS. Just a word of warning if you only have access to Macs.
Xyverz
619
Oct 30, 2018
You may want to ask this question in /r/olkb on Reddit. They'll get you sorted out good. :-)
euno
1
Nov 5, 2018
I am having the exact same issue as you. Same row even, the tab row. I tested continuity on every switch, diode, and resistor, still stumped at why that row is dead. I am on Linux, and similar to you as well this isn't my first kit so I don't think it was the solder. I am going to try to re-solder all the switches in that row, but otherwise I am stumped.
StrangeloveEsq
25
Apr 5, 2018
Really wish there were more pictures of each different color. Does the silver case have black sides or silver sides? It's not entirely clear from the one picture.
StrangeloveEsq
25
Apr 5, 2018

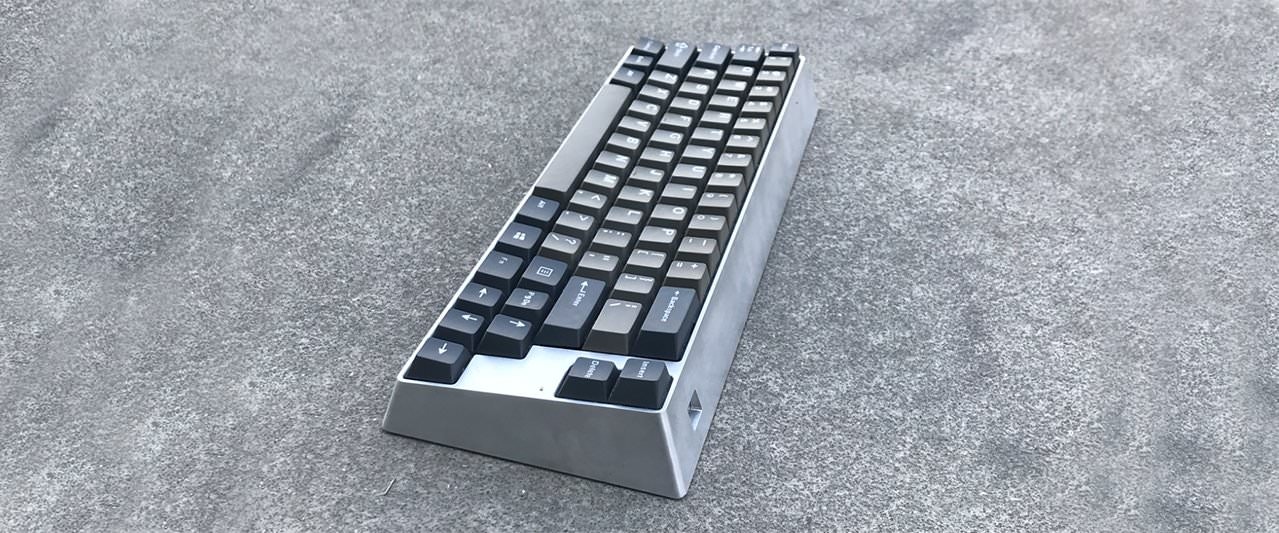

StrangeloveEsqAnnoying that I had to hunt around for this myself, but I found this picture of the silver case on Reddit. I think this is the one in the drop, but it's also odd because the pictures on this page make it look like the silver case has black sides.
Showing 28 of 84
