Mega 2560 R3 4WD Robot Kit Bundle for Arduino
Build Your Own Arduino-Controlled Robot
Spur your creativity with this bundle for Arduino. Comprising the Sainsmart Mega 2560 Board, Sensor Shield V5, L298N Motor Controller, HC-SR04 Distance Sensor, and the mobile robot car, it’s loaded with technology to help you start experimenting even more with your Arduino. The MEGA 2560 Board contains everything necessary to support the microcontroller. Just connect it to a computer via USB or power it with the AC adapter. The new Sensor Shield V5 has the COM and I2C (IIC) ports separated so that both can be used simultaneously for maximum potential. You can also add the full-metal tank at checkout. See below for more details.
Note: This drop includes the Sensor Shield V5, L298N Dual H Bridge DC Motor Driver, and the Ultrasonic HC-SR04 Distance Sensor. At checkout, you can add the Full-Metal Chassis Track Tank V3.0 for (+ $90).
Video Demo
Optional Full-Metal Chassis Track Tank V3.0 (+ $90)
Use your Arduino to take control of an armored tank with this hefty upgrade. Outfitted with triangular tank-style wheels for maximum traction, this pre-assembled monster is ready for all types of terrain. It’s capable of carrying over 20 pounds on its platform, too—great for outdoor experimentation.
Specs

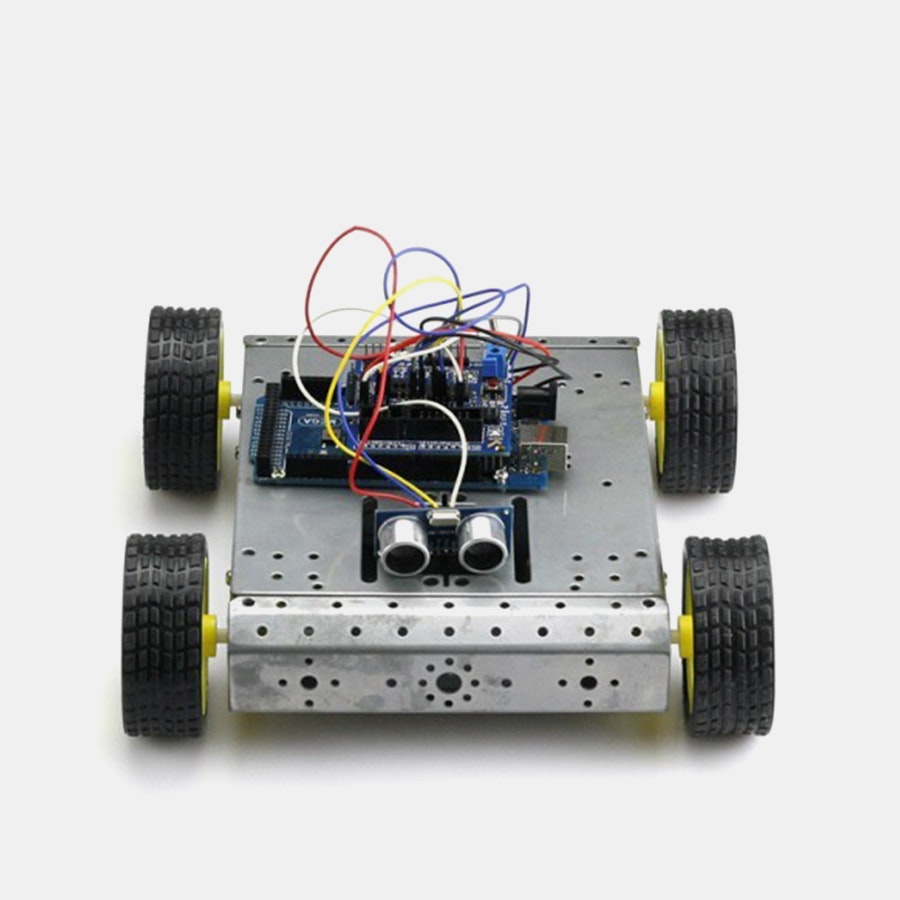

SainSmart 4WD Mobile Robot Platform
- Holds many controllers, drivers, sensors, RF modules, etc.
- Supports plate with controller mounting holes, 2 dof pan
- Tilt holds down groove
- Collision switch mounting hole can be added with sensors
- Elastic rubber tires
- Reduction ratio: 1:48
- No-load speed: 220 rpm
- Wheel diameter: 2.6 in (6.5 cm)
- Wheel width: 1 in (2.6 cm)
- Platform length: 8.1 in (20.6 cm)
- Platform width: 7.9 in (20 cm)
- Platform height: 2.4 in (6.2 cm)
- Platform weight: 21.9 oz (620 g)
SainSmart L298N Dual H Bridge DC Motor Driver
- Driver: L298N Dual H Bridge DC Motor Driver IC
- Terminal supply area of driven part Vs: +5 V ~ +35 V (such as the need to take power within the board)
- Supply area Vs: 7V ~ 35V
- Peak current of driven part Io: 2A
- Terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
- Operating current range of the logical part: 0 ~ 36mA
- Control signal input voltage range:
- Low:-0.3V ≤ Vin ≤ 1.5V
- High: 2.3V ≤ Vin ≤ Vss
Enable signal input voltage range
- Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
- High: 2.3V ≤ Vin ≤ Vss (control signal active)
- Maximum power consumption: 20W (when the temperature T = 75 °C)
- Storage temperature: -25 °C ~ +130 °C
- Driver board size: 2.2 x 1.9 x 1.3 in (5.5 x 4.9 x 3.3 cm) with fixed copper pillar and the heat sink height)
- Driver board weight: 1.2 oz (33 g)
- Other extensions: control of direction indicators, the logic part of the plate to take power interface
SainSmart Ultrasonic HC-SR04 Distance Sensor
- Power supply :5V DC
- Quiescent current : <2mA
- Effectual angle: <15°
- Ranging distance : 2 - 500 cm
- Resolution : 0.1 in (0.3 cm)
Full-Metal Chassis Track Tank V3.0 (+ $90)
- Includes tool kit
- Motor parameters:
- Speed: 12V / 336 rpm
- Current: 0.25A
- Torque: 4.8KG.cm
- Direct current speed reduction motor：
- Dimensions: 2.1 x 1.3 x 0.9 in (5.4 x 3.3 x 2.2 cm)
- Output shaft length: 0.45 in (1.15 cm)
- Output shaft diameter: 0.2 in (0.5 cm)
- Reduction gearbox diameter: 1.3 in (3.3 cm)
- Reduction gearbox thickness: 0.6 in (1.6 cm)
- Pitch-row: 0.9 in (2.3 cm)
- bore diameter: 0.11 in (0.3 cm)
- Weight: 3.6 oz (102 g)
- Tank specs:
- Maximum load: 22 lbs (10 kg)
- Dimensions: 8.9 x 8.9 x 4.1 in (22.5 x 22.5 x 10.3 cm)
- Weight: 2.3 lbs (1050 g)
Included
- SainSmart Mega 2560
- SainSmart Sensor Shield Module V5
- SainSmart 4WD Drive Aluminum Mobile Car Robot Platform
- SainSmart L298N Dual H Bridge DC Motor Driver
- SainSmart Ultrasonic Module HC-SR04 Distance Sensor
