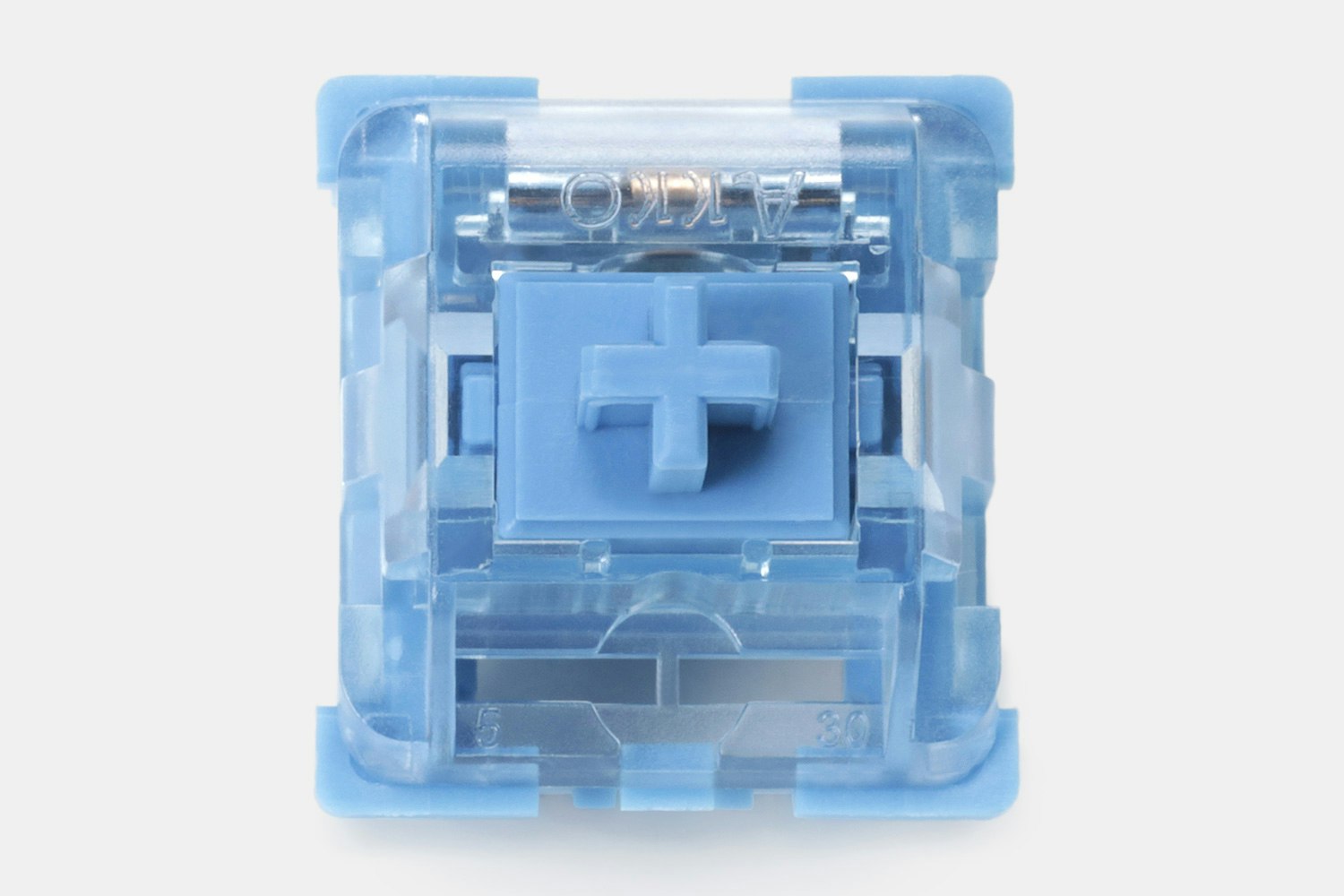

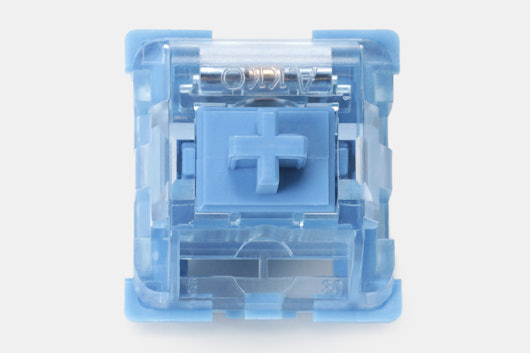

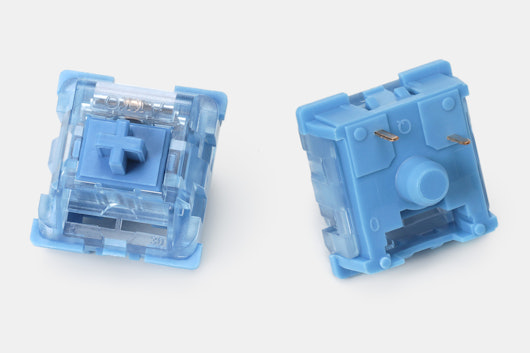

AKKO CS Series Custom Mechanical Switches
.png?auto=format&fm=jpg&fit=crop&w=200&h=200&bg=f0f0f0&dpr=1&q=70)
Custom Switches With Clean Action
AKKO’s CS Series are mechanical switches that add reliable performance and satisfying action to your keyboard. Every CS switch goes through a stringent level of quality control to ensure that each one will hit just right, and because every switch is tested to 60 million actuation strokes, you can be sure that that quality will last you for years to come. This run features a variety of switch options that vary between linear and tactile and offer a whole range of resistance levels. The Radiant Red, for instance, is a linear switch that provides a stiff 53 grams of operating force— while the Vintage White sits on the other end of the spectrum delivering linear action at a feather light 35 grams of force. Each switch is compatible with three-pin hot-swappable sockets and sports Cherry MX-style stems.
.jpg?auto=format&fm=jpg&fit=crop&w=1080&bg=f0f0f0&dpr=3&chromasub=444&q=24)
.jpg?auto=format&fm=jpg&fit=crop&w=1080&bg=f0f0f0&dpr=3&chromasub=444&q=24)

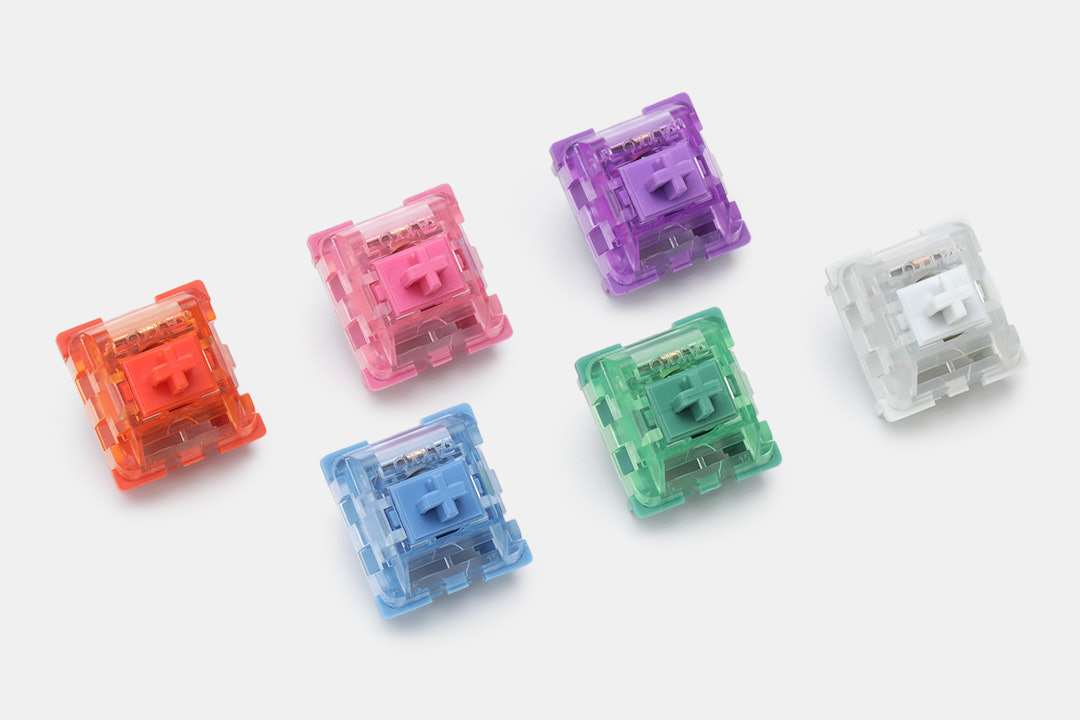

Style Options

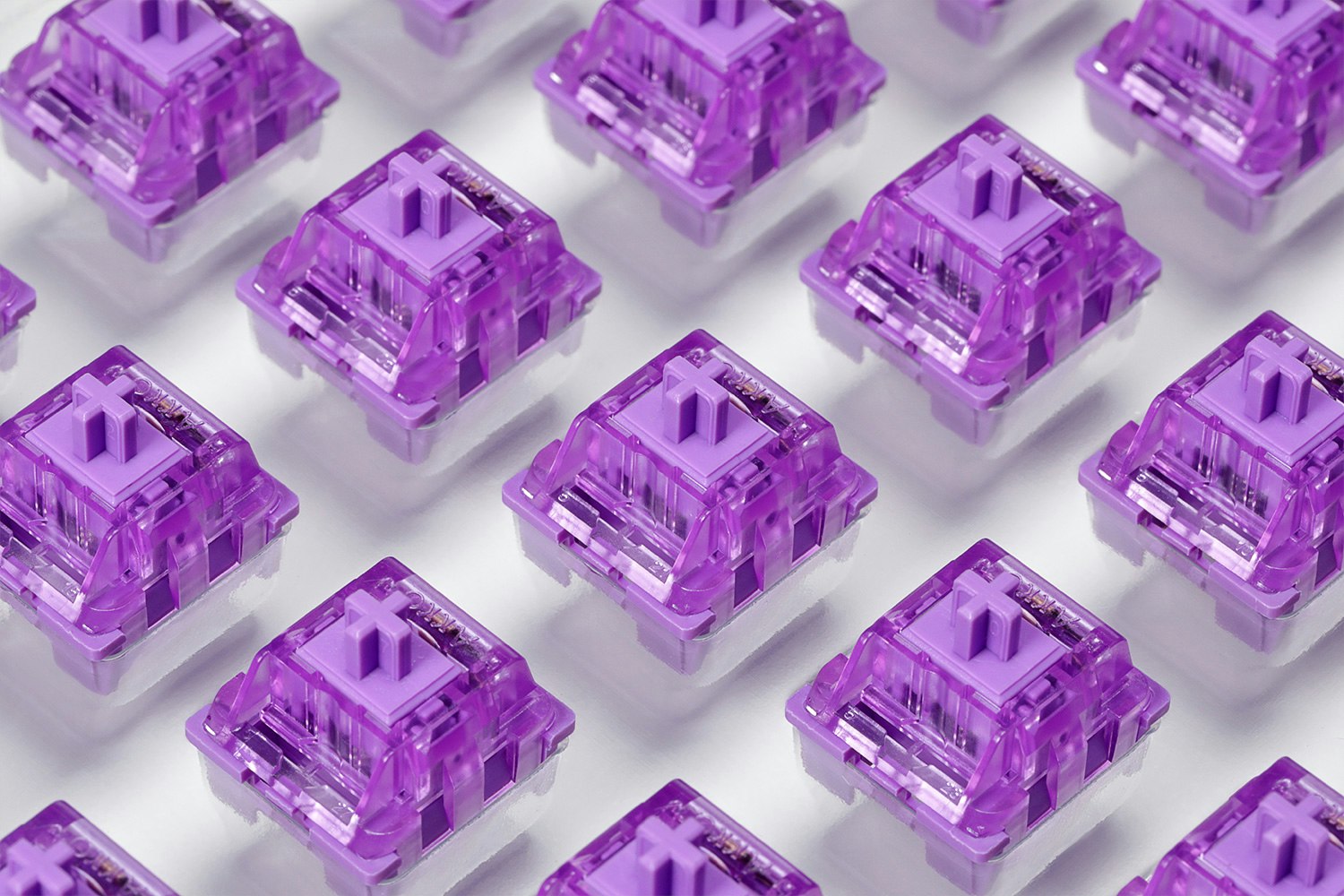

Lavendar Purple

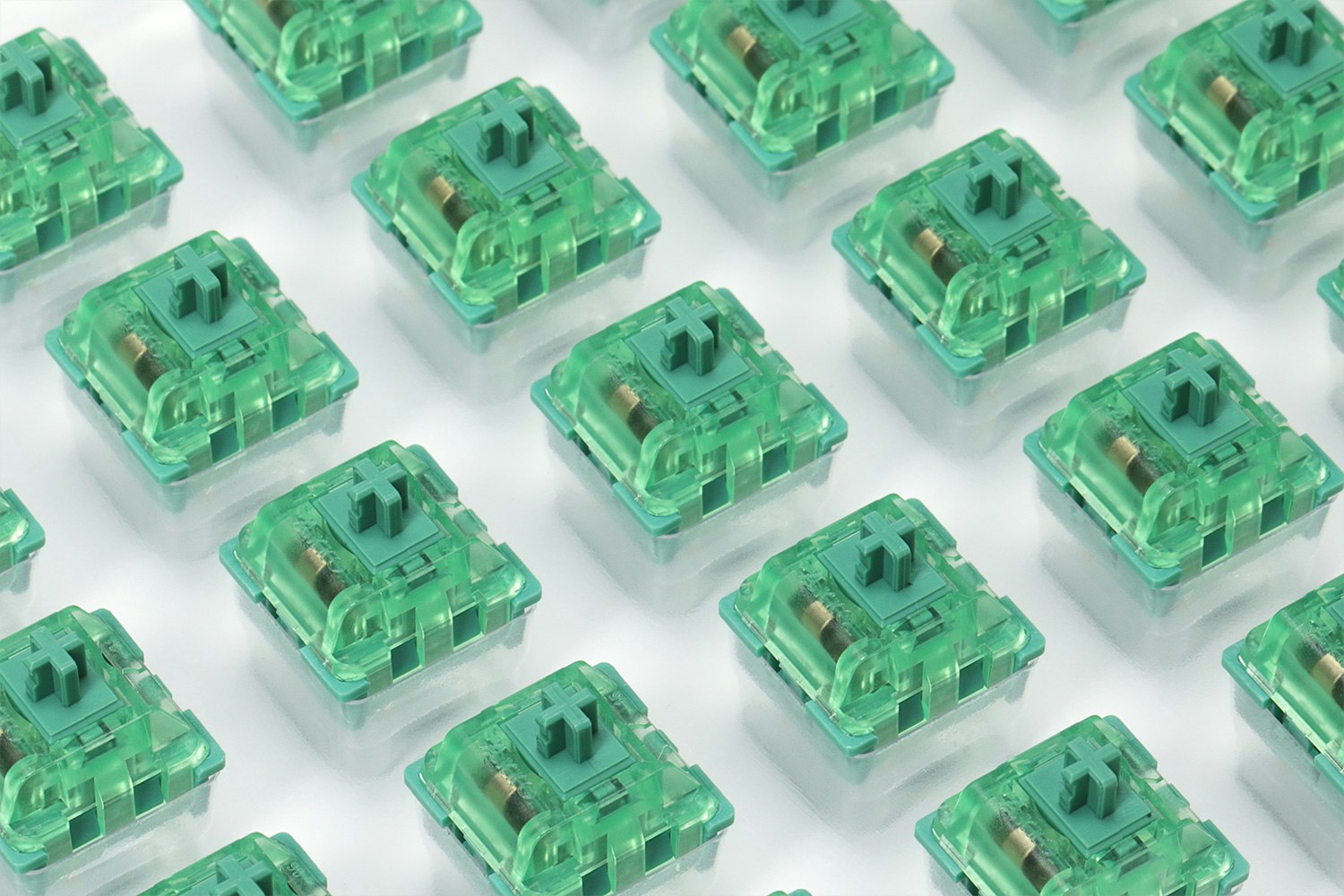

Matcha Green

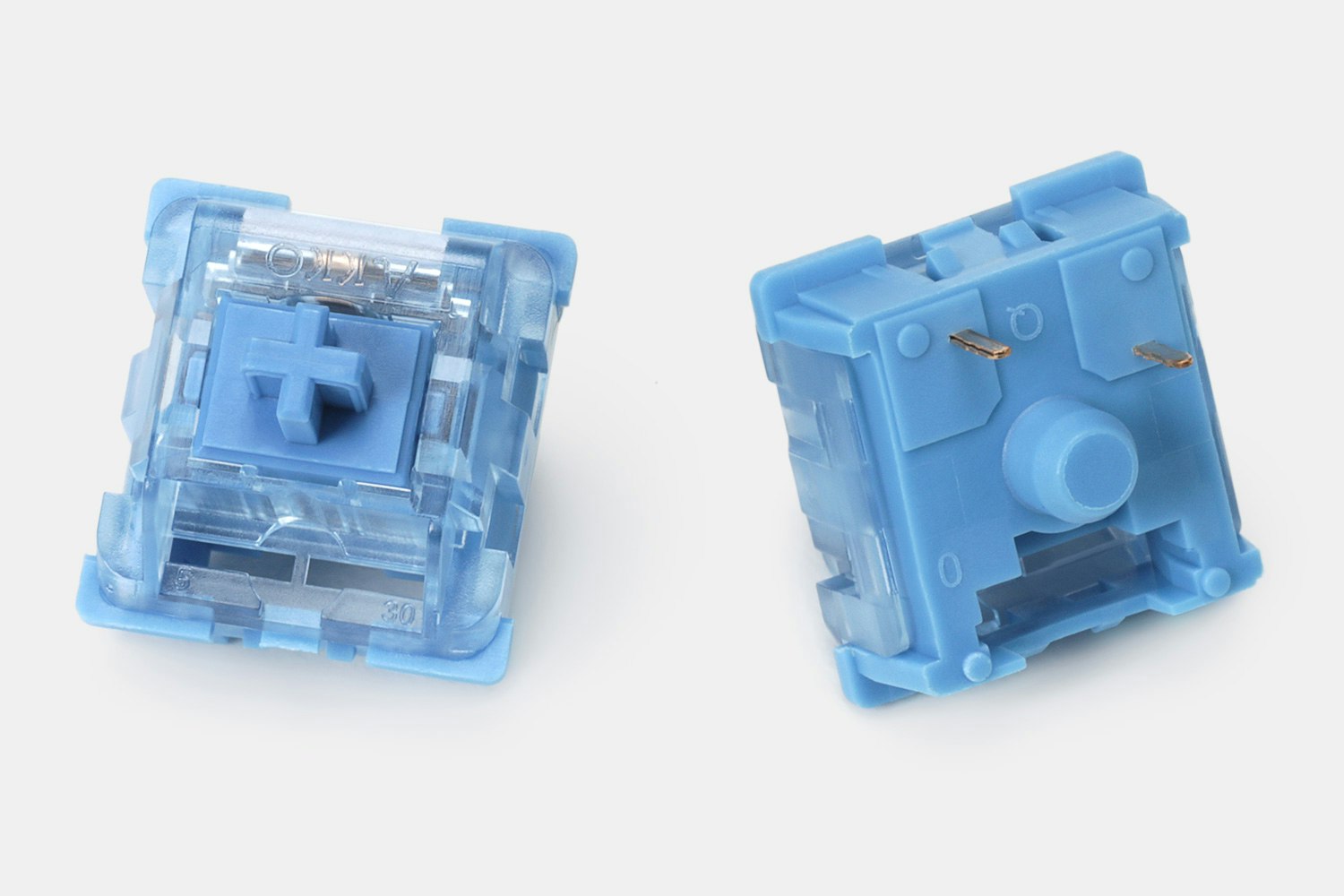

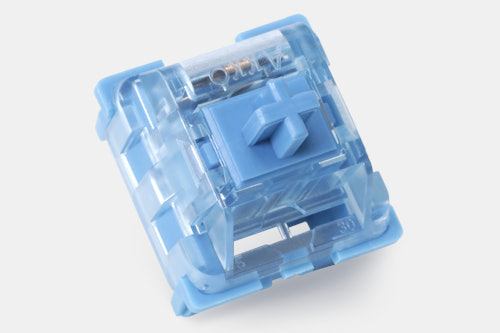

Ocean Blue
Radiant Red

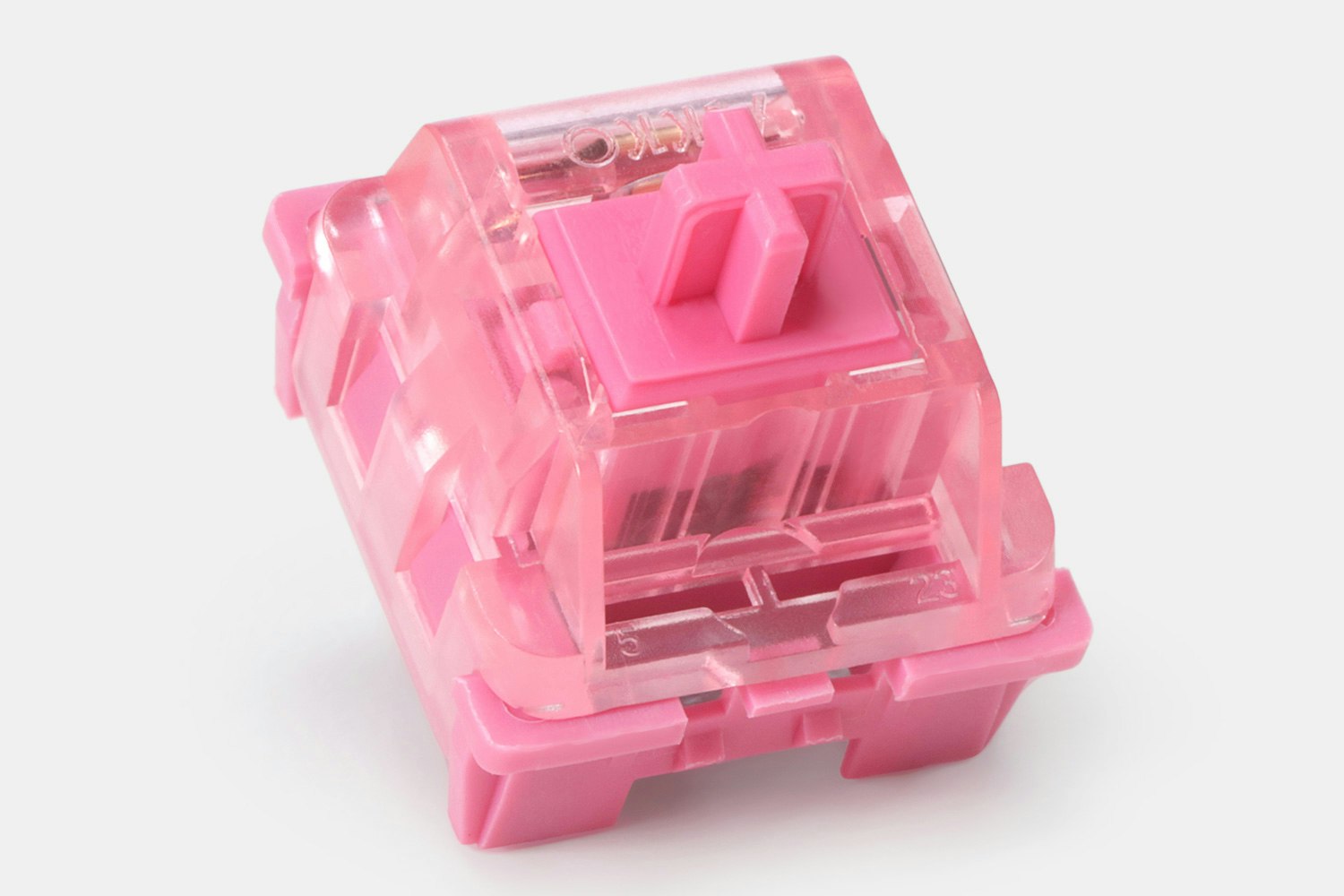

Rose Red

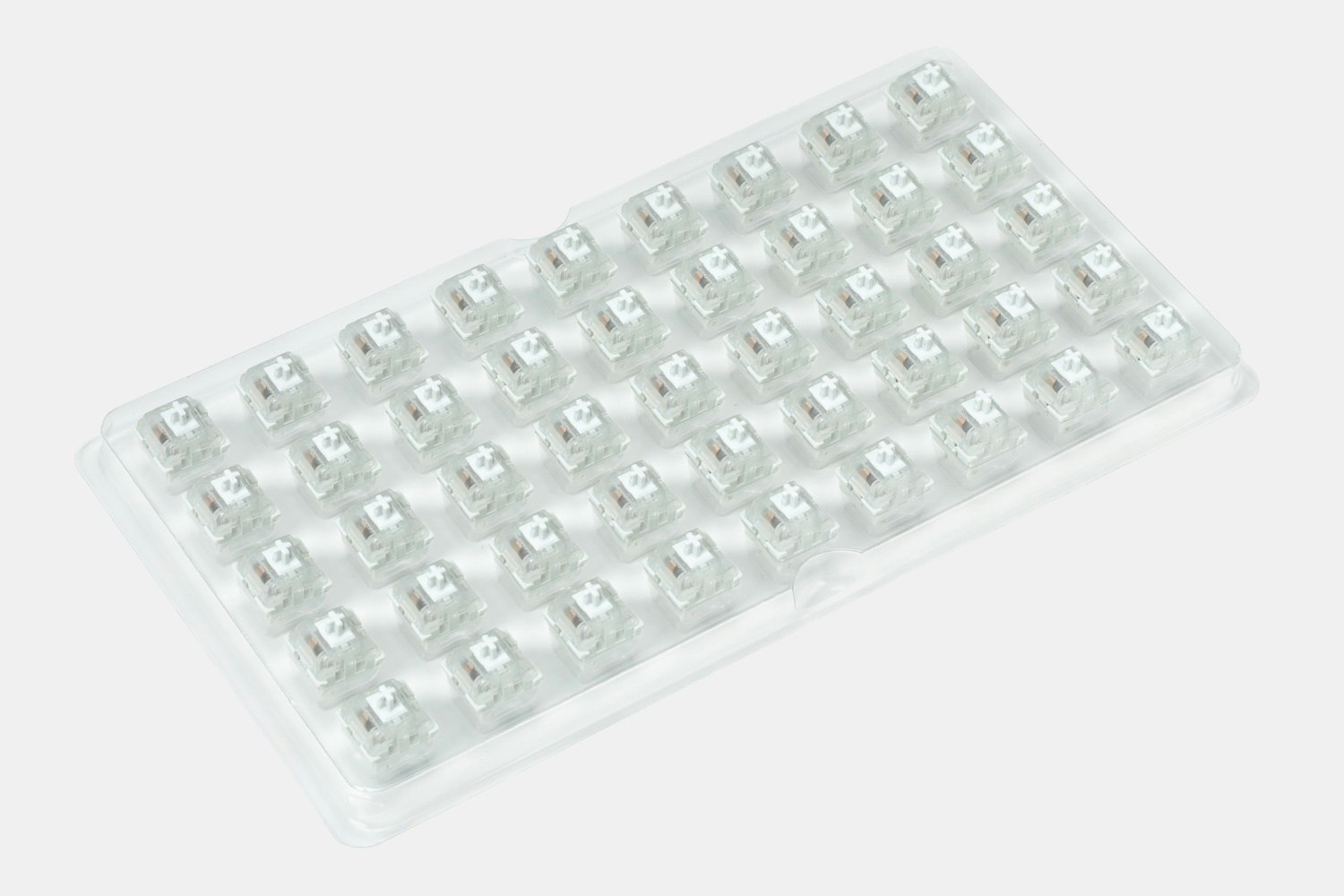

Vintage White

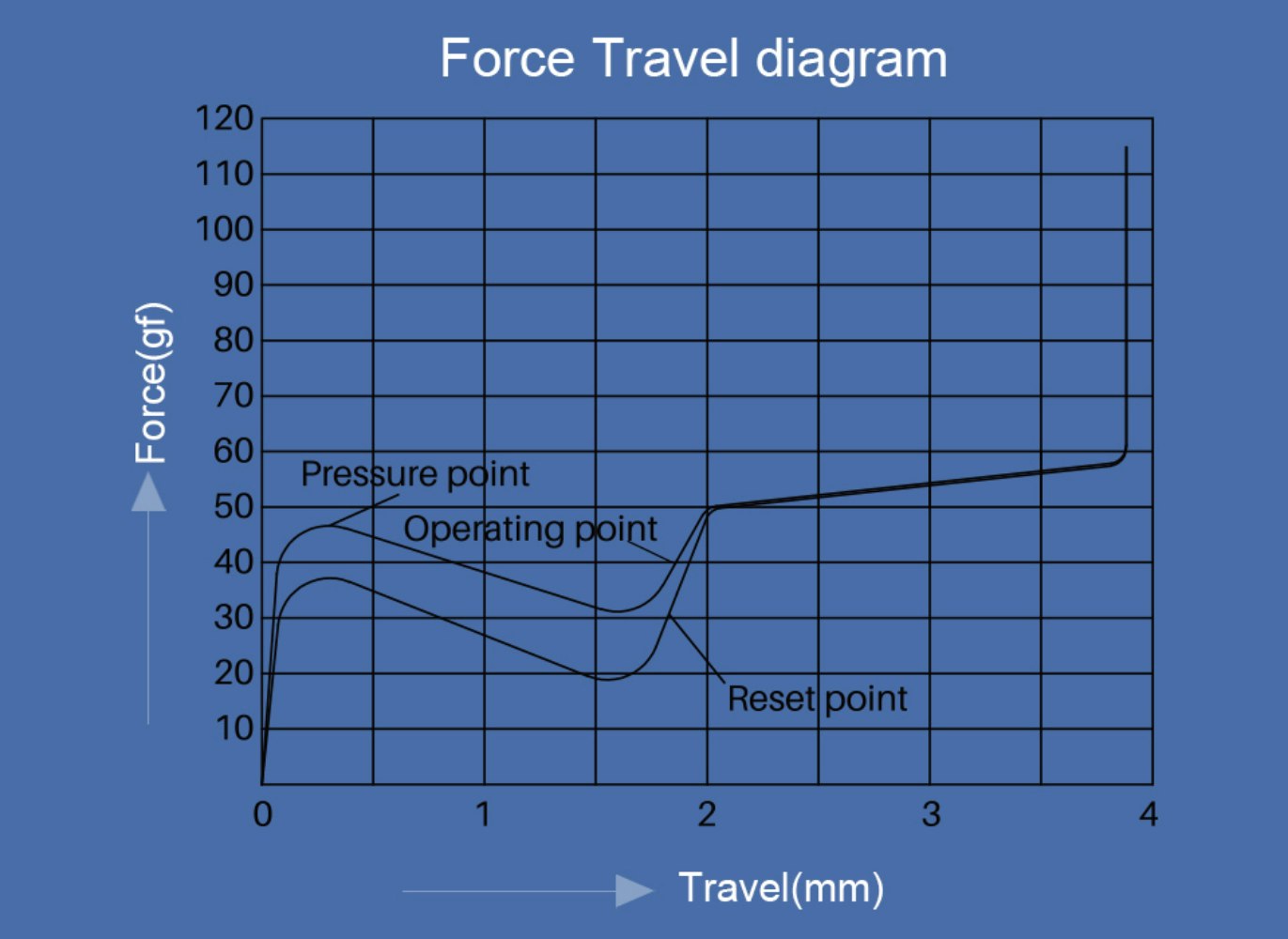

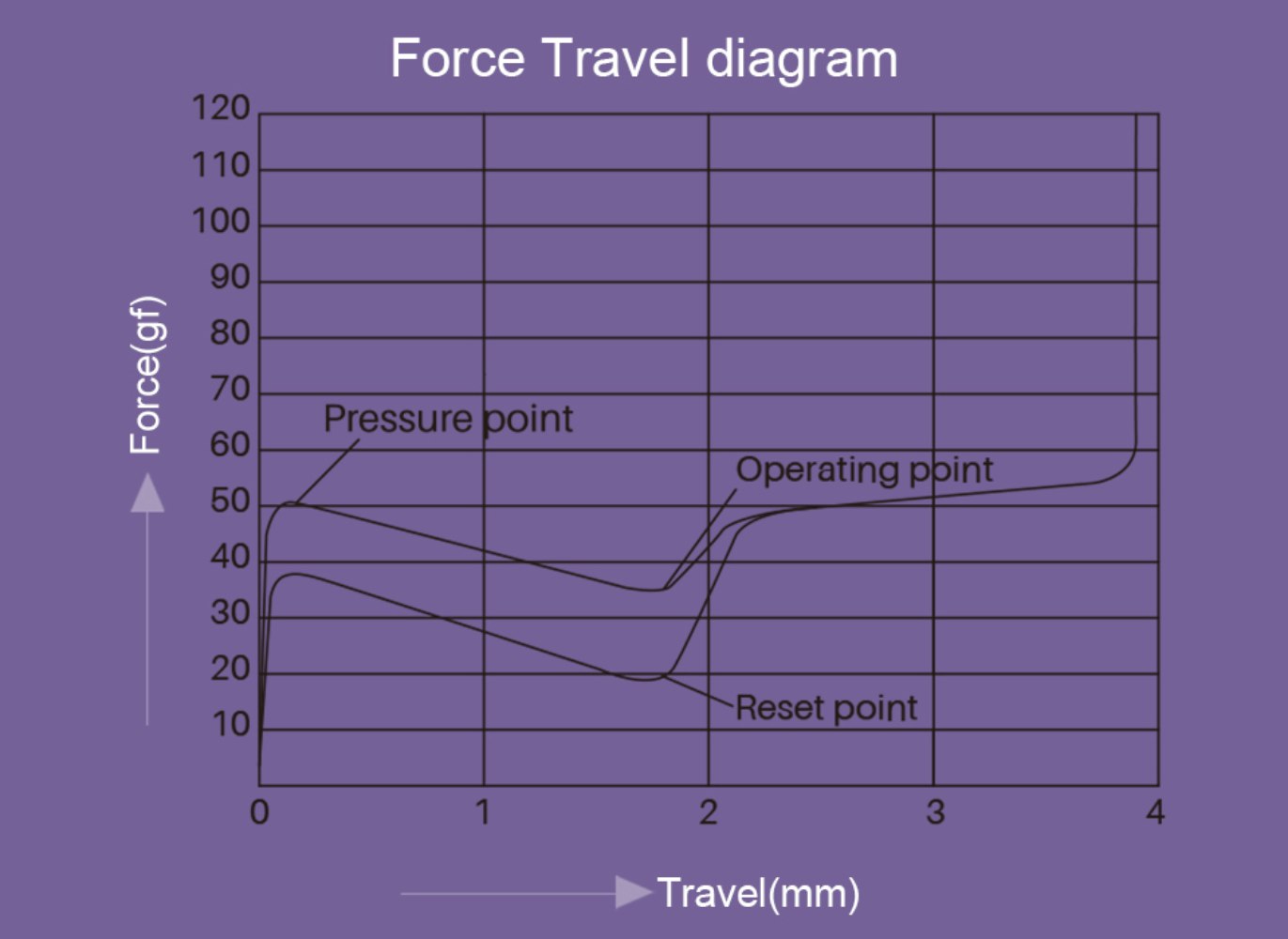

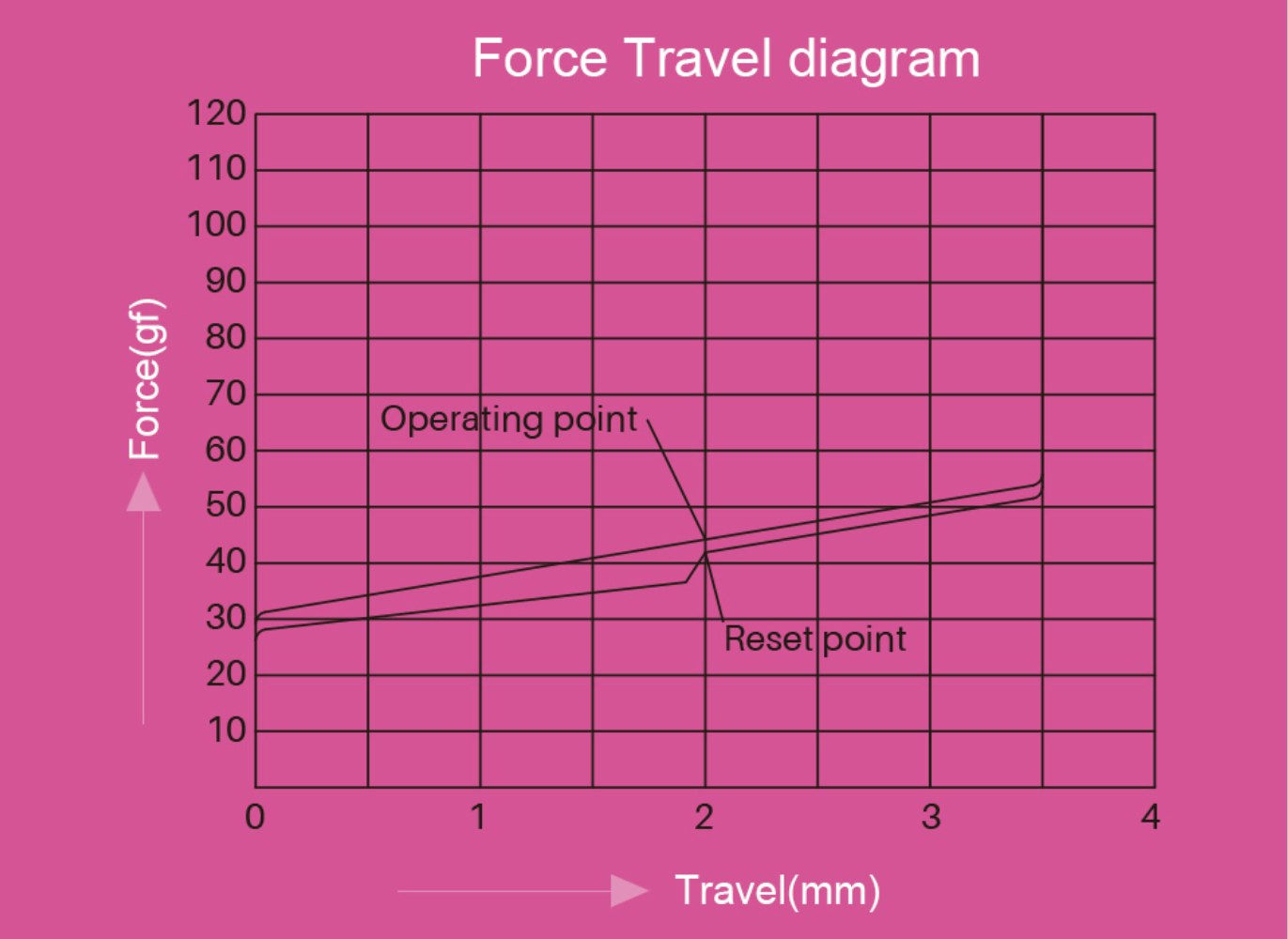

Force Curve Diagrams
.jpg?auto=format&fm=jpg&fit=crop&w=512&bg=f0f0f0&dpr=1&chromasub=444&q=70)
.jpg?auto=format&fm=jpg&fit=crop&w=58&dpr=1&q=70)
Lavendar Purple.jpg?auto=format&fm=jpg&fit=crop&w=58&dpr=1&q=70)
Matcha Green.jpg?auto=format&fm=jpg&fit=crop&w=58&dpr=1&q=70)
Ocean Blue.jpg?auto=format&fm=jpg&fit=crop&w=58&dpr=1&q=70)
Radiant Red.jpg?auto=format&fm=jpg&fit=crop&w=58&dpr=1&q=70)
Rose Red.jpg?auto=format&fm=jpg&fit=crop&w=58&dpr=1&q=70)
Vintage White
Specs
Rose Red:
- AKKO
- Switch type: Linear
- Spring: Progressive
- Actuator travel: 3.5 mm
- Pretravel: 1.9 mm
- Operating force: 43 g

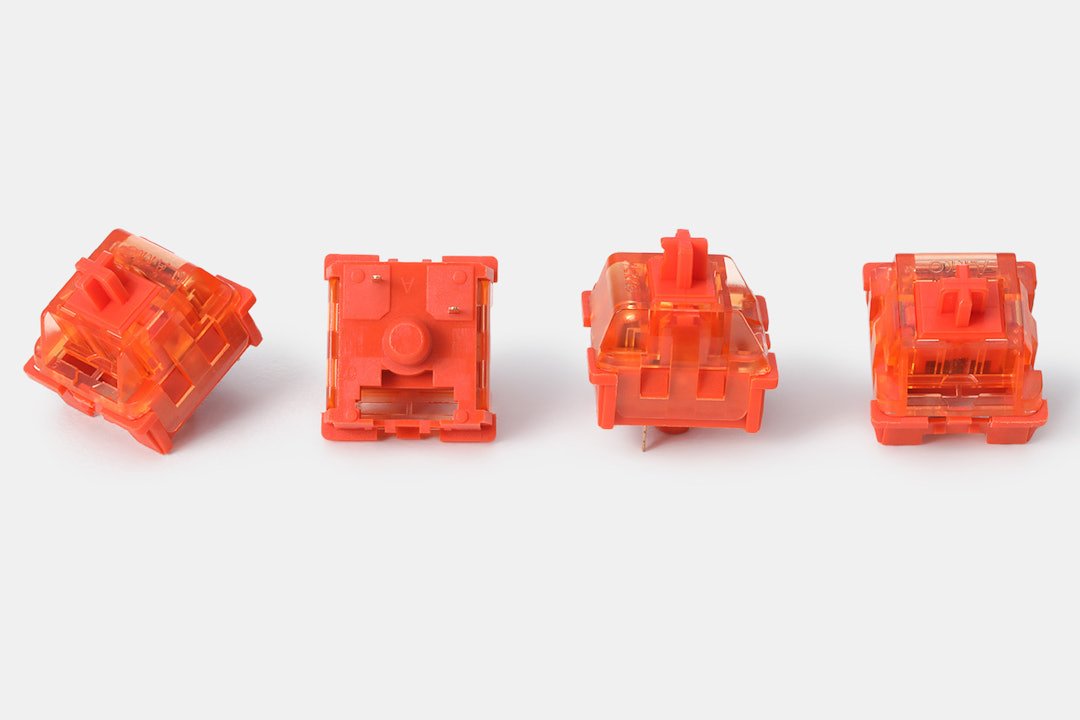

Radiant Red
- AKKO
- Switch type: Linear
- Spring: 18 mm extension spring
- Actuator travel: 3.5 mm
- Pretravel: 1.9 mm
- Operating force: 53 g
Vintage White
- AKKO
- Switch type: Linear
- Spring: 22 mm extension spring
- Actuator travel: 4.0 mm
- Pretravel: 1.9 mm
- Operating force: 35 g

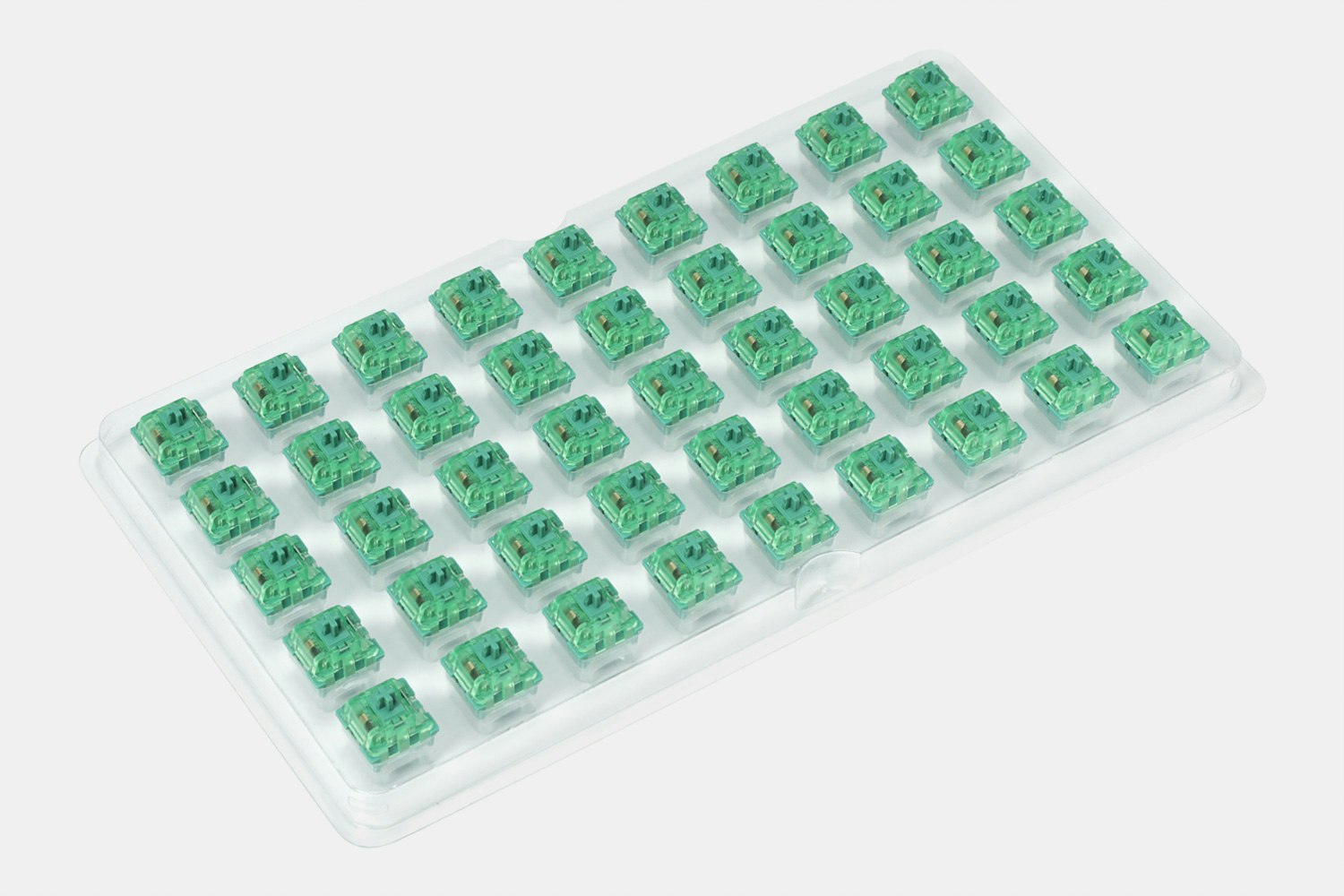

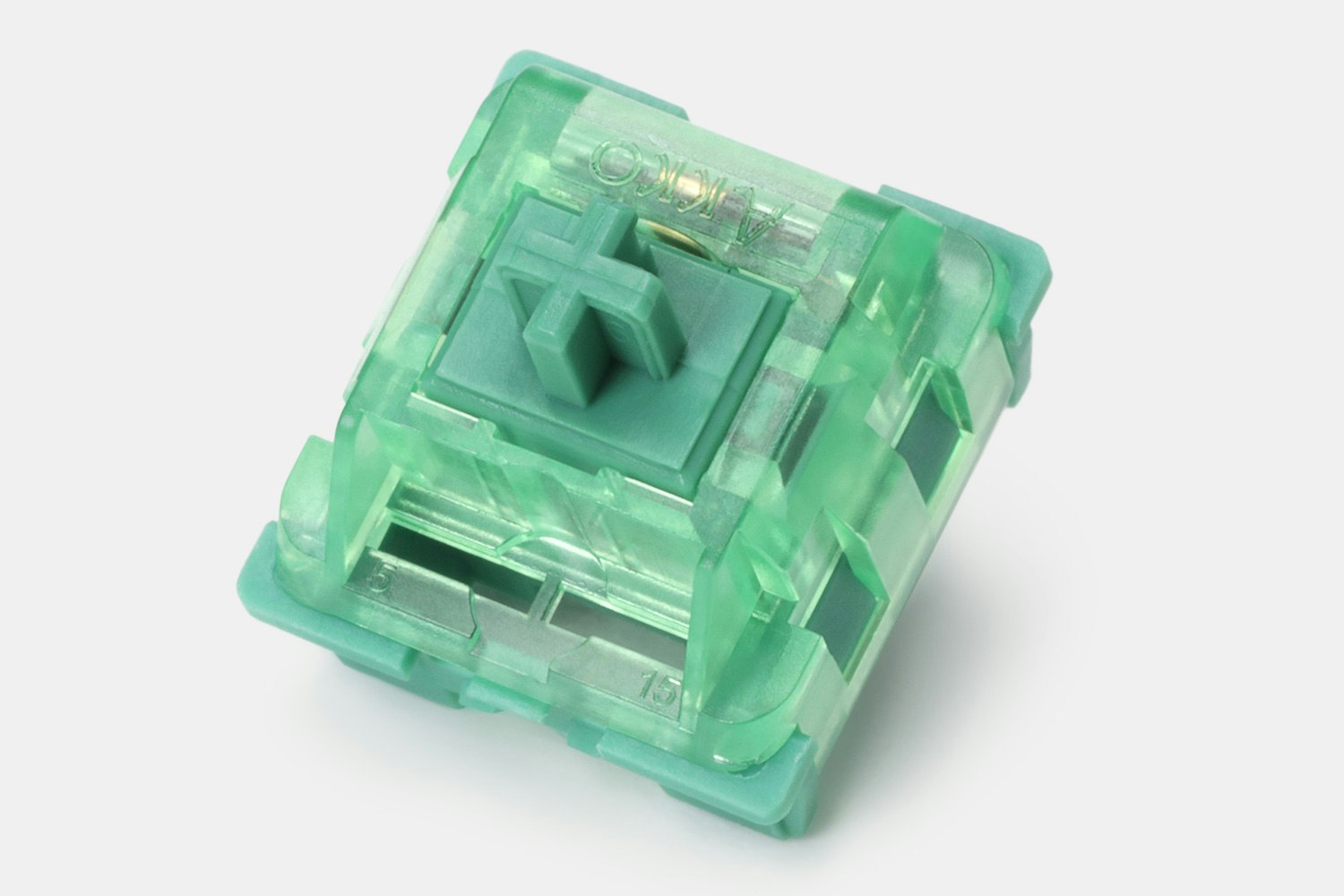

Matcha Green
- AKKO
- Switch type: Linear
- Spring: Progressive spring
- Actuator travel: 4.0 mm
- Pretravel: 1.9 mm
- Operating force: 50 g
Ocean Blue
- AKKO
- Switch type: Tactile
- Spring: Progressive spring
- Actuator travel: 4.0 mm
- Pretravel: 1.9 mm
- Operating force: 36 g
Matcha Green
- AKKO
- Switch type: Tactile
- Spring: 18 mm extension spring
- Actuator travel: 4.0 mm
- Pretravel: 1.9 mm
- Operating force: 36 g
Shipping
Estimated ship date is Mar 11, 2022 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
