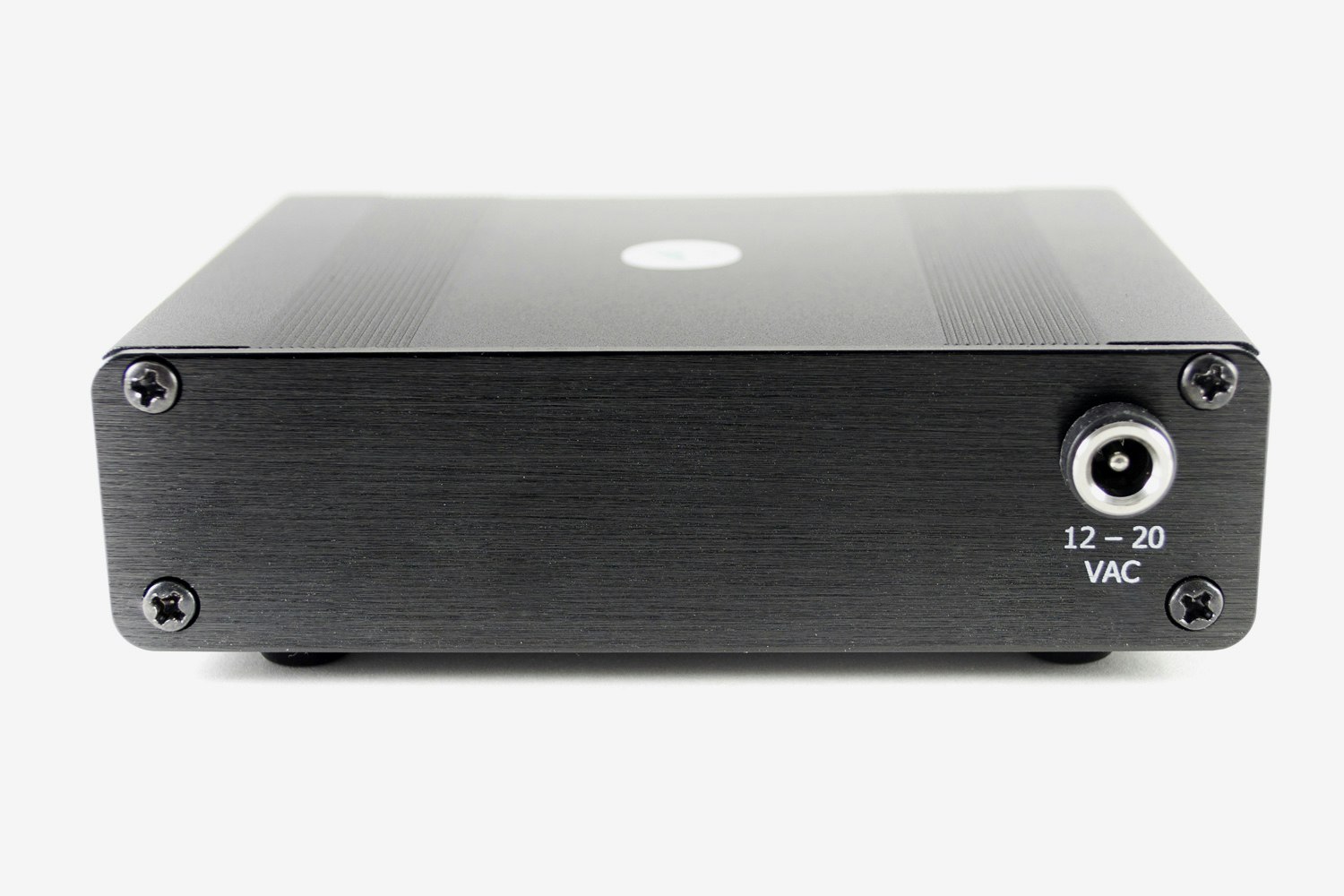

Mayflower O2 Amplifier
Visit Sherwood Forest
While the upper class of audiophiles used to hoard high-end equipment, a modern reincarnation of Robin Hood has designed his own top quality take on headphone amplifiers and shared it with the masses. Based on NwAvGuy’s open source design, the Mayflower O2 Headphone Amp piles years of research into one highly functioning piece of equipment, converting your so-so audio into real live music.
Note: This drop includes a US power adapter. At check-out, you have your choice of output between 1/4” (6.3 mm), 1/8” (3.5 mm), or 1/8” with a Bamboo Panel.
Cut Through Controversy
The O2 was made for benchmark performance at an entry level price. Famed Head-Fi suer NwAvGuy spent a tremendous amount of time designing the O2, resulting in an impressive piece of equipment with truly objective power. The first DIY units went out for review and sparked a wave of controversy, but once the controversy subsided, the O2 was left standing as one of the best headphone amplifiers available below $500.
Sail the Mayflower
Making the most of open source, Mayflower picked up the design and made their own version. Their resulting product, the Mayflower O2 Headphone Amp, is renowned for its high-end sound, exceptional build quality, and excellent price. Every unit comes with an 1/8” input, but you can choose between an 1/8” and 1/4” output at check-out.
Additional options
Specs
- Mayflower Electronics
- Input: 1/8 in (3.5 mm)
- Outputs: 1/8 in (3.5 mm) or 1/4 in (6.3 mm)
- Frequency response: +0.01, -0.01 dB (20Hz-20kHz)
- THD 1 kHz 150 Ohms: 0.0016%
- THD 1 kHz 15 Ohms: 0.0023%
- THD 20 Hz 15 Ohms: 0.0023%
- THD 20 kHz 14 Ohms: 0.010%
- IMD CCIF 15 Ohms: 0.001%
- IMD SMPTE: 0.002%
- Noise (A-weighted): -114 dBu
- Max output (15 Ohms): 336 mW
- Max output (33 Ohms): 613 mW
- Max output (150 Ohms): 355 mW
- Output impedance: 0.54 Ohms
- Crosstalk (15 Ohms): 65 dB
- Channel balance: 0.6 dB
- Gain: 2.5x and 6.5x
- Volume potentiometer taper: 15A or 3B
- 1.0 lbs (0.45 kg)
Included
- US power adapter (120 V)
Shipping
Estimated ship date is Nov 14, 2014 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
