SMSL M6 DAC/Amp
Portable & Powerful

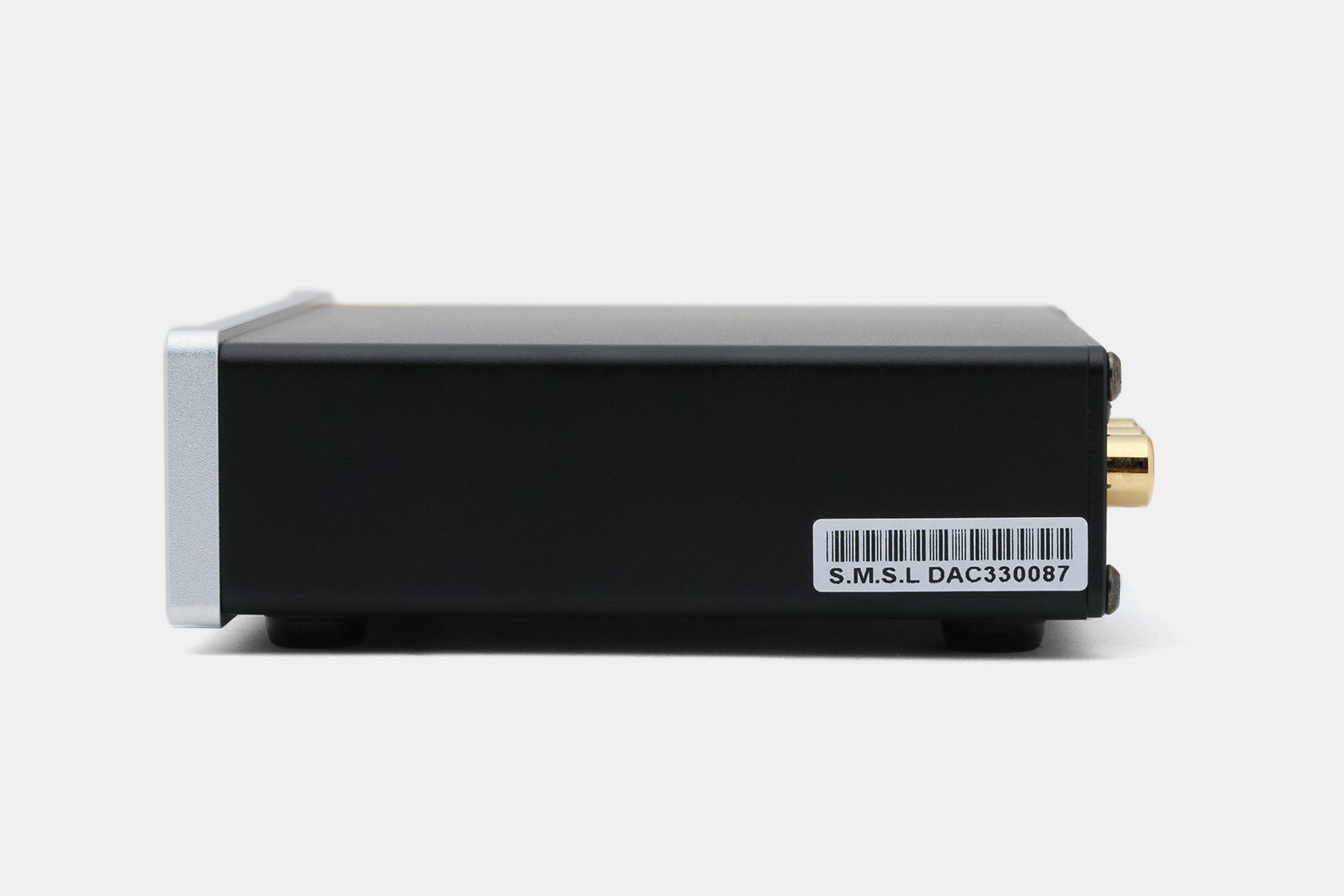

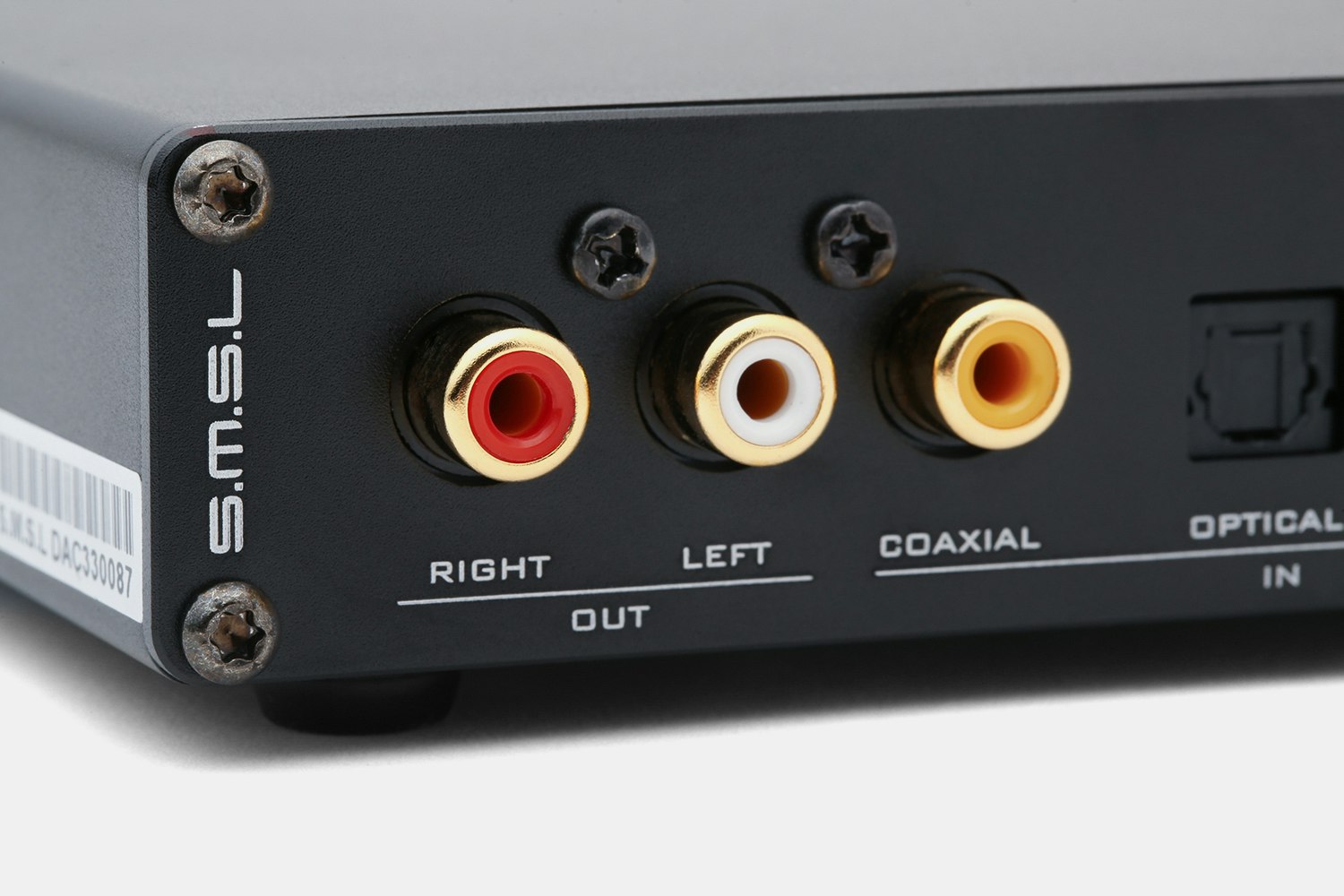

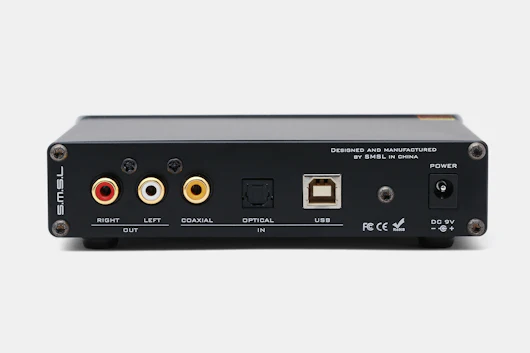

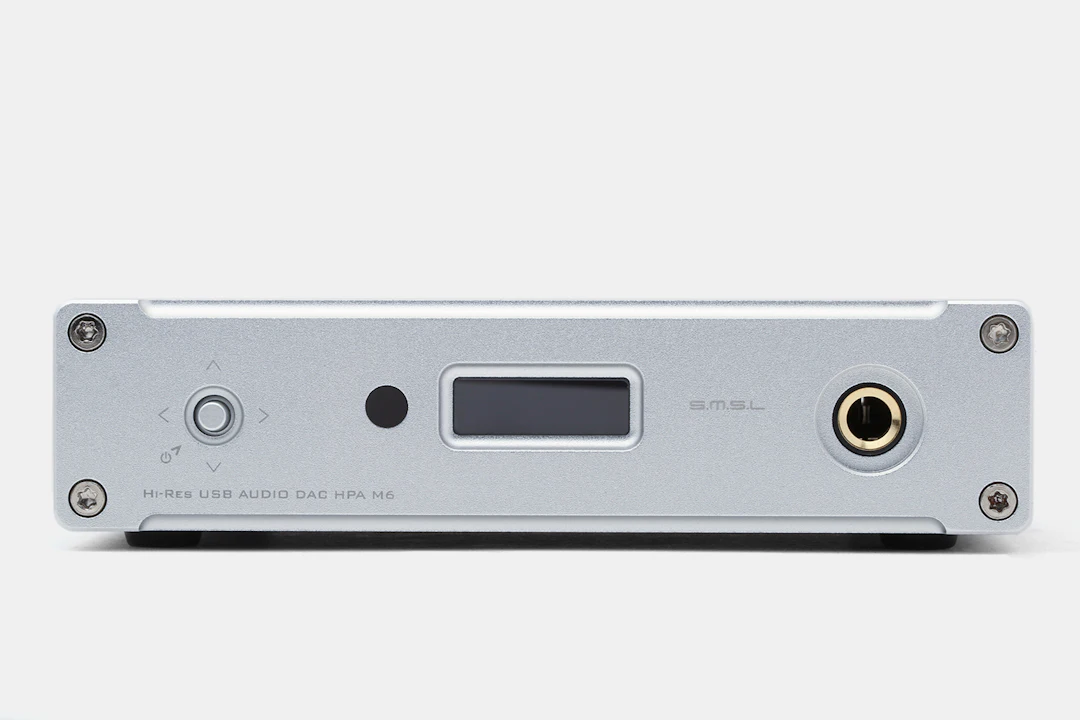

Upgrade your audio setup with the SMSL M6: a high-quality DAC and powerful amp rolled into one compact package. The aluminum housing has an industrial aesthetic, complete with a thick front panel with exposed screws. Inside, the DAC provides support for files up to 32 bit/384 kHz, and the amp has what it takes to drive high-impedance headphones and deliver clear, detailed sound. Along with USB, optical, and coaxial inputs, you’ll find a quarter-inch headphone jack and RCA analog outputs, great for connecting another headphone amp or speakers when you need more volume.
Note: At checkout, you’ll have your choice of models between black and silver.
Color Options

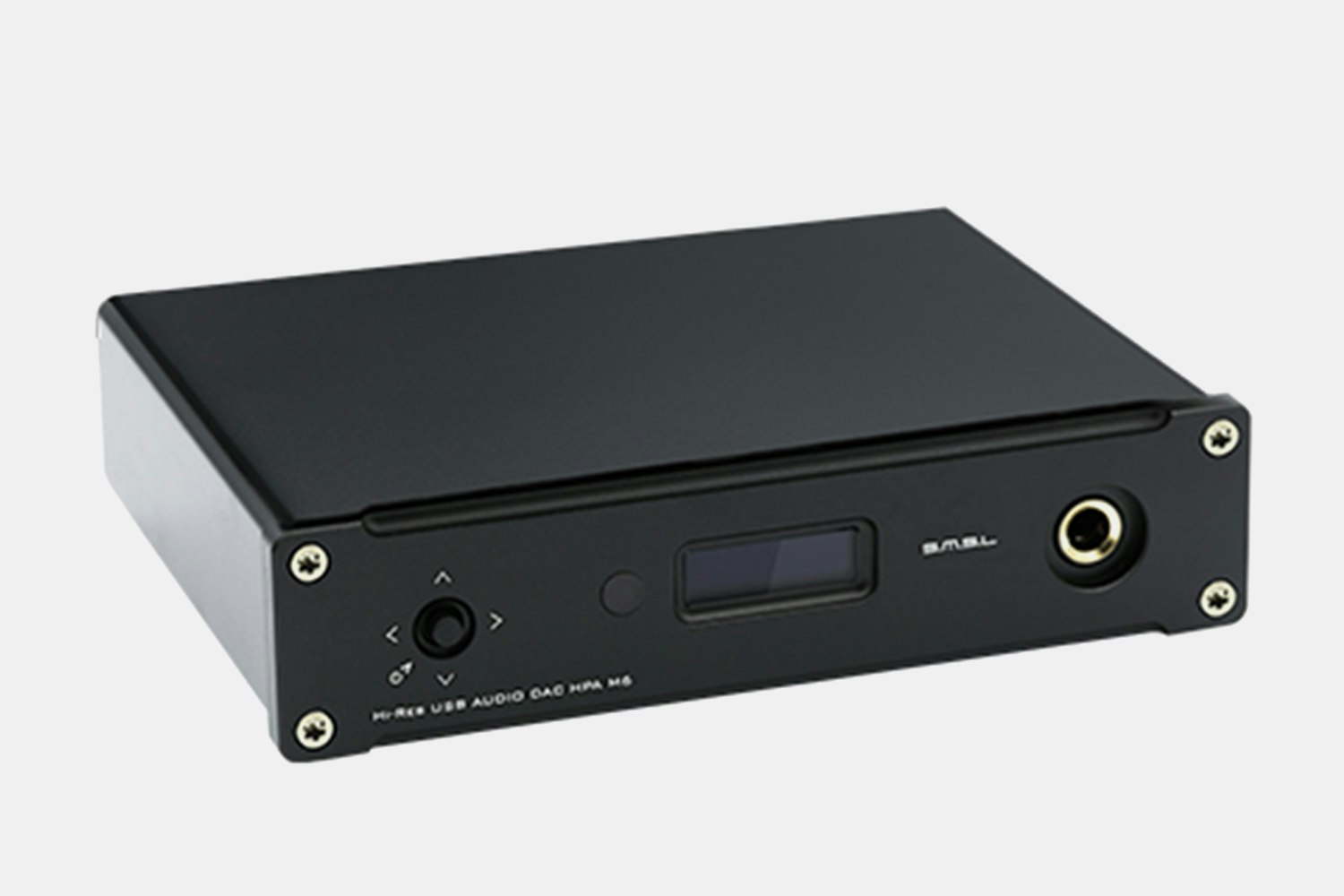

Black

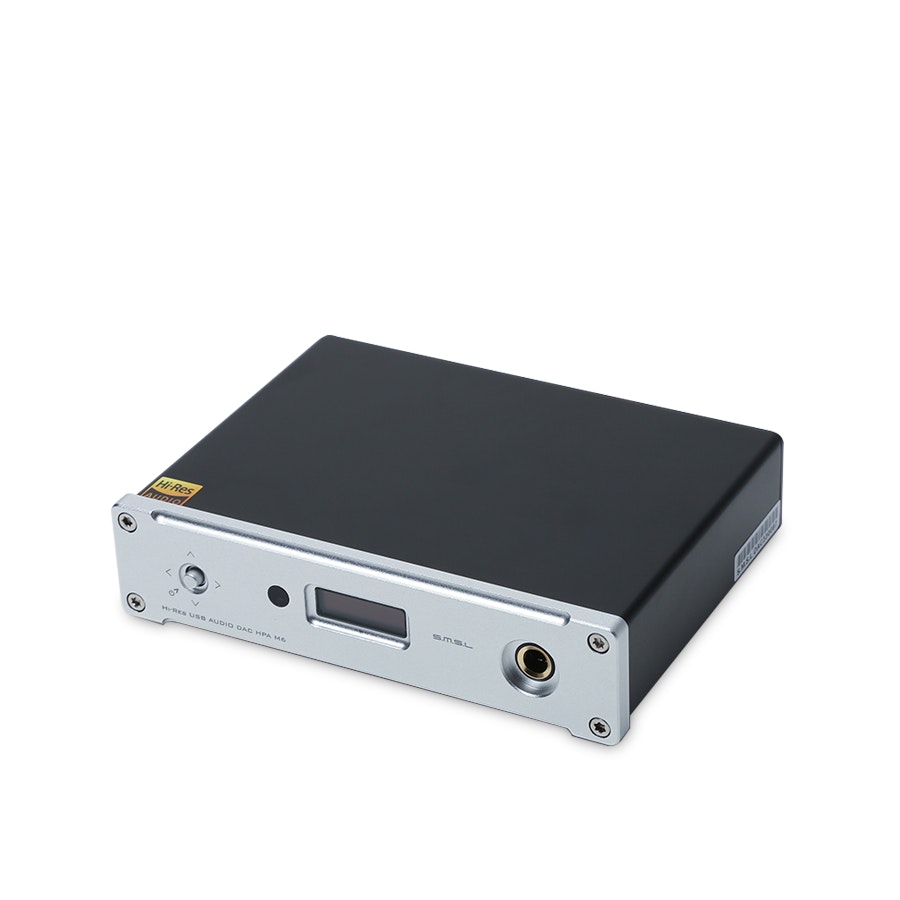

Silver
Specs
- SMSL
- DAC: AK4452
- USB input: 16 – 32 bit / 32 – 384 kHz (asynchronous)
- Optical fiber, coaxial: 16 – 24 bit / 32 – 192 kHz
- RCA output level: 2 Vrms
- Output power: 130 W
- THD + N: < 0.003%
- Dynamic range: > 115 dB
- Signal-to-noise ratio: > 120 dB
- Channel separation: > 110 dB
- Amp power (at 1% THD + N): 32 ohm, 130 mW; 64 ohm, 270 mW; 150 ohm 220 mW; 300 ohm 120 mW
- Amp distortion: 0.003% at 10 mW, 300 ohm
- Dimensions: 4.5 x 5.5 x 1.3 in (11.4 x 13.9 x 3.4 cm)

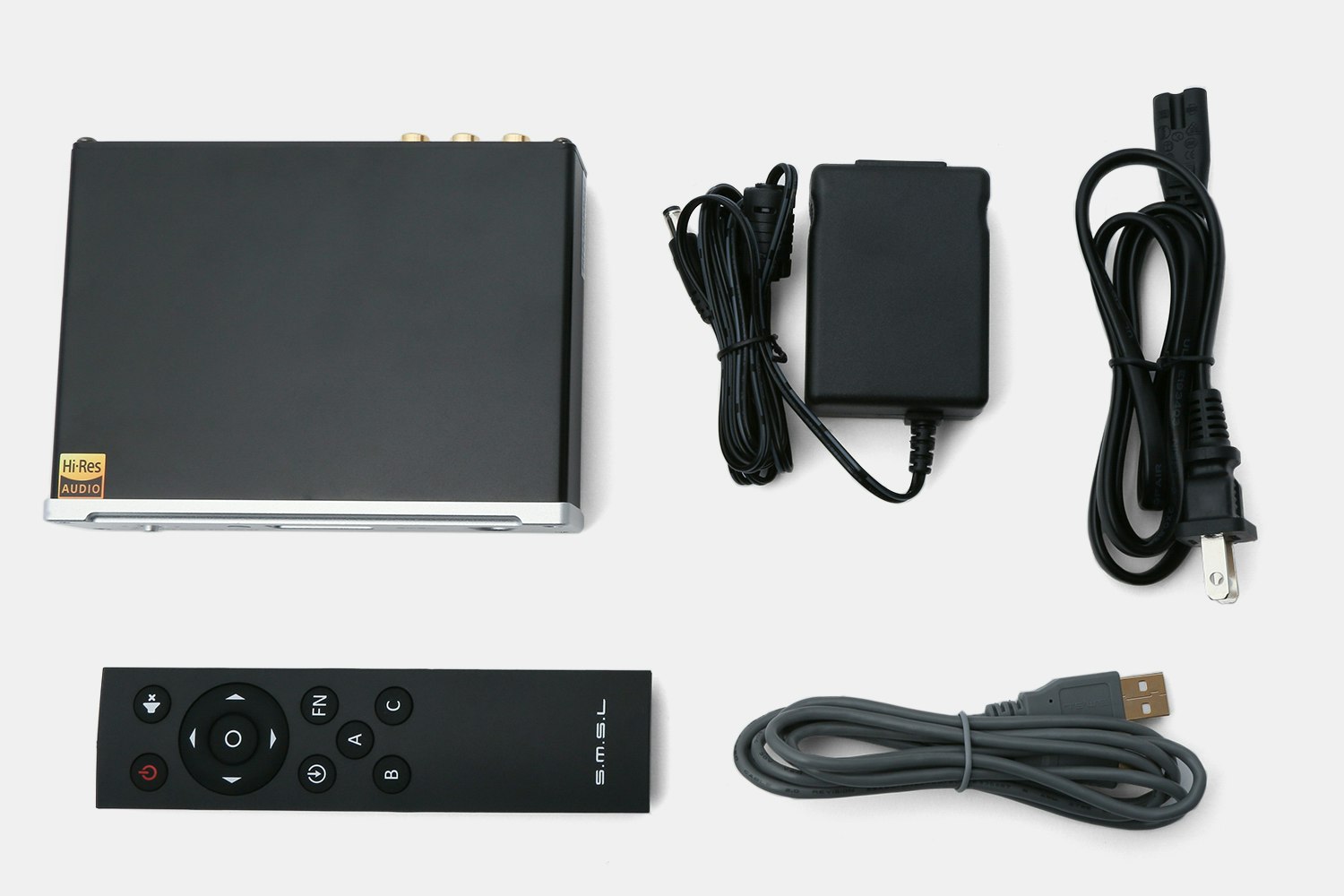

Included
- USB cable
- User CD-ROM
- Power adapter with North American plug

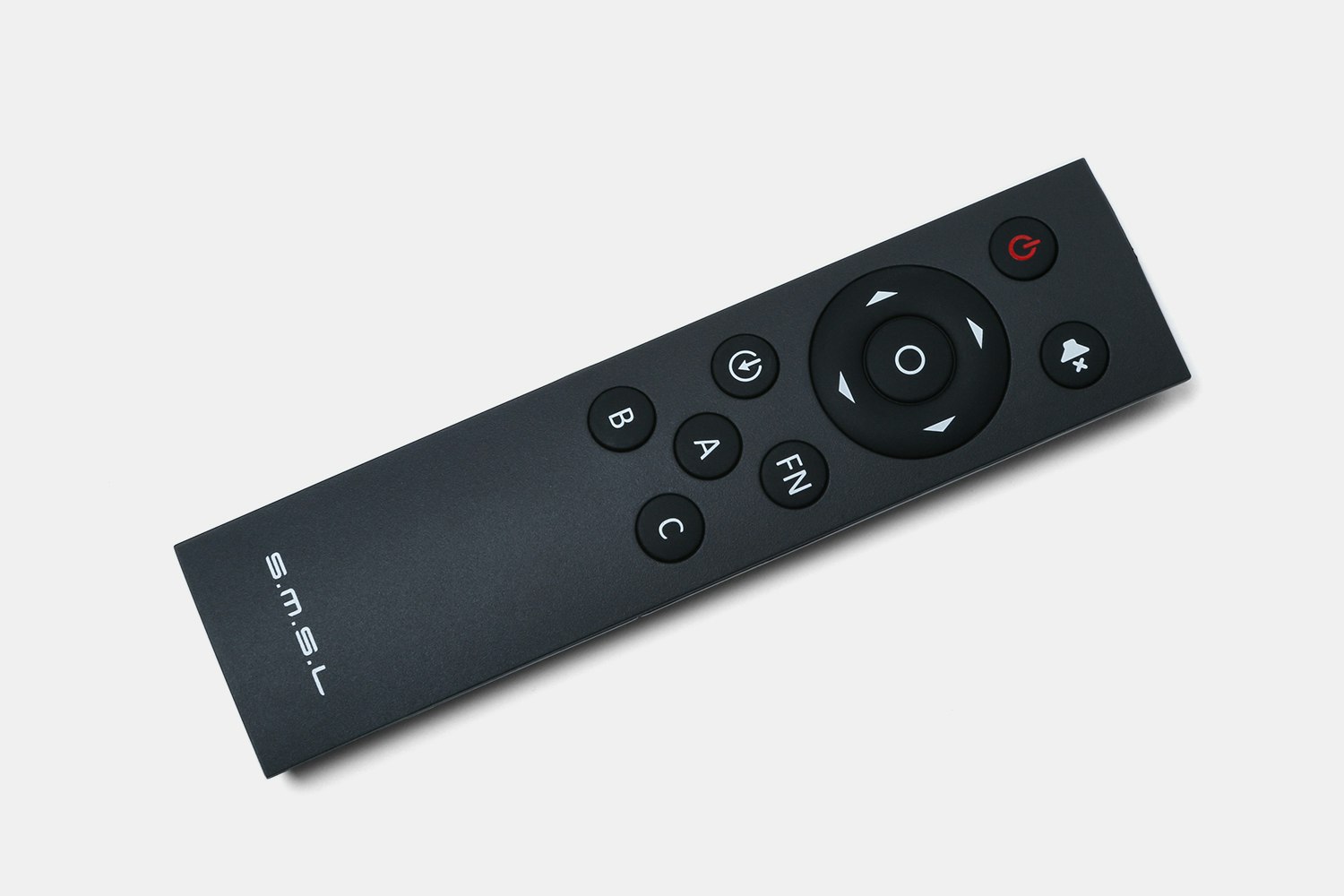

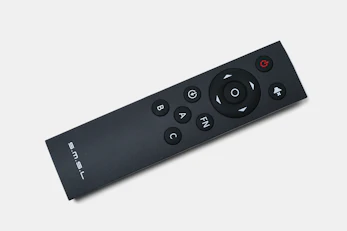

- Remote
Shipping
Estimated ship date is Dec 21, 2018 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
