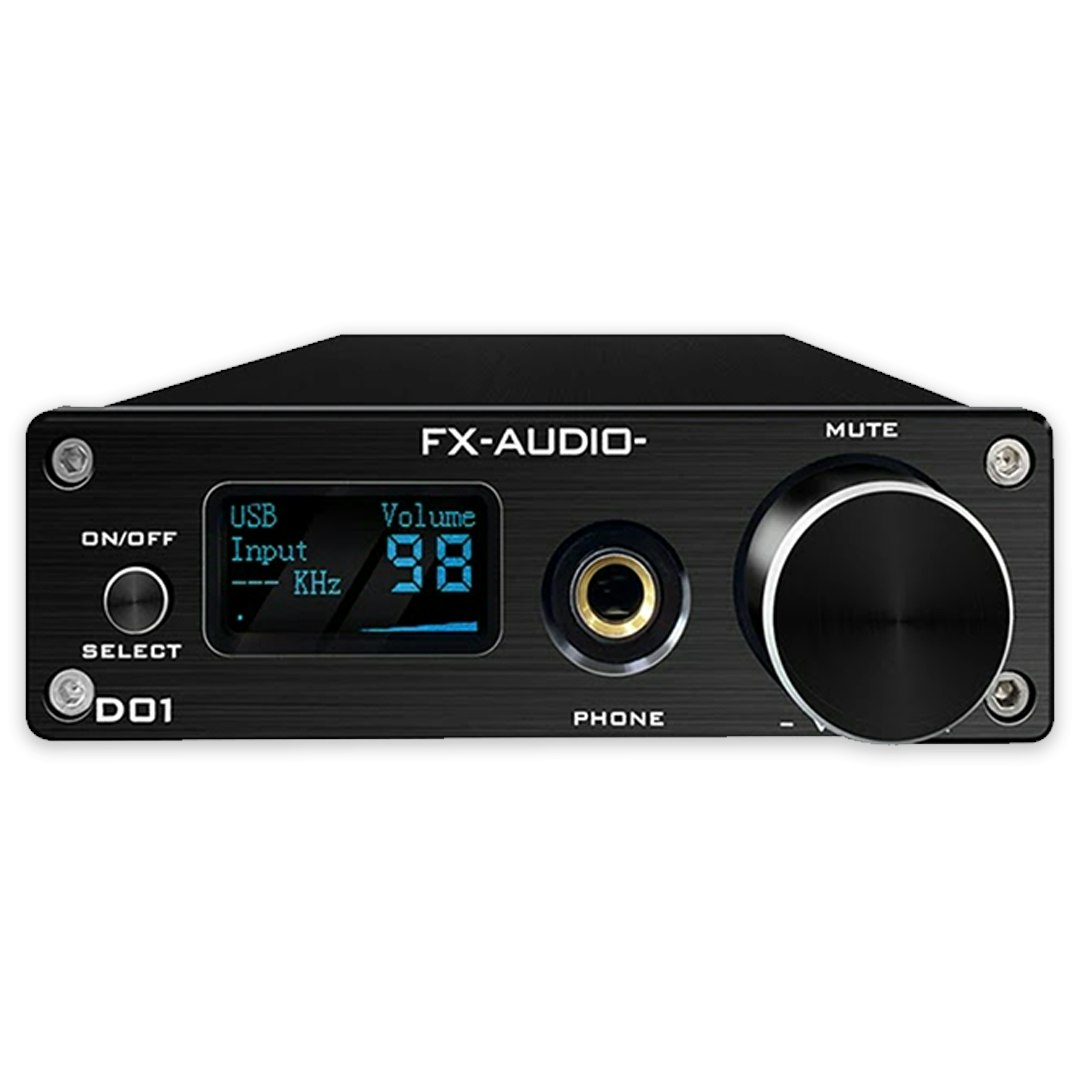

FX Audio D01 DAC/Amp

FX Audio D01 DAC/Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
27 requests
7 Sold
Product Description
Small enough to fit in the palm of your hand, the D01 DAC/amp from FX Audio fits an impressive array of hardware into a streamlined, rack-mountable form factor. Handling digital-to-audio conversion, an ES9038Q2M DAC chip delivers a large dynamic range and low distortion—thanks in part to a built-in asynchronous frequency-up function that eliminates clock jitter from digital reception Read More

Connect Wirelessly to Hi-Res Audio

Small enough to fit in the palm of your hand, the D01 DAC/amp from FX Audio fits an impressive array of hardware into a streamlined, rack-mountable form factor. Handling digital-to-audio conversion, an ES9038Q2M DAC chip delivers a large dynamic range and low distortion—thanks in part to a built-in asynchronous frequency-up function that eliminates clock jitter from digital reception. A second-generation XMOS XU208 USB chip supports sampling rates up to 32-bit, 768 kilohertz PCM and DSD512, while a high-performing TPA6120A2 amplifier from Texas Instruments can drive headphones with impedance levels ranging from 32 ohms all the way up to 600 ohms. For convenient connectivity, a CSR8675 Bluetooth 5.0 chip supports the latest wireless codecs, including aptX HD, aptX Low Latency, and LDAC.

Note: This run is for the FX Audio D01 with a US power supply.

FX Audio D01 DAC/Amp
FX Audio D01 DAC/Amp
FX Audio D01 DAC/Amp

Specs

  • FX Audio
  • Chipset: STM32, XMOS XU208, ES9038Q2M, TPA6120A2DWPR, LME49720NA, CSR8675
  • Inputs: USB-B, optical, coaxial, Bluetooth
  • Outputs: RCA, 6.35 mm headphone jack, Bluetooth
  • Bluetooth version: Bluetooth 5.0
  • Bluetooth codecs supported: aptX, aptX HD, aptX Low Latency, and LDAC.
  • Line output level: 2 Vrms (0 dBFS)
  • Distortion: <0.002% (1 kHz)
  • SNR: 115 dB (1 kHz)
  • Dynamic range: 115 dB (1 kHz)
  • Sampling rate (USB): 16-bit – 32-bit / 44.1 kHz – 768 kHz, DSD64 – DSD512
  • Sampling rate (coaxial, optical): 16-bit – 24-bit / 44.1 kHz – 192 kHz
  • Sampling rate (Bluetooth): 16-bit – 24-bit / 44.1 kHz – 192 kHz
  • Amplifier power output: 400 mW x 2 (32 ohms, THD+N < 1%), 90 mW x 2 (300 ohms THD+N <1%)
  • Headphone distortion: <0.004% (1 kHz)
  • Headphone amplifier signal-to-noise ratio: > 110dB (1 kHz)
  • Frequency response: 20 Hz – 20 kHz (± 0.5 dB)
  • Amplifier impedance: 16 ohms – 300 ohms
  • Power supply: DC 12V 1A
  • Dimensions: 4.5 x 7 x 1.3 in (11.4 x 17.8 x 3.3 cm)
  • Weight: 1 lb (0.5 kg)

Shipping

All orders will be shipped by Drop.

Estimated ship date is Apr 12, 2021 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
