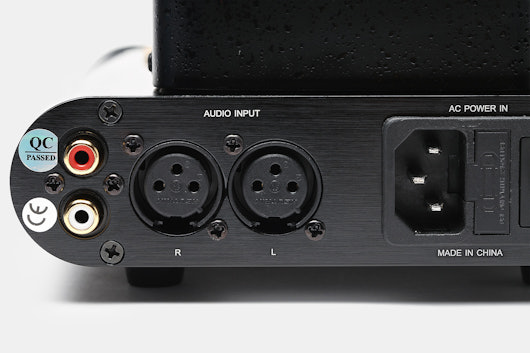

Little Dot MKIII SE Balanced Headphone Amplifier
Little Dot MKIII SE Balanced Headphone Amplifier
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
Product Description

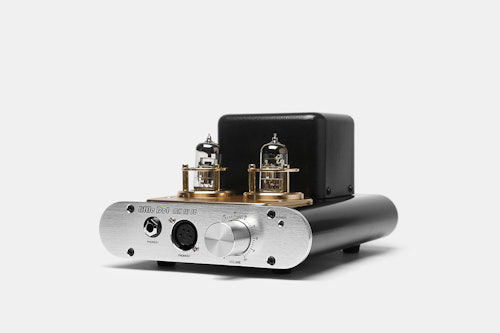

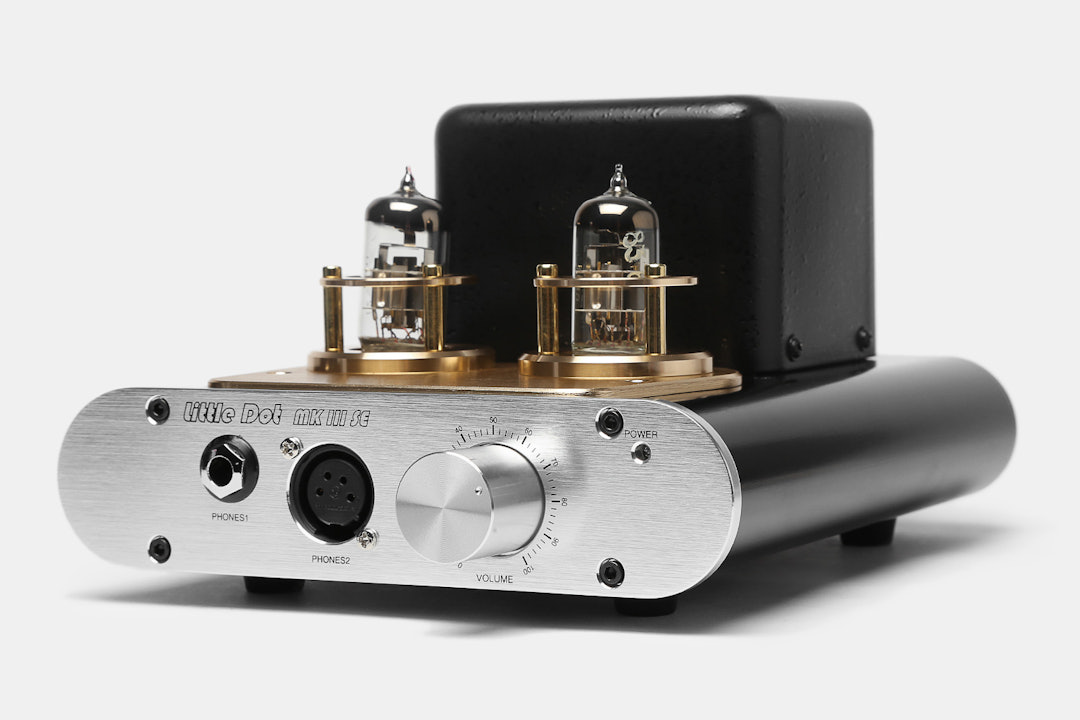

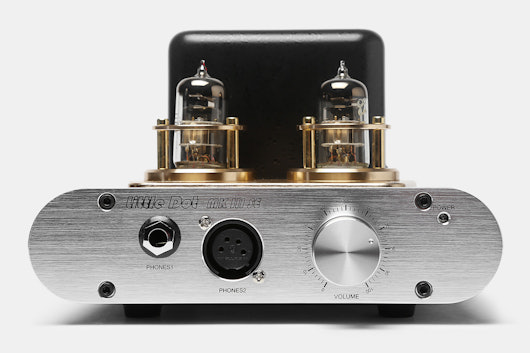

A sequel to the acclaimed Little Dot MKIII, the MKIII SE hybrid tube headphone amplifier features a streamlined design, a new balanced headphone port, and significantly more power from it. The tube pre-amp stage delivers a lush midrange and natural soundstage reproduction, while the discrete transistor output stage—with a fully symmetrical, pure Class-A circuit—produces a powerful, detailed bass response Read More
Updated & Made for Modding

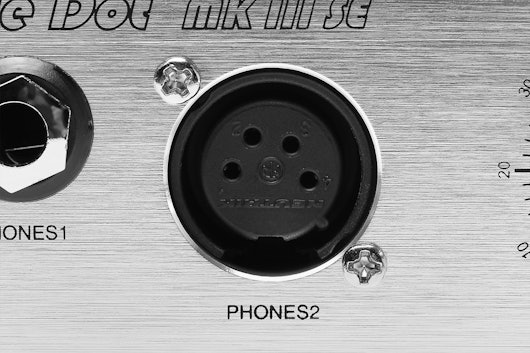

A sequel to the acclaimed Little Dot MKIII, the MKIII SE hybrid tube headphone amplifier features a streamlined design, a new balanced headphone port, and significantly more power from it. The tube pre-amp stage delivers a lush midrange and natural soundstage reproduction, while the discrete transistor output stage—with a fully symmetrical, pure Class-A circuit—produces a powerful, detailed bass response. Both fully balanced and single-ended outputs are supported. And like its predecessor, the MKIII SE can be paired with a variety of different tubes to achieve your desired sound signature. For a guide on rolling tubes with the Little Dot series, visit this Head-Fi discussion.

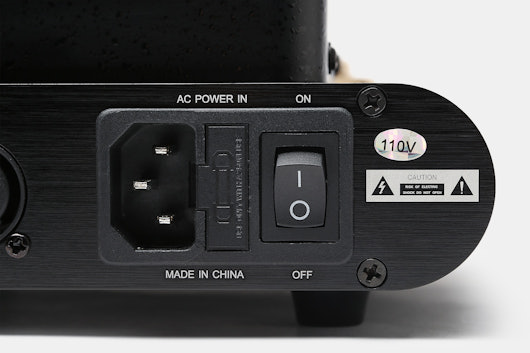

Note: At checkout, you’ll have your choice between 110–120V and 220–240V.

Specs
  • Little Dot

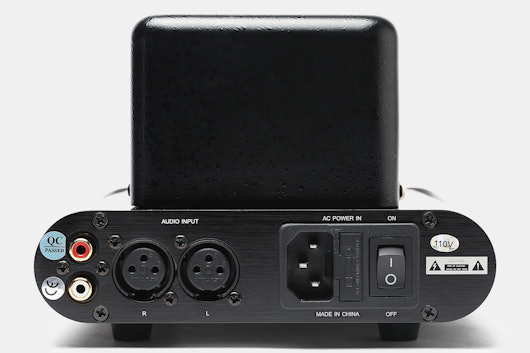

  • Fully balanced hybrid (tube pre-stage with discrete output)
  • Pure Class-A architecture

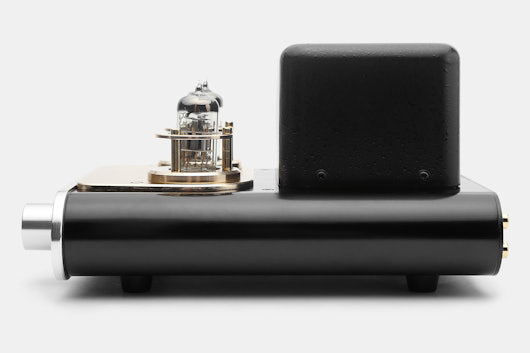

  • High-quality aluminum chassis
  • Frequency response: 5 Hz–100 kHz (-1 dB)
  • THD+N: 0.001% (2 V rms at 1 kHz)
  • Power output: 2.5W (32 ohms), 1.8W (120 ohms), 800 mW (300 ohms)
  • Variable gain: Low (4.5) or high (9x)
  • Recommended load impedance: 32–600 ohm
  • Input impedance: 50 kohms
  • Power consumption: 30W (228V * 0.130A)
  • Vacuum tubes: 2x 6N11 (6922 / ECC88, etc.)
  • Dimensions (D x W x H): 9.65 x 6.5 x 4.72 in (245 x 165 x 120 mm)
  • Weight: 6.6 lbs (3 kg)
Included

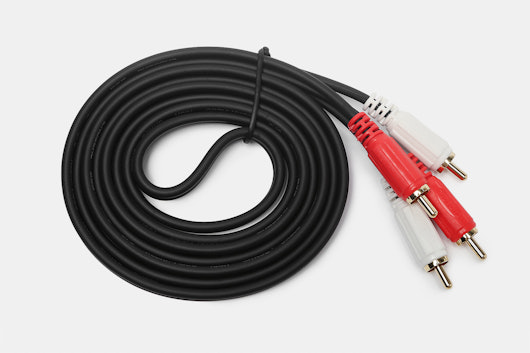

  • Power cord
Shipping

All orders will be shipped by Drop.

Estimated ship date is Apr 3, 2017 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
