Matrix M-Stage HPA-3B Balanced Headphone Amp

Matrix M-Stage HPA-3B Balanced Headphone Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
721 requests
·
26 Sold
Product Description

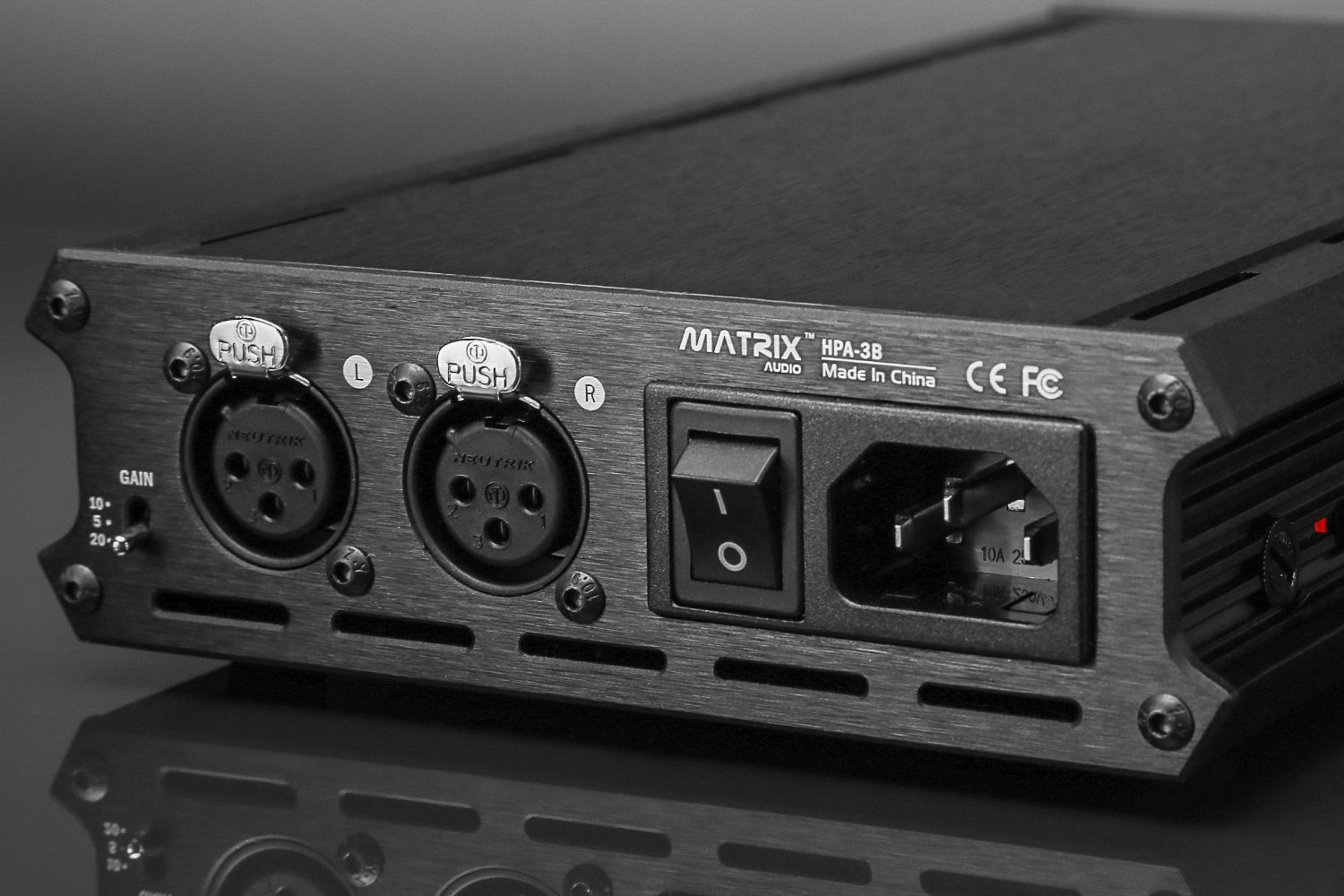

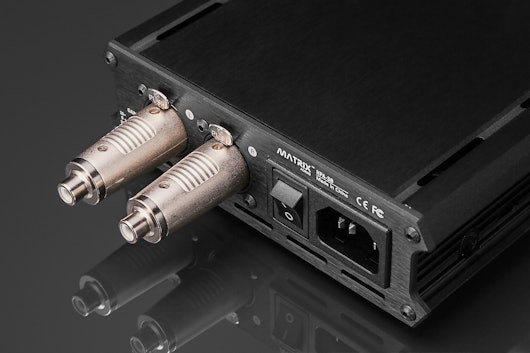

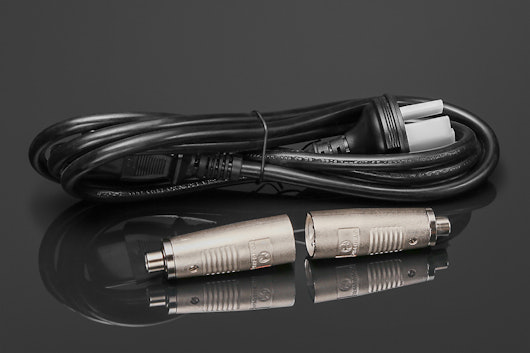

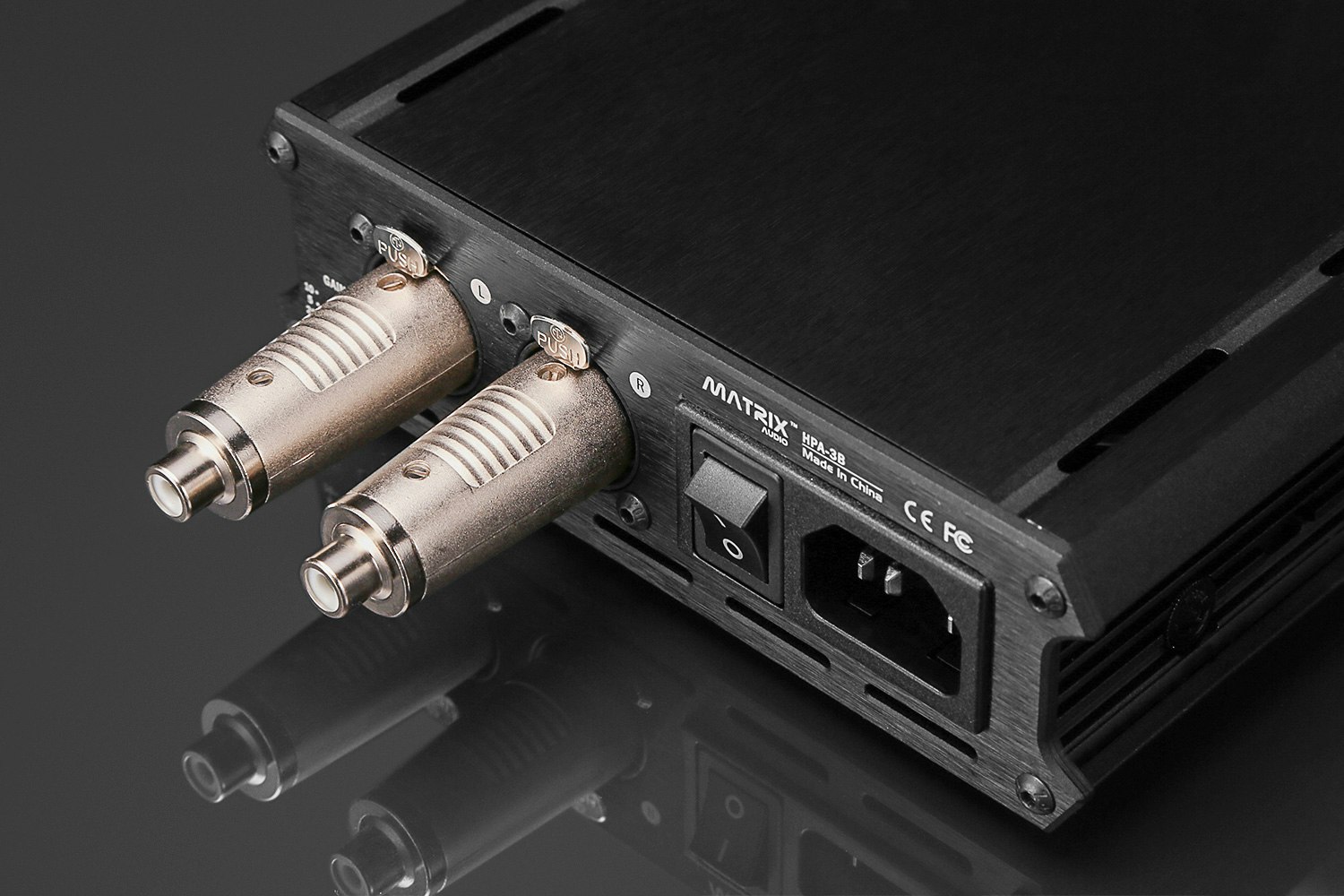

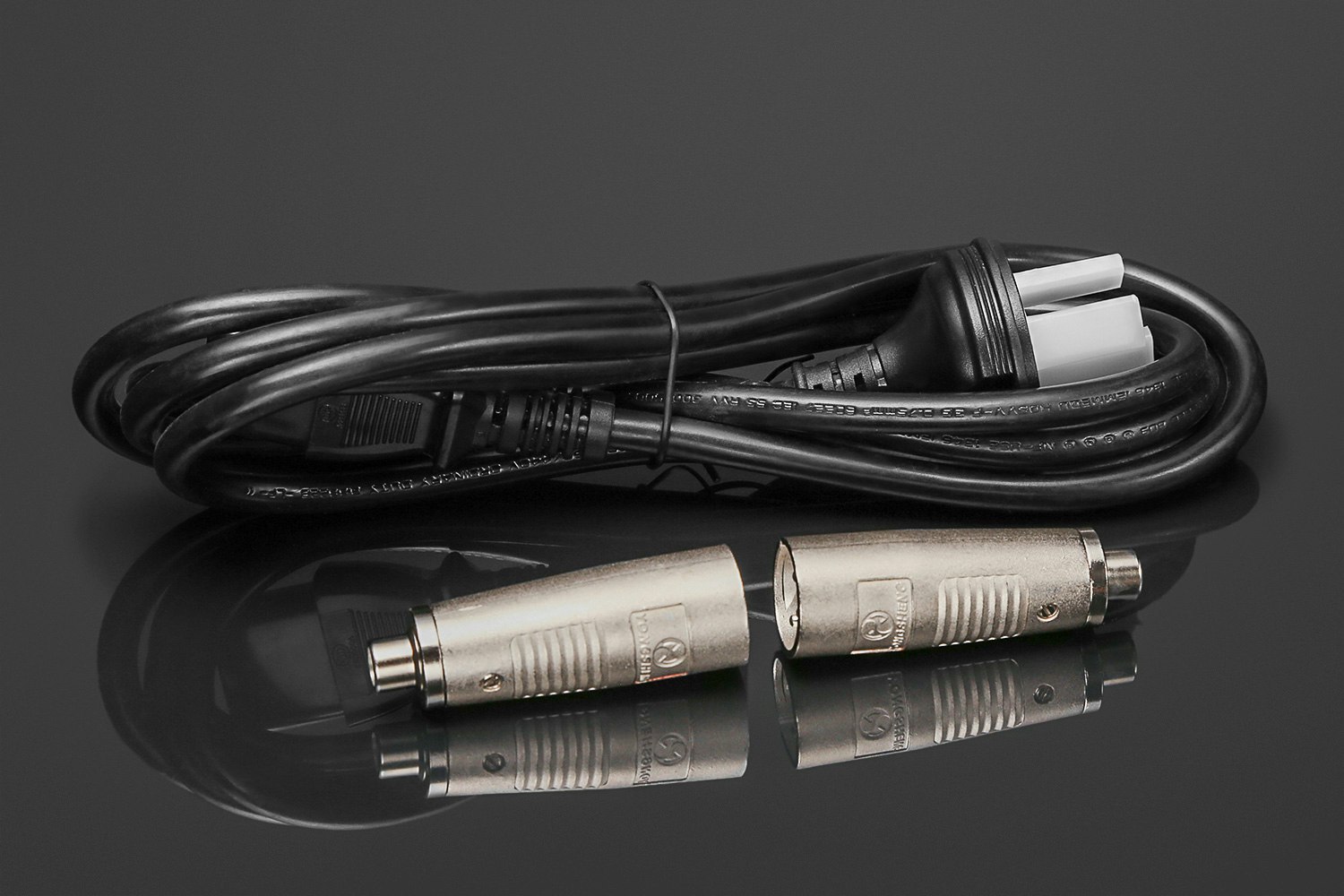

From Matrix’s highly regarded M-Stage series, the HPA-3B is a Class A balanced headphone amplifier that supports both single-ended and differential outputs, maximizing your headphones’ performance. It has two XLR inputs for a balanced input, and in case you don’t have a balanced DAC, it comes with two XLR-to-RCA adapters for a standard unbalanced input Read More

Fully Balanced Design

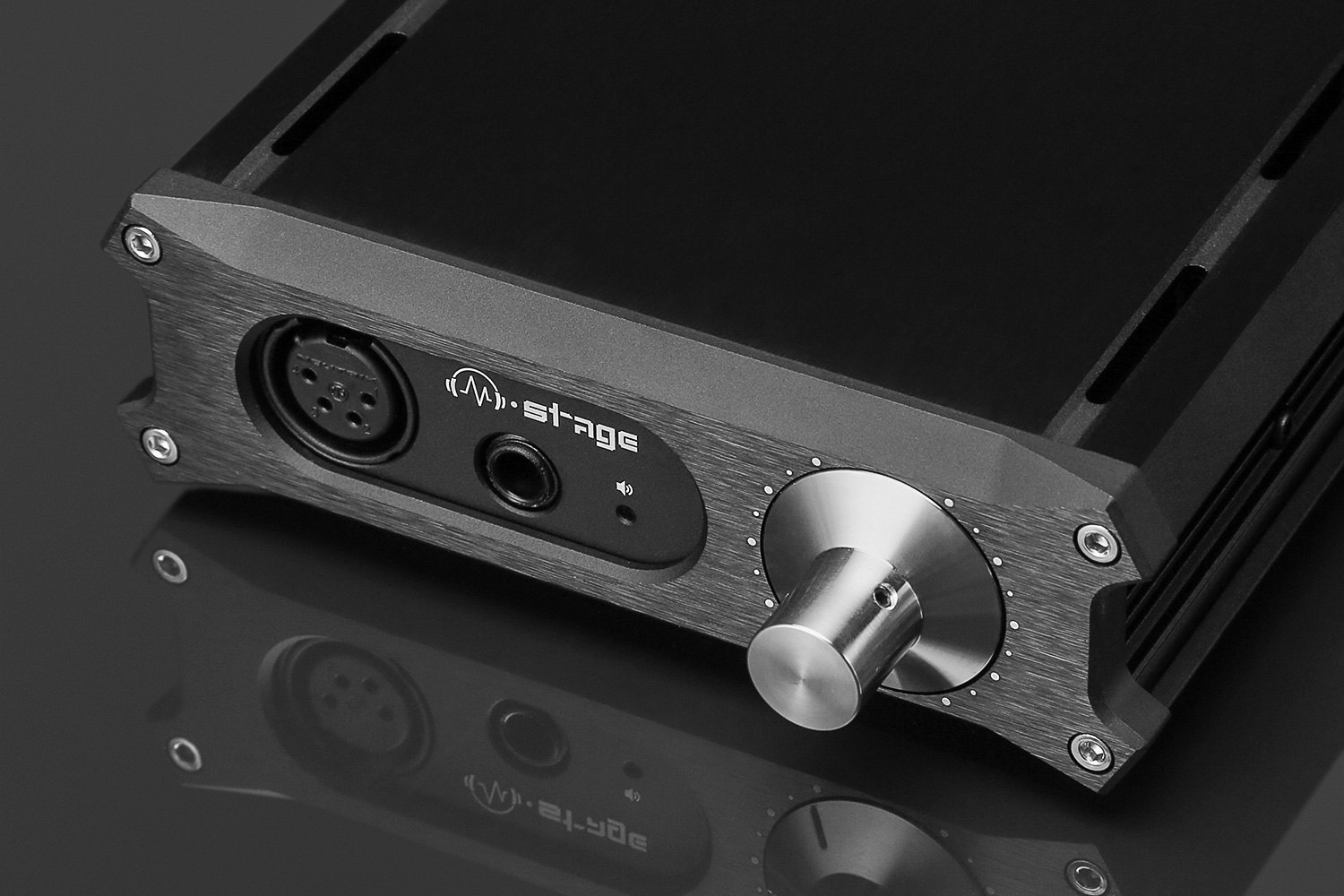

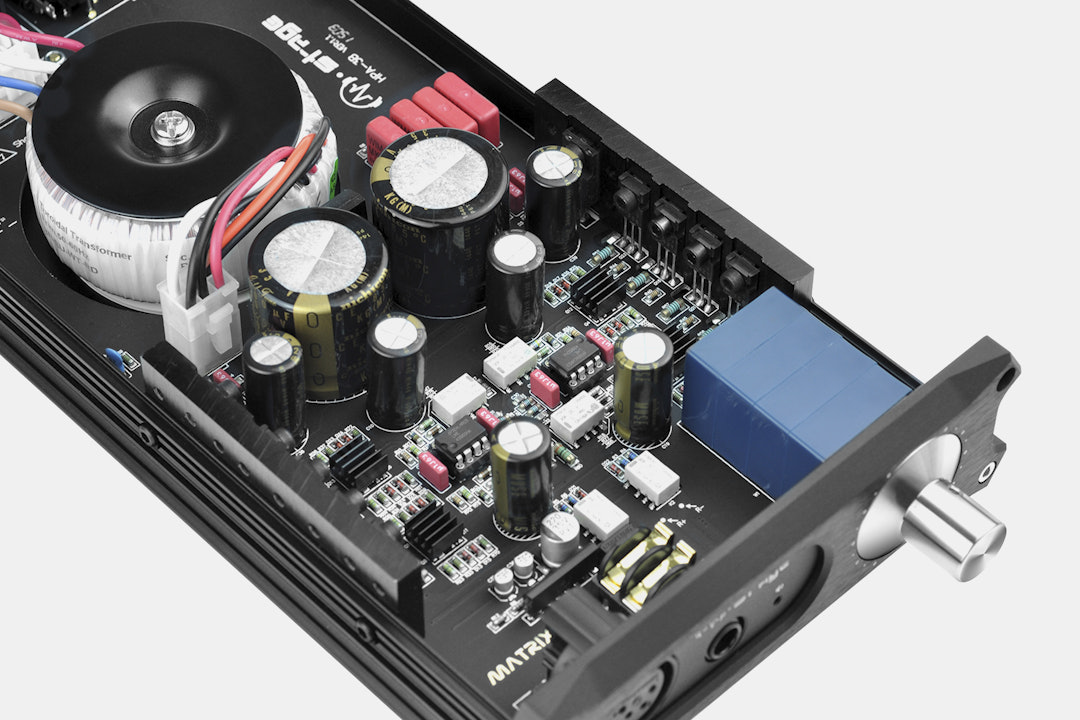

From Matrix’s highly regarded M-Stage series, the HPA-3B is a Class A balanced headphone amplifier that supports both single-ended and differential outputs, maximizing your headphones’ performance. It has two XLR inputs for a balanced input, and in case you don’t have a balanced DAC, it comes with two XLR-to-RCA adapters for a standard unbalanced input. The 3B effectively doubles the power over HPA-3U, offering two stereo amps inside the unit for fully balanced operation. Three gain level options allow you to adjust for varying sensitivity and impedance. Designed to quickly dissipate heat, the brushed black metal enclosure houses an ALPS volume potentiometer, Noratel toroidal transformer, Wima and Nichicon capacitors, and sturdy switch quality throughout. To learn more about the Matrix M-Stage HPA-3B, check out this Head-Fi review, or take a look at Headphone Guru's praise.

Matrix M-Stage HPA-3B Balanced Headphone Amp
Matrix M-Stage HPA-3B Balanced Headphone Amp
Matrix M-Stage HPA-3B Balanced Headphone Amp
Matrix M-Stage HPA-3B Balanced Headphone Amp
Matrix M-Stage HPA-3B Balanced Headphone Amp
Matrix M-Stage HPA-3B Balanced Headphone Amp

Specs: Matrix M-Stage HPA-3B

  • Power voltage, 230 V position: fit for AC 220 – 240 V (50/60 Hz)
  • Power voltage, 115 V position: fit for AC 100 – 120 V (50/60 Hz)
  • Power consumption: < 25 W
  • Fuse: AC 250 V / 500 mA 5 x 20 mm
  • Dimensions, L x W x H: 11.2 x 5.6 x 1.9 in (28.5 x 14.2 x 4.9 cm)
  • Weight: 3.7 lbs (1.7 kg)

Balance headphone output:

  • Signal-to-noise ratio: > -114 dB A-weighting
  • THD+N: < 0.0003% at 300 ohms, 135 mW, 1 kHz A-weighting
  • Frequency response: 20 Hz – 20 kHz (+0 dB / -0.05 dB)
  • Output impedance: 0.6 ohms
  • Output power (at THD+N 0.01%): 3800 mW at 33 ohms, 1500 mW at 300 ohms, 800 mW at 600 ohms

SE headphone output:

  • Signal-to-noise ratio: > -108 dB A-weighting
  • THD+N: < 0.0004% at 300 ohms, 325 mW, 1 kHz A-weighting
  • Frequency response: 20 Hz – 20 kHz (+0.03 dB / -0.1 dB)
  • Output impedance: 0.4 ohms
  • Output power (at THD+N 0.01%): 2100 mW at 33 ohms, 430 mW at 300 ohms, 220 mW at 600 ohms
