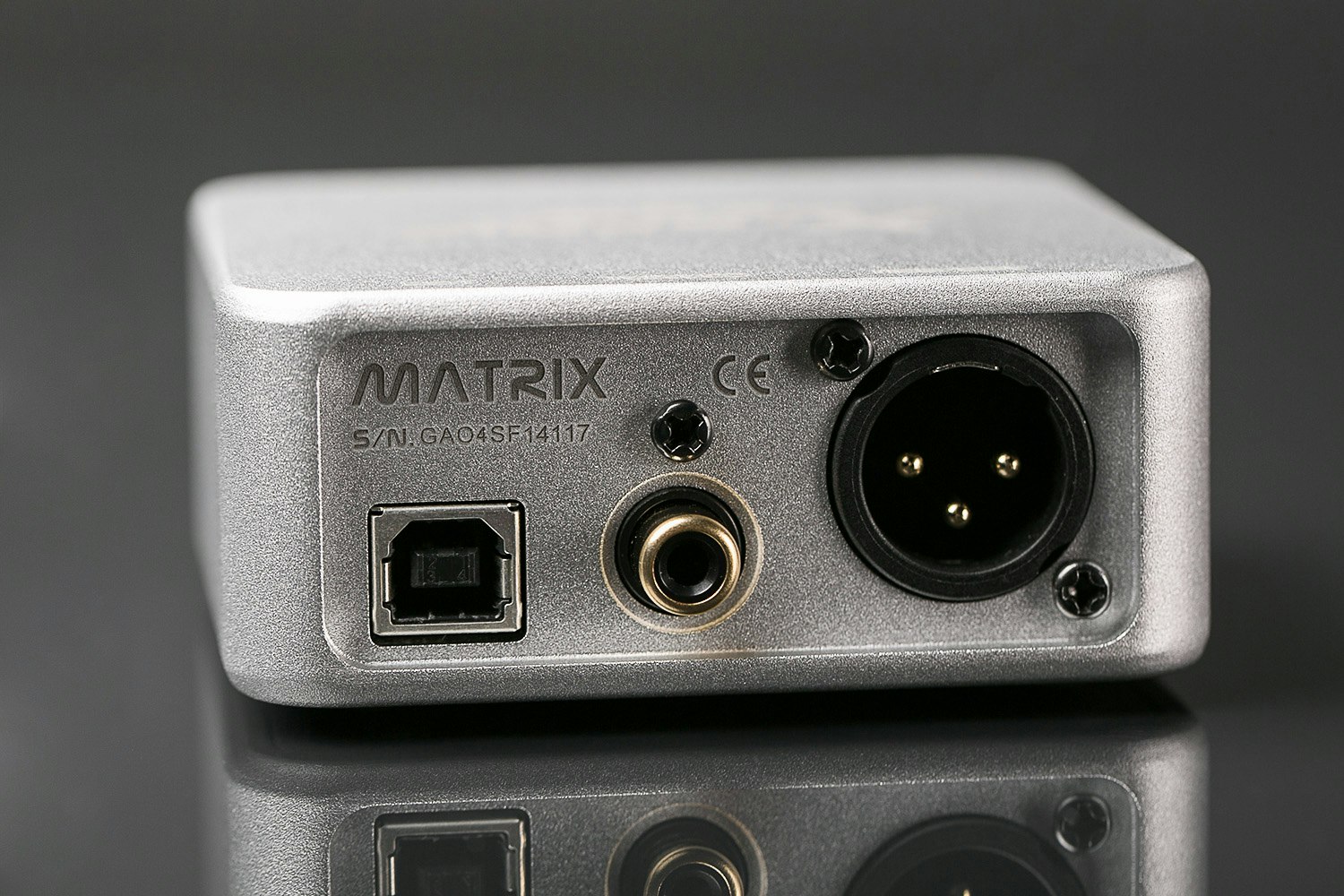

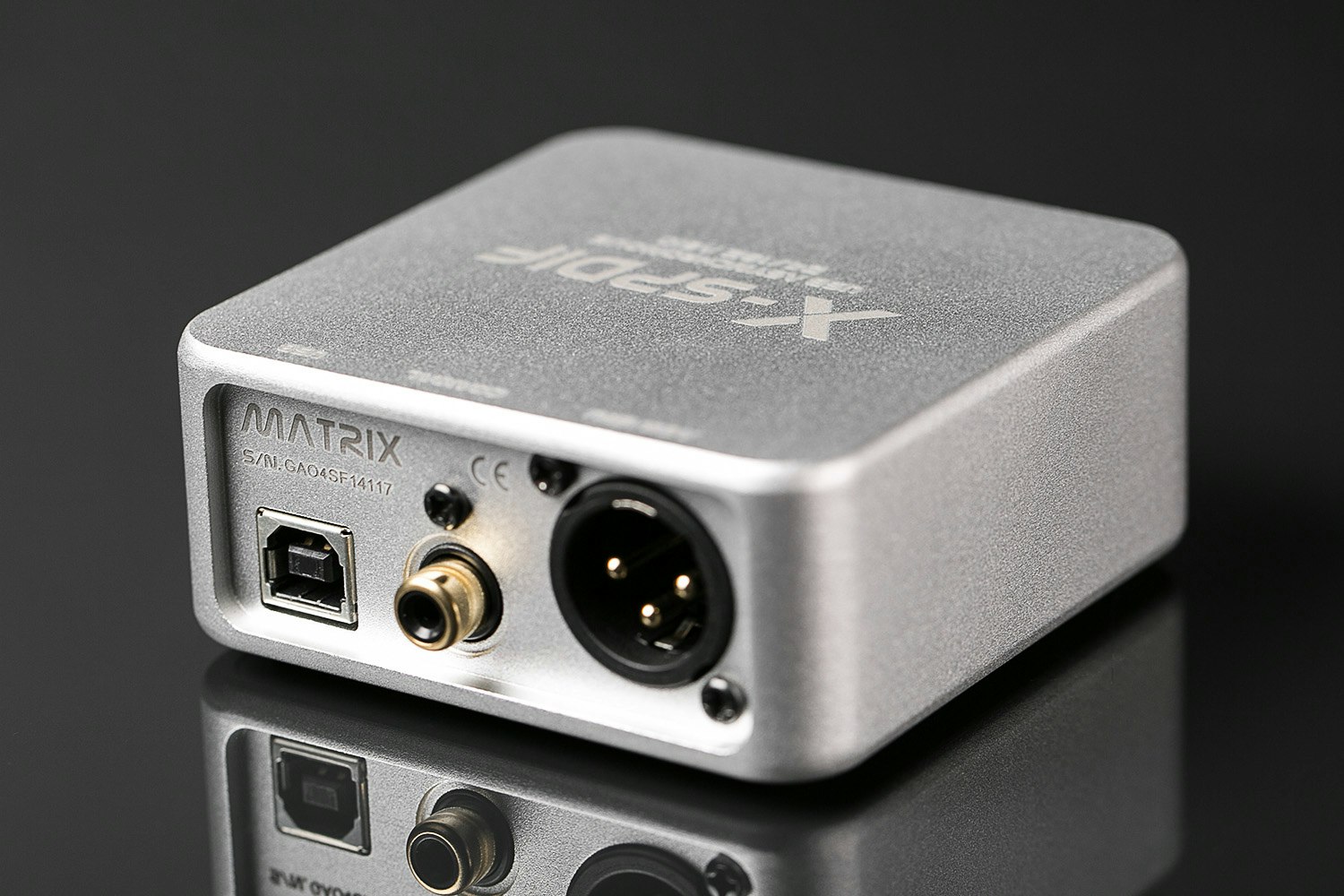

Matrix X-SPDIF
Matrix X-SPDIF
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
Product Description
The Matrix X-SPDIF is an advanced USB to SPDIF converter that uses the X-Core 32bit/500MIPS microprocessor from XMOS. Compatible with Windows, Mac, and Linux, the device supports asynchronous USB playback up to 24bit/192kHz as well as low latency ASIO/KS drivers Read More
Conversion

The Matrix X-SPDIF is an advanced USB to SPDIF converter that uses the X-Core 32bit/500MIPS microprocessor from XMOS. Compatible with Windows, Mac, and Linux, the device supports asynchronous USB playback up to 24bit/192kHz as well as low latency ASIO/KS drivers.

At check-out, you will have the option to choose between the black and silver models of the Matrix X-SPDIF.

Build and Technology

CNC machined from solid aluminum, the unit protects itself against interference. The design incorporates digital coaxial and AES/EBU outputs that are galvanic isolated from the computers USB ground in order to prevent ground loops. An ultra low jitter dual-frequency clock with two very high quality crystal oscillator components make multiples of sampling rates automatically reproduced.

Additional Pictures
Specs
  • Matrix Audio
  • XMOS X-CORE 32BIT/500MIPS multi-core processing unit
  • USB Audio Class 2.0 (480 Mbit/s)
  • Asynchronous data transfer mode
  • Dual frequency ultra low jitter local clock
  • Sample rate support: 16-24Bit @ 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz
  • COAX: 75 Ohms, gold plated RCA connector
  • AES/EBU: 110 Ohms, gold plated XLR connector
  • Drivers available for: Windows XP/ Windows Vista/ Windows 7/ Windows 8 - 8.1
  • Natively supported by: Apple Mac OSX & Most Linux Distro's
  • Dimensions: 3.26 x 3.26 x 1.45 in (83 x 83 x 37 mm)
  • Weight: 11 oz (310 g)
Included
  • Manual
  • Driver CD
Shipping

All orders will be shipped by Drop.

Estimated ship date is July 8, 2015 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
