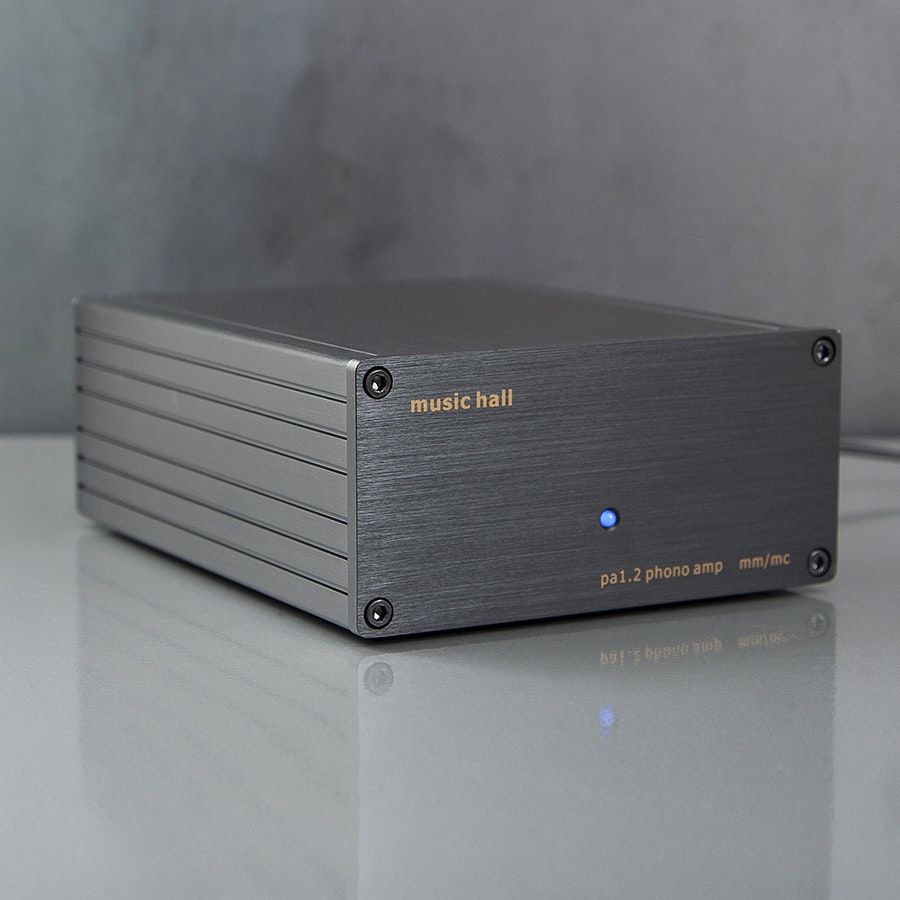

Music Hall PA1.2 Phono Amplifier
Level Out
Unless you’re spinning records from a newfangled device with USB output, you’ll need a phono amplifier to convert your turntable’s phono signal into a line level signal before plugging into your other audio equipment. Designed to work with both moving-magnet and moving-coil cartridges, the Music Hall PA1.2 Phono Amplifier is a simple yet versatile amplifier that can adjust to any system.
Give Vinyl a Voice
Built with optimized internal circuitry and high quality internal components, the PA1.2 seals the deal with an extruded aluminum chassis that guarantees less vibration and resonance. Offering 40 dB of gain with moving-magnet cartridges and 60 dB of gain with moving-coil cartridges, the low noise Music Hall PA1.2 Phono Amplifier bridges the gap between your record player and your speaker system with power to spare.
Specs
- Music Hall Audio
- Rigid extruded aluminum chassis
- Accepts both moving-magnet (MM) and moving-coil (MC) cartridges
- Gain MM/MC: 40 dB / 60 dB
- Input sensitivity MM/MC: 5 mV, 1 kHz / 0.45 mV, 1 kHz
- Input impedance MM/MC: 47 kOhms, 120 pF / 100 Ohms, 120 pF
- Typical output voltage MM/MC: 300 mV @ 1 kHz - 3 mV / 0.3 mV
- Total harmonic distortion MM/MC: < 0.01% / < 0.05%
- RIAA curve accuracy: 20 Hz - 20 kHz, 0.5 dB
- Signal-to-noise ratio MM/MC: -86 dB / -68 dB
- Signal-to-noise ratio (A-weighted) MM/MC: -94 dB / -75 dB
- Output voltage: 15 V, 300 mA AC
- 4.2 x 6 x 2.1 in (10.67 x 15.24 x 5.33 cm)
- 3 lbs (1.36 kg)
Included
- External power supply with North American plug
