Product Description
The much-anticipated sequel to the popular Topping D50 DAC is here. The Topping D50s brings users improved sound quality with a wider array of connectivity options Read More
Cutting-Edge DAC Performance With Add-Ons

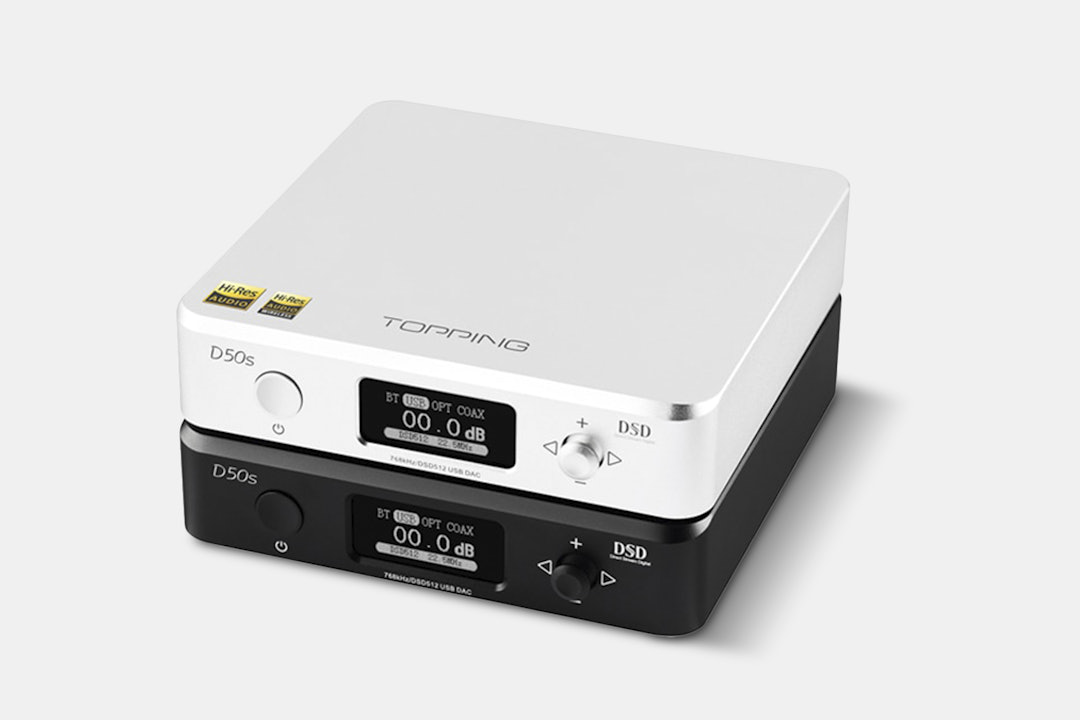

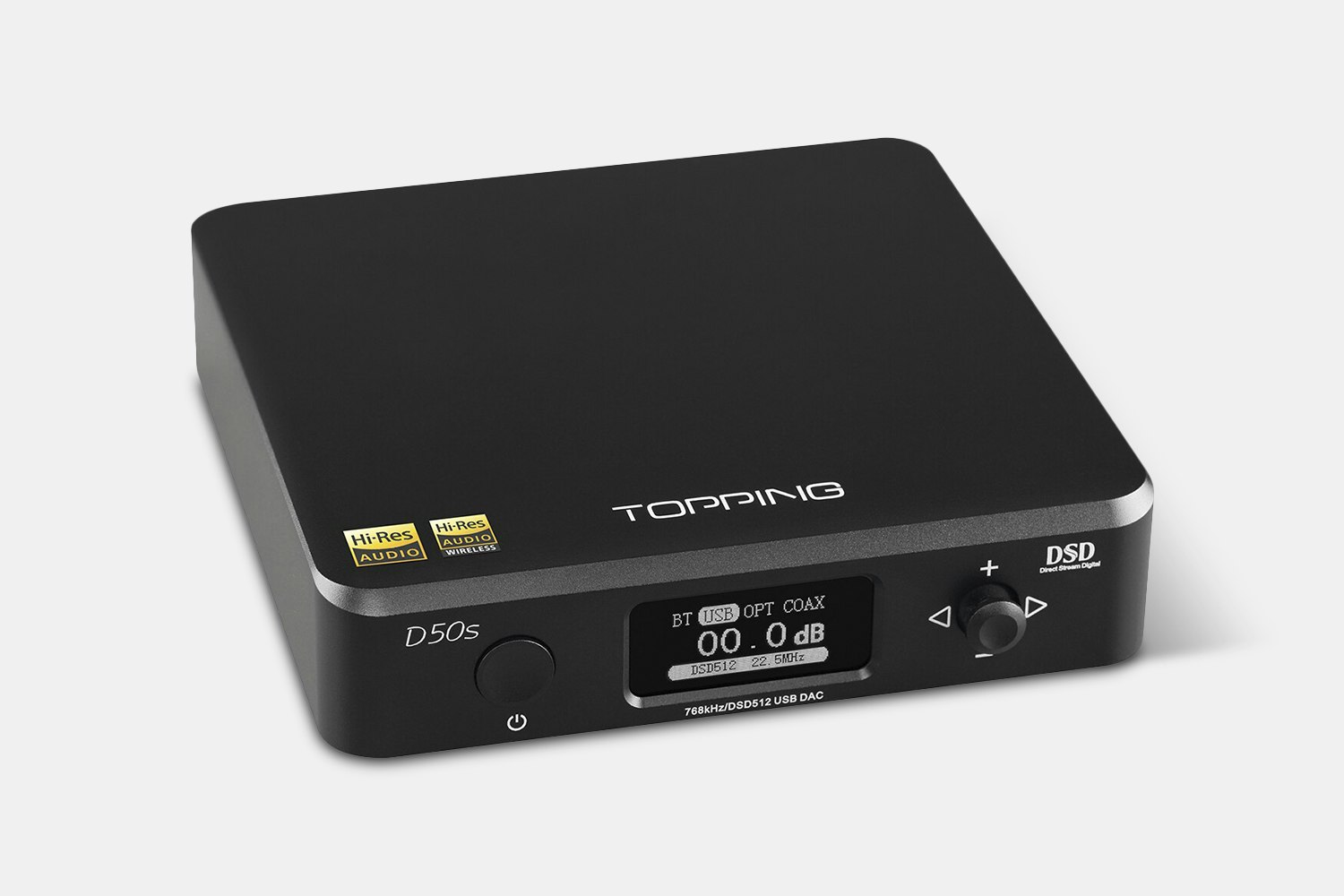

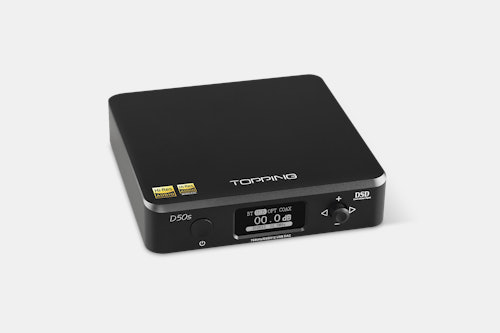

The much-anticipated sequel to the popular Topping D50 DAC is here. The Topping D50s brings users improved sound quality with a wider array of connectivity options. Outfitted with dual ESS ES9038Q2M DACs with excellent THD+N levels, high accuracy, and impressive leading dynamic range, the D50s improves sound across all frequencies and volumes. It also does away with the “ESS IMD hump:” a slight rise in intermodulation distortion (IMD) that sometimes occurs when ESS DACs are played at mid levels. Added Bluetooth connectivity allows users to stream from phones or other Bluetooth-enabled devices, while the onboard XU208 USB interface enables improved support for DSD native. Connect in more ways with inputs for USB, coaxial, and optical, as well as support for Android, Windows, iOS, and Mac OS X.  Add to your personal audio system with the well-regarded A50 headphone amp, the P50 linear power supply for extra power to the system, or a PA3 power amp for passive speakers.

Note: At checkout, choose the D50s in black or silver with a US or EU power plug. You can also add on the A50 headphone amp (- $72), P50 linear power supply (- $117) as standalone options or in several combination packages with the D50s. All products are available in black or silver with a US or EU power plug.

Specs

D50s

  • Topping
  • Type: Desktop
  • D/A Converter: ES9038Q2M (2)
  • Material: Metal
  • PCM sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,  176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz
  • DSD Sampling Frequencies: 2.8224 MHz (DSD64), 5.6448 MHz (DSD128), 11.2896 MHz (DSD256), 22.5792 MHz (DSD512)
  • Outputs: RCA
  • PCM Word Length: 16-bit, 24-bit, 32-bit
  • Inputs: USB Type-B, Optical (SPDIF), Coaxial
  • Wi-Fi: No
  • USB Compatibility: Windows 7, 8, 8.1,10
  • Bluetooth: Yes



A50 (- $72)

  • Topping

 3.5 mm / 6.35 mm Headphone Jack

  • THD + N: <0.0006% at 1 kHz output = 100 mW (32 ohms); <0.0015% at 20 Hz – 20 kHz output = 100 mW (32 ohms); <0.0006% at 1 kHz output = 12 mW (300 ohms); <0.0006% at 20 Hz – 20 kHz output = 12 mW (300 ohms)
  • SNR: 123 dB at 1 kHz
  • Dynamic range: 123 dB at 1 kHz
  • Frequency characteristics: 20 Hz – 20 kHz (± 0.6 dB); 20 Hz – 40 kHz (± 0.6 dB)
  • Output level: 10.6 Vpp at G = L; 20 Vpp at G = H
  • Noise: <3 uVrms at G = L; <5 uVrms @ G = H
  • Output impedance: <4.7 ohms
  • Output: 1110 mW x 2 at 32 ohms THD + N <1%; 160 mW x 2 at 300 ohms THD + N <1%
  • Impedance matching: 16–300 ohms

2.5 mm Balanced Headphone Jack

  • THD + N: <0.0016% at 1 kHz output = 100 mW (32 ohms); <0.0022% at 20–20kHz output = 100 mW (32 ohms); <0.0004% at 1 kHz output = 50mW (300 ohms); <0.0004% at 20–20kHz output = 50mW (300 ohms)
  • SNR: 123 dB at 1 kHz
  • Dynamic range: 123 dB at 1 kHz
  • Frequency characteristics: 20 Hz – 20 kHz (± 0.6 dB); 20 Hz – 40 kHz (± 0.6 dB)
  • Output level: 21.4 Vpp at G = L; 40 Vpp at G = H
  • Noise: <5.0 uVrms at G = L; <10.0 uVrms at G = H
  • Output impedance: <9.4 ohms
  • Output: 2200 mW x 2 at 64 ohms THD + N <1%; 640 mW x 2 at 300 ohms THD + N <1%
  • Impedance matching: 16–600 ohms



P50 (- $117)

  • Topping
  • Power input: AC110V/AC220V 50HZ/60Hz
  • Power output: (2) USB-A, (1) DC(5.5/2.1)
  • Power supply noise: <1 mVrms
  • Output Power: (2) DC5V1A, DC15V 1A, (1) DC5V 1A + DC15V 0.9A, (2) DC5V 0.8A + DC15V 0.8A
  • Weight: 1.9 lbs (0.88 kg)
  • Dimensions: 4.33 x 4.33 x 2.05 in (11.0 x 11.0 x 5.2 cm)


Included

D50s

  • DC cable
  • USB cable
  • Bluetooth antenna
  • Remote control
  • User Manual

A50 (- $72)

  • Power adapter
  • User manual

P50 (- $117)

  • AC cable
  • 0.66 ft (0.2 m) USB-to-DC cable
  • 3.94 ft (1.2 m) DC-to-DC cable
  • User's manual


Shipping

All orders will be shipped by Drop.

Estimated ship date is July 29, 2020 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.

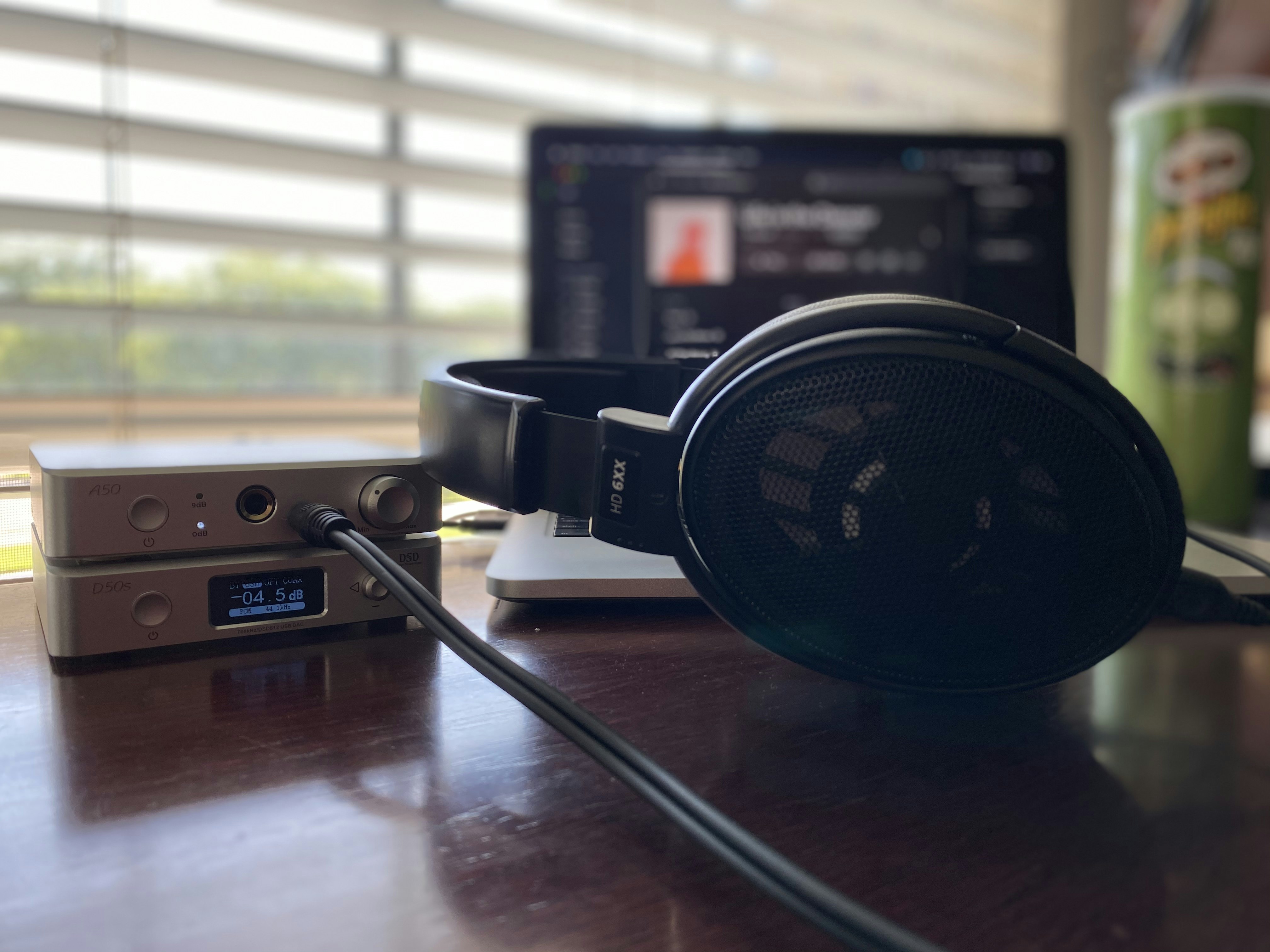

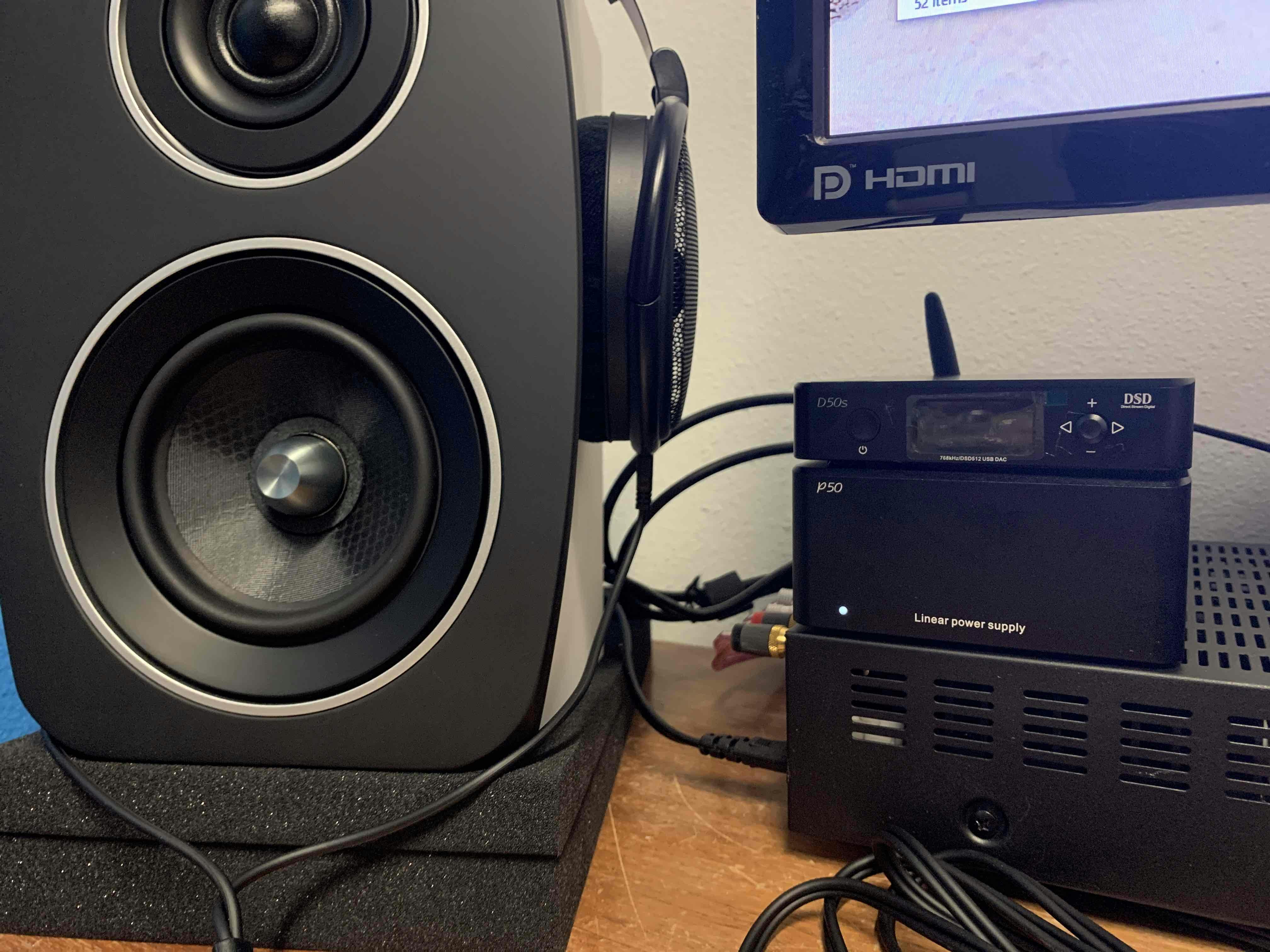

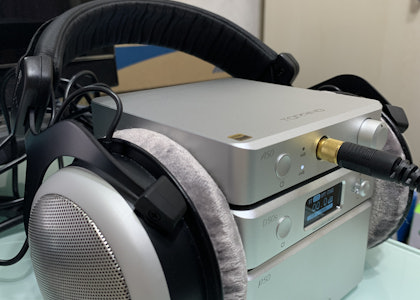

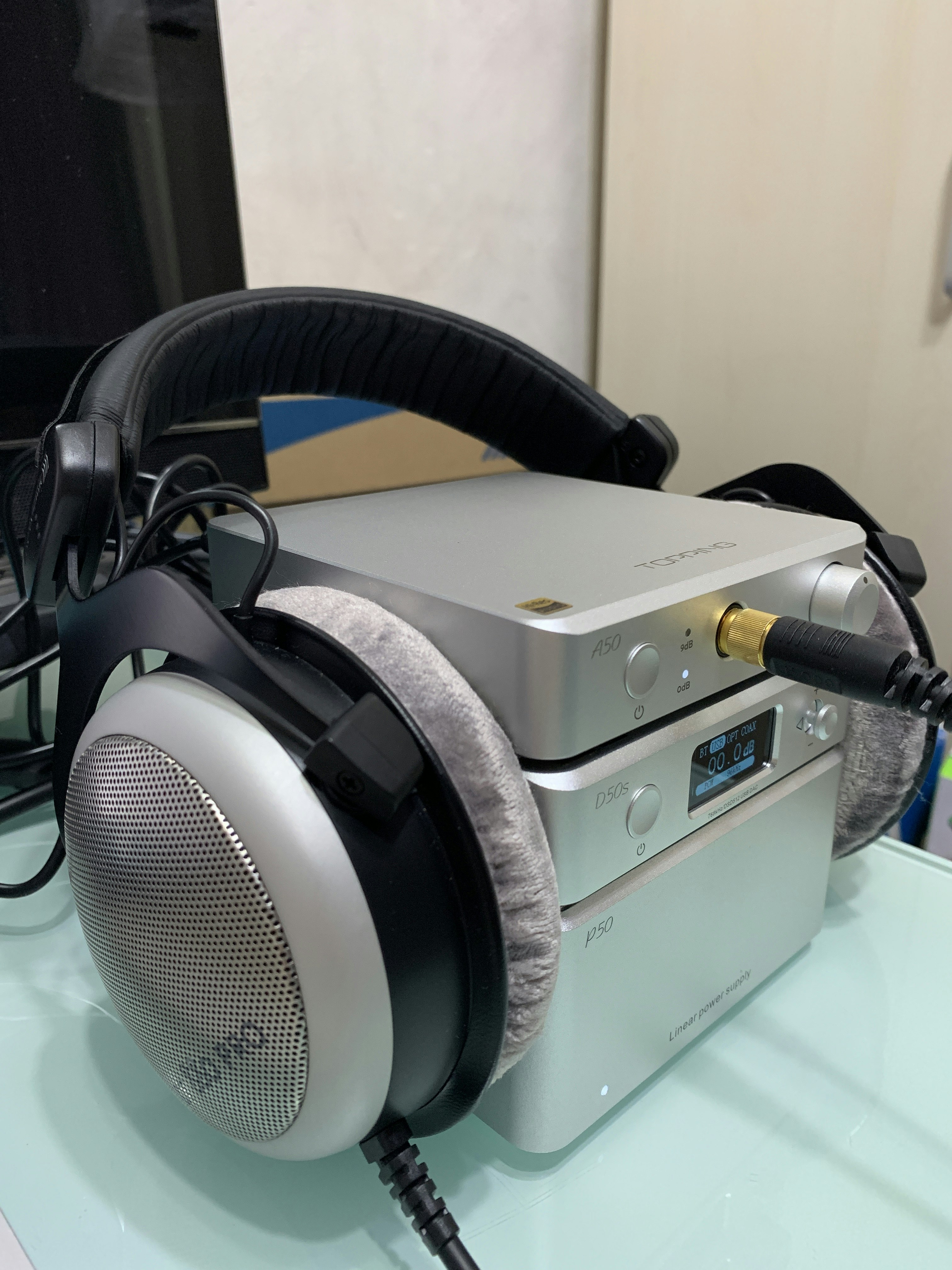

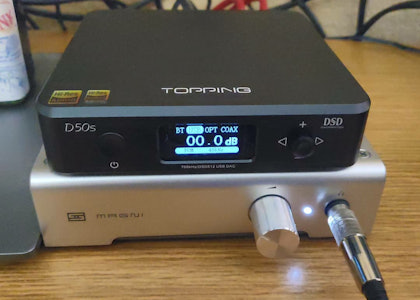

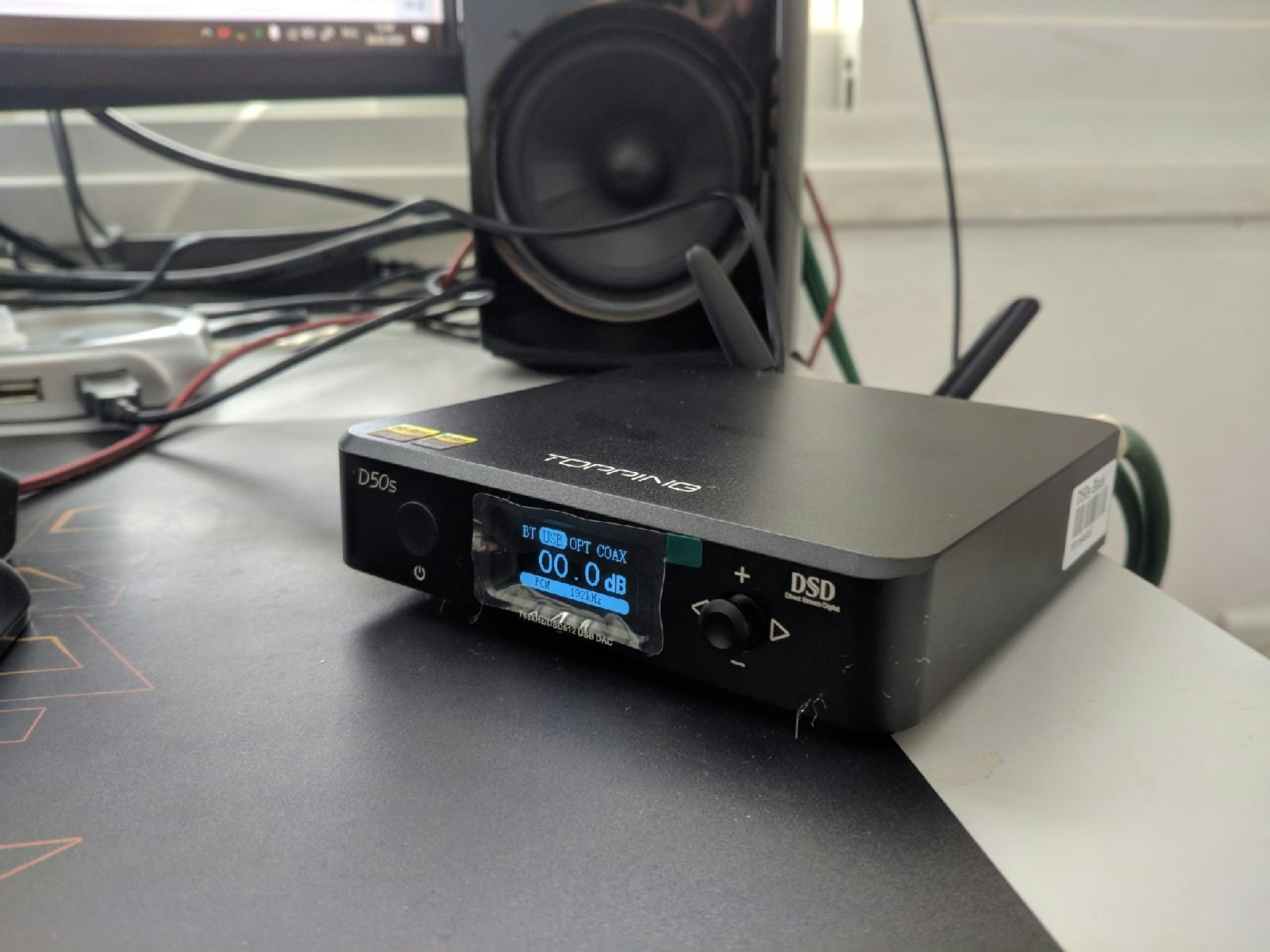

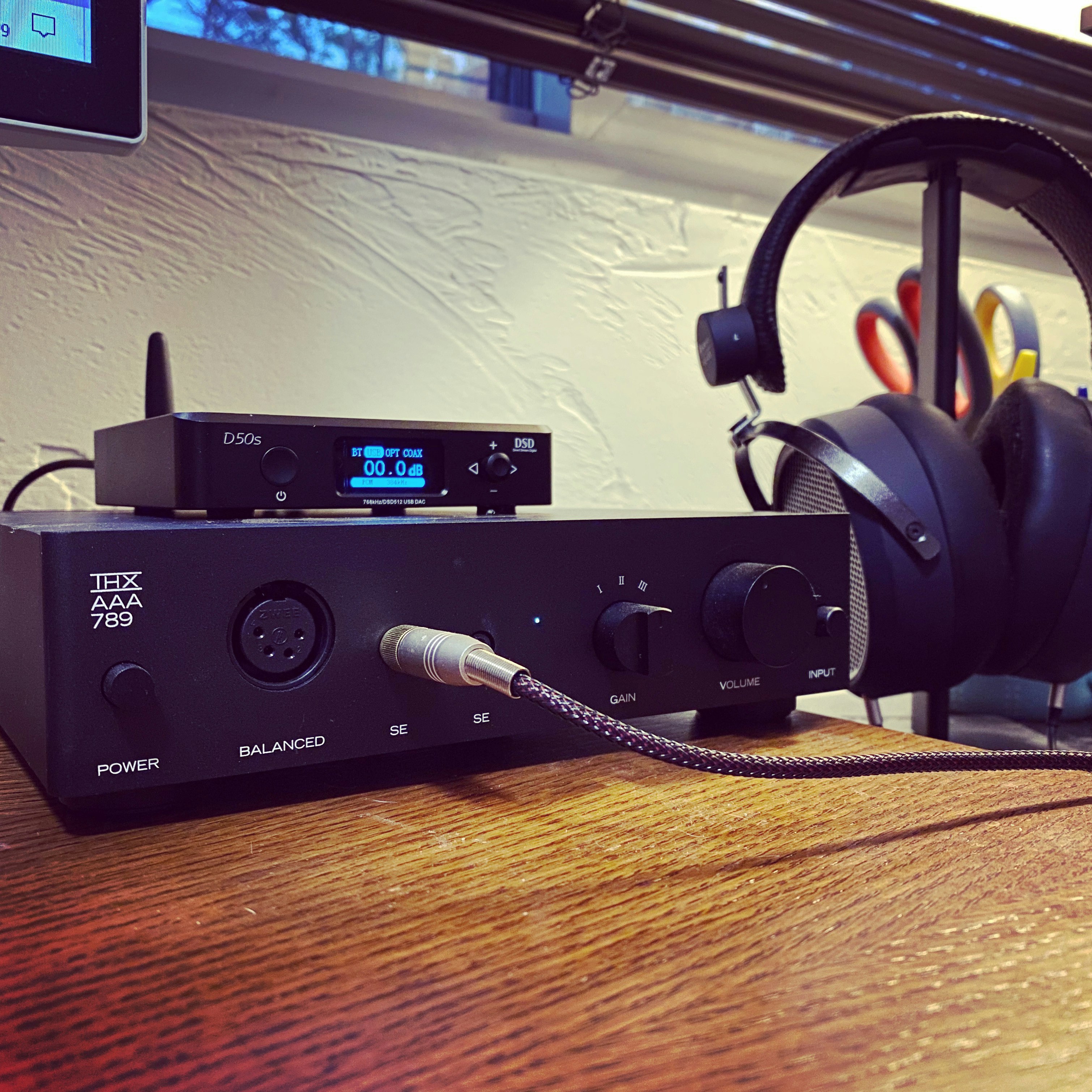

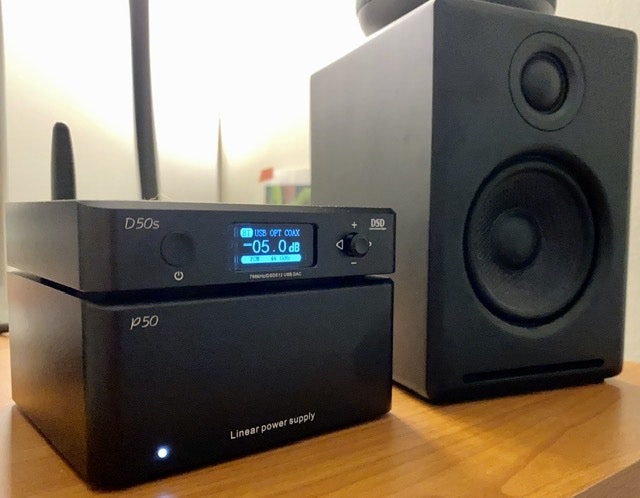

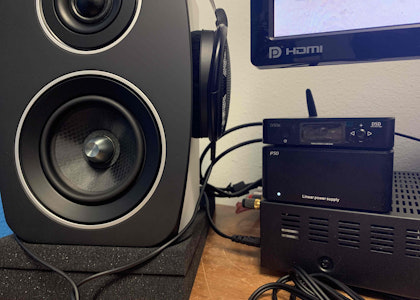

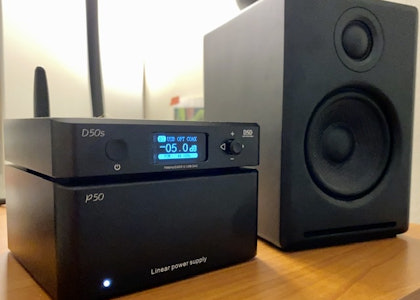

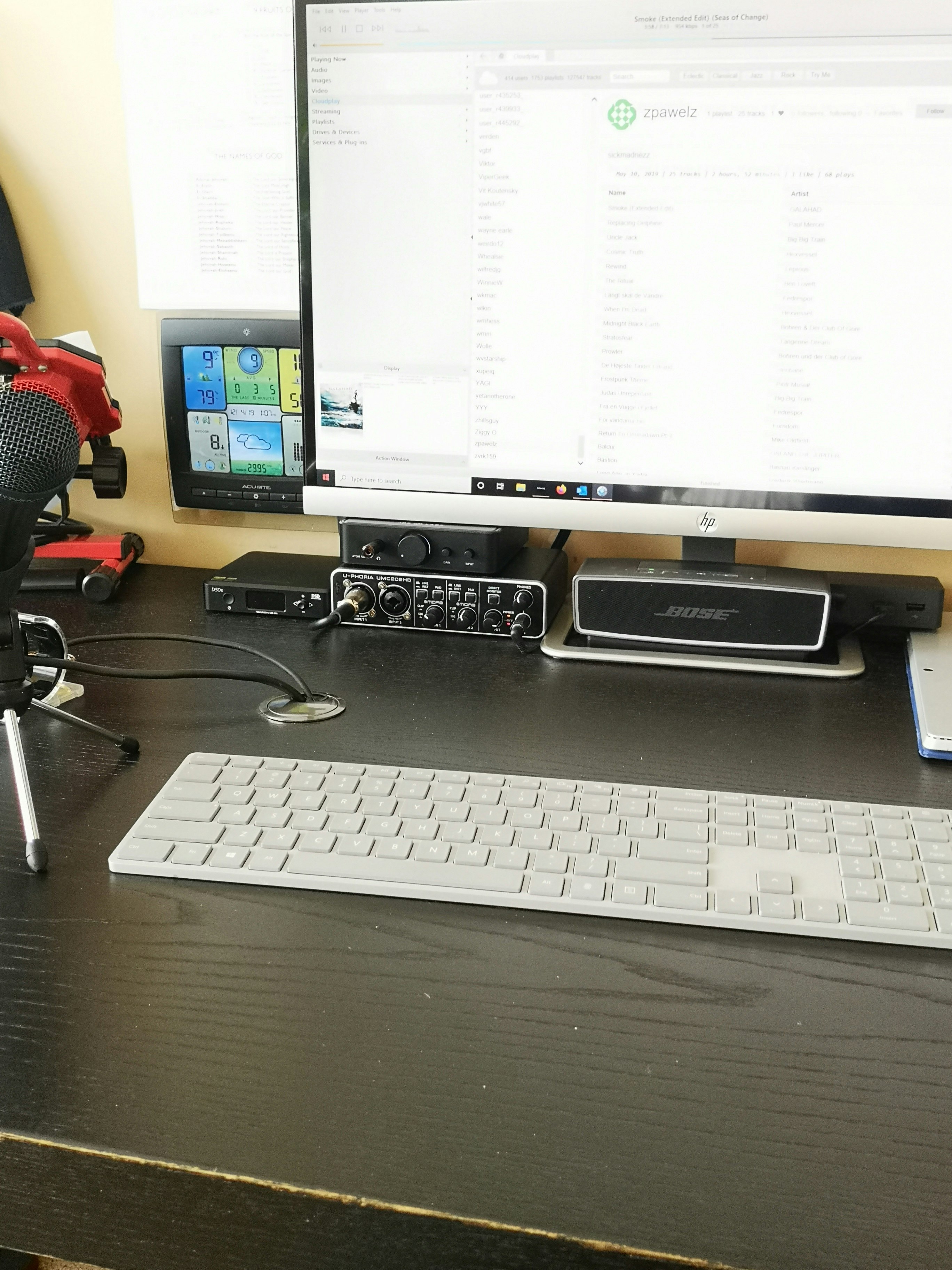

User Photos23
