Kailh Box Speed Ultimate Linear Mechanical Switch

Kailh Box Speed Ultimate Linear Mechanical Switch

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
59 requests
·
38 Sold
Product Description
The Kailh Box Speed Ultimate Linear Mechanical Switch is an exercise in mech keys power, precision, and poise. As implied by the name, the goal of this linear switch is to provide ultimate speed, with solid rebound force Read More

High-Speed, Low-Noise

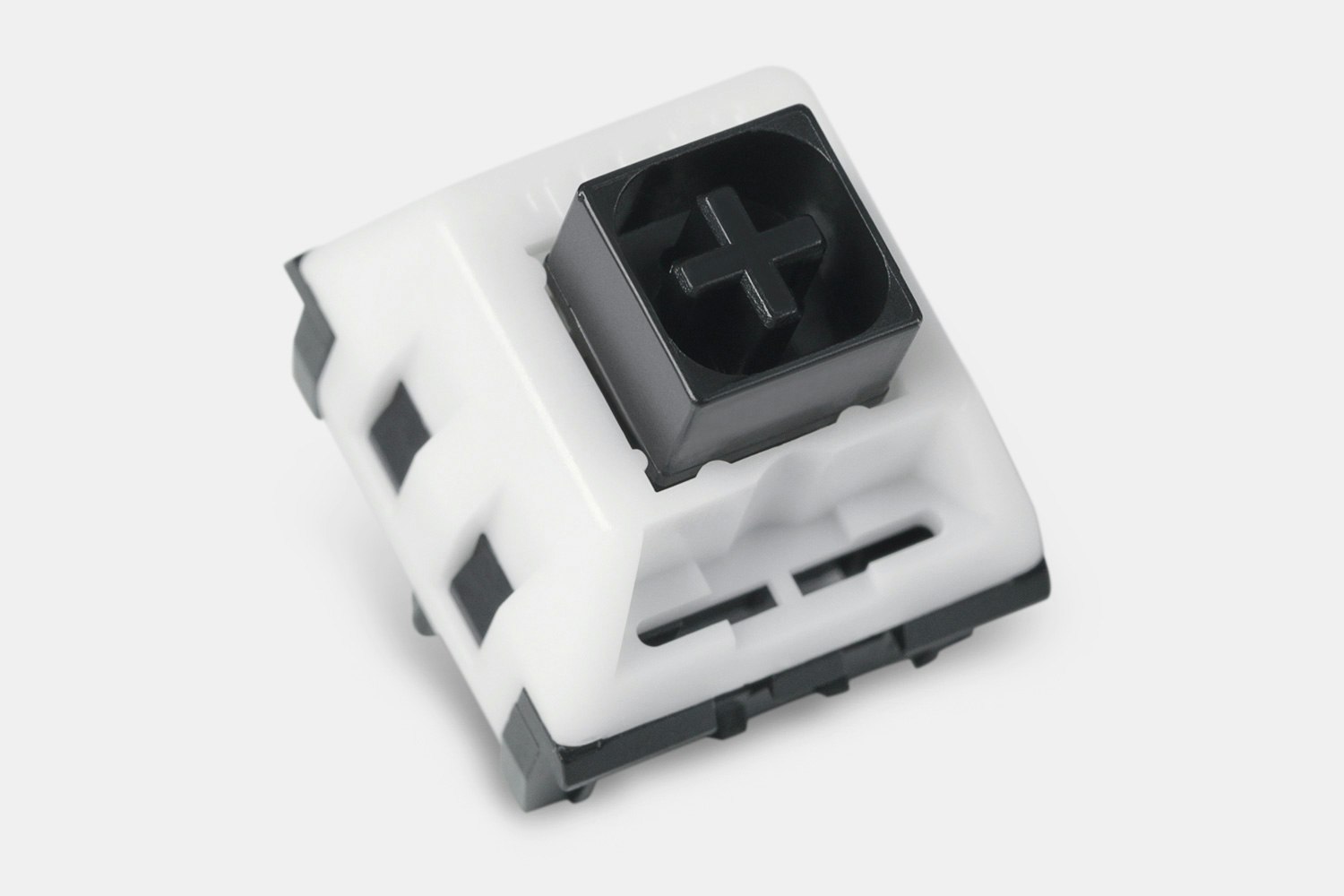

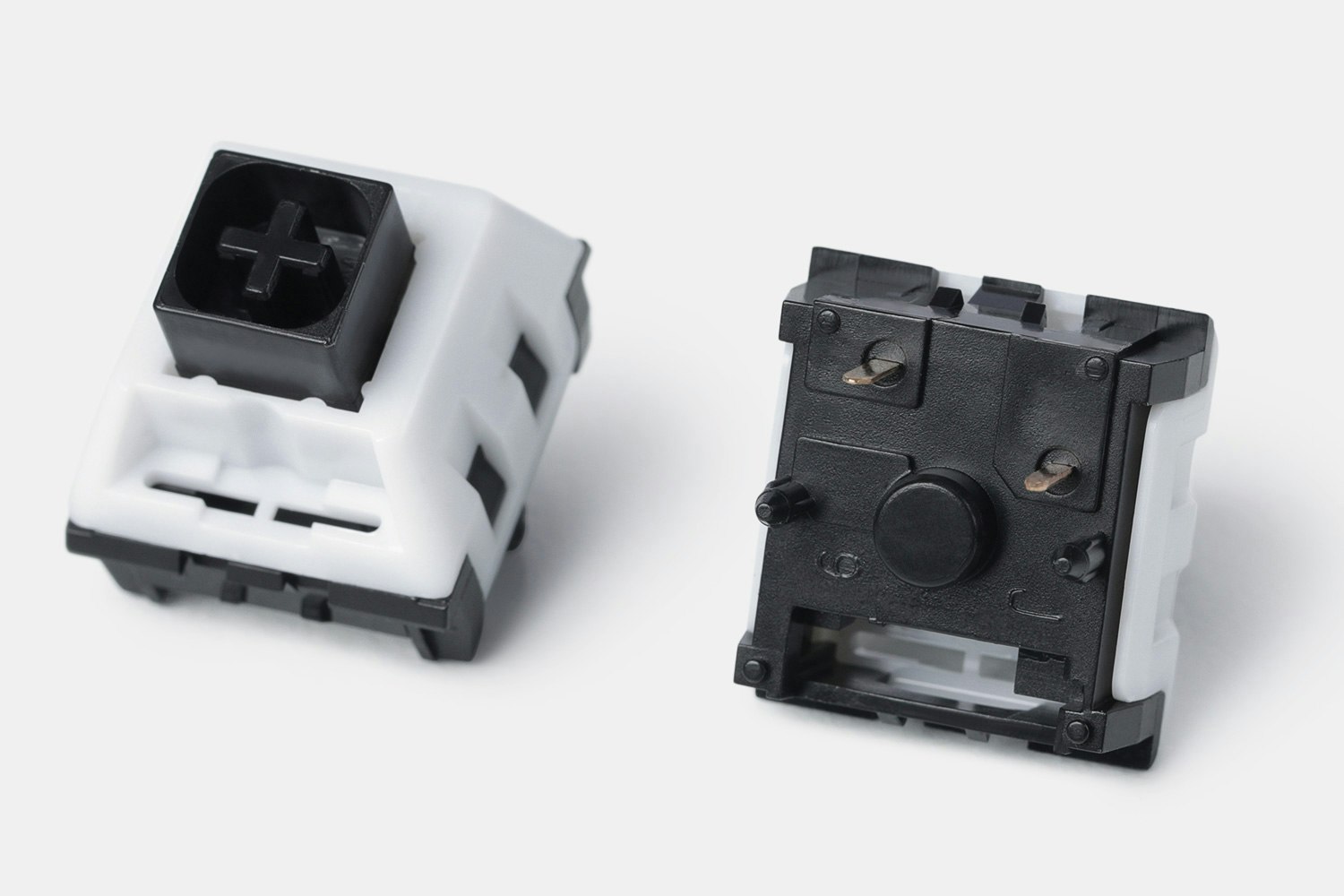

The Kailh Box Speed Ultimate Linear Mechanical Switch is an exercise in mech keys power, precision, and poise. As implied by the name, the goal of this linear switch is to provide ultimate speed, with solid rebound force. That’s all thanks to a longer-than-usual, 20.5-millimeter noise-reduction spring that provides tremendous upward force after each actuation, but doesn’t come with a lot of ping or thunk. The 3.6 millimeters of actuator travel provides a slightly shorter roundtrip for quicker typing and gaming, while the 45 grams of actuation force is perfect for those who like things light but not too light. And because this switch features the high-end polycarbonate and POM construction found in much of Kailh Box’s lineup—alongside that new quiet-focused spring—there’s a lot to love (but not a lot to hear).

Kailh Box Speed Ultimate Linear Mechanical Switch
Kailh Box Speed Ultimate Linear Mechanical Switch
Kailh Box Speed Ultimate Linear Mechanical Switch
Kailh Box Speed Ultimate Linear Mechanical Switch
Kailh Box Speed Ultimate Linear Mechanical Switch

Specs

  • Kailh
  • Switch type: Linear
  • Top housing material: Polycarbonate
  • Bottom housing material: POM
  • Stem material: POM
  • Contacts: Gold alloy
  • Lifespan: 80 million actuations
  • Actuation force: 45 gf
  • Actuator travel: 3.6 mm
  • Spring: 20.5 mm extended noise reduction spring

Shipping

Estimated ship date is Sep 15, 2022 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Shop Our Curated Deskscapes
Explore these specially curated spaces to find inspiration for yours.
View All
Top Customer Questions5
search
close
Question
What distance does the switch activate at
Mar 20, 2022
Top Answer
Leu-D
10
The Kailh Box Speed Ultimate actuates at 1.2mm distance, and their seems to be a discrepancy in Drop's details, it is supposed to be 3.8mm total travel, at least that is the information presented...Read More
Mar 20, 2022
Question
Can these be mounted on a hotswap keyboard or are they only PCB solder?
Mar 23, 2022
Top Answer
A community member
You can mount them on either, so long as your PCB accepts five-pin switches.Read More
Mar 23, 2022
See 1 More
Question
Is it too sensitive? hair trigger activation is one of the least enjoyable experiences for me.
Mar 20, 2022
Top Answer
Trizz
39
This one is probably not for you then. I use Kailh speed silvers right now, and hair trigger is probably an understatement. Because I usually type in bursts and don’t rest my hands on the keys...Read More
Mar 21, 2022
See 3 More
Showing 3 of 5 questions
View All Questions
