Product Description

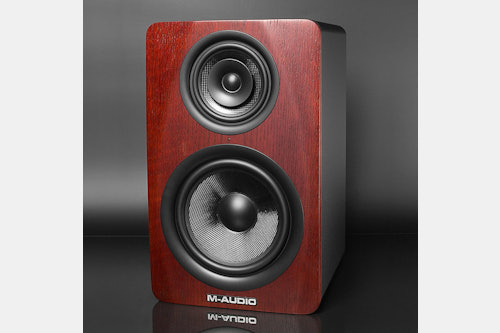

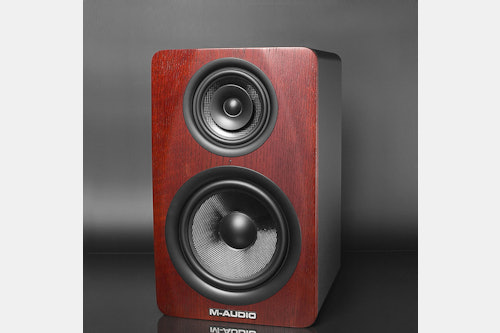

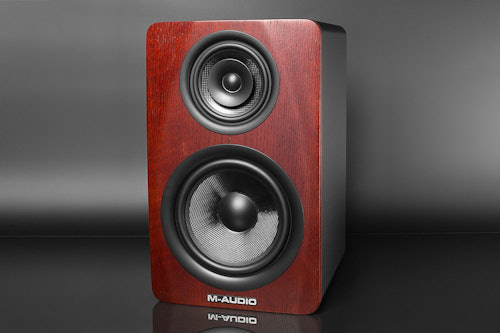

A three-way active studio monitor from M-Audio, the M3-6 is designed to play louder, handle more power, and provide consistent sound coverage. Built with a 6-inch woven Kevlar low-frequency driver, a 5-inch woven Kevlar mid-frequency driver, and a 1-inch silk dome tweeter with integrated waveguide, the M3-6 covers a wide frequency response range of 40 hertz to 22 kilohertz Read More

3-Way Studio Monitor

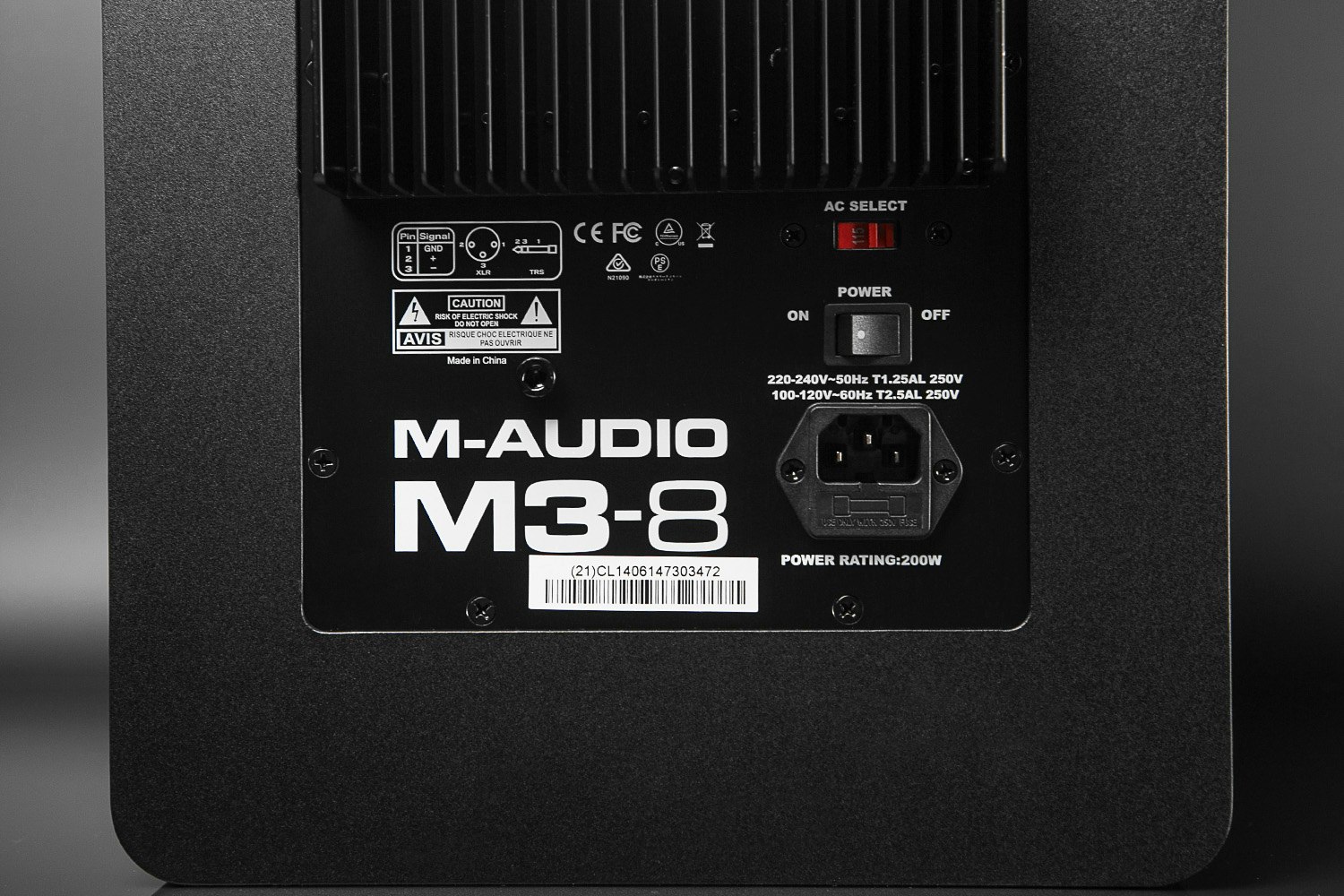

Note: At checkout, you’ll have the option to upgrade to the M3-8 model (+ $50), which features an 8-inch low-frequency driver, more powerful output, and a slightly larger footprint. For either option, the price reflects the cost of one monitor.

M-Audio M3-6 and M3-8 Three-Way Studio Monitor

Design & Features

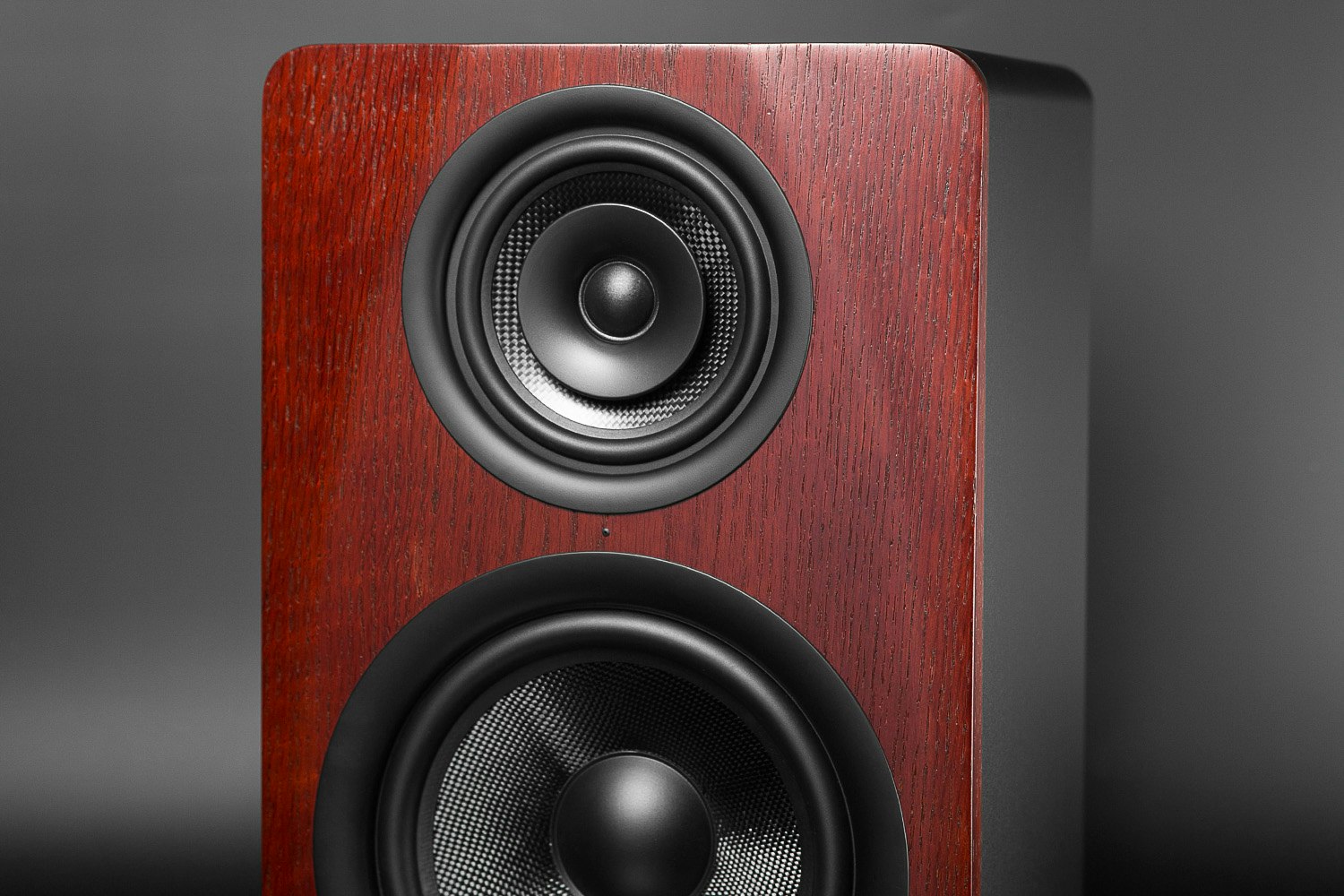

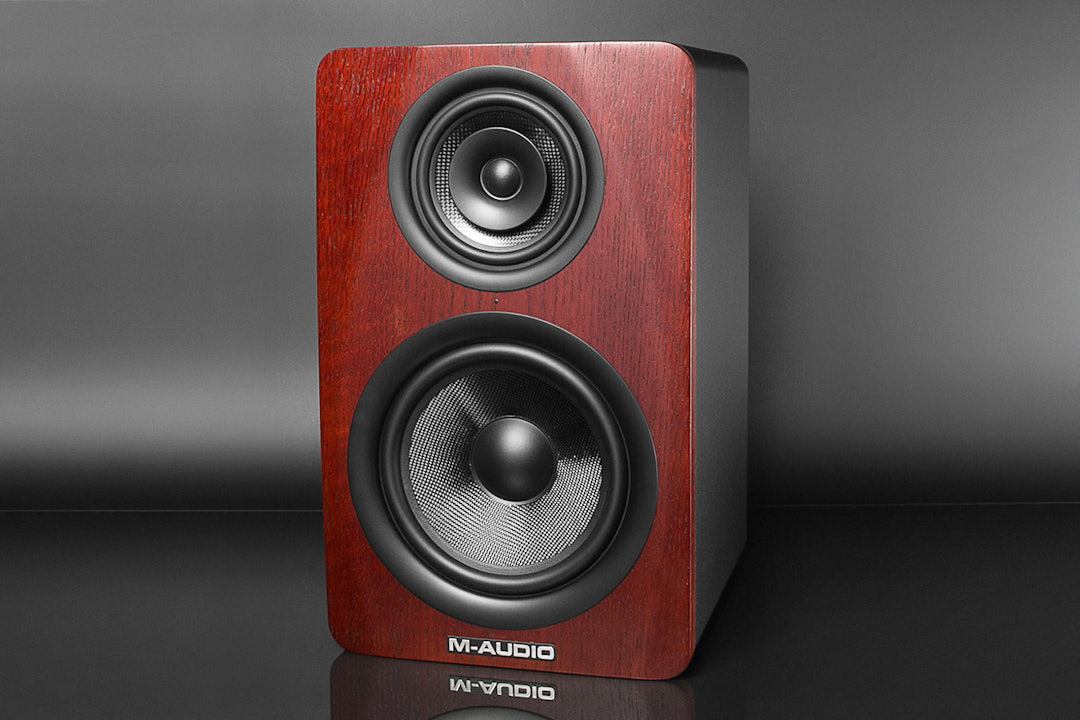

Inside the wood cabinet, the mid-range driver and tweeter are mounted in line with one other to deliver clear, detailed sound while eliminating time-arrival distortion. Each monitor is equipped with three individual internal amplifiers to offer 160 watts of power in the case of the M3-6, or 220 watts of power in the case of the M3-8. Ideal for the seasoned engineer, both models excel at video and film mixing, as well as music recording.

Specs

M-Audio M3-6

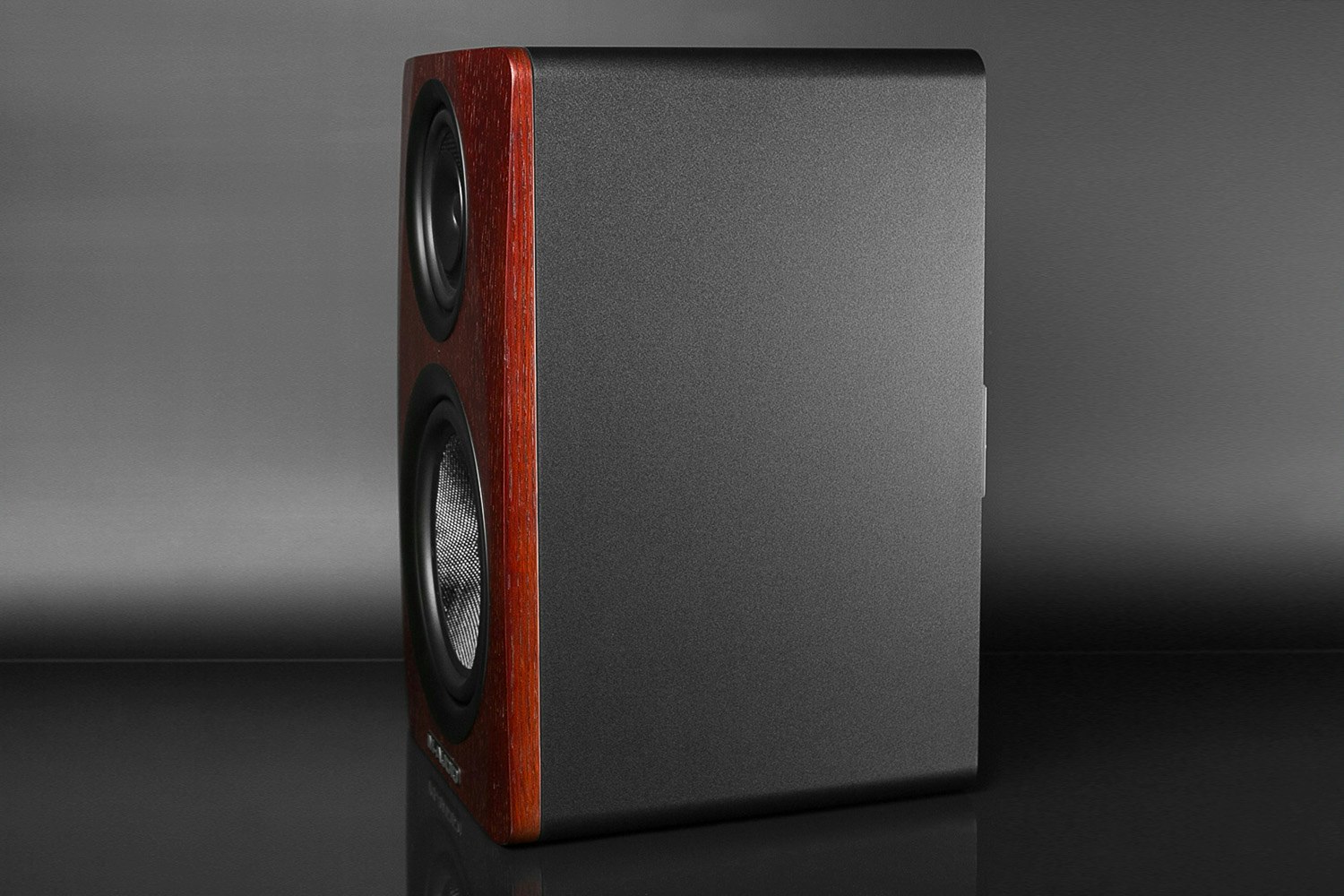

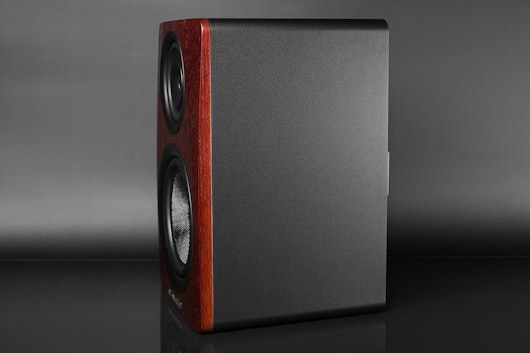

Wood front baffle with vinyl-laminated cabinet
Optimized internal bracing
Inline mid- & high-frequency drivers
6 in (or 8 in with upgrade) woven Kevlar low-frequency driver
5 in woven Kevlar mid-frequency driver
1 in silk dome tweeter with integrated waveguide
Tri-amp class A/B power, 220 watts total

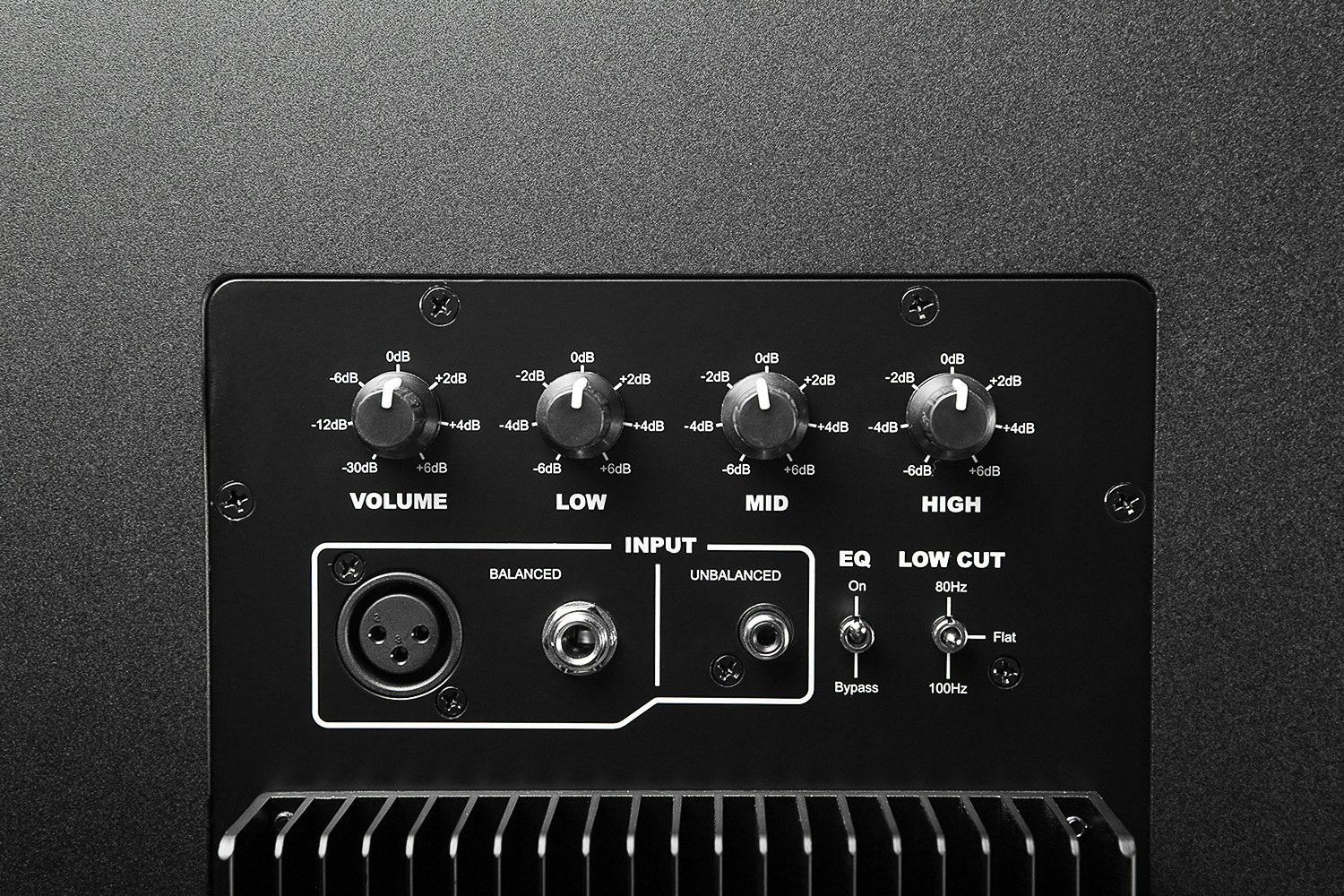

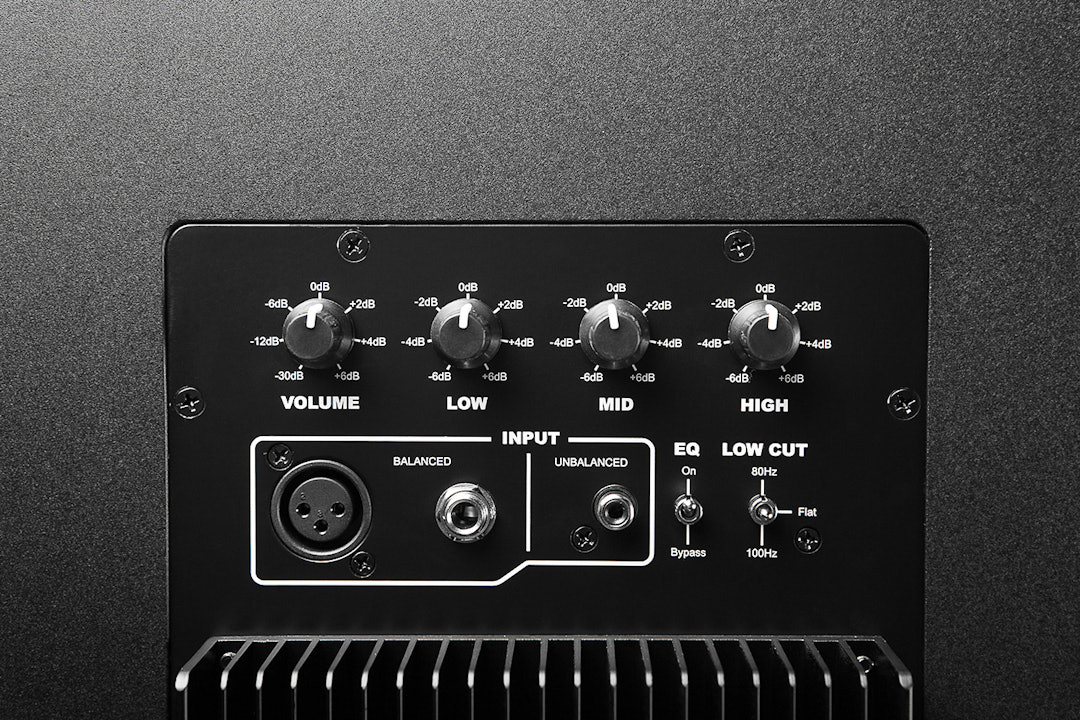

XLR and ¼ in (0.63 cm) balanced inputs; RCA unbalanced input
3-band EQ with bypass; switchable low-cut filter

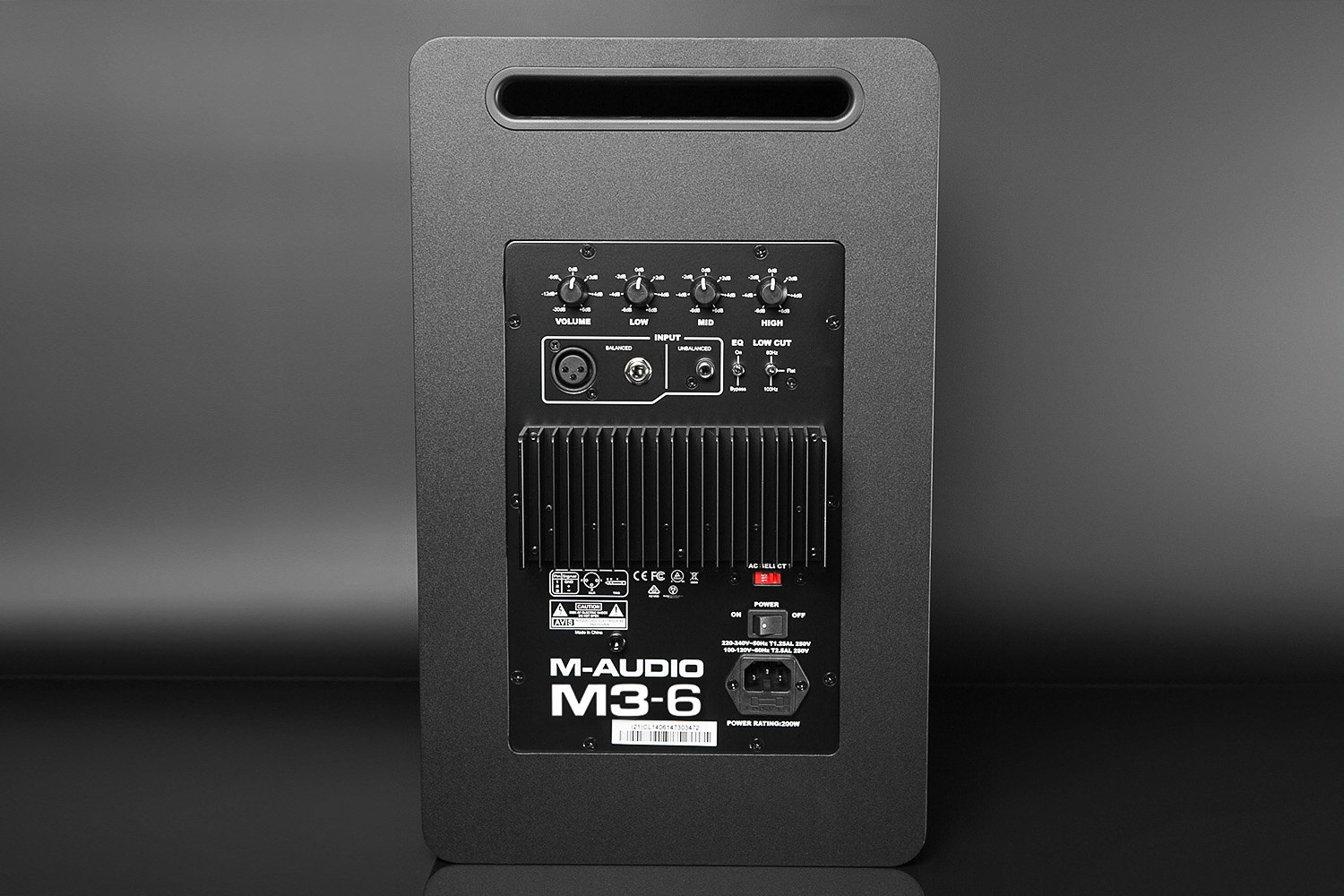

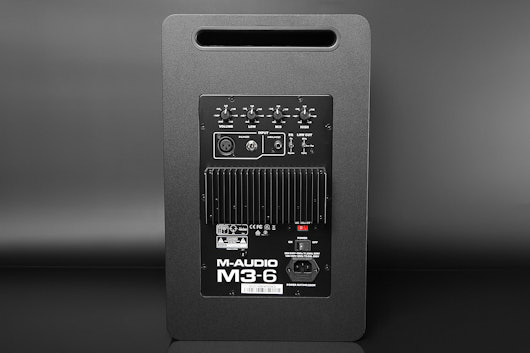

Rear-mounted volume and power control
Frequency response: 40 Hz – 22 kHz
Crossover frequency: Low-mid: 400 Hz; mid-high: 4 kHz
Amplifier power, low-frequency: 110 W
Amplifier power, mid-frequency: 30 W
Amplifier power, high-frequency: 20 W
LF cutoff switch: Flat, 80 Hz, 100 kHz
Equalizer control, LF: ± 6 dB boost/cut at 100 Hz
Equalizer control, MF: ± 6 dB boost/cut at 1 kHz
Equalizer control, HF: ± 6 dB boost/cut at 10 kHz
Bypass switch
Polarity: Positive signal at + input produces outward LF cone displacement
Input impedance: 20 kohm balanced, 10 kohm unbalanced
Input sensitivity: 85 mV pink noise input produces 90 dBA output SPL at 1 meter (with volume control at maximum)
Protection: Output current limiting; over-temperature; transient on/off; subsonic filter; external mains fuse
Size (W x H x D): 9.25 x 1 x 9.1 in (23.5 x 38.1 x 23 cm)
Weight: 23.2 lbs (10.5 kg)
