NuForce HA-200 Headphone Amplifier

NuForce HA-200 Headphone Amplifier

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
924 requests
·
234 Sold
Product Description
While sound systems require two channels of output to operate in stereo mode, using a Class-B or Class-AB amplifier creates an inefficient push-pull effect between the currents. Instead of inviting crossover and notch distortion into your set-up, plug into a NuForce HA-200 Headphone Amplifier and discover the joys of dedicated Class-A amplification Read More

Transfer Classes

While sound systems require two channels of output to operate in stereo mode, using a Class-B or Class-AB amplifier creates an inefficient push-pull effect between the currents. Instead of inviting crossover and notch distortion into your set-up, plug into a NuForce HA-200 Headphone Amplifier and discover the joys of dedicated Class-A amplification.

Note: This drop is limited 17 units of the HA-200 in black and 3 units in silver.

NuForce HA-200 Headphone Amplifier

A is for Awesome

A Class-A amplifier never shuts off, giving you better performance across high frequencies and more stability in the feedback loop. If you’re worried about energy efficiency or heat transfer from your devices, the HA-200 isn’t for you, but if the highest quality audio is your priority, you’ve come to the right place. The Class-A topography is bolstered by a constant-current bias, which provides stable control over the signal at all times.

NuForce HA-200 Headphone Amplifier

Keep Your Balance

With one unit, you can operate in Single-Ended Mode and feed a single 1/4” TRS output. If your headphones crave more power, however, you can use two HA-200s as monoblock amplifiers in Balanced Headphone Mode with the 3-pin XLR output on each unit, bringing quadruple the power to your system. With all that output, you’re getting a fully realized soundstage, extremely clear and pure tones, and an overall fast, authoritative response. While this set-up isn’t recommended for everyone, if you refuse to compromise on your audio equipment, it’s time to get truly amped with the NuForce HA-200 Headphone Amplifier.

Color Options

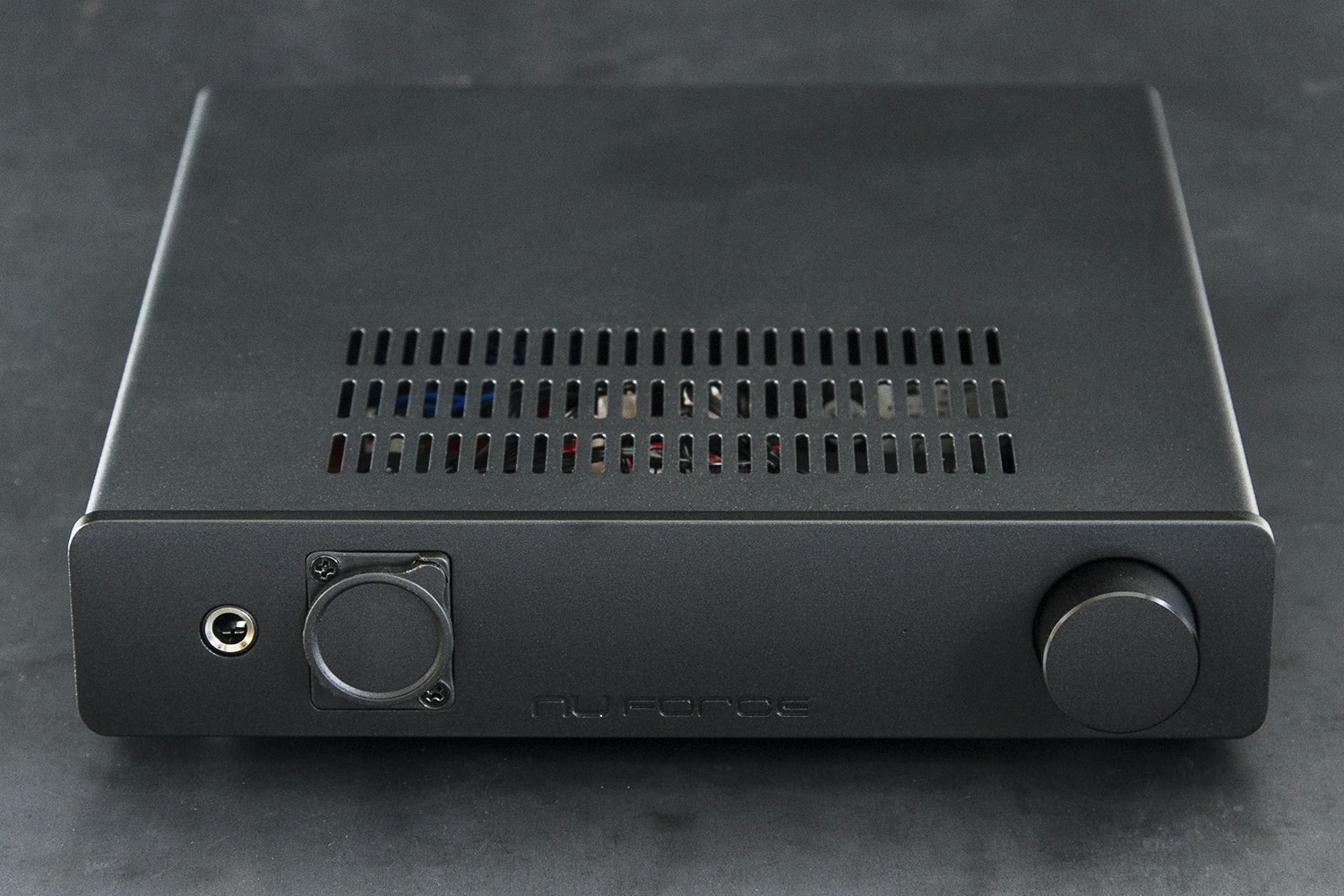

Black
Silver

Specs

  • NuForce
  • Class-A amplifier
  • Single-ended design
  • Constant-current bias
  • Single output gain stage
  • OPA2134 opamp
  • High performance Alps volume control
  • Inputs: 1/4 in (6.3 mm) headphone jack, XLR, RCA (L, R)
  • XLR connectors for operating in Balanced Headphone Mode
  • Linear power supply with custom-made toroidal transformer and extensive capacitor reserves
  • Frequency response: 20 Hz - 20 kHz, -0.1 dB, 300 Ohms
  • Recommended headphone impedance: 32 - 600 Ohms
  • Output voltage and power (RMS): 1 kHz

       - 16 Ohms: 2.8 Vrms, 0.5 Wrms

       - 30 Ohms: 5.6 Vrms, 1 Wrms       - 300 Ohms: 8.3 Vrms, 0.22 Wrms

  • Balanced mode: 200 Ohms, 14.6 Vrms
  • Maximum output: 2 W at 32 Ohms (SE mode), 8 W at 64 Ohms (Balanced mode)
  • THD + N: 0.002%
  • SNR: > 120 dB, weighted 2 Vrms
  • System gain: 10 dB
  • Input impedance: 22 kOhms
  • Output impedance: 5 Ohms
  • Power consumption: 22 W
  • Detachable power cord with North American plug
  • 5 lbs (2.26 kg)
