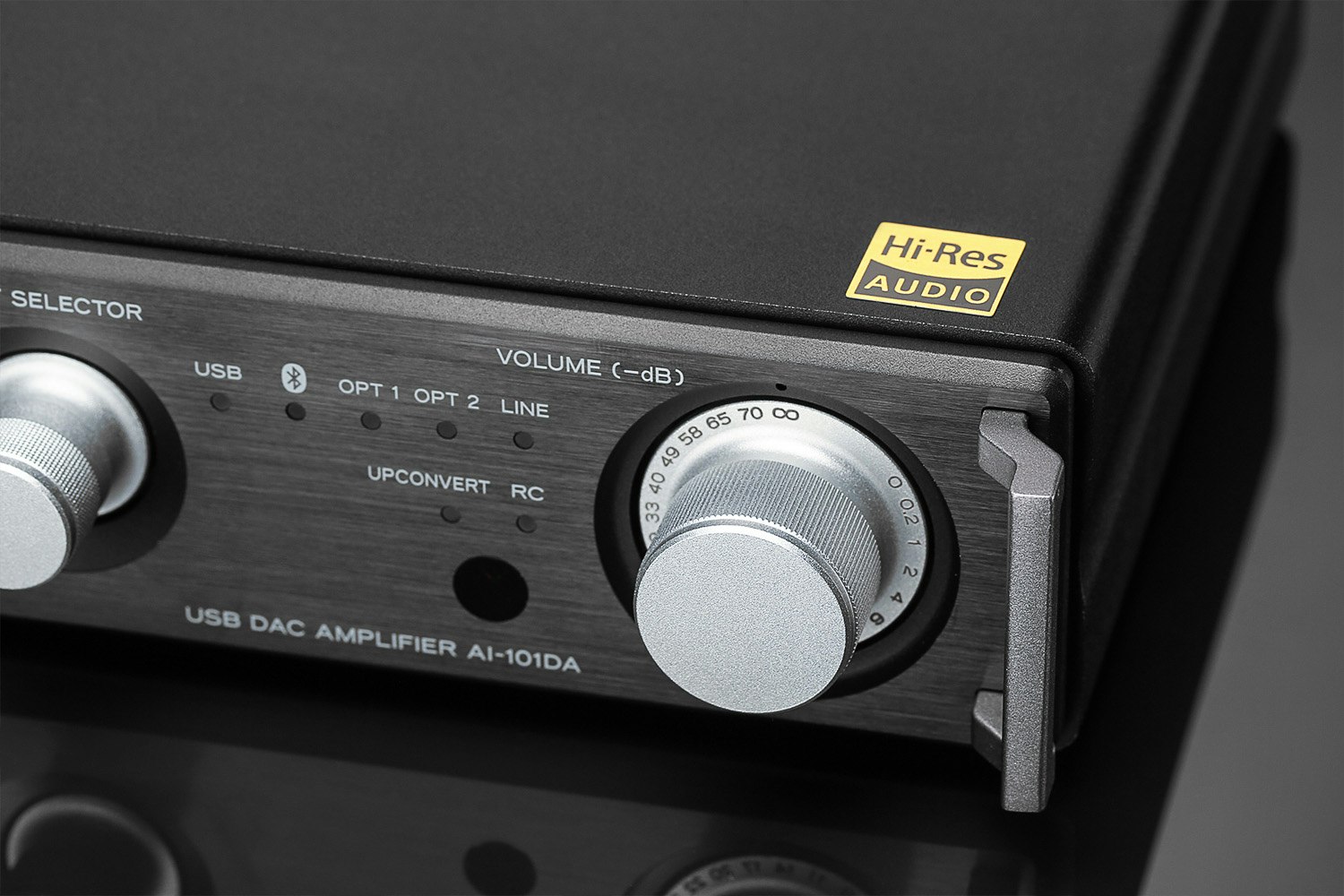

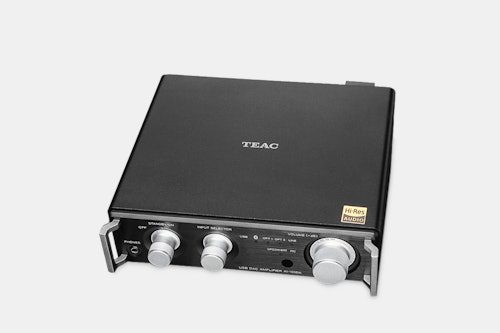

TEAC AI-101DA Integrated Amplifier with USB DAC
Wired, Wireless Compatibility
Designed to minimize computer-generated jitter noise, the AI-101DA Integrated Amplifier with USB DAC is compatible not only with wired computers but also with smartphones via Bluetooth aptX. Of course, the AI-101DA is also compatible with conventional ⅛-inch jacks. It’s capable of processing high-res audio up to 192kHz, thanks to the on-board PCM1796 DAC by BurrBrown, which is coupled with an up-conversion function to provide the smoothest audio possible.
Note: This drop's base price is for the AI-101DA amp in black or silver. At checkout, you can add the two-piece LS-101 speaker set to your order (+$75) or opt to get the speaker set on its own (- $115).
Additional Features

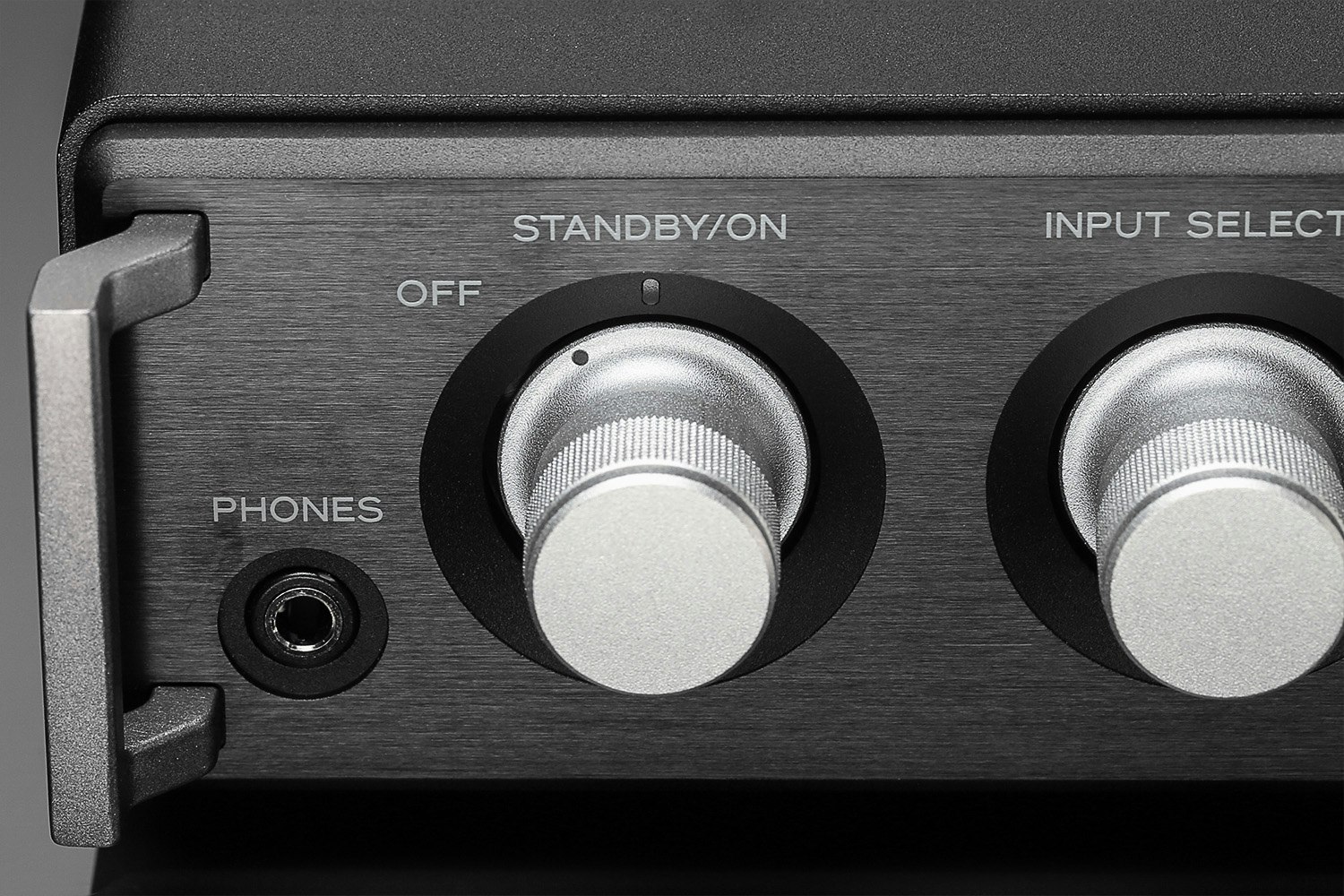

Fitted with a class-D power amp, the AI-101DA produces 26W + 26W of output, while the DSP-based HR Loudness function delivers heavy bass even on the smallest speakers. And to cater to a variety of headphones, including high-impedance cans, the AI-101DA offers 100mW + 100mW of headphone output. Other features include a power-saving function, which automatically activates the system upon detecting an incoming audio signal and deactivates it after 3 minutes of inactivity.
LS-101 Speakers

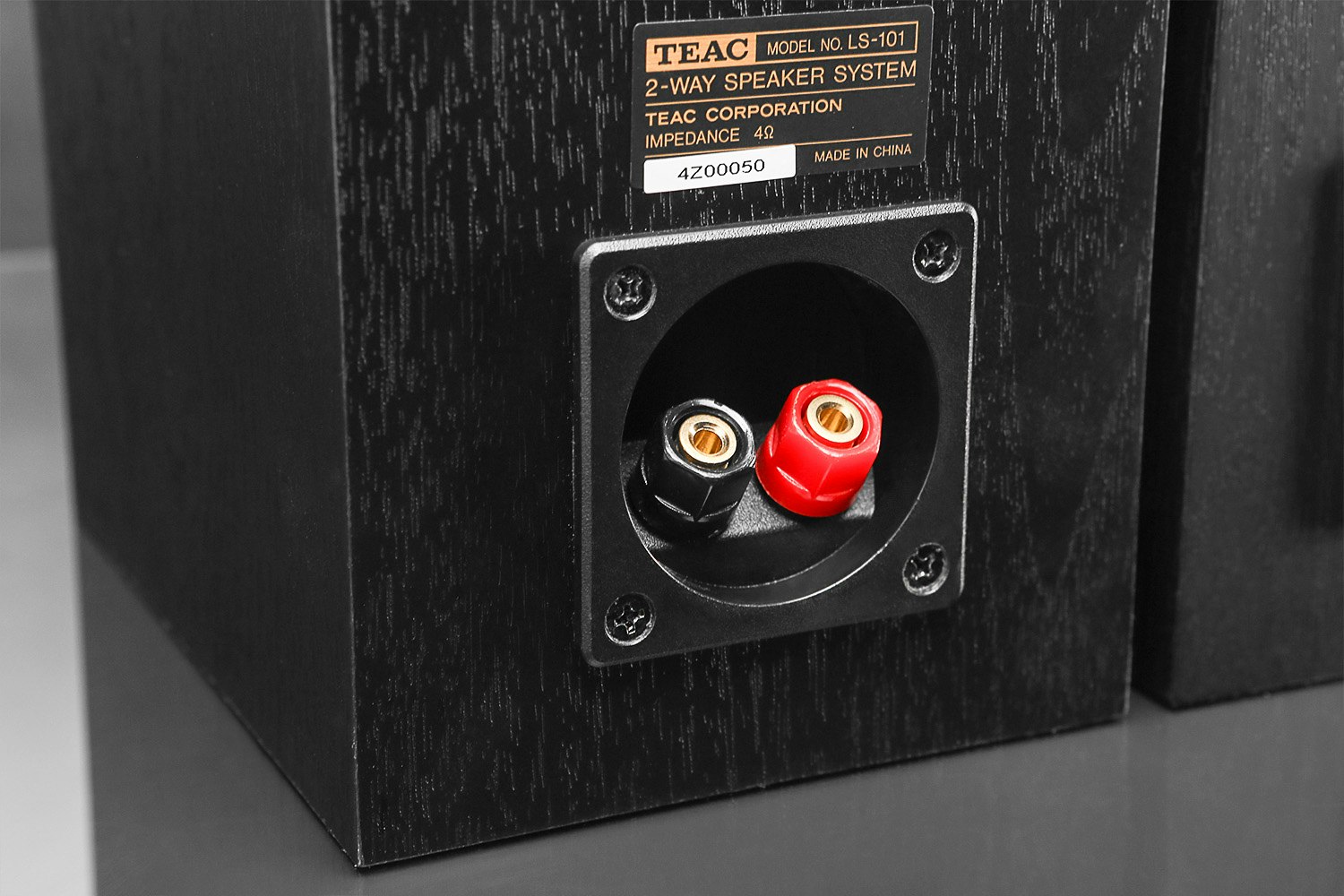

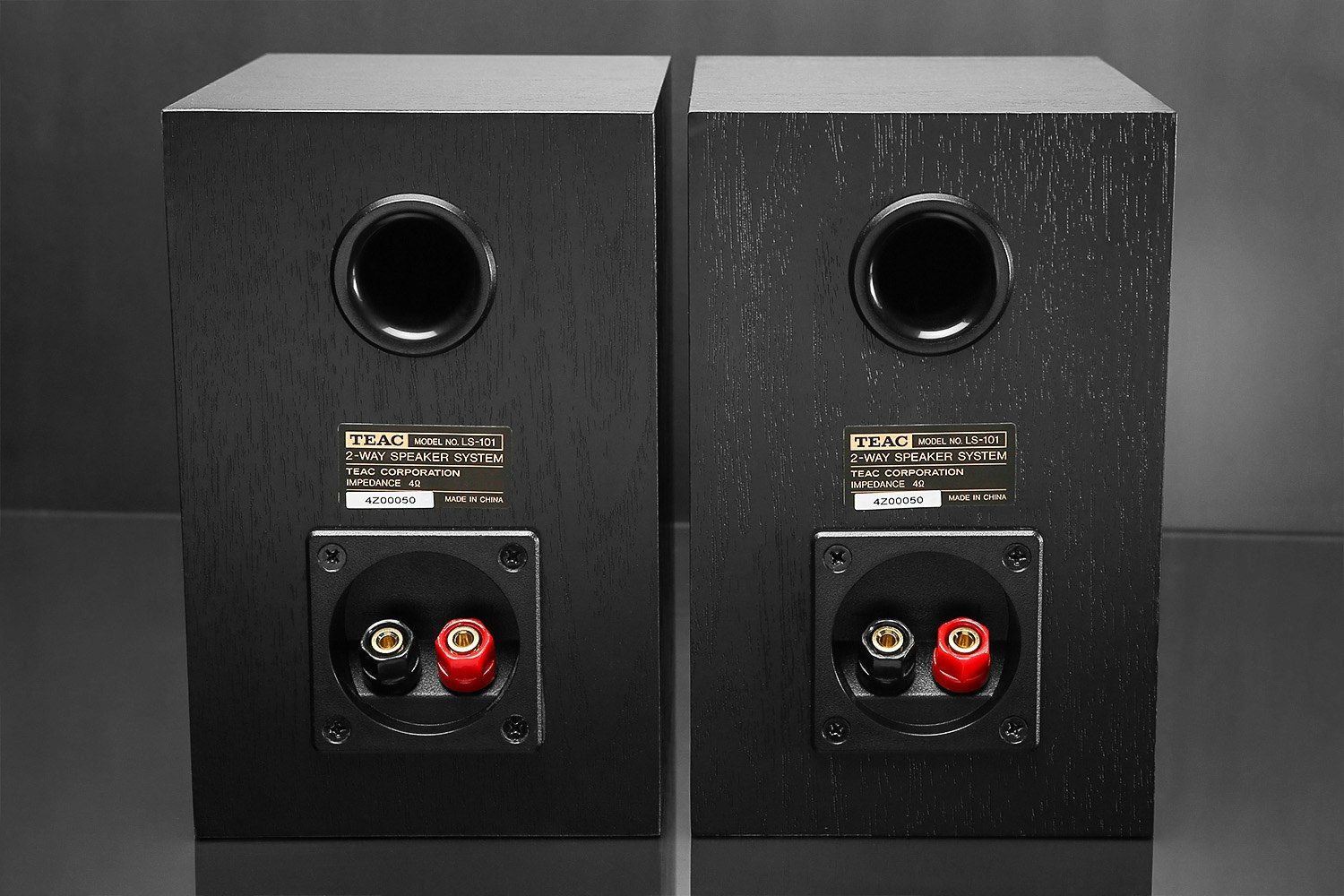

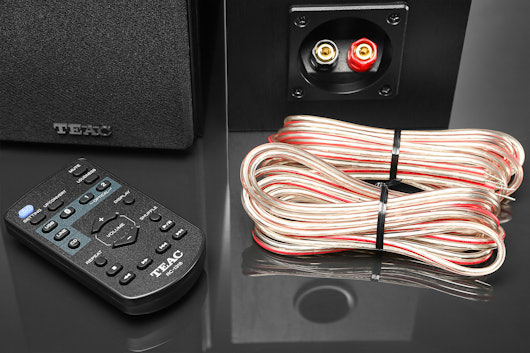

Compact yet powerful, the LS-101 speakers boast 20-millimeter soft-dome tweeters with chrome-plated diffusers, enabling high-res audio in the high-frequency range. The rear panels feature a bass reflex port as well as a binding post-type terminals.

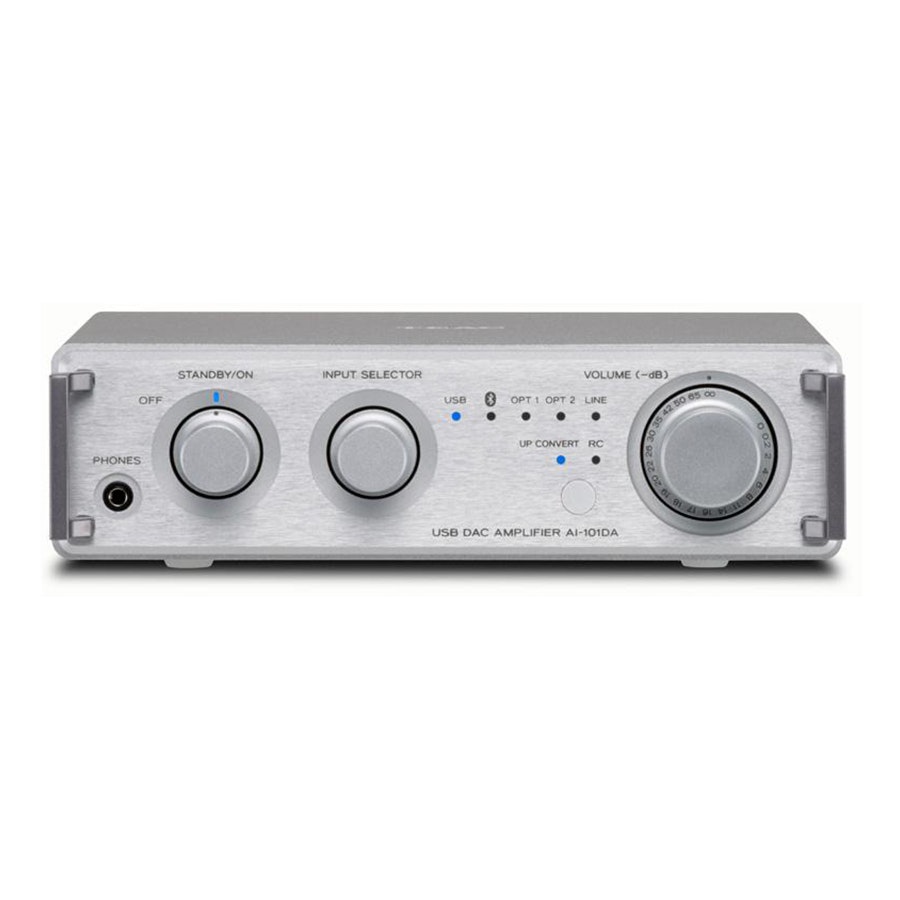

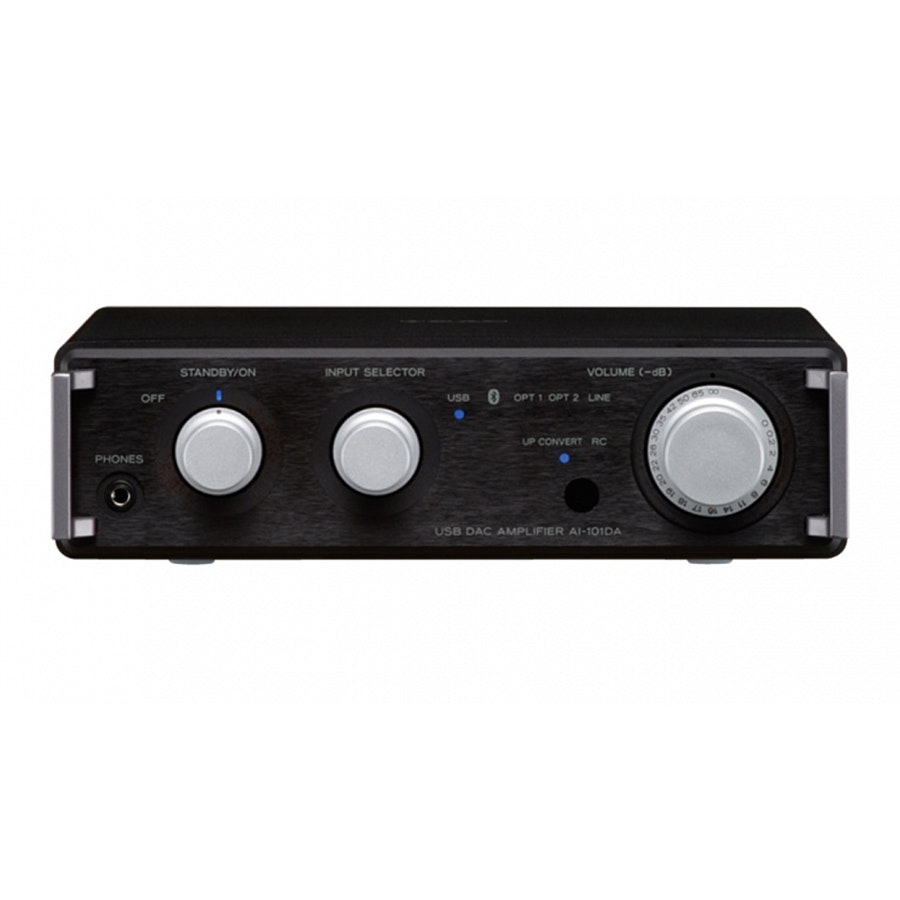

Color Options
Specs
Amplifier
- TEAC
- DAC: BurrBrown PCM1796
- Bluetooth version: 3.0
- Output class: 2
- Supported profile: A2DP
- Supported codec: aptX®, SBC, AAC

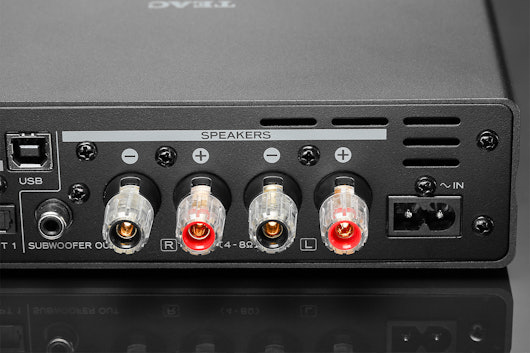

- Maximum output power: 26W + 26W (4 ohms, 1kHz, 10% THD, JEITA)
- Rated output power: 20W + 20W (4 ohms, 1kHz, THD 1%, JEITA)
- Supported Impedance: 4 ohms to 8 ohms
- USB input connector: USB B-type (USB 2.0)
- USB transmission mode: Asynchronous mode
- USB supported file format: PCM
- Optical connectors: Optical digital connector x2
- Optical supported file format: PCM
- Optical input level: -24 to -14.5dBm peak
- Analog audio input connector: ⅛ in (3.5 mm) stereo mini jack
- Headphones output connector: ⅛ in (3.5 mm) stereo mini jack
- Output power: 100mW + 100mW (with 32 ohms load, 1kHz)
- Compatibility: Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Mac OS X to El Capitan (10.11)
- Dimensions: 7.2 x 2.1 x 7.5 in (182 x 53 x 191 mm)
- Weight: 2.7 lbs (1.2 kg)
Speakers
- TEAC
- Drivers: 20-mm soft-dome tweeter, 70-mm cone woofer 20mm Soft Dome
- Max input power 35W
- Rated input power 25W
- Impedance: 4 ohms
- Sensitivity: 87dB/W/m
- Frequency response 65 Hz to (TBA)
- Crossover frequency 12kHz
- Cabinet capacity: 2 L
- Dimensions: 4.6 x 7.2 x 6.9 in (116 x 182 x 175 mm)
- Weight: 3.7 lbs (1.7 kg)
Shipping
Estimated ship date is Sep 25, 2020 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
