Product Description
A sequel to the popular H10, the Gustard H20 is a powerful class-A headphone amplifier with a variety of inputs and outputs. In fact, with an output of 12,000 mW at 32 ohms, it’s one of the most powerful we’ve ever sold ... Read More
Extremely Powerful

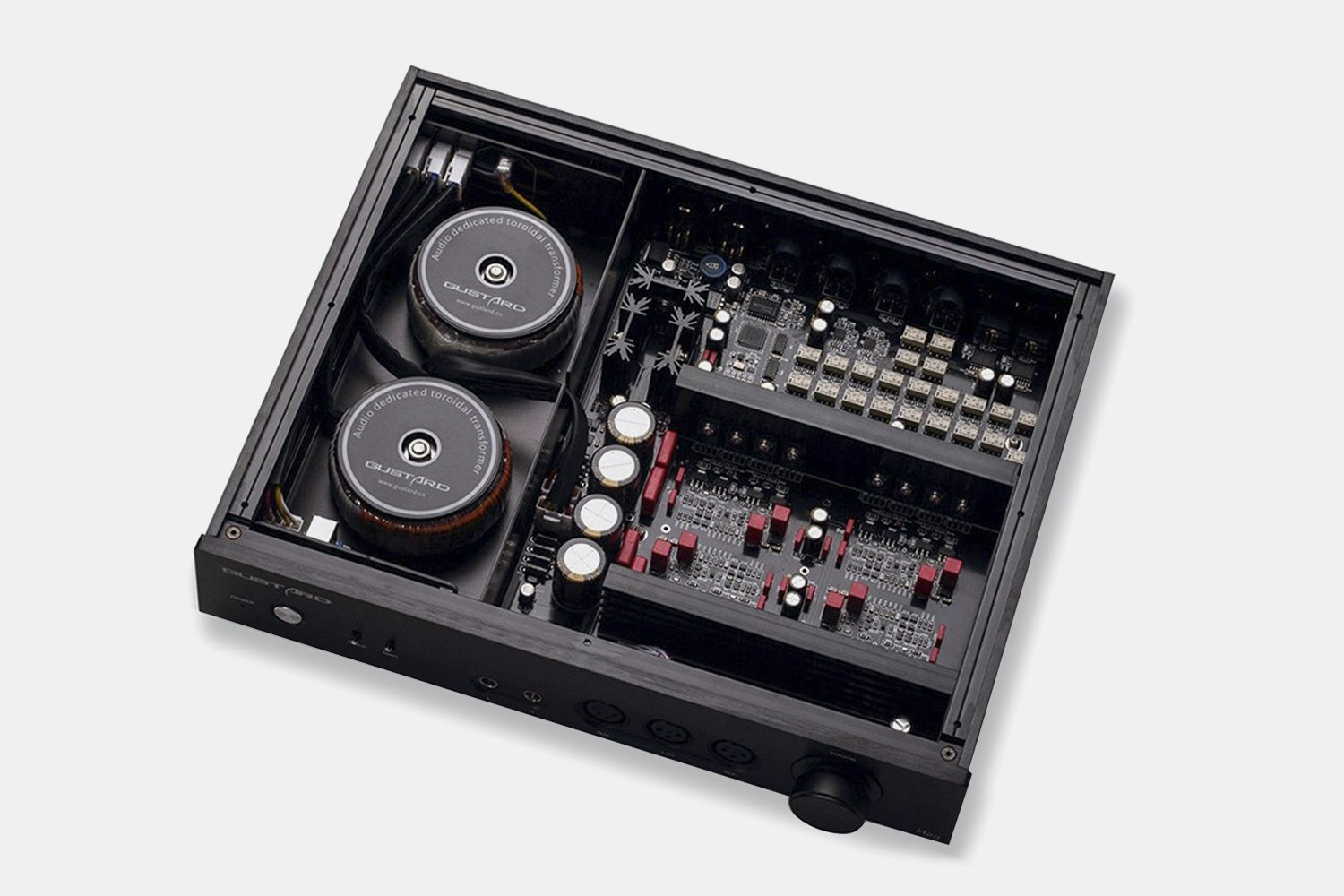

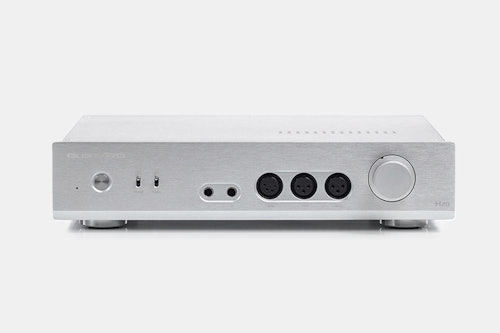

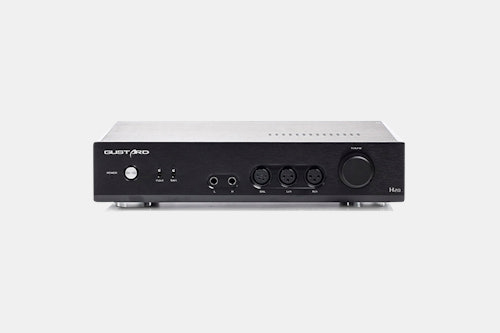

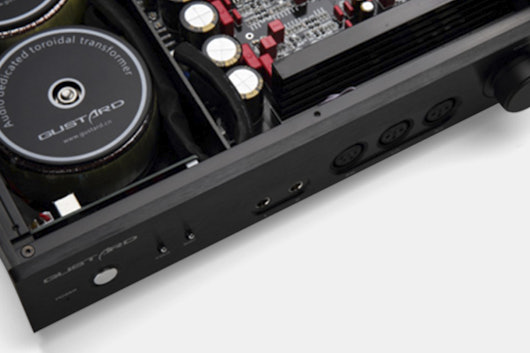

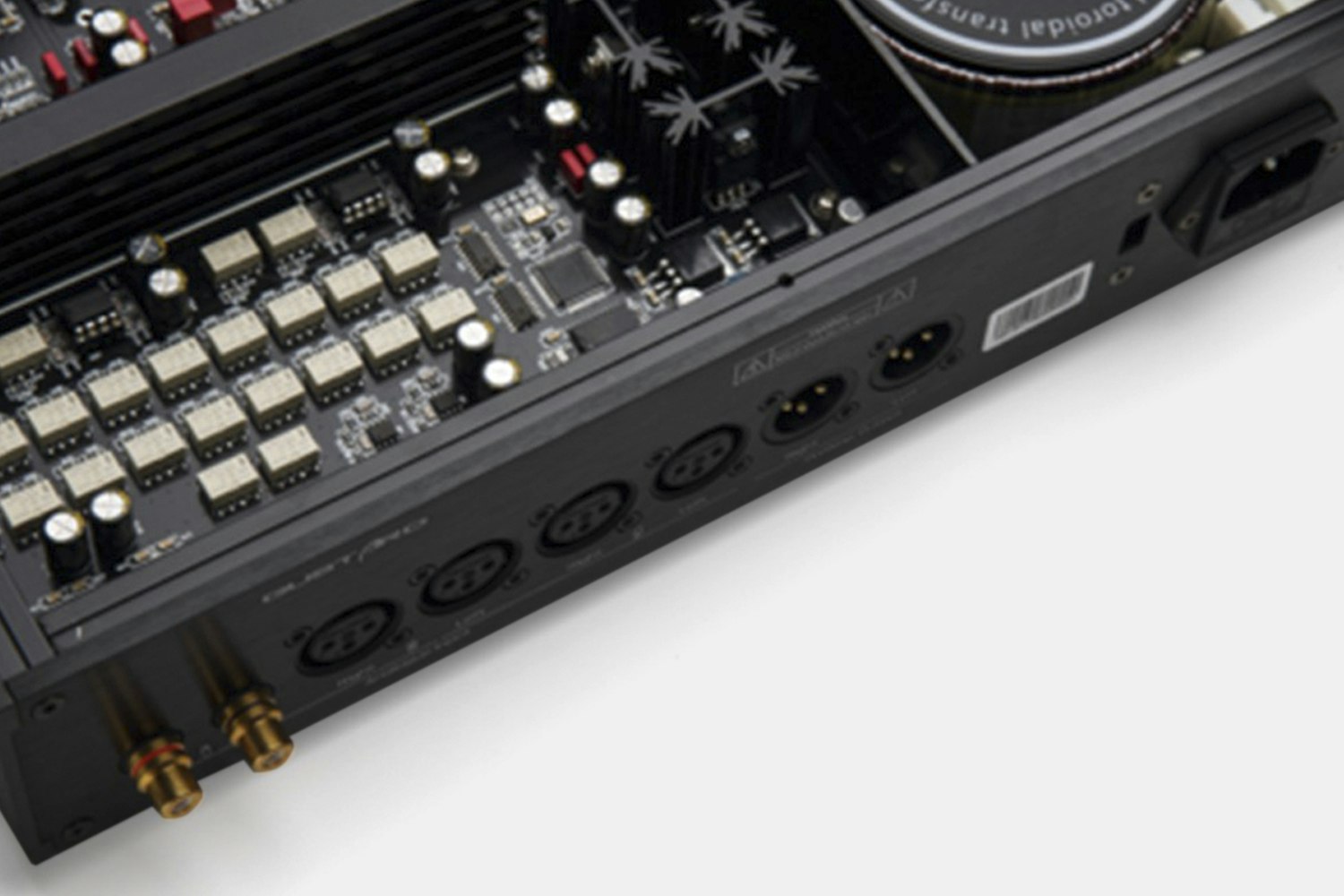

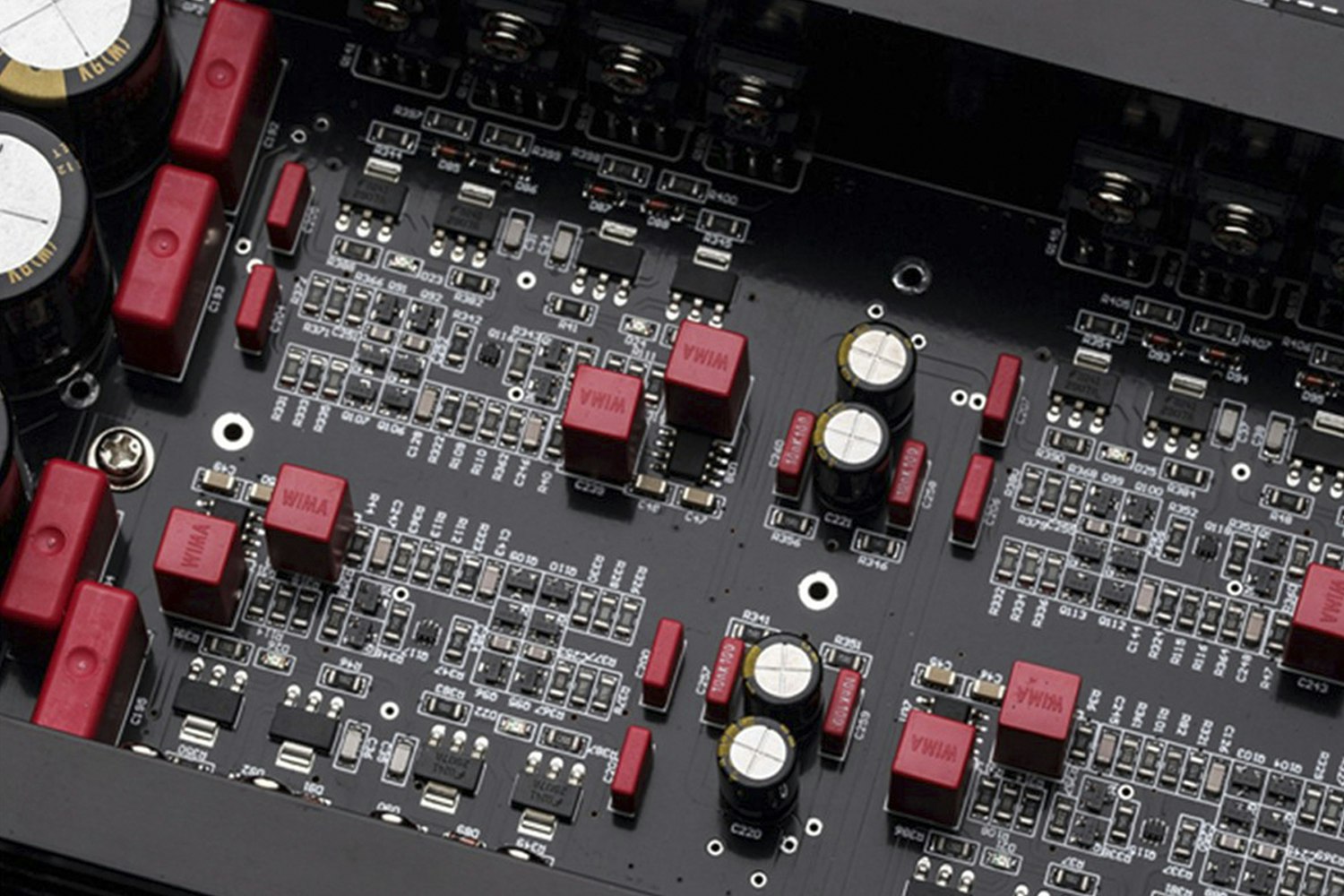

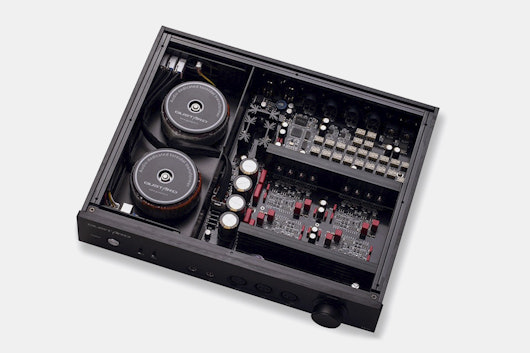

A sequel to the popular H10, the Gustard H20 is a powerful class-A headphone amplifier with a variety of inputs and outputs. In fact, with an output of 12,000 mW at 32 ohms, it’s one of the most powerful we’ve ever sold. In addition to the 4-pin XLR output, it has a 6.35-millimeter low gain and a 6.35-millimeter high gain. There’s even an output for dual 3-pin XLR: a welcome sight for those who use this rarer balanced out with their headphones. Two XLR outputs function as a prestage and are ideal for sending out to high-end studio monitors. Complete with an all-aluminum chassis, a fully balanced architecture, and two LM49720 dual opamps, the H20 has already garnered a lot of excitement from Head-Fi users.

Note: At checkout, choose black or silver.

Color Options
Black
Silver
Specs
  • Chassis: All aluminum

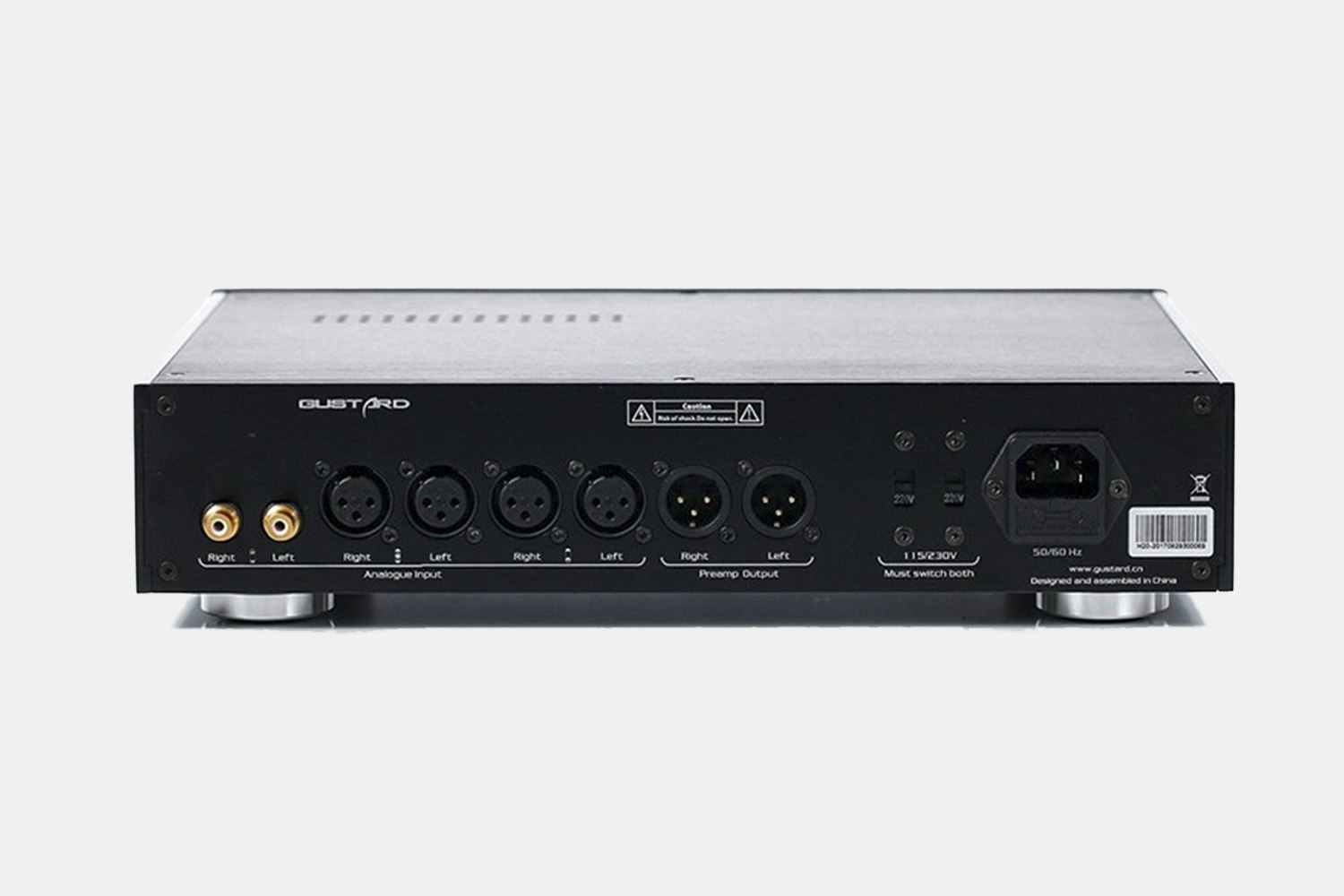

  • Line input: 1 x RCA, 2 x XLR
  • Line output: 1 x XLR (preamp output)
  • Amp output: 1 x 6.35mm single-ended high resistance, 1 x 6.35mm single-ended low resistance, 2 x three-core balanced output, 1 x four-core balance output
  • Dimensions, without protruding parts: 13 x 10.2 x 2.6 in (330 x 260 x 65 mm)

Analog Input

  • RCA standard input group, input sensitivity typical value: 2 Vrms; input impedance 47 kohms
  • XLR balanced input two groups, input sensitivity typical: 6 Vrms; input impedance 2.4 kohms

Front Analog Output (XLR)

  • Output impedance: 200 ohms
  • Frequency response: 20–80 kHz / -0.1 dB
  • Signal-to-noise ratio: >122 dB
  • Channel crosstalk: -130 dB at 1 kHz
  • THD+N: <0.0004%
  • IMD: <0.0004%

Amp Output

  • Frequency response: 20–80 kHz / -0.1 dB
  • Signal-to-noise ratio: >120dB
  • Channel crosstalk: -120 dB at 1 kHz
  • THD+N: <0.0005% at 6,000 mW into 32-ohm load
  • IMD: <0.0005% at 6,000 mW into 32-ohm load
  • Maximum distortion output power: 6,000 mW into 32-ohm load
  • Maximum output power: 12,000 mW at 32 ohms (THD = 1%)

Load Power

  • 64 ohms: 5,360 mW
  • 150 ohms: 2,680 mW
  • 300 ohms: 1,340 mW
  • 600 ohms: 670 mW
Included
  • Power adapter
Shipping

All orders will be shipped by Drop.

Estimated ship date is Mar 11, 2019 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
