Product Description
A full-featured combo unit designed to be the centerpiece of an audiophile setup, the Keces S3 balanced DAC/amp is especially well suited for fans of the discontinued Oppo HA-1. It uses the high-performance ESS ES9026PRO, one of the best ESS Sabre DACs on the market Read More

Powerful DAC, Headphone Amp & Preamplifier in One

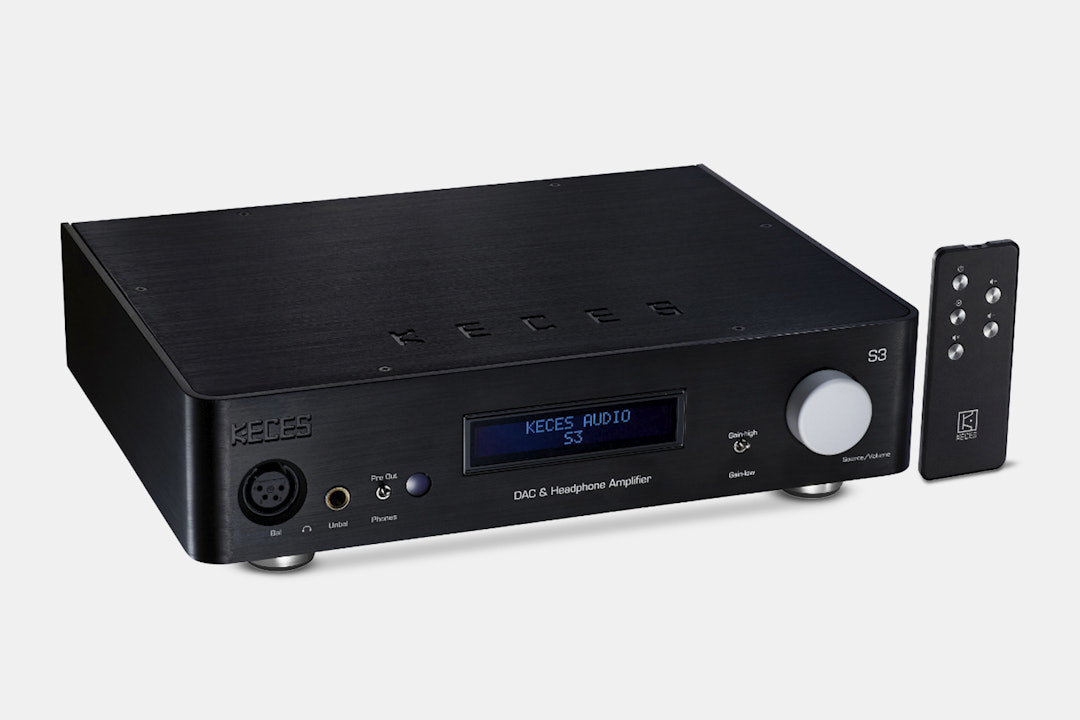

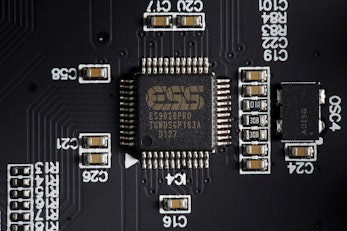

A full-featured combo unit designed to be the centerpiece of an audiophile setup, the Keces S3 balanced DAC/amp is especially well suited for fans of the discontinued Oppo HA-1. It uses the high-performance ESS ES9026PRO, one of the best ESS Sabre DACs on the market. Via the USB input, it supports up to PCM 32 bit/384 kHz, DSD128 (DoP), and DSD256 (ASIO native). Via coaxial and optical, it supports up to PCM 24 bit/192 kHz and DSD64 (DoP). The powerful balanced headphone output delivers an impressive 2,000 mW at 32 ohms—enough to power the most demanding headphones. The 4-millimeter-thick aluminum chassis blocks EMI/RFI interference and is complete with a 128-step volume attenuator, an easy-to-read OLED display, and a remote control. Plus, with XLR and RCA outputs on the back, the S3 can also function as a preamplifier.

To learn more, check out this review.

Keces S3 Balanced DAC/Amp
Keces S3 Balanced DAC/Amp
Keces S3 Balanced DAC/Amp
Keces S3 Balanced DAC/Amp
Keces S3 Balanced DAC/Amp
Keces S3 Balanced DAC/Amp

Specs

Digital Input

  • Coaxial: PCM support up to 16–24 bit/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz; DSD support up to DSD64 (DoP)
  • Optical: PCM support up to 16–24 bit/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz; DSD support up to DSD64 (DoP)
  • USB: PCM support up to 16–32 bit/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz; DSD support up to DSD64 (DoP), DSD128 (DoP), DSD64 / DSD128 / DSD256 (ASIO native)https://s3.amazonaws.com/massdropinc/product-images/keces-s-3-balanced-dac-amp/Keces_S-3_8-1140x720_20171101102654.jpg

Analog Input

  • XLR: Input impedance: 47 kohms
  • Maximum input level: 10 Vrms
  • Input/output gain: 0 dB
  • RCA: Input impedance: 47 kohms
  • Maximum input level: 5 Vrms
  • Input/output gain: 0 dB

Analog Output

  • XLR: SNR: > -122 dB, 20 Hz–20 kHz, A-weighting
  • THD + N: <0.0004% at 1 kHz, A-weighting
  • Frequency response: 20 Hz–20 kHz (+ 0 dB / -0.09 dB)
  • Channel crosstalk: > -124 dB at 1 kHz
  • XLR output: 0–4 Vrms adjustable at 0 dBFS
  • RCA: SNR: > -119 dB, 20 Hz–20 kHz, A-weighting
  • THD + N: < 0.0007% at 1 kHz, A-weighting
  • Frequency response: 20 Hz–20 kHz (+ 0 dB / -0.03 dB)
  • Channel crosstalk: > -122 dB at 1 kHz
  • RCA output: 0–2 Vrms adjustable at 0 dBFS

Headphone Output

  • XLR 4-pin: SNR: > -120 dB, 20 Hz–20 kHz, A-weighting
  • THD + N: <0.00115% at 1 kHz, A-weighting at 300 ohms, 100 mW
  • Frequency response: 20 Hz–20 kHz (+ 0 dB / -0.09 dB)
  • Output impedance: 0.6 ohms
  • 2,000 mW at 32 ohms, THD + N = 0.1%
  • 1,200 mW at 300 ohms, THD + N = 0.1%
  • 650 mW at 600 ohms, THD + N = 0.1%
  • 6.35 mm: SNR: > -108 dB, 20 Hz–20 kHz, A-weighting
  • THD + N: <0.0015% at 1 kHz, A=weighting at 300 ohms, 100 mW
  • Frequency response: 20 Hz–20 kHz (+ 0 dB / 0.09 dB)
  • Output impedance: 0.6 ohms
  • 1,200 mW at 32 ohms, THD + N = 0.1%
  • 350 mW at 300 ohms, THD + N = 0.1%
  • 175 mW at 600 ohms, THD + N = 0.1%

Physical

  • AC input voltage: 110–120 V, 60 Hz / 220–240 V, 50 Hz (switchable)
  • Power consumption: 30 W
  • Casing: 4 mm aluminum
  • Dimensions: 11.8 x 8.7 x 2.6 in (300 x 220 x 66 mm)
  • Weight: 8.8 lbs (4 kg)

Included

Shipping

Estimated ship date is July 16, 2021 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Top Customer Questions

Want to know something about this product or how to use it?
Ask the Community!
Get Answers Now
User Photos3
ArthurPower

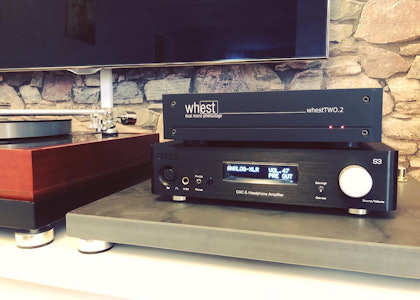

System 1
