Singxer SDA-6 HiFi Advanced Version DAC Decoder
Pristine Clock Performance
The Singxer SDA-6 HiFi Advanced Version DAC Decoder takes a maximalist approach to digital-to-analog conversion—delivering truly top-tier specs for decoding and reproduction. The SDA-6 centers on several chips working in tandem: the XMOS xCORE-200 series XU 208 takes care of the USB input side of the equation while the top-tier AK4499 chip picks up for the main conversion workload. There’s also an AK4118 chipset that tackles the digital audio input, while an STM32 chip serves as the main control core for the whole setup. This full processing array, when combined with the CCHD-957 femtosecond crystal oscillator, delivers near-flawless PCM audio with up to 384 kilohertz of resolution—alongside native DSD512 support. What that means for you, the listener, is a truly stable DAC that’ll have your digital audio library passed out to your analog speakers or headphones with exceptional clarity and richness.
Specs
- Singxer
- 110V
- DAC chips: AK4499, AK4118, STM32
- Processor: XMOS XU208
- Low-jitter CCHD-957 oscillator
- Sampling rate: Up to 384 kHz
- Bit depth: Up to 32 bit
- DSD512 Native support

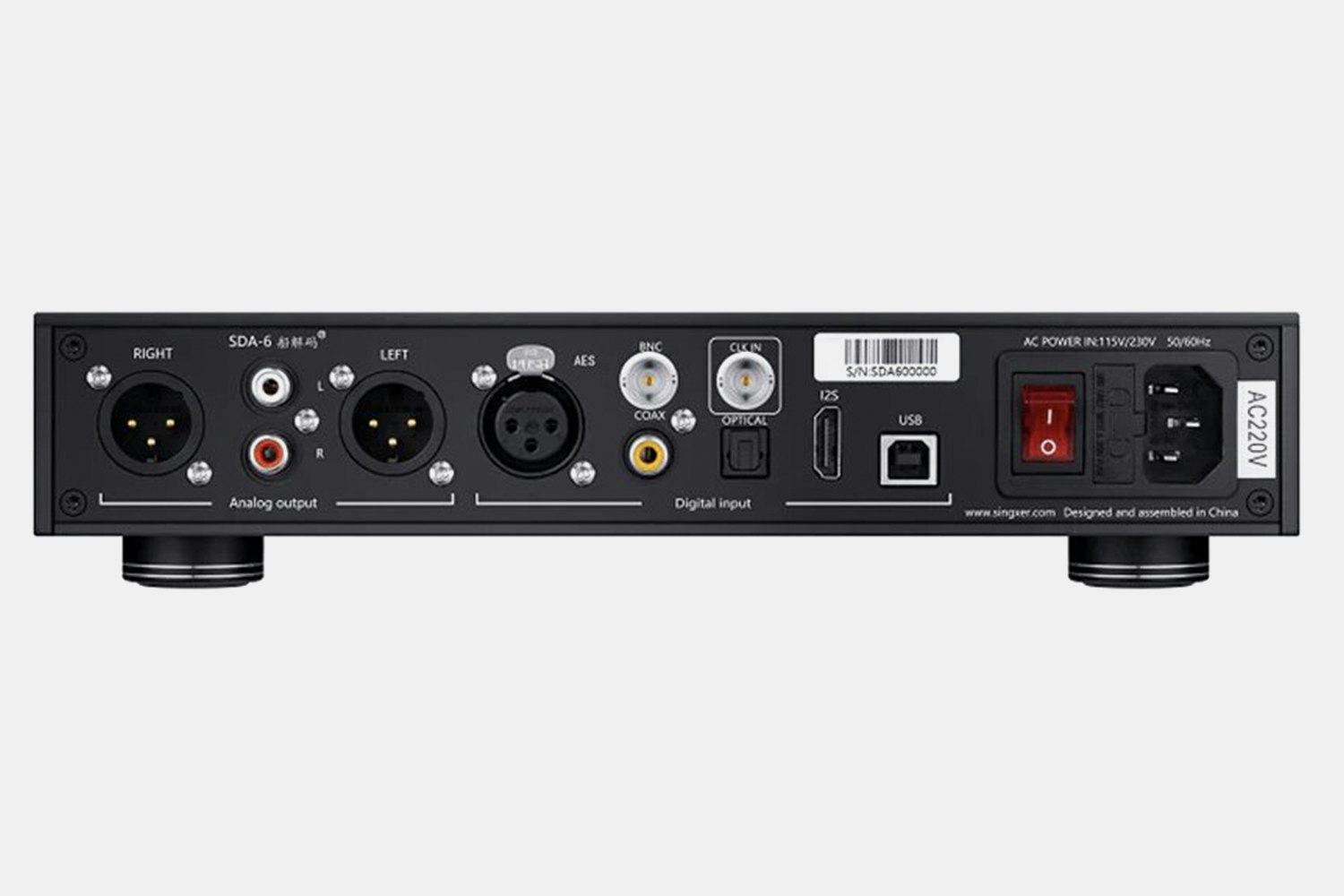

- Inputs: USB, XLR, Coax, Optical, I2S
- Outputs: RCA, XLR
- Output specs:
- Impedance: 22 ohms (RCA), 45 ohms (balanced XLR)
- Frequency response: 20 Hz – 20 kHz
- SNR: 131 dB
- THD+N: 0.00012%
- Dynamic response: 131 dB
- Left/right channel separation: 130 dB
- Weight: 6 lbs (2.7 kg)
Included
- USB cable
- Power cable
- Remote control
