SMSL A2 Stereo Amplifier
Hi-Fi Digital Amplifier

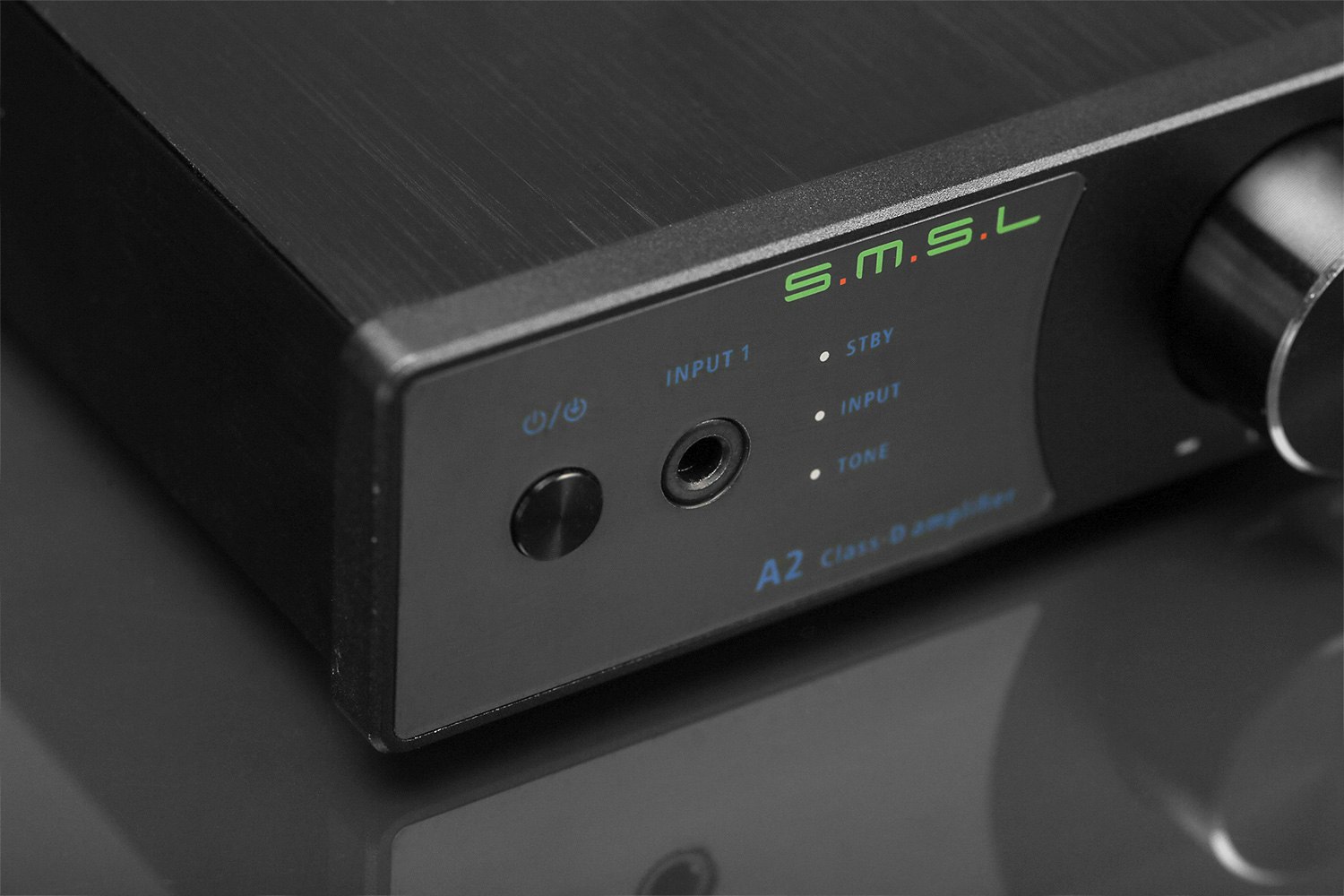

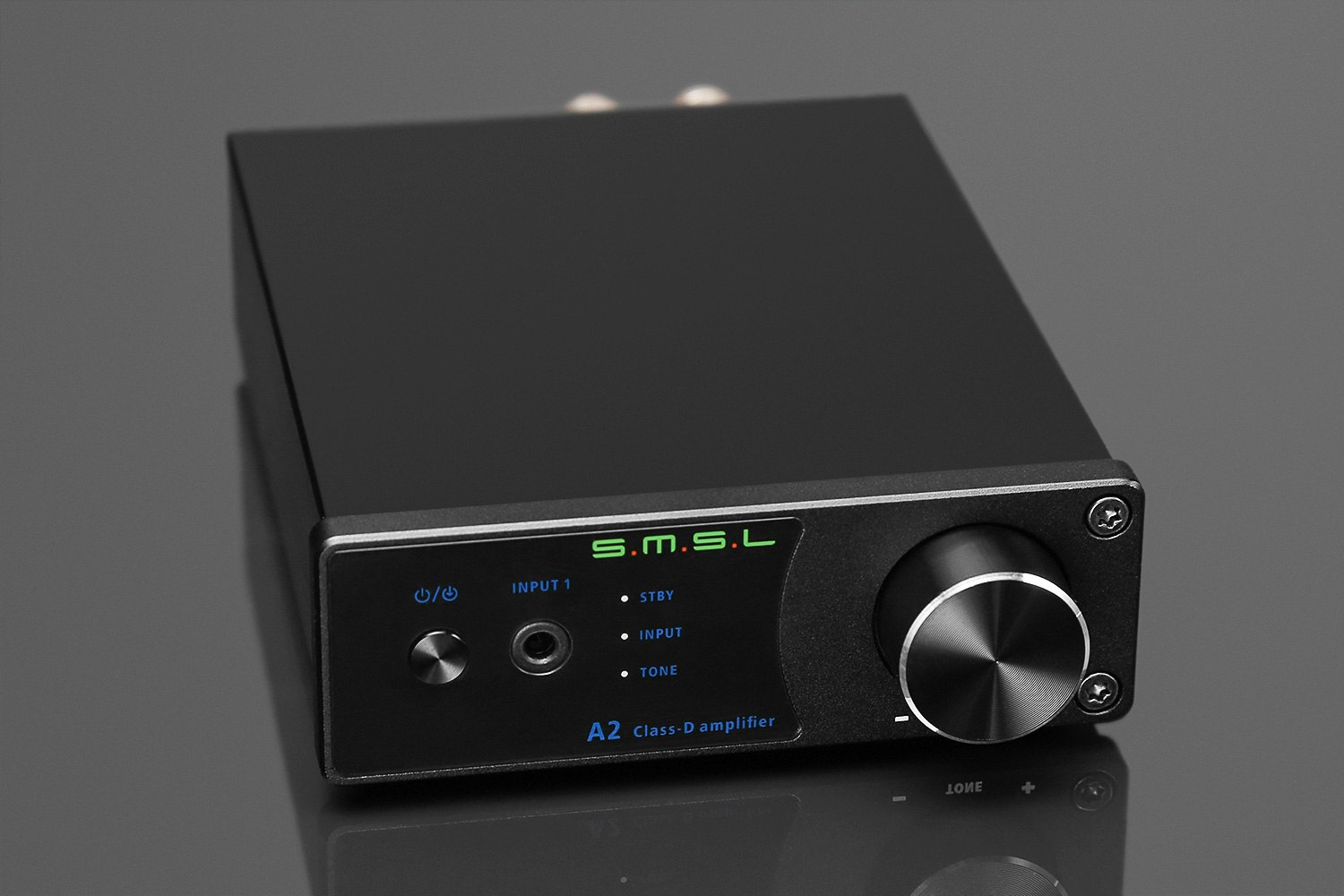

Designed to power passive speakers that require an amplifier, the SMSL A2 delivers accurate sound reproduction in a compact, affordable package. It uses the TDA7492 core chip to deliver 40 watts per channel, and features two RCA inputs and one 3.5-millimeter headphone jack input—ideal for quickly sending a signal out from your phone or digital audio player. On the front panel, you’ll also find adjustable EQ bass and treble controls, and on the back, outputs for a pair of speakers and a subwoofer. The laser-engraved, silk-screened aluminum chassis is sleek and durable, and at 5.8 by 3.8 inches, it isn’t much bigger than your average smartphone.
Note: At checkout, choose between black and silver color options.
Color Options
Specs
- SMSL
- Aluminum enclosure
- Output power: 40 W + 40 W (4 ohm)
- Chip: TDA7492
- THD + N: < 0.05%
- Signal-to-noise ratio: > 90 dB
- Crosstalk: < -90 dB (1 kHz)
- Speaker impedance matches 3 – 16 ohm
- Adjustable EQ bass and treble controls (front)
- 360º rotating electronic volume control (front)
- 2 x RCA inputs (back), 1 x 3.5 mm headphone jack input (front)

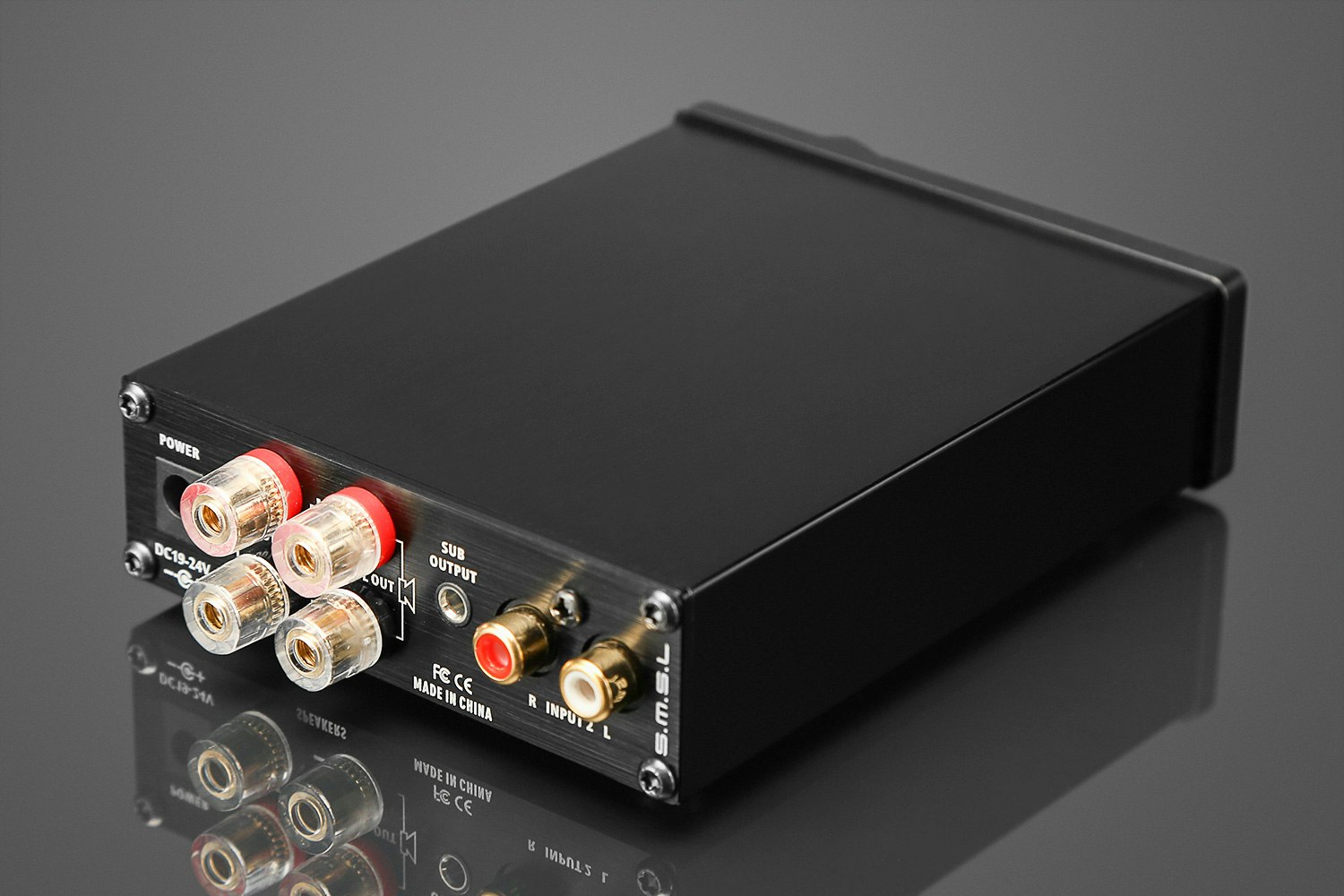

- Outputs for a pair of speakers and a subwoofer (back)
- Power supply: DC 19 V
- Dimensions: 5.8 x 3.8 x 1.3 in (15 x 10 x 3 cm)
- Weight: 2.2 lbs (1 kg)
Included
- User manual

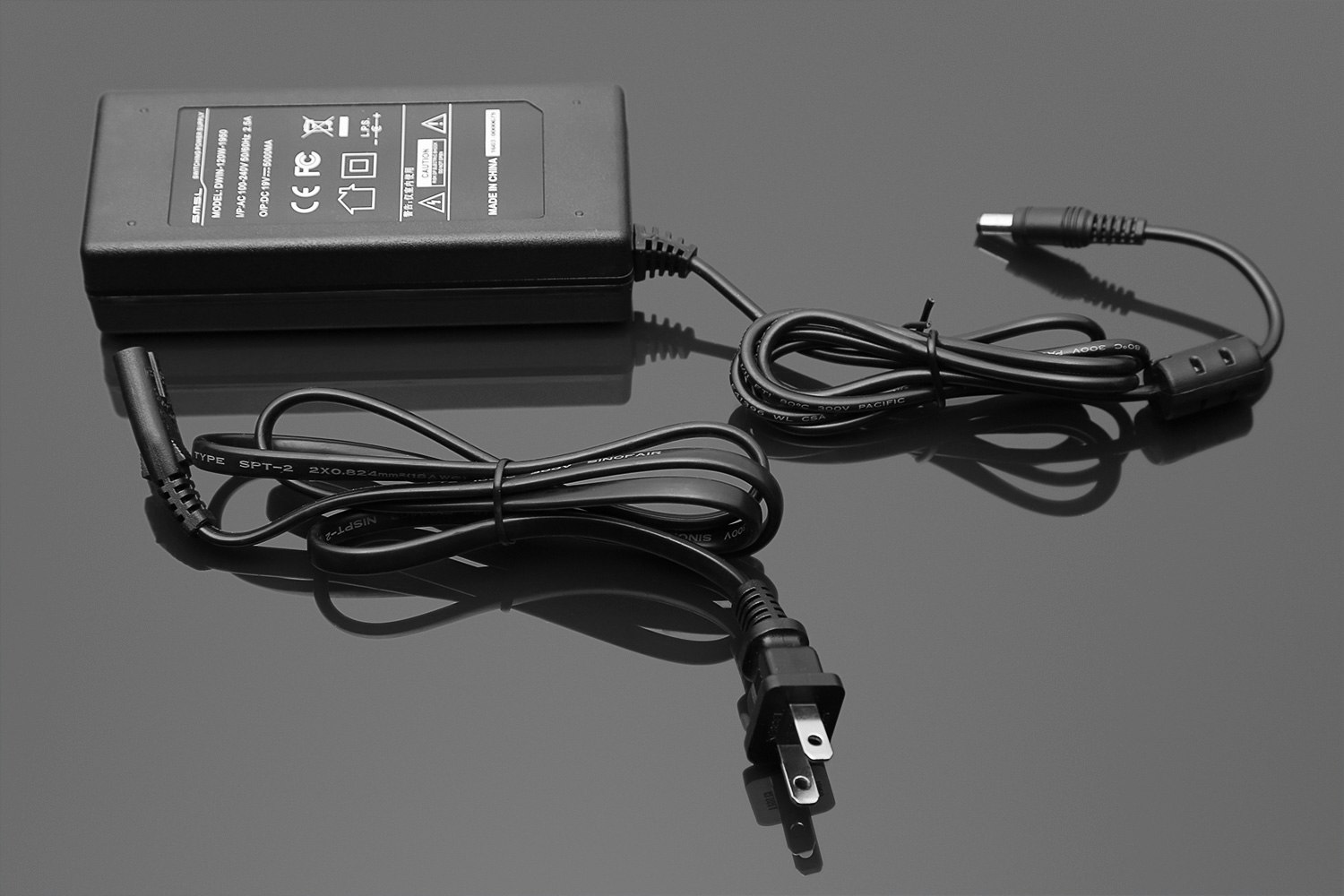

- Power adapter
Shipping
Estimated ship date is Apr 4, 2017 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
