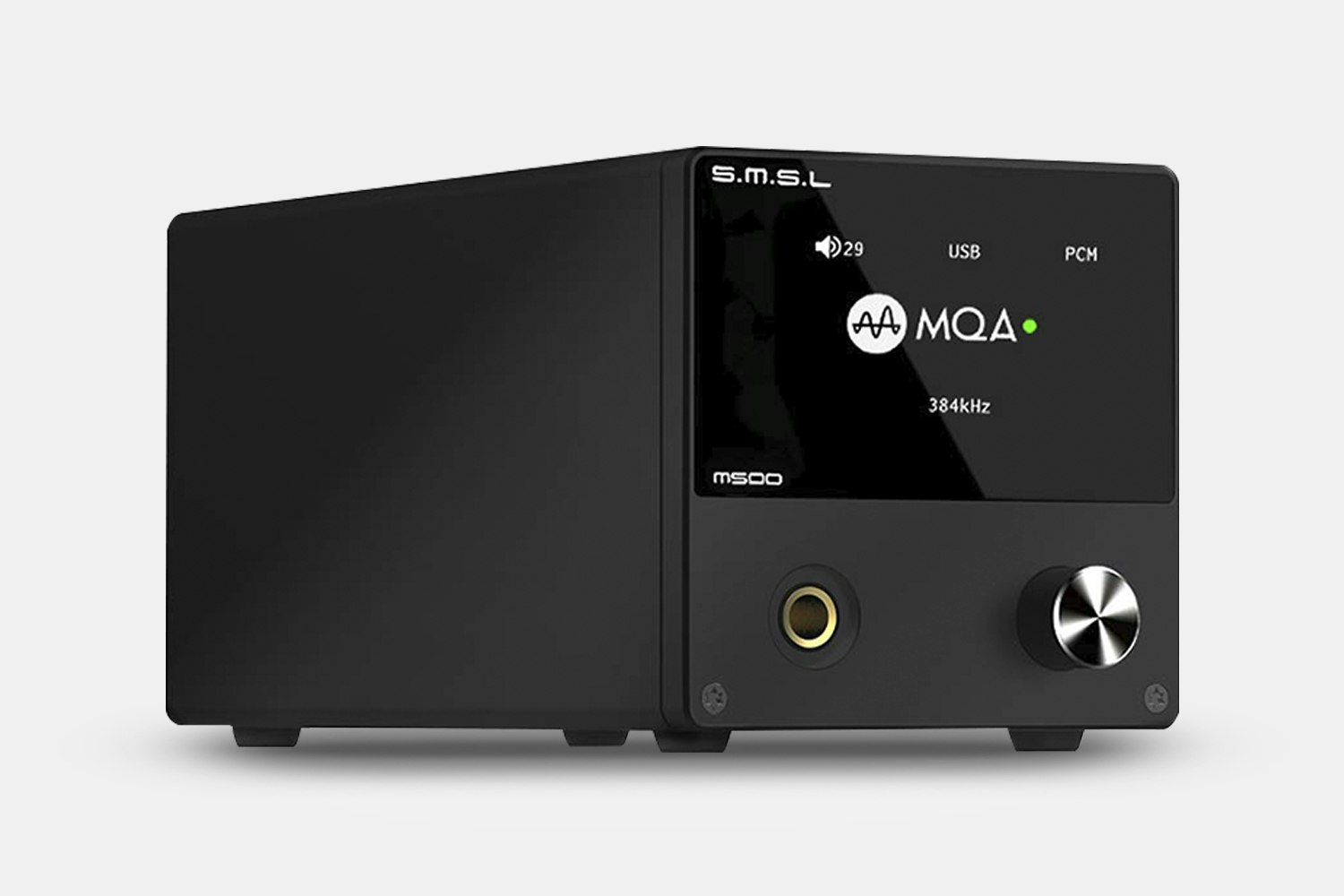

SMSL M500 DAC/Amp
Versatile Performance, Plus an LCD Screen
The SMSL M500 is an all-in-one DAC/amp optimized for high-end audio and user-friendly operation. Engineered with a highly regarded ESS ES9038PRO DAC, an XMOS XU-208 USB chipset, and dual OPA1612 op amps, the M500 delivers precisely articulated sound into any pair of headphones or monitors. To make level adjustment a breeze, the M500 features a vivid 2.19-inch LG TFT LCD display—a rarity on today’s desktop DACs. Plus, it offers a wide range of inputs and outputs, including a true balanced XLR output, an RCA out, dual optical inputs, and a coaxial input. The SMSL can also be used as a preamp unit with independent headphone volume preamp volume controls. Listen your way with options and an onboard display that give you total control.
Note: At checkout, choose black, red, or silver.


.jpg?auto=format&fm=jpg&fit=crop&w=530&bg=f0f0f0&dpr=1&chromasub=444&q=70)
Color Options

Black
Red
Silver
Specs
- SMSL
- ESS ES9038PRO DAC
- XMOS XU-208 USB chipset
- (2) OPA1612 op amps
- 2.19 in LG TFT LCD display

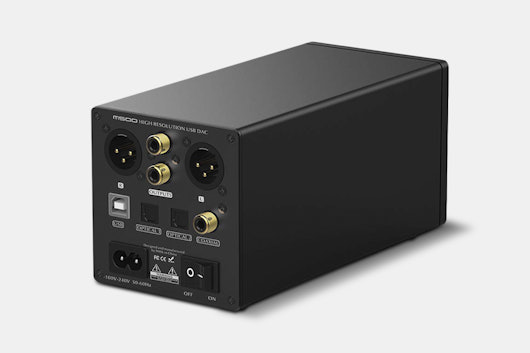

- Inputs: (1) USB, (1) Coaxial, (2) Optical
- Outputs: (1) RCA headphone amplifier, (1) RCA, (1) XLR
- THD+N: 0.00015%
- XLR dynamic range: 125dB
- RCA dynamic range: 120dB
- SNR dynamic range: 120dB
- USB transmission: Asynchronization
- USB compatibility: Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or later, Linux
- USB bit depth: 1-bit, 16 / 32-bit
- Optical / Coaxial bit depth: 1-bit, 16 / 32-bit
- USB sampling rate: PCM 44.1 / 768kHz
- DSD sampling rate: 2.8224 / 22.5792MHz, DSD64 (DoP)
- Optical / Coaxial sampling rate: PCM 44.1 / 192kHz
- Headphone amplifier output power: 570mW at 32Ω ohms, 290mW at 64 ohms, 125mW at 150 ohms, 65mW at 300 ohms
- Power Consumption: 5W
- Standby power: <0.5W
- Dimensions: 3.4 x 3.5 x 7.8 in (8.5 x 8.8 x 19.7 cm)
- Weight: 2 lbs (0.9 kg)
Included
- Remote control
- Power adapter
Shipping
Estimated ship date is Jan 2, 2020 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
