Product Description
The Superlux ORTF S502 produces evenly-spread stereo imaging with great localization, depth, and sound texture, making it ideal for a wide range of stereo recording applications. It combines a pair of matched cardioid capsules in an ORTF arrangement to perceive directional information on the horizontal plane Read More
Studio-Grade Stereo Recording

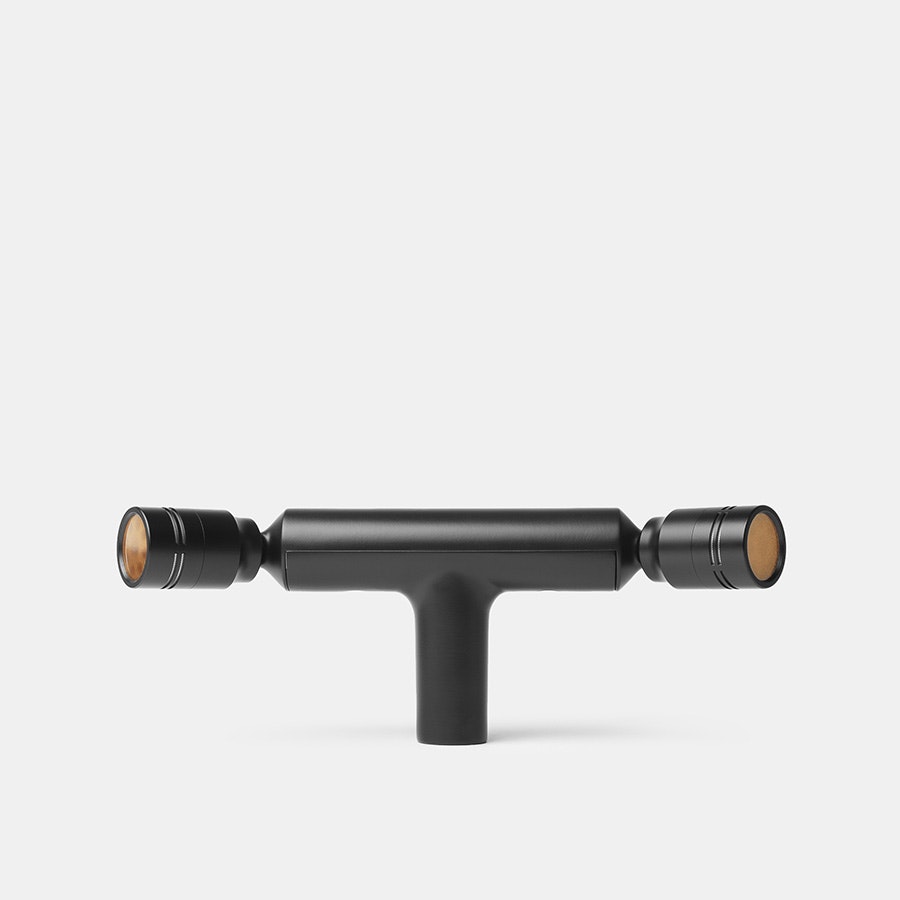

The Superlux ORTF S502 produces evenly-spread stereo imaging with great localization, depth, and sound texture, making it ideal for a wide range of stereo recording applications. It combines a pair of matched cardioid capsules in an ORTF arrangement to perceive directional information on the horizontal plane. Two first order cardioid microphones are spaced 17 centimeters between the microphone diaphragms, emulating the distance between the ears. The 110-degree angle between them mimics the shadow effect of the human head.
Features
- 0.5 in gold-evaporated diaphragm
- Low noise microphone pre-amplifier circuits
- ORTF fixed capsule arrangement
- Matched cardioid capsules
- Balanced output
- Excellent stereo imaging
Specs
- Elements: 2 0.5 in true condenser capsules
- Polar pattern: Cardioid
- Frequency response: 40—20,000 Hz
- Sensitivity: -36 dBV (ref. 1Pa or 96dB SPL)
- Equivalent noise: 18 dB SPL (A weighted)
- Dynamic range: 117 dB
- Signal/noise: 76 dB (IEC651 ref. to 94dB SPL) 97dB (20dB headroom)
- Impedance: 200 Ohms
- Max SPL: 135 dB at 1000 Hz (THD ≤ 0.5% 1kHz)
- Connector: Integral gold plated 5 pin Male XLR
- Pin configuration: Pin 2/3 CH1, pin 4/5 CH2, pin 1 ground, Pin 2/4 hot
- Included cable: 5-pin XLRF to two 3-pin XLRM
- Phantom power: 48 V
- Finish: Metal, black painted
- Weight: 14.3 oz
Included
- Shock mount
- Windscreens
- Stereo cable
- Carrying case
