Product Description
Both named Everything Audio Network’s “Product of the Year” in 2016, the TEAC TN-550 and TN-570 belt-drive turntables offer style, performance, and the analog sound audiophiles know and love. The dual-material chassis combines artificial marble and high-density MDF to ensure a high feedback margin and crystal-clear sound ... Read More

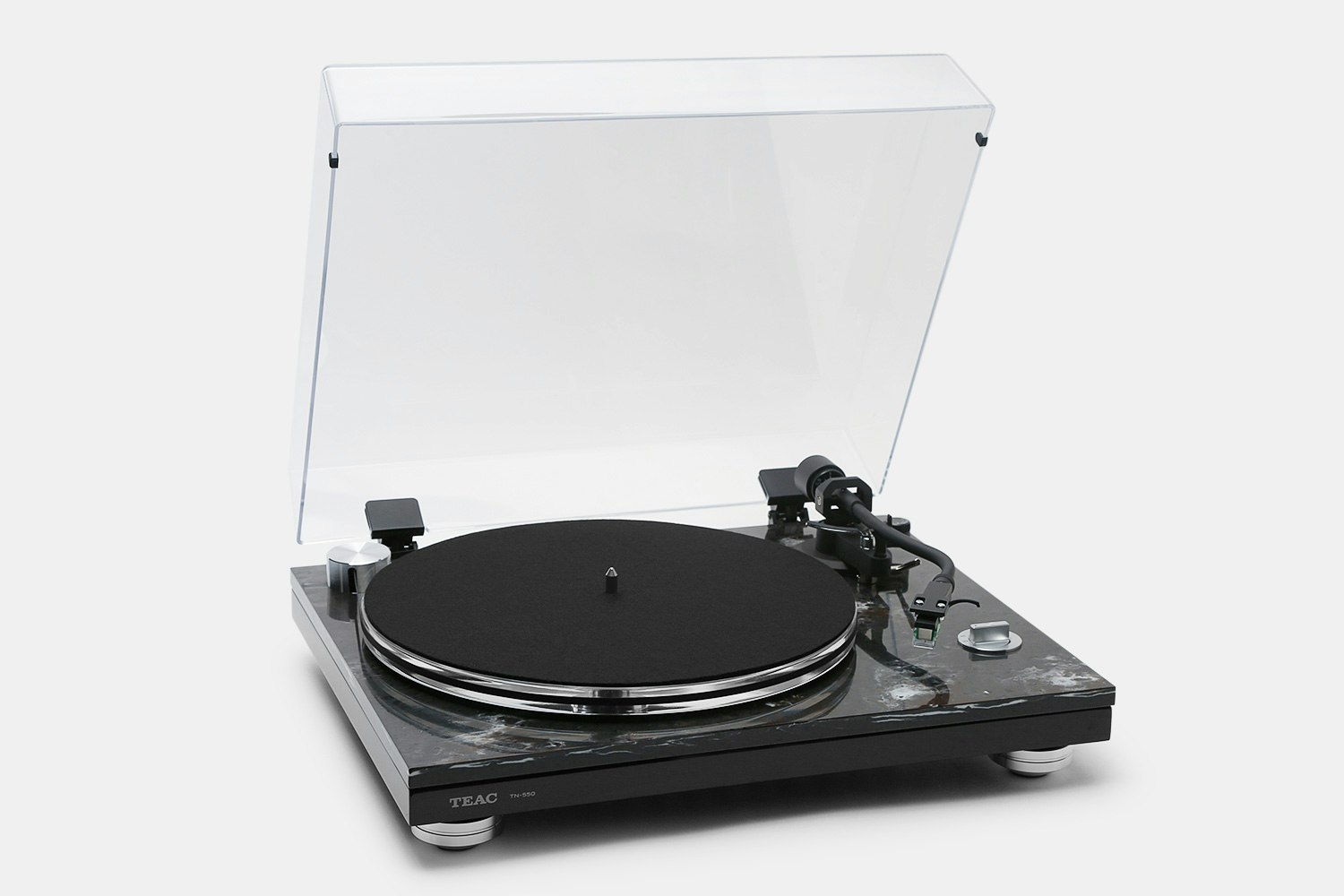

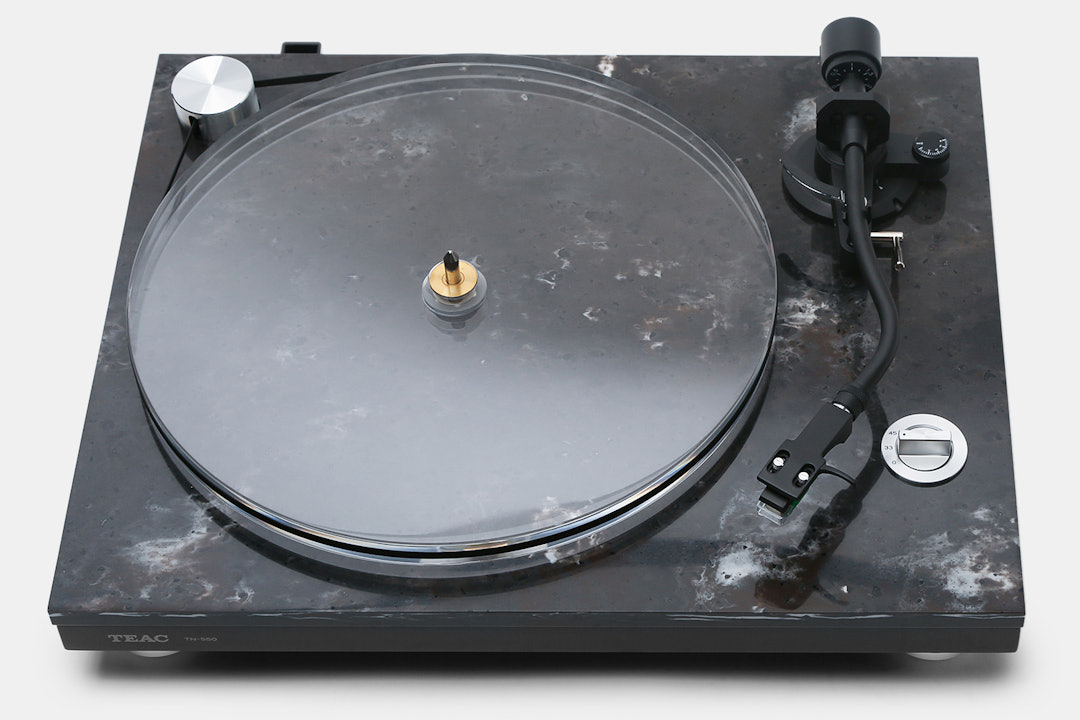

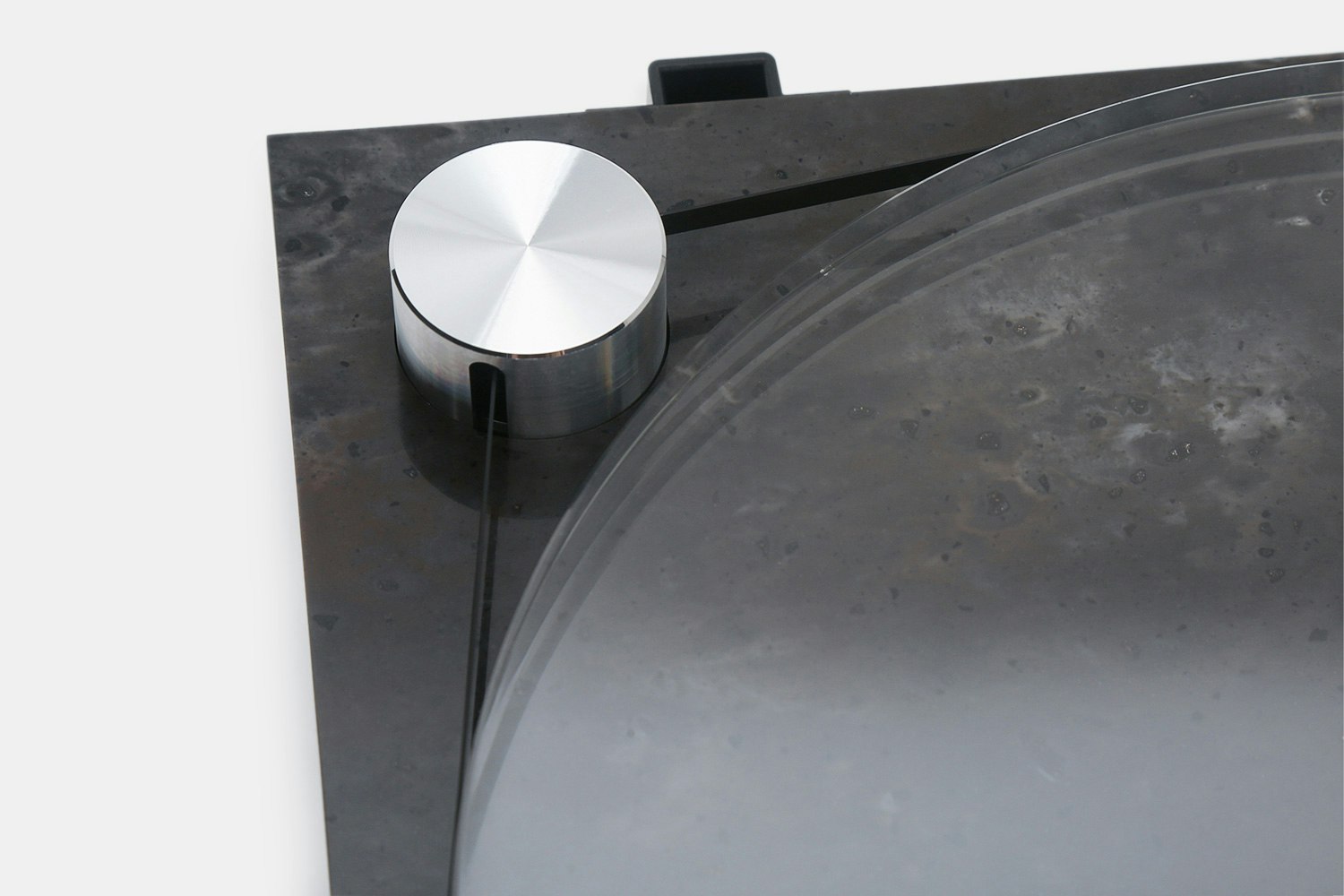

Clear Acrylic Platter, Marble-Textured Base

Both named Everything Audio Network’s “Product of the Year” in 2016, the TEAC TN-550 and TN-570 belt-drive turntables offer style, performance, and the analog sound audiophiles know and love. The dual-material chassis combines artificial marble and high-density MDF to ensure a high feedback margin and crystal-clear sound. Made of clear acrylic resin, the full-size platter shines beautifully and suppresses unwanted sympathetic vibrations. And for high-precision rotation in this sleek cabinet design, the power train uses a cogging-free belt drive with a Platter Rotation Sensing Servo System (or PRS3). The TN-570 model adds a built-in phono preamp and analog-to-digital converter, allowing you to easily convert your archive to 48kHz/16-bit digital audio to your PC via USB.

Note: At checkout, choose the TN-550 model (base price) or the TN-570 model (+ $200). This drop is limited to 134 units.

Model Options

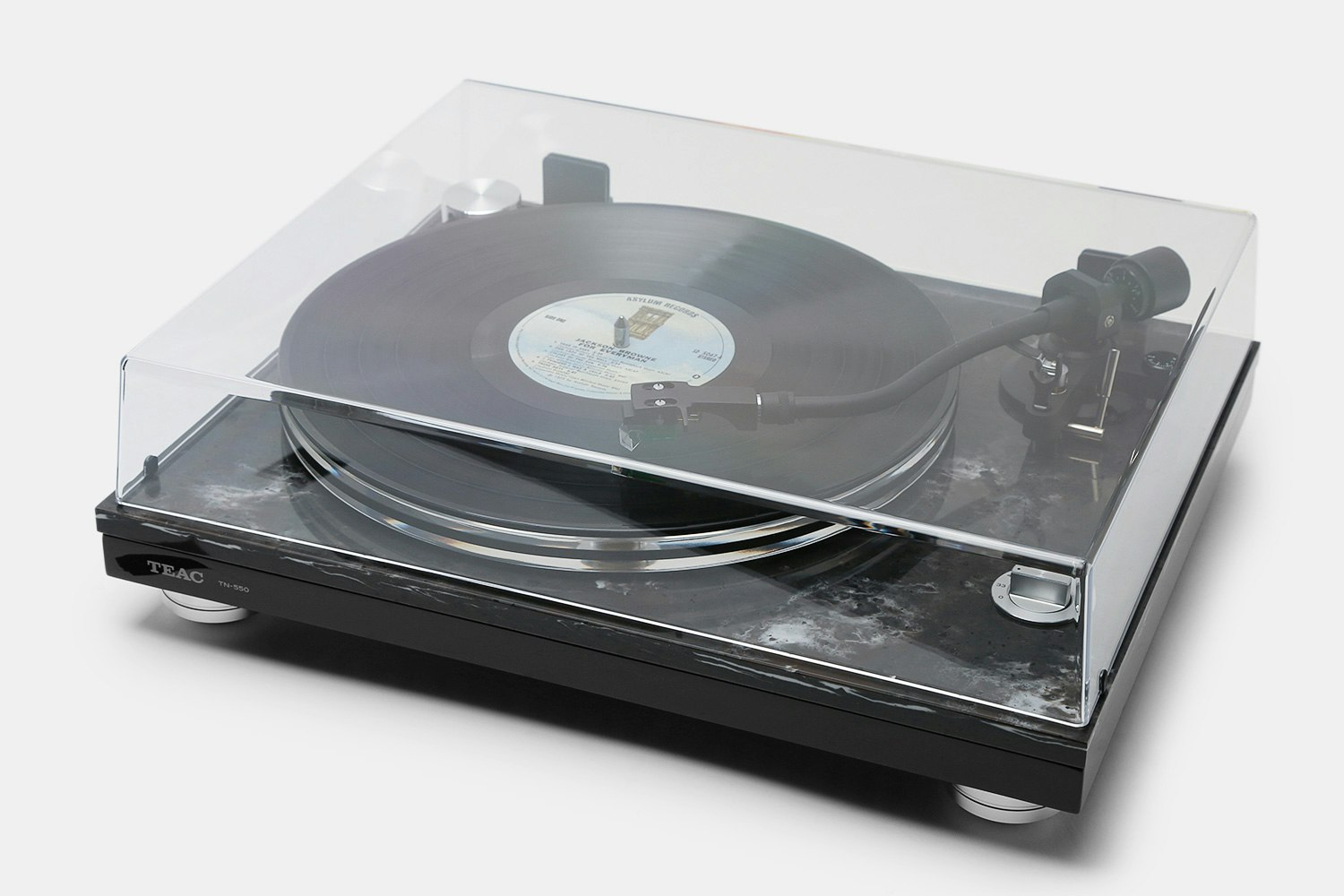

TN-550

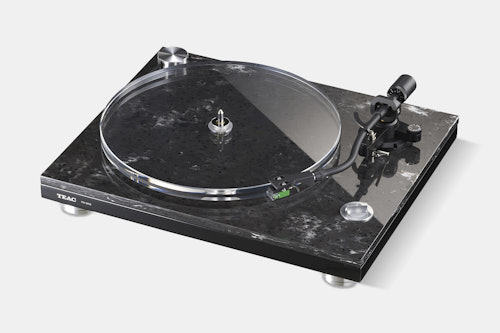

TN-570 (+ $200)
Features
  • Cogging-free belt drive with PRS3
  • Electric-controlled speed selector
  • Clear acrylic platter
  • High-precision spindle and anti-static, carbon-coated base
  • Large torque motor with floating structure
  • Flat-type belt
  • Dual-layer chassis
  • Honeycomb-shaped bottom case
  • Height-adjustable feet
  • Newly designed tone arm with anti-skating mechanism
  • Gold-plated RCA pin jacks for phono audio output
  • MM-type cartridges by Audio-Technica
  • Detachable dust cover
  • Built-in phono equalizing amplifier (TN-570 only)
  • Optical/USB digital and phono/line analog outputs (TN-570 only)
Specs
  • Belt Drive
  • Motor: DC motor
  • Speed: 33–1/3 rpm, 45 rpm
  • Servo system: PRS3 (Platter Rotation Speed Servo System)
  • Rotation detection precision: Less than +/– 0.05% (at 33–1/3 rpm)
  • Wow and flutters: 0.1%
  • Signal-to-noise ratio: More than 67 dB (A-weighted, 20kHz LPF)
  • Platter material: Acrylic
  • Platter size: Full size (300 mm diameter, 16 mm thickness)
  • Platter weight: Approx. 1.4 kg / 3.1 lbs

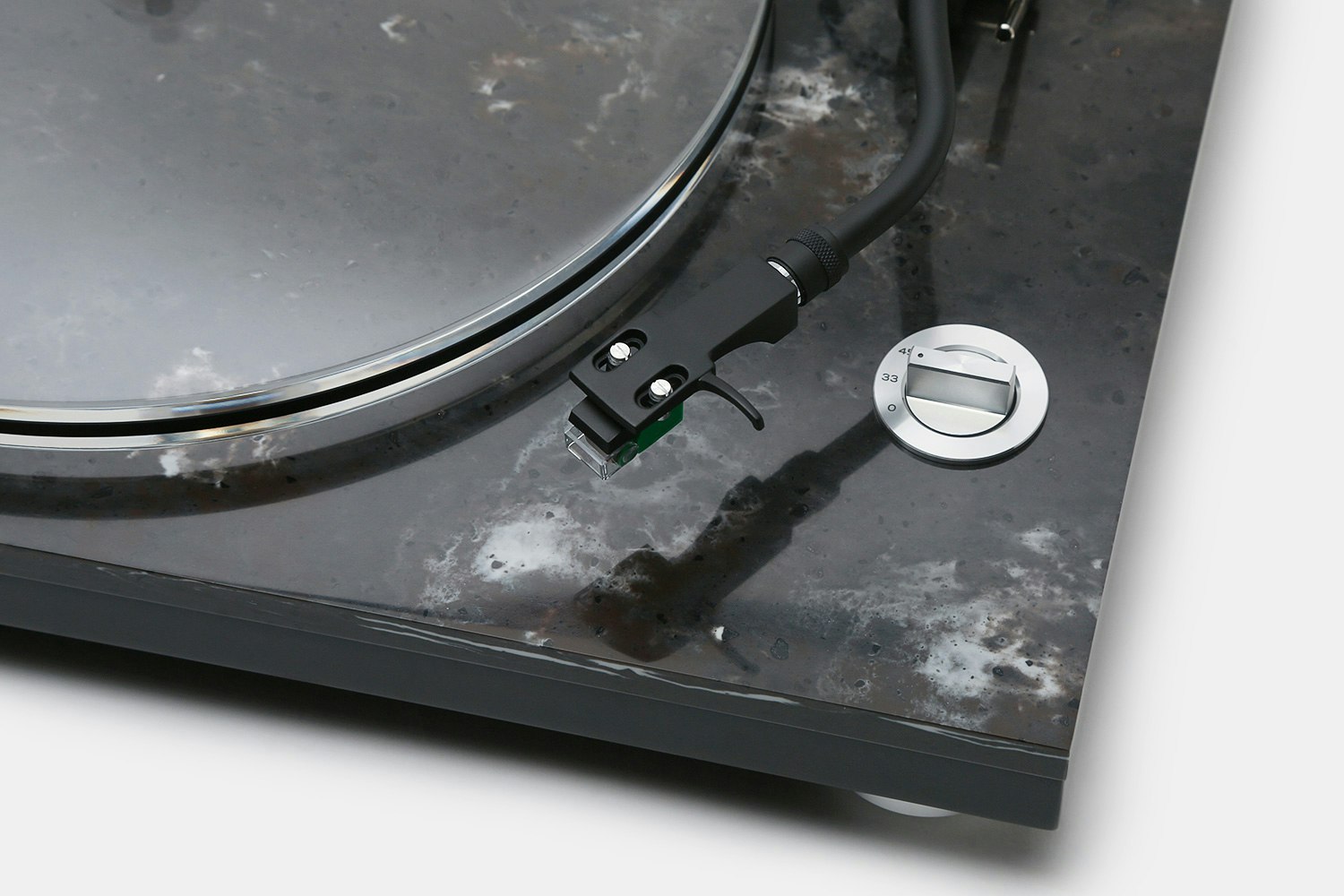

Tone Arm Section

  • Type: Static balanced S-shape tone arm (height adjustable)
  • Effective arm length: 223 mm
  • Overhang: 18 mm
  • Tracking error: Less than 3 degrees
  • Stylus pressure range: 0 to 5 g
  • Supported cartridge weight: 15 to 23 g (incl. headshell)
  • Height adjust range: Approx. 6mm
  • Anti-skating adjustment: Supported

Cartridge Section

  • Type: MM-type (equivalent to audio-technica AT100E)
  • Output voltage: 4.5 mV (1 kHz, 5 cm/sec.)
  • Stylus pressure: 1.4 g +/– 0.4 g
  • Cartridge weight: 6.5 g +/- 0.2 g
  • Headshell weight: 10 g (incl. screw, nuts, and wires)

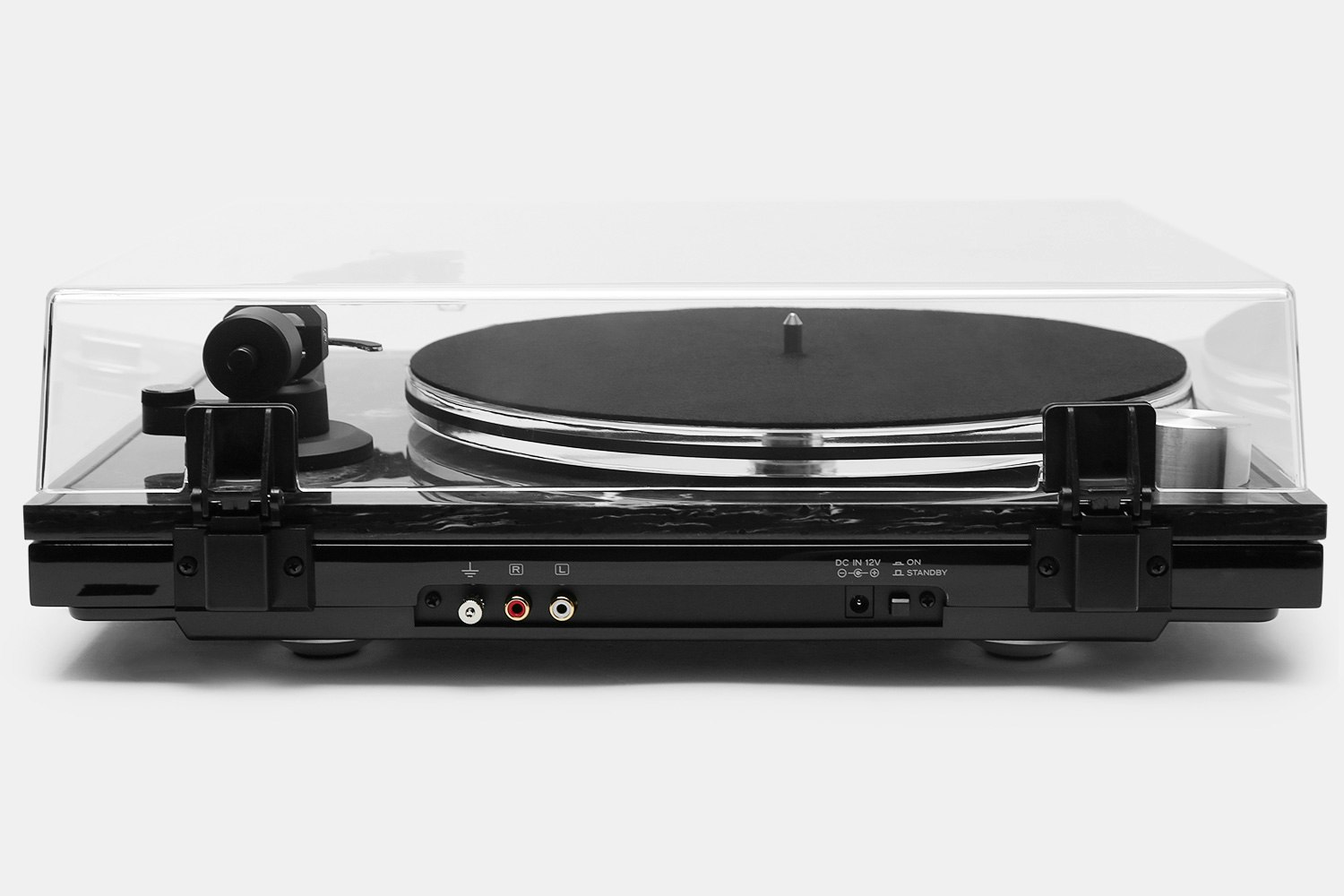

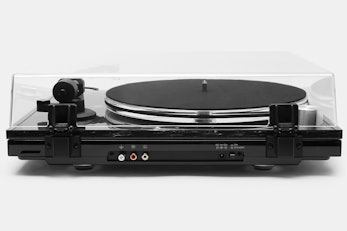

Analog Output: TN-550

  • Connector: RCA pin x 1 pair (gold-plated)
  • Output voltage: 4.5 mV (+/- 3dB)

Analog Output: TN-570

  • Connector: RCA pin x 1 pair (gold-plated)
  • Output voltage: Phono/line switchable
  • Phono output mode: 4.5 mV (+/- 3 dB)
  • Line output mode: 230 mV (–13 dBV)

Phono EQ Amplifier Section: TN-570

  • Amplifier type: MM-type (On/Thru switchable)

Digital Outputs: TN-570

  • USB output, connector: USB B-type x 1 (DC 5V 500mA Bus-power supply required from PC)
  • USB output, signal format: PCM, 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48kHz, 16bit
  • USB output, compatible OS: Windows 7, Windows 8, Windows 8.1, Windows 10, OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11), Mac OS Sierra (10.12)
  • Optical output, connector: TOS-link x 1
  • Optical output, signal format: PCM (S/PDIF), 48k / 96k / 192kHz, 24bit
  • Optical output, output level: -21.0 to -15.0dBm

Additional Specs

  • Operation power: AC 100 to 240V 50/60Hz
  • Power consumption: 1.5W (0.5W at Standby)
  • Overall dimensions: 430 x 131.5 x 355mm / 16.9" x 5.2" x 14.0 (W x H x D, incl. protrusions)
  • Weight: Approx. 9.0kg / 19.9 lbs.

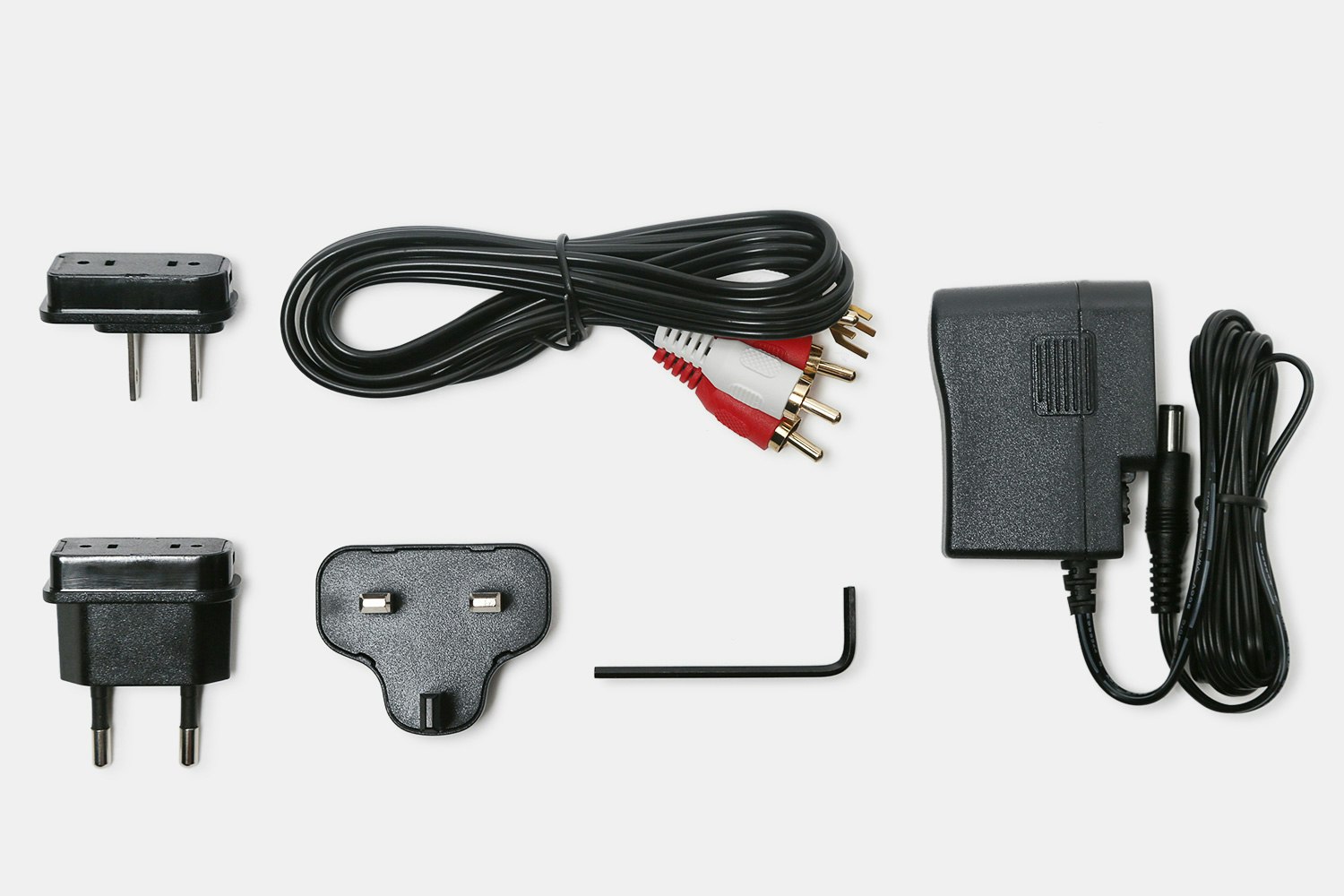

Included
  • AC adapter (GPE053A-120050-Z)
  • EP adapter
  • Counter weight
  • Headshell
  • Cartridge
  • Acrylic platter
  • Dust cover
  • Hinges x 2
  • Pulley cover
  • Flat
  • Belt
  • Washers x 4
  • Hex wrench
  • RCA audio cable with GND terminals
  • Owner's manual
