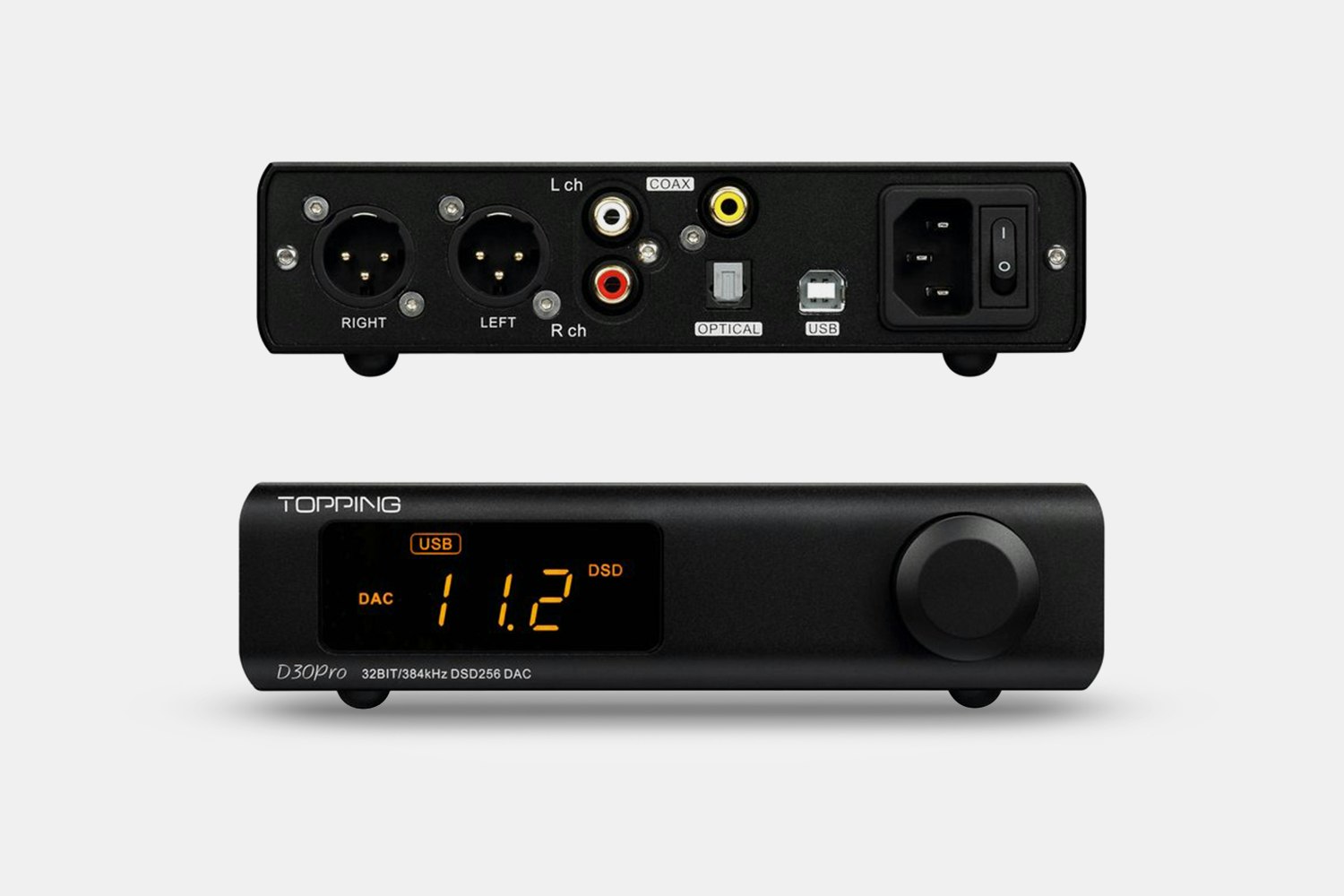

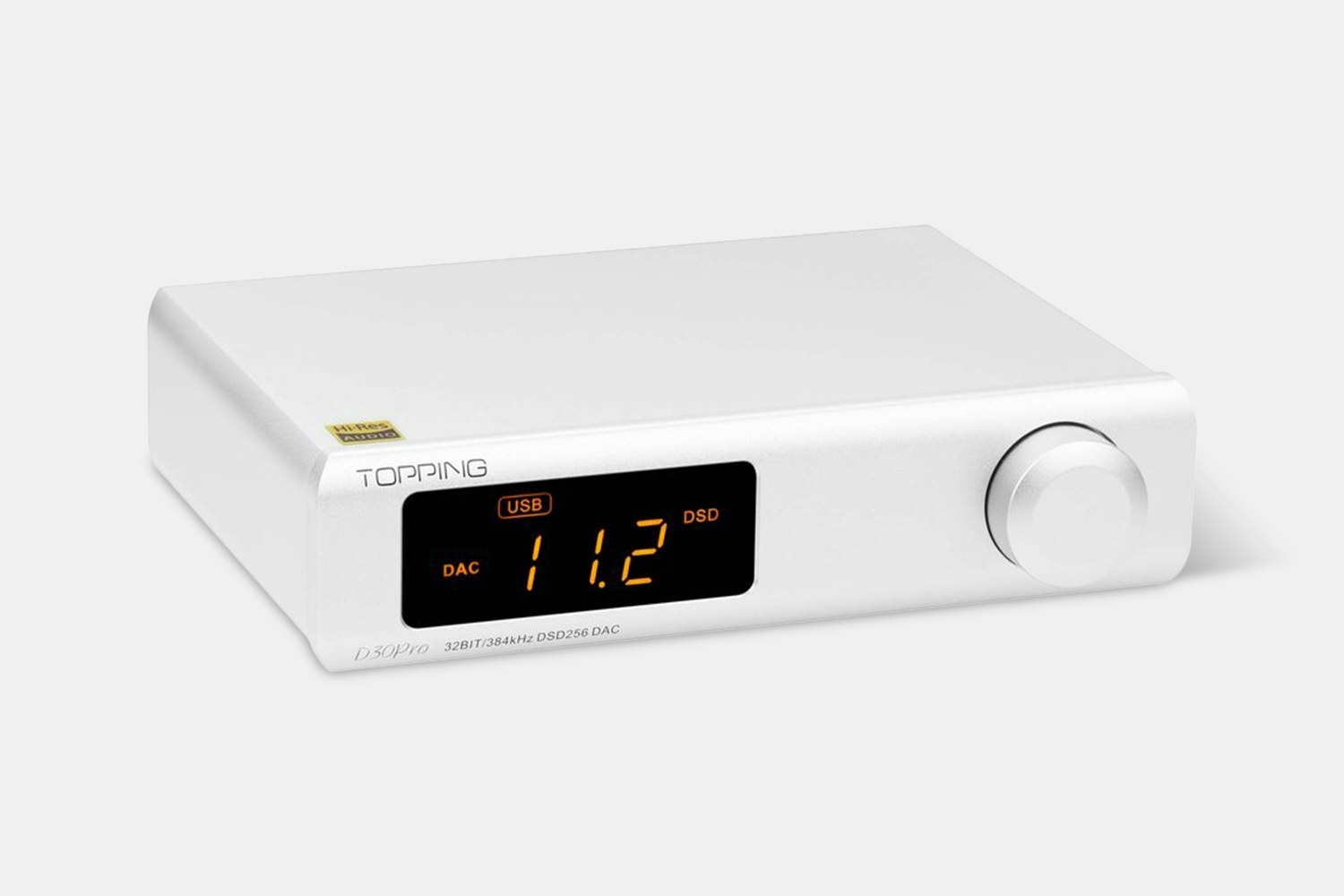

Topping D30 Pro DAC

Topping D30 Pro DAC

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
7 requests
2 Sold
Product Description
Topping took 4 years to improve its audiophile-grade D30 DAC. In the new D30 Pro, it’s safe to say that time has paid off Read More

Cutting-Edge Decoding, No Distortion

Topping took 4 years to improve its audiophile-grade D30 DAC. In the new D30 Pro, it’s safe to say that time has paid off. Equipped with four CS43198 Cirrus Logic DAC chips, the feature-loaded Pro packs an expansive eight fully balanced channels—with an impressive 132-decibel dynamic range and signal-to-noise ratio. Equally as impressive is the Pro’s 0.00009-percent THD + N rating, as well as its SINAD rating of 120 decibels—well below the human hearing threshold. For high-resolution listening, a second-generation, eight-core XMOS XU208 chip supports 32-bit, 384 kilohertz PCM decoding and DSD256 native decoding. A great pairing with Topping’s A30 Pro amplifier, the D30 Pro also doubles as a preamp and allows you to simultaneously run cables to two different destinations via a new output selection button.

Topping D30 Pro DAC
Topping D30 Pro DAC
Topping D30 Pro DAC

Specs

 General

  • Topping
  • DAC chipset: (4) CS43198 Cirrus Logic DAC chips
  • USB chipset: XMOS XU208
  • Inputs: USB, optical, coaxial
  • Outputs: XLR, RCA
  • Preamplifier function
  • Remote control
  • THD + N: 0.00009%
  • USB sampling rate (PCM): 16-bit – 32-bit / 44.1 Hz – 384 kHz
  • USB sampling (DSD): DSD64 – DSD256 (Native), DSD64-DSD128 (DoP)
  • Coaxial / optical sampling rate (PCM) : 16-bit – 24-bit / 44.1 Hz – 192 kHz
  • Coaxial / optical sampling rate (DSD): DSD64 (DoP)
  • Dimensions: 6.85 x 5.4 x 1.7 in (17.4 x 13.8 x 4.5 cm)

RCA Output

  • THD+N (A-weighted): < 0.0001% (1 kHz)
  • THD (unweighted, 45 kBw): <0.0004% (20 Hz – 20 kHz)
  • SNR (A-weighted): 127 dB (1 kHz)
  • Dynamic range (A-weighted): 127 dB (1 kHz)
  • Frequency response: 20 Hz – 20 kHz (± 0.1 dB), 20 Hz – 40 kHz (± 0.3 dB)
  • Output voltage: 2 Vrms (0 dBFS)
  • Noise (A-weighted): <0.9 uVrms
  • Crosstalk: -116 dB (1 kHz)
  • Output impedance: 20 ohms

XLR Output

  • THD+N (A-weighted): < 0.00009% (1 kHz)
  • THD (unweighted, 45 kBw): <0.0004% (20 Hz – 20 kHz)
  • SNR (A-weighted): 132 dB (1 kHz)
  • Dynamic range (A-weighted): 132 dB (1 kHz)
  • Frequency response: 20 Hz – 20 kHz (± 0.1 dB), 20 Hz – 40 kHz (± 0.3 dB)
  • Output voltage: 4 Vrms (0 dBFS)
  • Noise (A-weighted): < 1.1 uVrms
  • Crosstalk: -145 dB (1 kHz)
  • Output impedance: 40 ohms

Included

  • Remote control
  • USB cable
  • AC power cable
  • Owner’s manual
