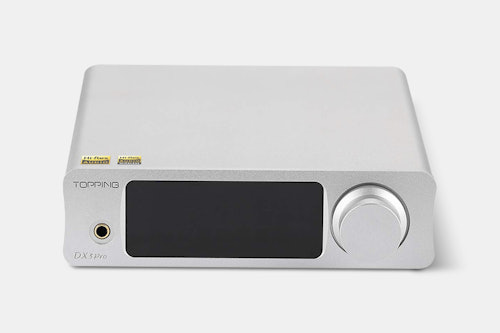

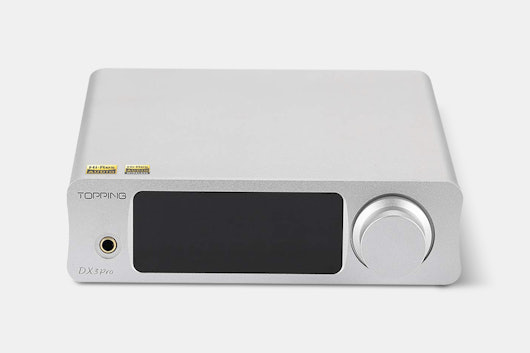

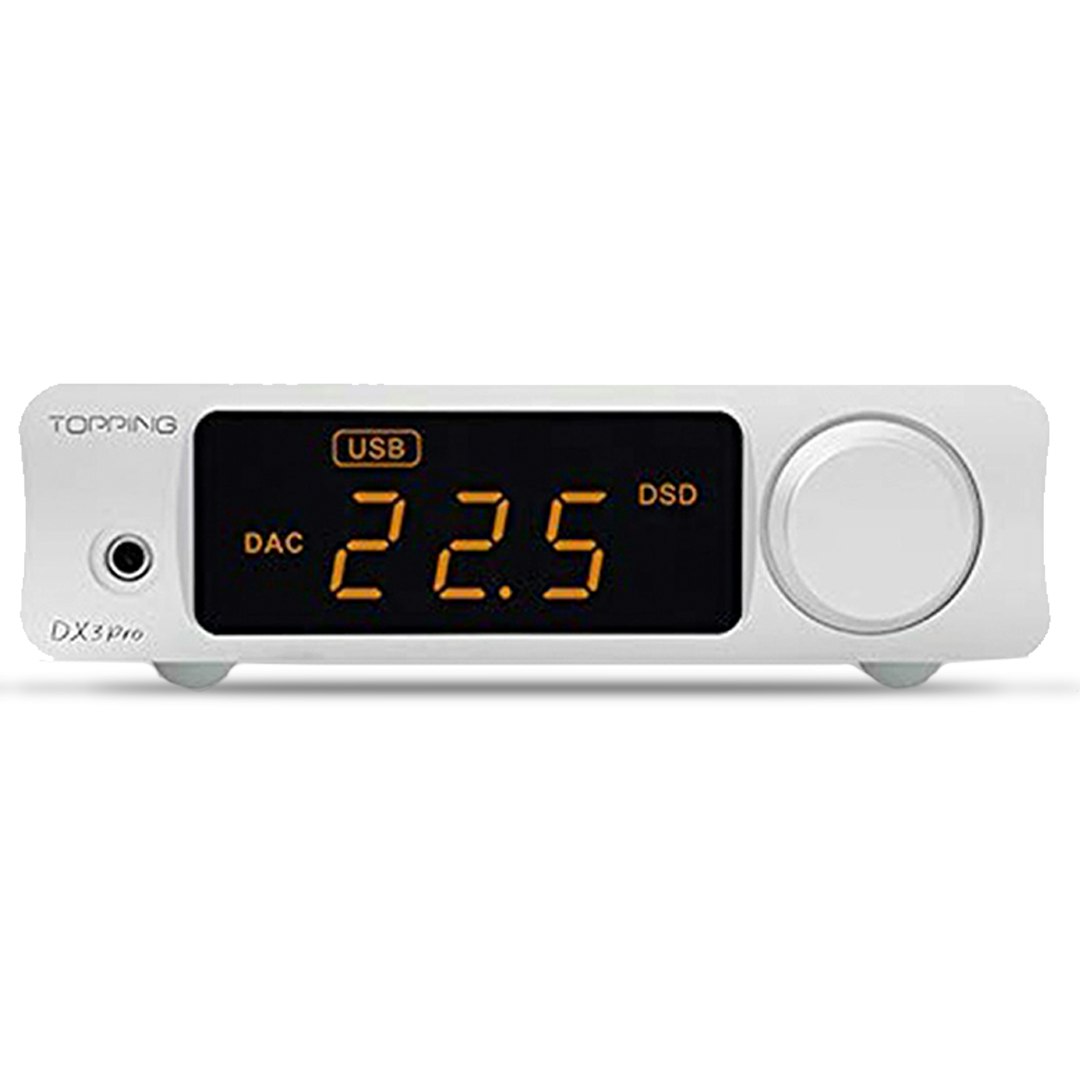

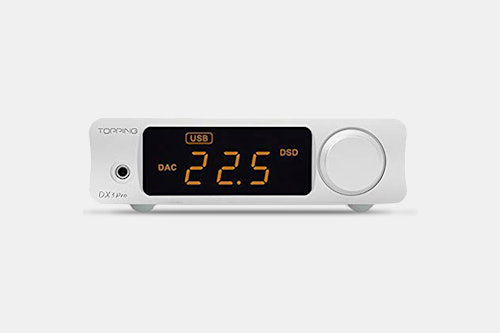

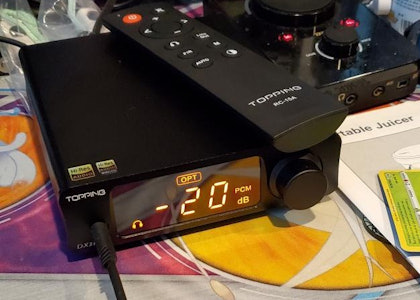

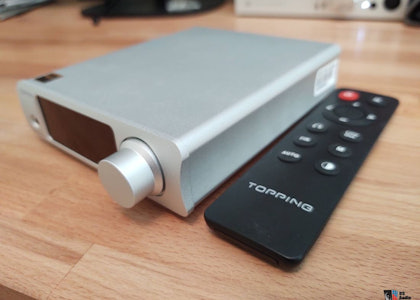

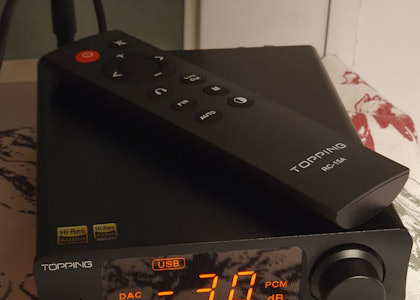

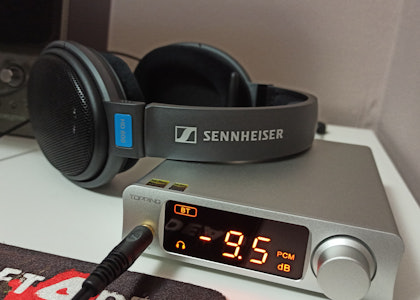

Topping DX3 Pro LDAC Version 2 DAC/Amp
LDAC-Equipped for High-Resolution Bluetooth
New from Topping, an industry leader in professional-grade audio equipment, the DX3 Pro LDAC Version 2 DAC/amp is a next-generation audio solution for your desk. Equipped with much of the same hardware that made the original DX3 Pro so popular—an XMOS XU208 USB chip with dual AK4493 DACs, an OPA1612 op amp, and an AK4118 receiver—this version adds LDAC connectivity for high-resolution listening over Bluetooth 5.0. It also packs impressive power for headphone listening: 700mW in each channel at 32 ohms, or 125mW at 300 ohms. Prefer to use a more powerful headphone amp? The DX3 Pro LDAC Version 2 can operate as a DAC via its RCA output. Less than 5 inches long and 2 inches tall, it fits well on most desks.
Model
Black - US Plug
Silver - EU Plug
Specs
General
- Topping
- Power input: DC 15V / 1A

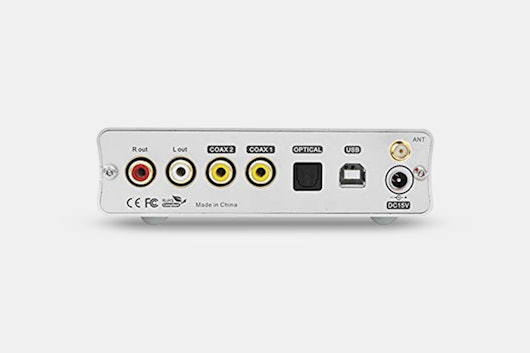

- Input: USB / OPT / COAX1 / COAX2 / Bluetooth
- Line out output: RCA
- Headphone amp output: 3.5 mm
- Dimensions: 4.7 x 6.5 x 1.6 in (12 x 16.5 x 4 cm)
- Weight: 41.1 oz (400 g)
DAC Output Parameters (at USB 96k Input)
- THD+N at A-weighting: <0.0004% at 1kHz, <0.0005% at 20–30kHz
- SNR at A-weighting: >120dB at 1kHz
- Frequency response: 20Hz–20kHz (± 0.35dB)
- Output level: 2Vms at 0dBFS
- Noise: <2uVrms
- Channel crosstalk: -135dB at 1kHz
- Channel balance: <0.1dB
- Output impedance: 100 ohms
Headphone Output Parameters (at USB 96k Input)
- THD+N at A-weighting: <0.0041% at 1kHz (Output = 77mW, 32 ohms), <0.002% at 20–20kHz (Output = 77mW, 32 ohms), <0.0006% at 1kHz (Output = 13.4 mW, 300 ohms), <0.0006% at 20–20kHz (Output = 13.4mW, 300 ohms)
- SNR at A-weighting: >120dB at 1kHz
- Frequency response: 20Hz–20kHz (± 0.2 dB)
- Output level: 5.8Vpp at G = 0dB, 17.3Vpp at G = 9dB
- Noise:<3uVrms at G = 0dB, <7uVrms at G = 9dB
- Channel crosstalk: -70dB at 1kHz
- Channel balance: 0.5dB
- Output impedance: <10 ohms
- Output power: 700mW (2) at 32 ohms THD+N <1%, 125mW (2) at 300 ohms THD+N <1%
- Adapter impedance: 16–300 ohms
Connectivity
- USB in: 44.1kHz–768kHz / 16bit–32bit, DSD64–DSD512 (Native), DSD64–DSD256(DOP)
- OPT / COAX in: 44.1kHz–192kHz / 16bit–32bit
- Bluetooth in: AAC / SBC / APTX / APTX-LL / APTX-HD / LDAC
Included
- AC adapter
- USB cable
- User manual
- Bluetooth antenna
- Remote control
Shipping
Estimated ship date is Oct 4, 2022 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
