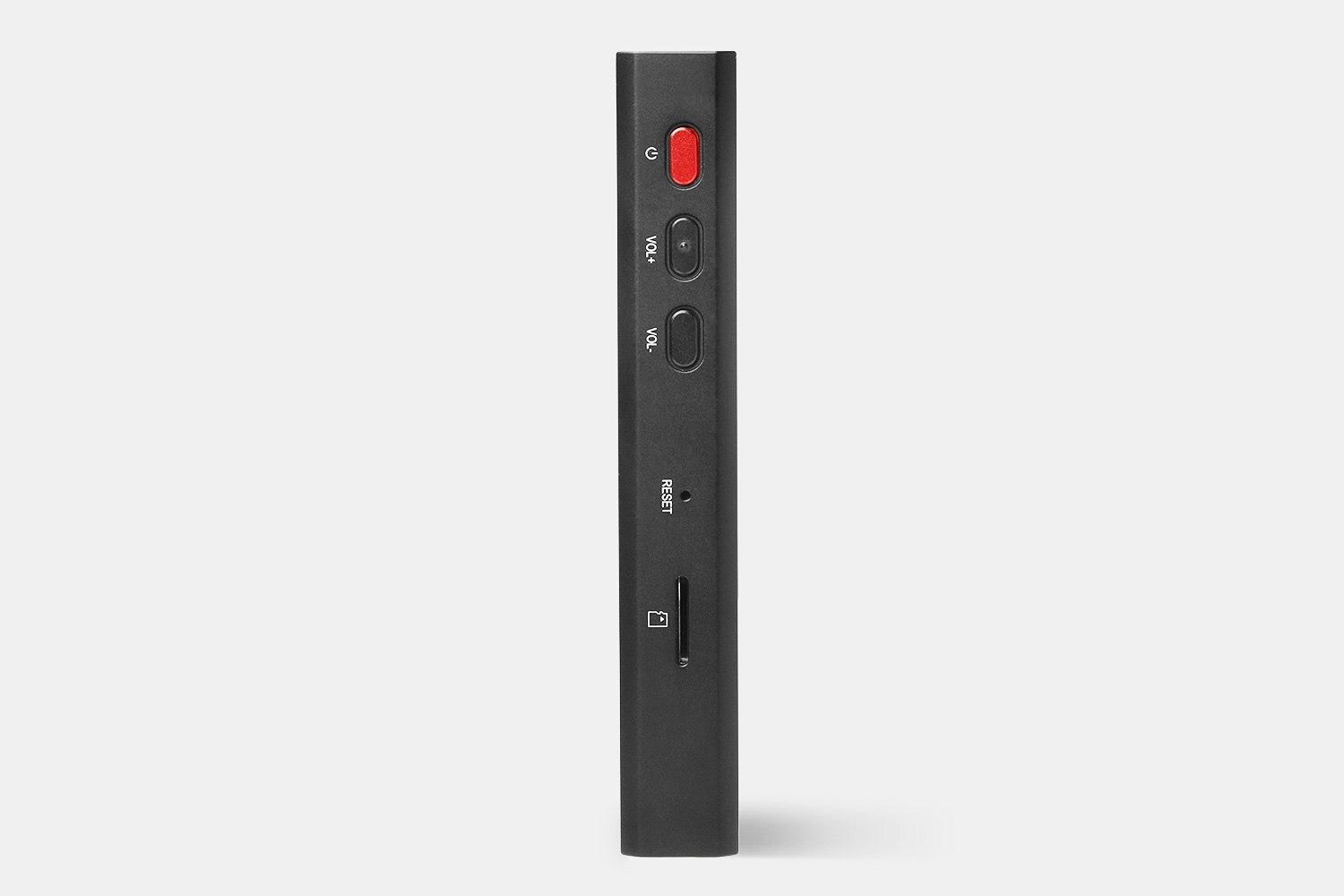

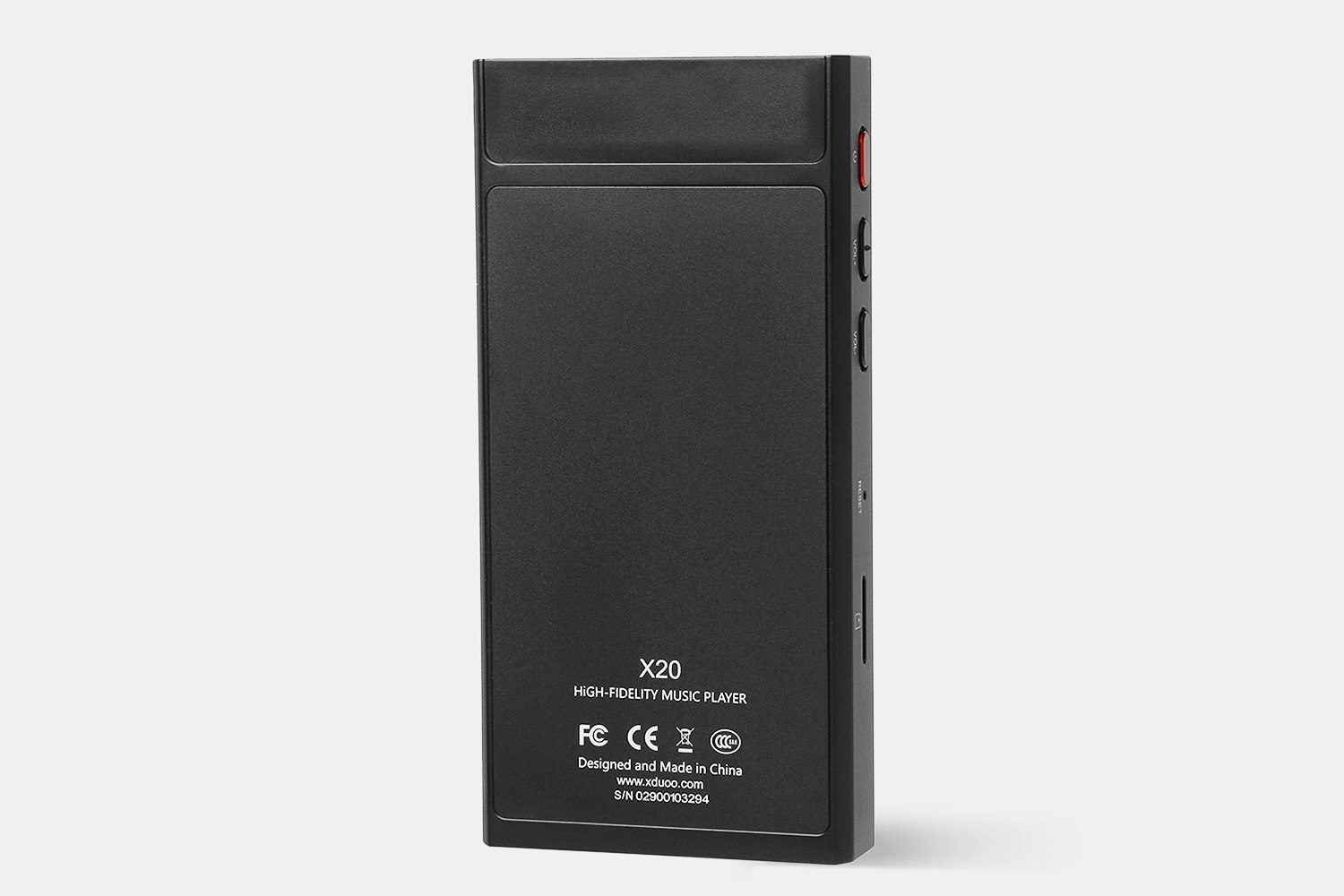

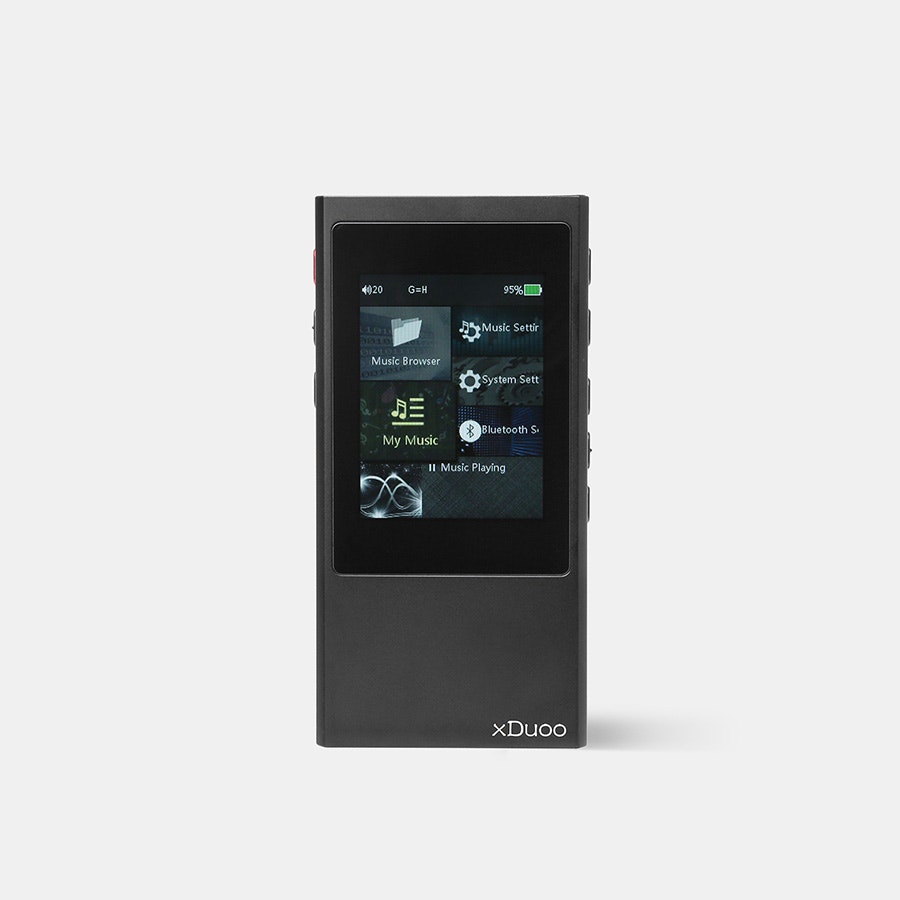

xDuoo X20 Digital Audio Player
Balanced Output, Wireless Control
A new generation of digital audio player, the xDuoo X20 is fully loaded with features that make listening to music on the go easier and more enjoyable than ever. The highly regarded ESS9018K2M DAC chip and OPA1612 op-amp chip make for accurate, distortion-free sound, with support for native DSD256 and up to PCM 384 kHz / 32 bit. Along with the standard 3.5-millimeter and line out/coax connections, the player has a balanced 2.5-millimeter jack for pairing with balanced IEMs. Connect the X20 to your computer and use it as a USB DAC/amp. Or take advantage of the Hiby Link app and stream high-quality audio from your phone (the player includes Bluetooth 4.1 with aptX support).
Note: This drop is limited to 200 units.
Specs
Headphone Output (3.5 mm)
- Output power: 210 mW (32 ohms / THD+N <0.0015%)
- Frequency response: 20 Hz–20 kHz (+/- 0.15 dB)
- SNR: ≥ 114 dB
- Resolution: > 75 dB
- Distortion + noise: 0.0015% at 1 kHz (32 ohms at 1 kHz)
Balanced Headphone Output (2.5 mm)
- Output power: 210 mW (32 ohms / THD+N <0.0015%)
- Frequency response: 20 Hz–20 kHz (+/- 0.15 dB)
- SNR: ≥ 116 dB
- Resolution: > 112 dB
- Distortion + noise: 0.0015% at 1 kHz (32 ohms at 1 kHz)
Line Output
- Line output level: 1.7 Vrms (10 kohms at 1 kHz)
- Frequency response: 20 Hz–20 kHz (+/- 0.15 dB)
- SNR: ≥ 114 dB
- Resolution: > 108 dB (10 kohms at 1 kHz)
- Distortion + noise: 0.0012% at 1 kHz (10 kohms)
Additional Specs
- ESS9018K2M DAC chip
- OPA1612 operational amplifier chip
- Supports native DSD256, PCM 384 kHz / 32 bit
- Supports APE, AIFF, MP3, FLAC, ALAC, OGG, WAV, AAC, and WMA
- Fully balanced circuit design
- Dual oscillator
- 10 sections of custom EQ adjustment
- Supports 256GB TF card
- Bidirectional Bluetooth 4.1 with aptX support
- Hiby Link function
- Car Play mode
- CNC-machined aluminum with sand-blasted finish
- Battery: Built-in 2400mAh rechargeable lithium polymer
- Battery life: 8 hrs (3.5mm headphone out), 7 hrs (balanced headphone out)
- Charging time: < 3 hrs (DC 5V 2A), < 6 hrs (DC 5V 500mA)
- Dimensions: 4.3 x 2.2 x 0.7 in (110 x 56 x 16.6 mm)
- Weight: 4.9 oz (138 g)
Included
- 2 screen protectors
- USB cable
- ⅛ in (3.5 mm) audio recording line
- User manual
- Warranty card
- Manufacturer’s 1-year warranty
