Singxer F-1 XMOS XU208 USB Digital Interface

Singxer F-1 XMOS XU208 USB Digital Interface

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
58 requests
Product Description
The Singxer F-1 digital interface allows you to connect your DAC or receiver to your computer using coaxial. This will come in handy for audiophiles who want to bypass DACs with outdated USB interfaces, or those incompatible with their current setup Read More

Advanced USB Digital Interface


The Singxer F-1 digital interface allows you to connect your DAC or receiver to your computer using coaxial. This will come in handy for audiophiles who want to bypass DACs with outdated USB interfaces, or those incompatible with their current setup. The F-1 connects to your computer using the highly regarded XMOS XU208 chip, which uses a more advanced process technology than previous XMOS chips. The device is powered by USB and requires no external power source to operate. Finally, it’s compatible with Windows, Mac OS X, Linux, and Android with the installation of a driver. A USB/coaxial cable is not included.

Note: At checkout, choose the F-1 with a case (base price) or the F-1 without a case (- $25).

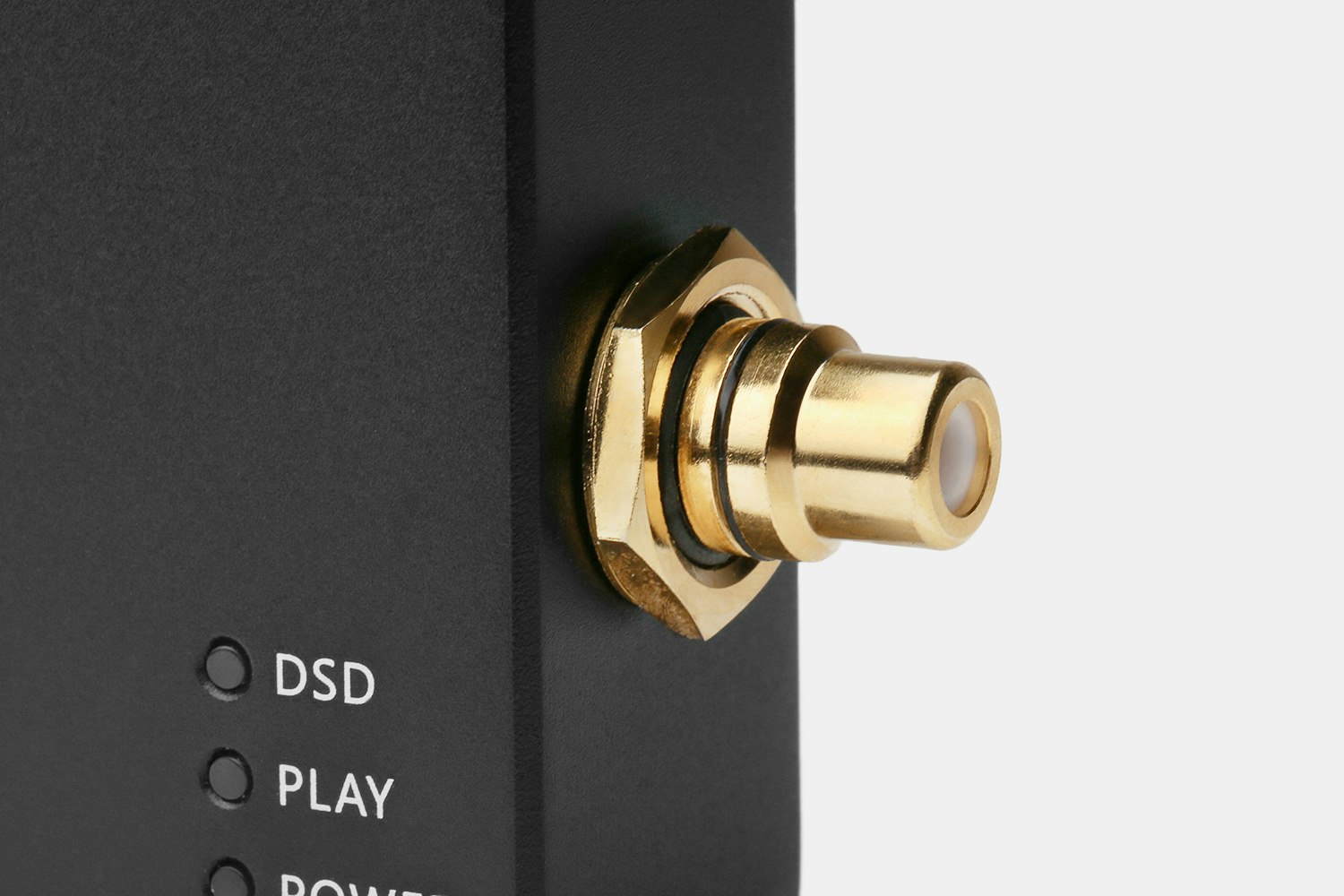

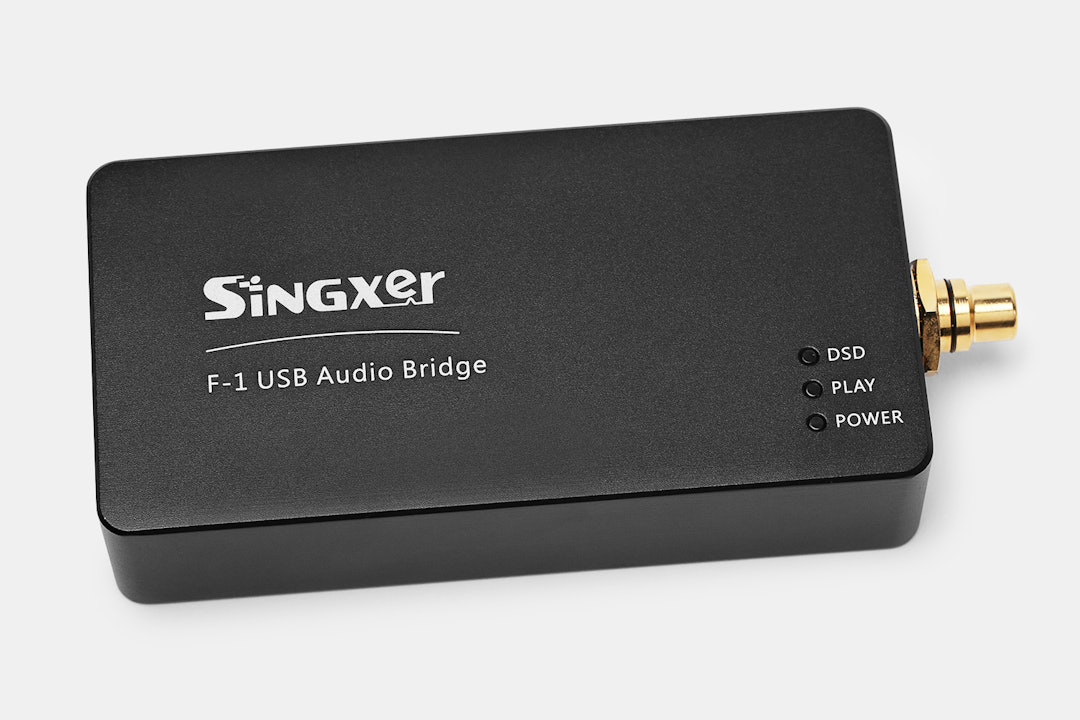

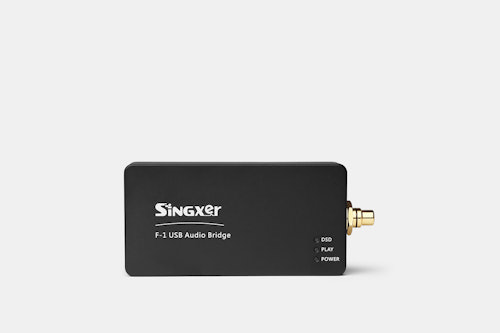

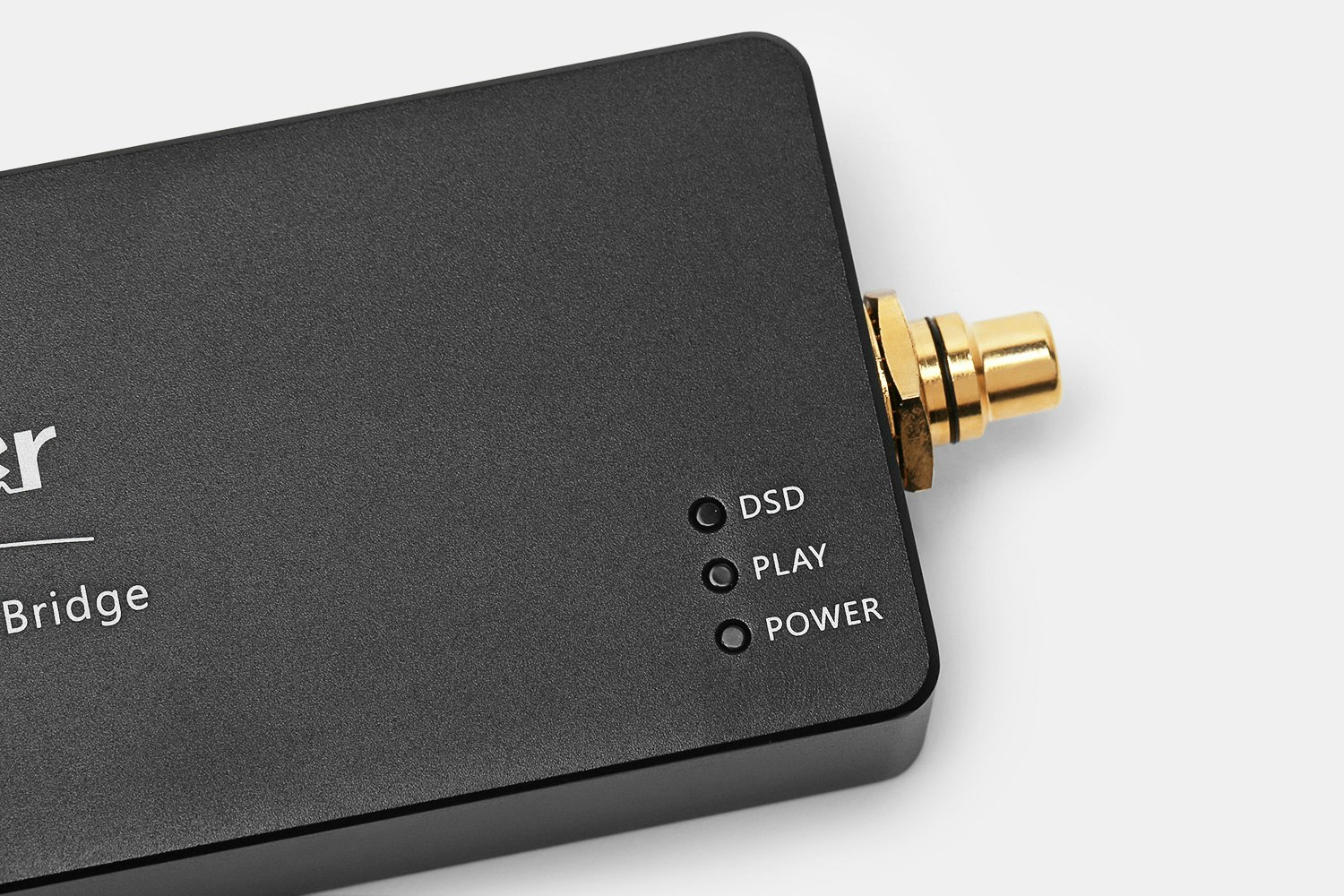

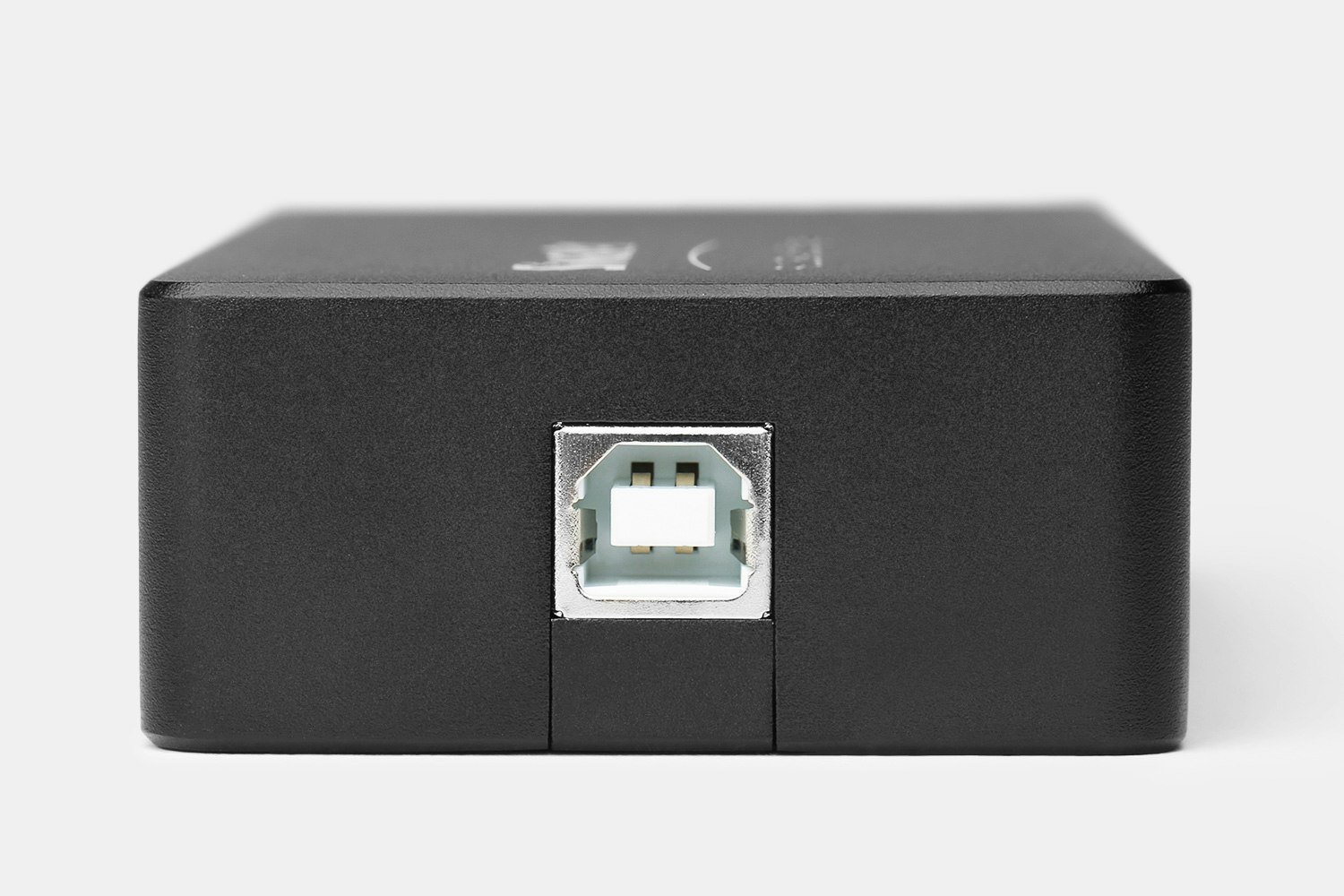

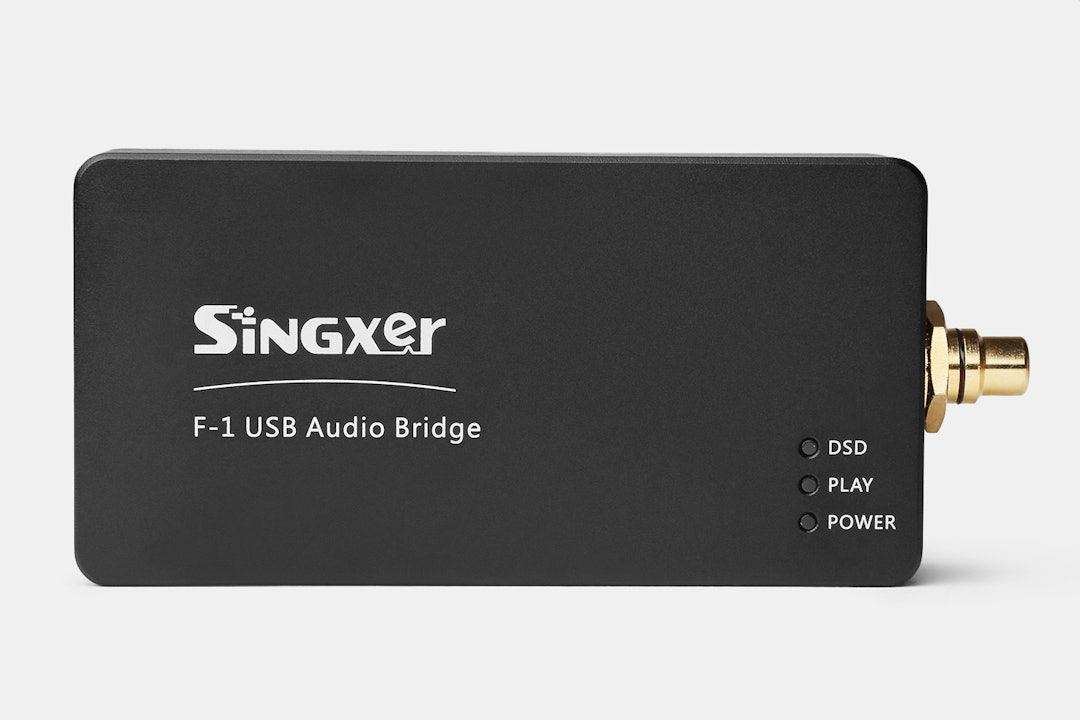

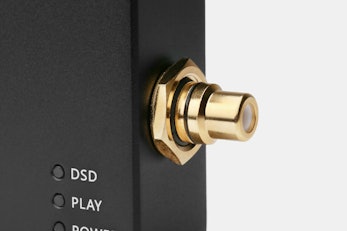

Singxer F-1 XMOS XU208 USB Digital Interface
Singxer F-1 XMOS XU208 USB Digital Interface
Singxer F-1 XMOS XU208 USB Digital Interface
Singxer F-1 XMOS XU208 USB Digital Interface
Singxer F-1 XMOS XU208 USB Digital Interface

Specs

  • Singxer
  • Output interface supports PCM 44.1 kHz,48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
  • I2S out supports full sample rate
  • S/PDIF supports up to 192 kHz
  • Output interface DSD: 2.8 MHz (DSD64) DoP, native; 5.6 MHz (DSD128) DoP, native; 11.2 MHz (DSD256) native
  • I2S out supports all DSD format
  • S/PDIF and AES/EBU support DSD64 DOP mode
  • Bits wide: The highest 32 bit over I2S output; the highest 24 bit over S/PDIF
  • Screw position, I2S is compatible with Amanero board
  • 3 active crystal oscillators (CRYSTEK CCHD audio crystal oscillator)
  • 1 x USB input socket is standard USB-B type female; USB power supply range: 4.5V–5.1V
  • 2 x RCA connector outputs standard S/PDIF; electricity level 550 mV (standard connection load), output impedance 75 ohms
  • System compatibility: Windows 7 and 8, 32/64 bit, install driver; Native Mac OS 10.6 and later, use own driver; native Linux with UAC2-compliant kernel, use own driver; Android OS 4.2 and above, requires support for OTG function

Shipping

Estimated ship date is July 5, 2018 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
