SMSL Sanskrit PHA Amp & Pro-B DAC

SMSL Sanskrit PHA Amp & Pro-B DAC

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
248 requests
·
175 Sold
Product Description
From SMSL, the Sanskrit series features compact amps and DACs that are designed to be paired and stacked on top of one another. A powerful discrete headphone amp, the Sanskrit PHA delivers ultra-low noise and plenty of power to drive more demanding headphones Read More

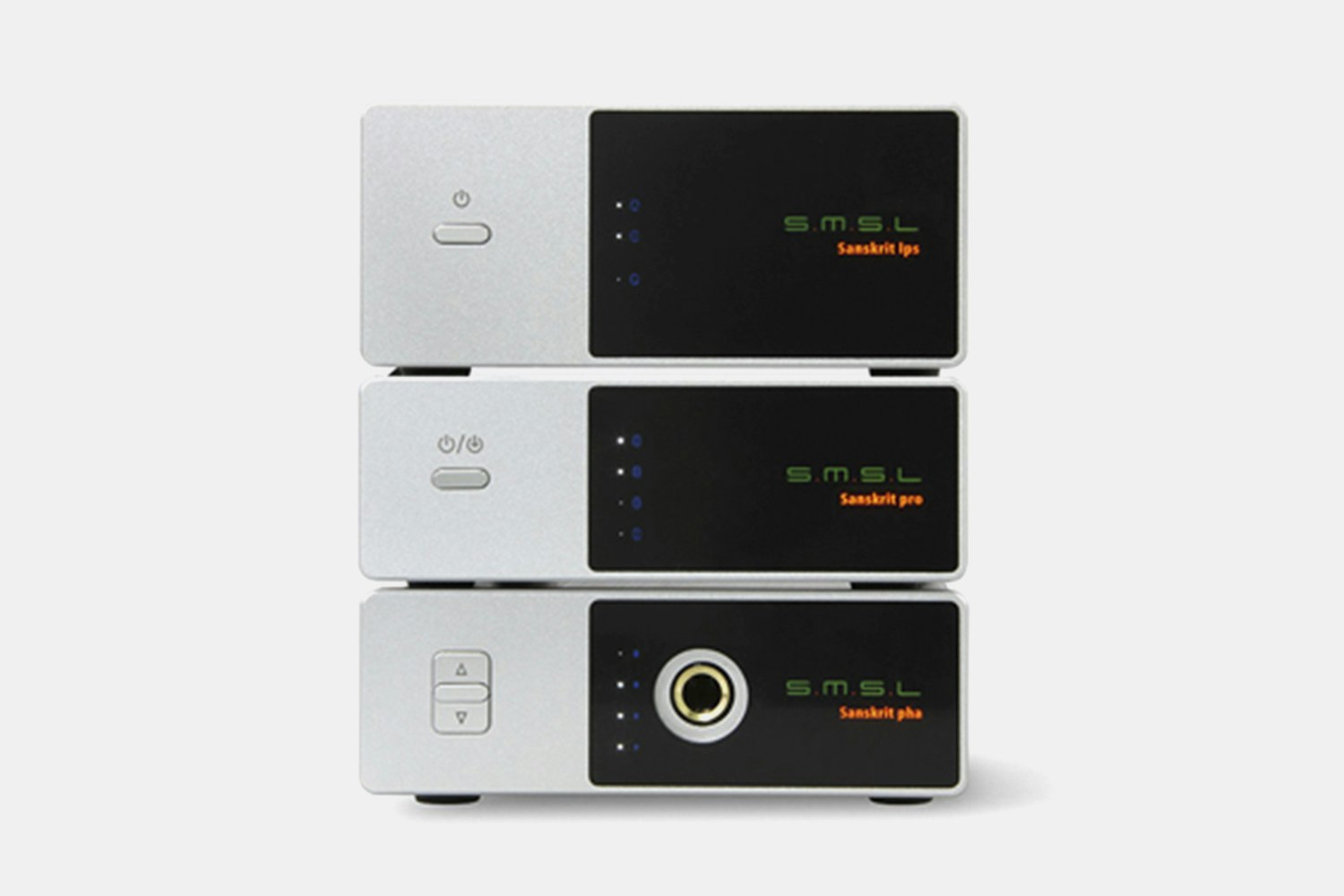

A Perfect Pairing

From SMSL, the Sanskrit series features compact amps and DACs that are designed to be paired and stacked on top of one another. A powerful discrete headphone amp, the Sanskrit PHA delivers ultra-low noise and plenty of power to drive more demanding headphones. It has an output of up to 545 mW at 64 ohms. Its ideal companion, the Sanskrit Pro-B uses the well-regarded AK4490EQ DAC chip. With both Bluetooth and optical inputs, it’s a versatile DAC with a notably small footprint.

Note: At checkout, choose the Sanskrit PHA headphone amp (base price), the Sanskrit Pro-B DAC (+ $25) or both (+ $80).

SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC
SMSL Sanskrit PHA Amp & Pro-B DAC

Model Options

Specs

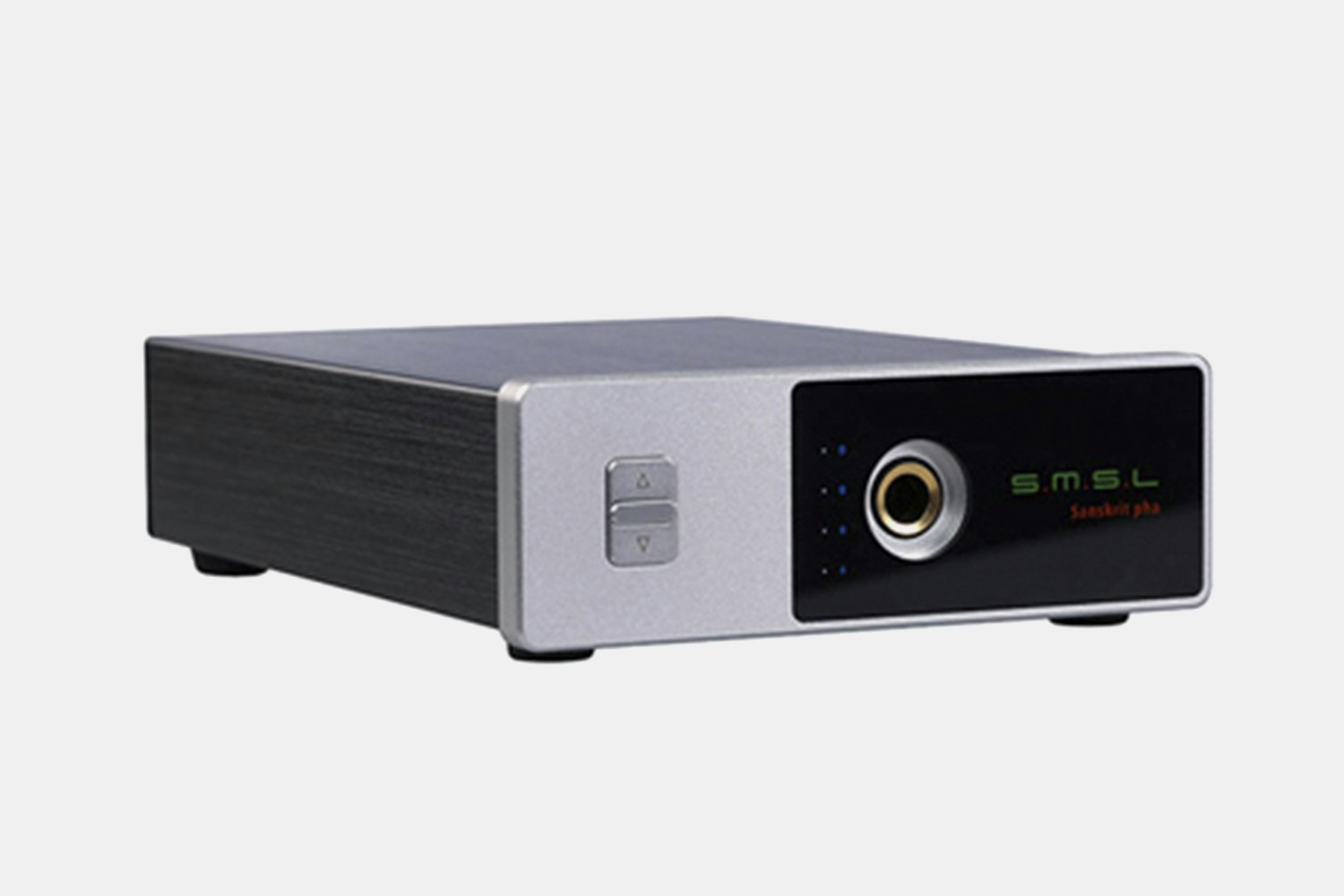

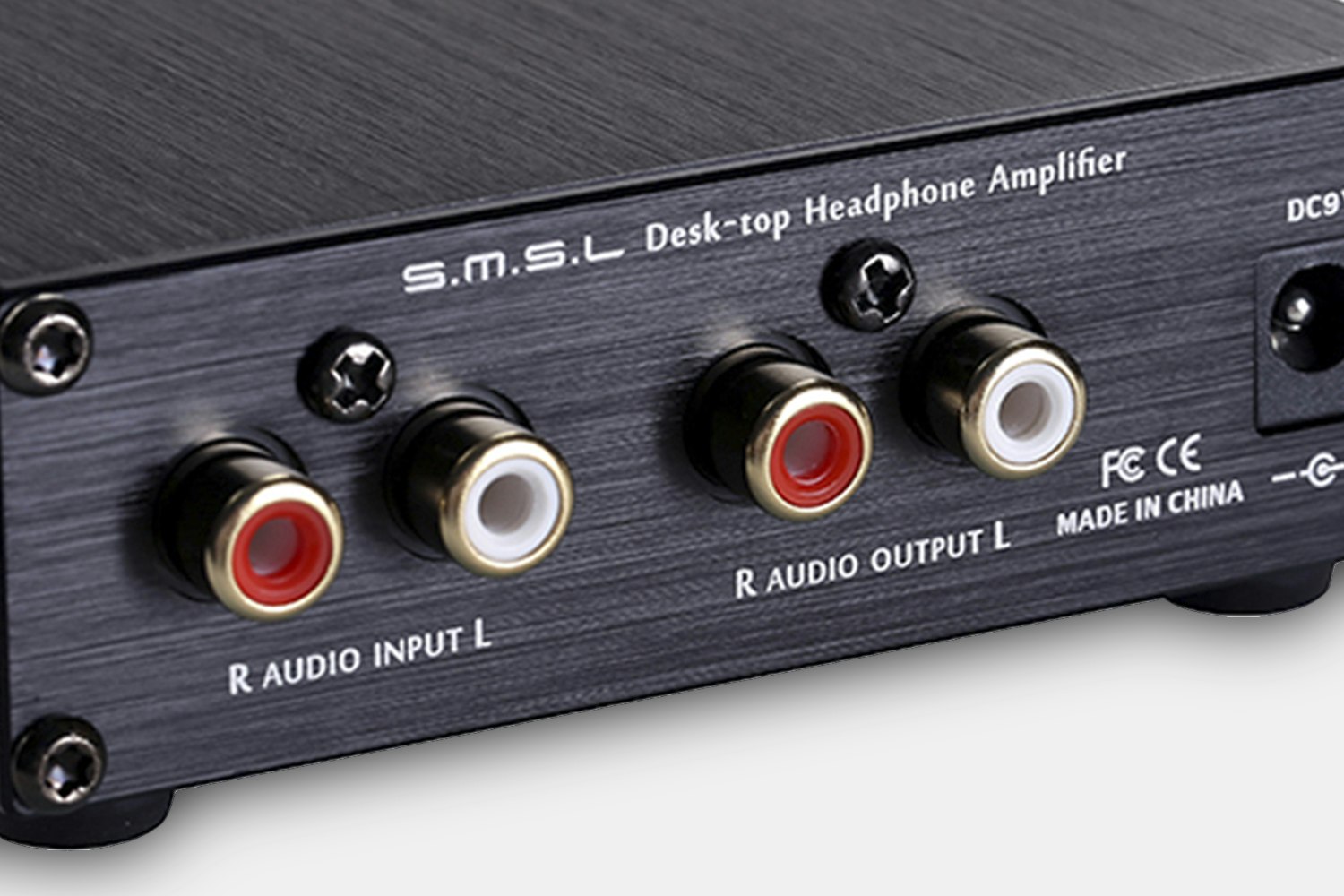

SMSL Sanskrit PHA Headphone Amp

  • Output power: 32Ω 330mW at THD = 0.01%; 64Ω 545mW at THD = 0.008%; 150Ω 240mW at THD = 0.004%; 300Ω 122mW at THD = 0.003%
  • Preamp output THD + N: 0.0006%
  • SNR: >105 dB
  • Channel separation: >105 dB
  • Total power consumption: 5W
  • Audio outputs: 6.35mm jack for headphones, stereo on cinch

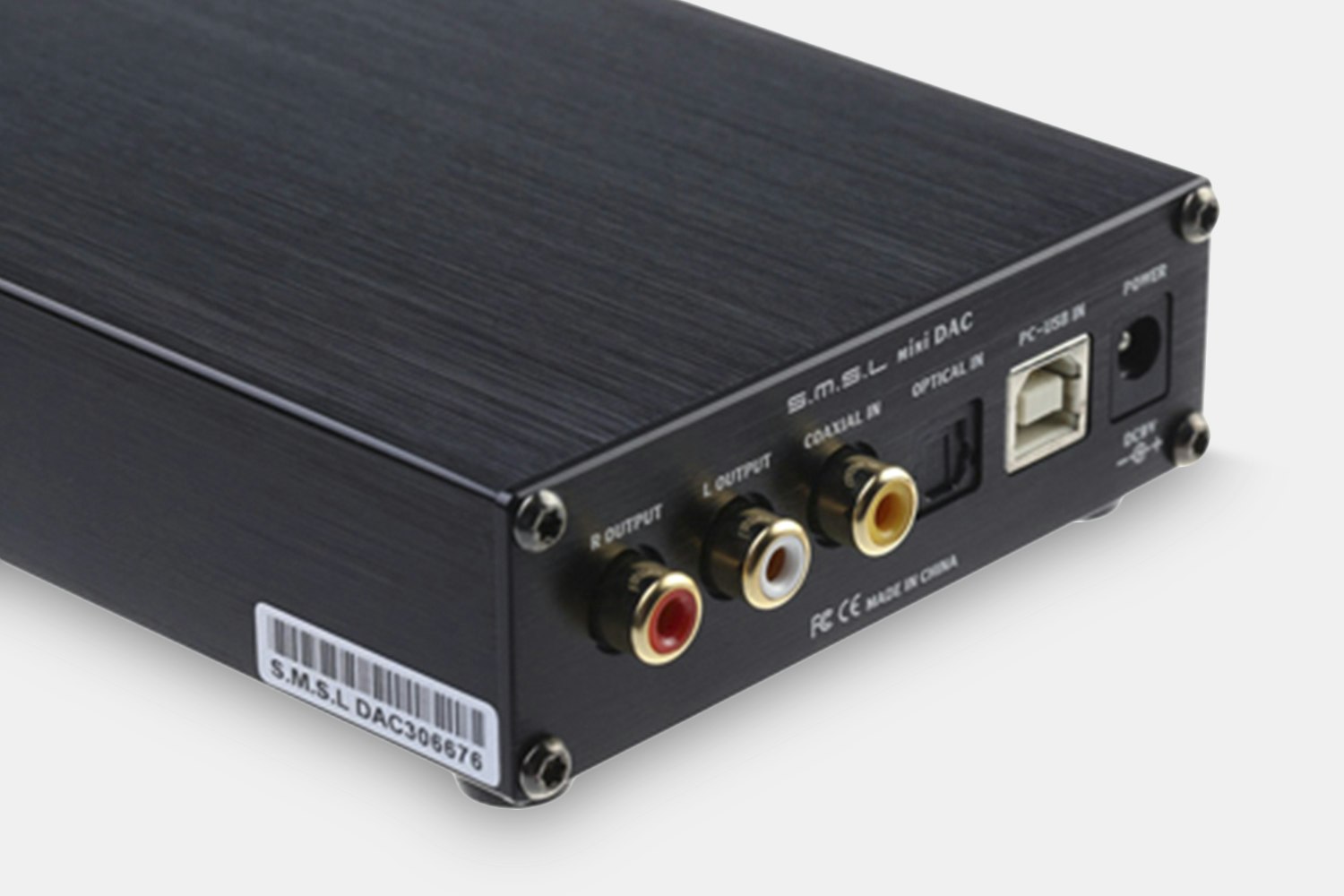

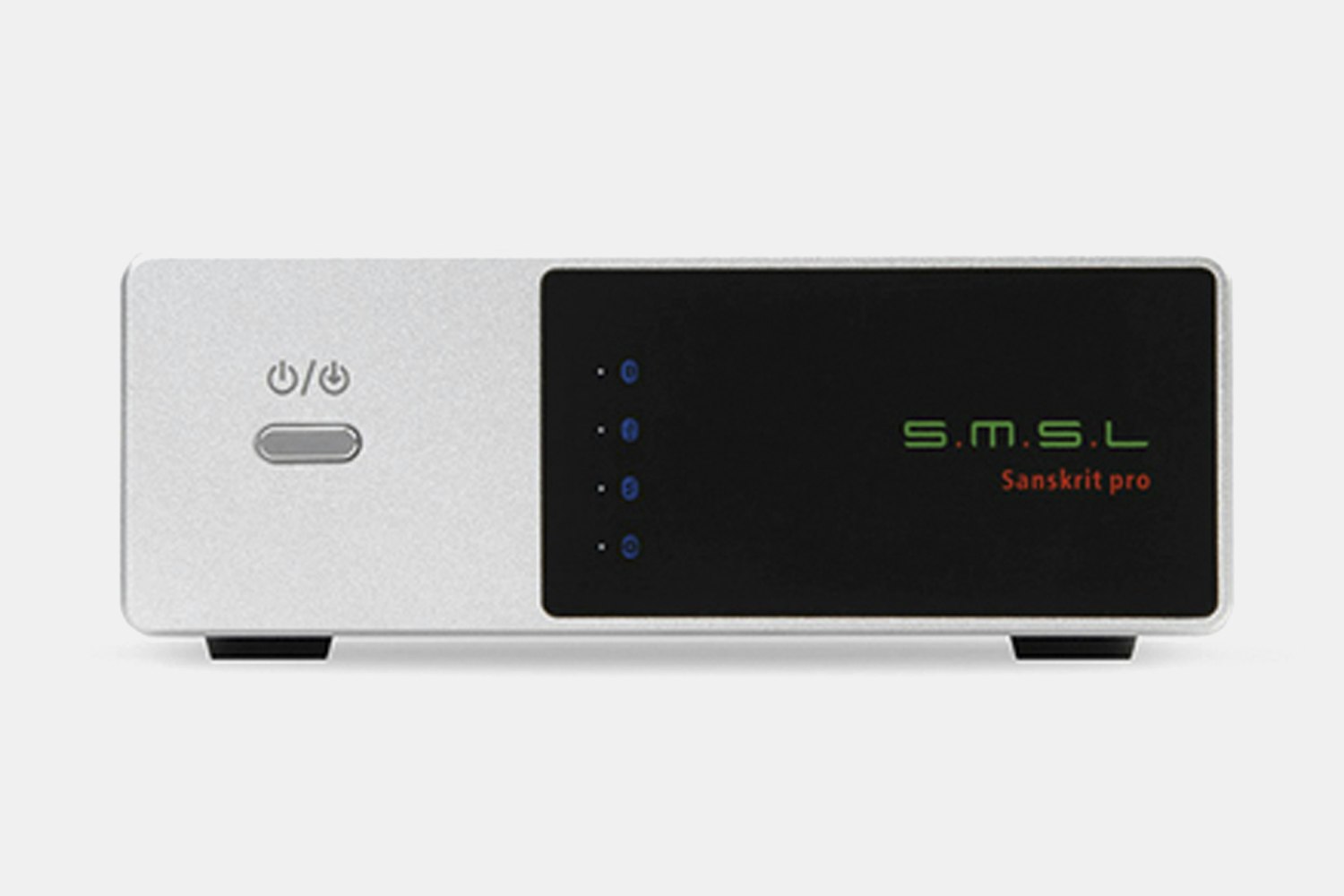

SMSL Sanskrit Pro-B DAC

  • Inputs: USB, optical, coaxial, Bluetooth
  • Output level: 2.0 Vrms
  • THD + N: 0.0006% (- 3 dBFS)
  • Dynamic: 118 dB
  • SNR: 120 dB
  • Channel separation: 115 dB
  • USB compatibility: Windows, Mac OS X, iOS, Android, Linux
  • Bluetooth codec: aptX, SBC, AAC
  • USB: 16–32 bit
  • Coaxial, optical: 16–24 bit, 32–192 kHz
  • Sampling rate: USB PCM 32–384 kHz; USB DSD 2.8224 MHz, 5.6448 MHz
  • Bluetooth: 48 kHz
  • Bluetooth range (straight without obstacles): 23 ft (7 m)
  • Power consumption: 2.5 W
  • Standby consumption: 0.9 W
  • Dimensions: 3.9 x 1.4 x 5.7 in (98 x 36 x 144 mm)

Included w/ Sanskrit PHA

  • User manual

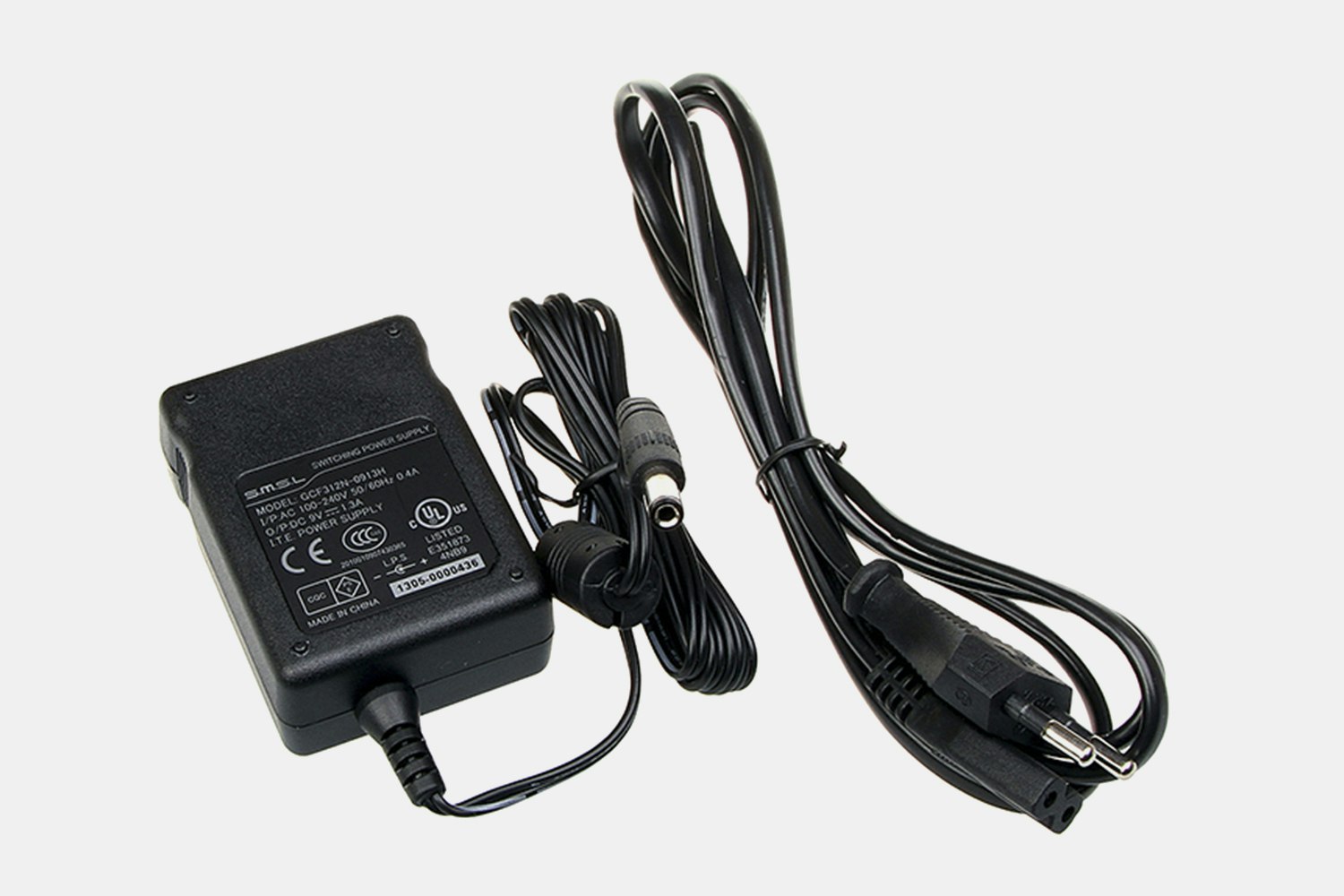

  • Power adapter

Shipping

Estimated ship date is Nov 23, 2018 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Top Customer Questions

Want to know something about this product or how to use it?
Ask the Community!
Get Answers Now
User Photos2
Alvarosk

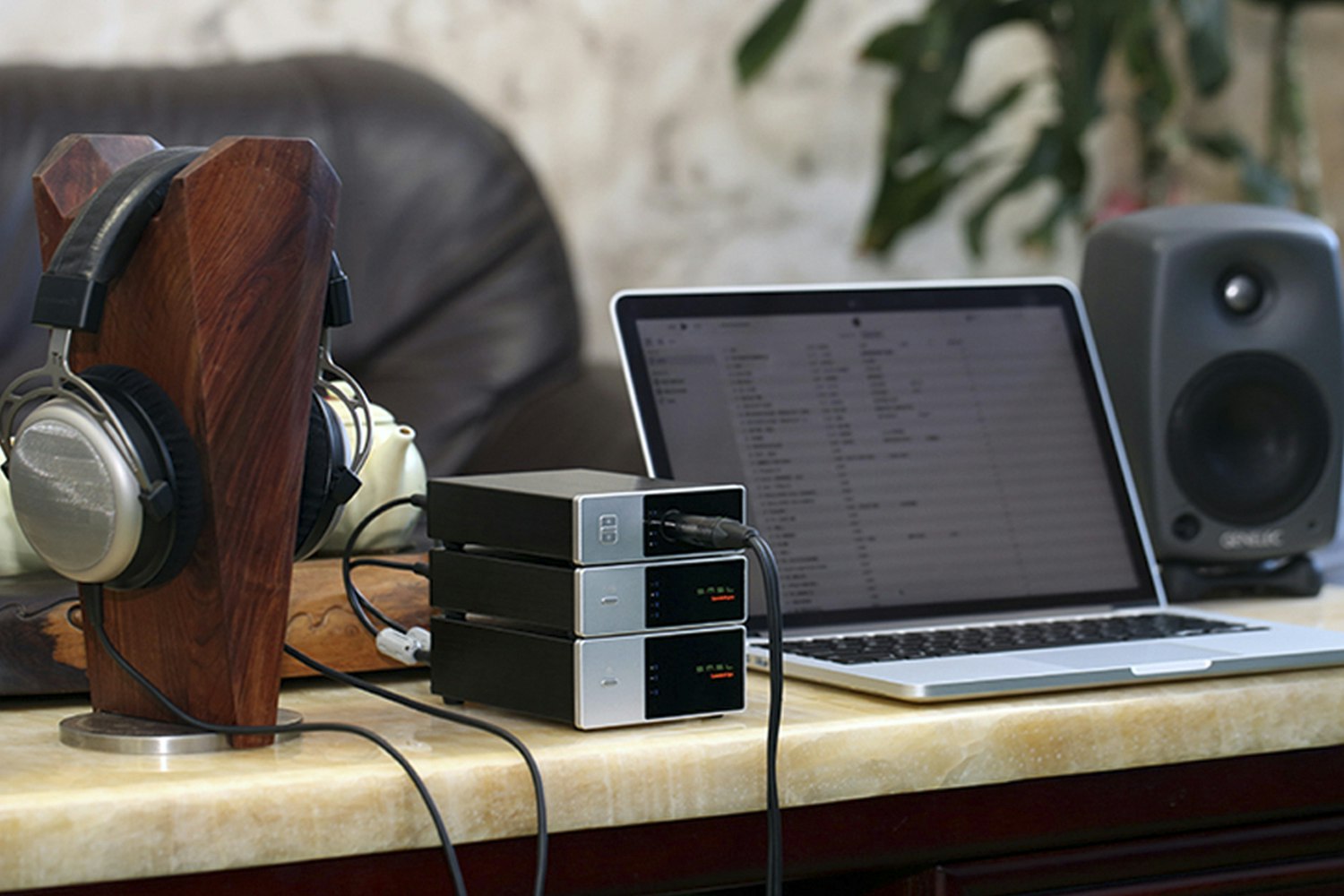

Nice stack
