Product Description
THX’s AAA™ amplification has earned an esteemed reputation among audiophiles for its ultra-low distortion and linear sound. Now, that amplification technology is available in a portable, palm-sized amp Read More

The World’s Smallest THX AAA™ Amplifier

THX’s AAA™ amplification has earned an esteemed reputation among audiophiles for its ultra-low distortion and linear sound. Now, that amplification technology is available in a portable, palm-sized amp. Introducing the HELM Audio DB12 AAAMP, available only on Drop. Made in collaboration with THX, this feature-loaded amp takes AAA™ to new heights with a host of additional features, including USB charging, onboard volume controls, a clean 12-decibel gain boost for power-hungry headphones like planar magnetics or high-impedance models, plus an independent 6-decibel boost for the low ends. Winner of the “Innovation Award at CES 2020,” the HELM Audio DB12 AAAMP takes the power it saves with efficient AAA™ technology and uses it to deliver a rich, “unmasked” stereo field with plenty of detail.

HELM Audio DB12 AAAMP THX Amp

The THX AAA™ Advantage

Distortion is the enemy of any listening experience. However, finding and neutralizing its source has proven to be difficult for many headphone amp manufacturers. Striding ahead of the competition, THX has honed in on a solution. THX AAA™ technology uses patented feed-forward error-correction topology to reduce harmonic, intermodulation, and crossover distortions by 20 to 100 times—currently the world’s lowest levels of distortion. In the DB12 AAAMP, this technology facilitates a fatigue-free listening experience that’s both immersive and energy-efficient. Less power wasted on distortion means more output power devoted to improving dynamic range, sound pressure level, and stereo field imaging—benefits your ears will notice instantly.

HELM Audio DB12 AAAMP THX Amp
HELM Audio DB12 AAAMP THX Amp

A Better Mobile Listening Experience

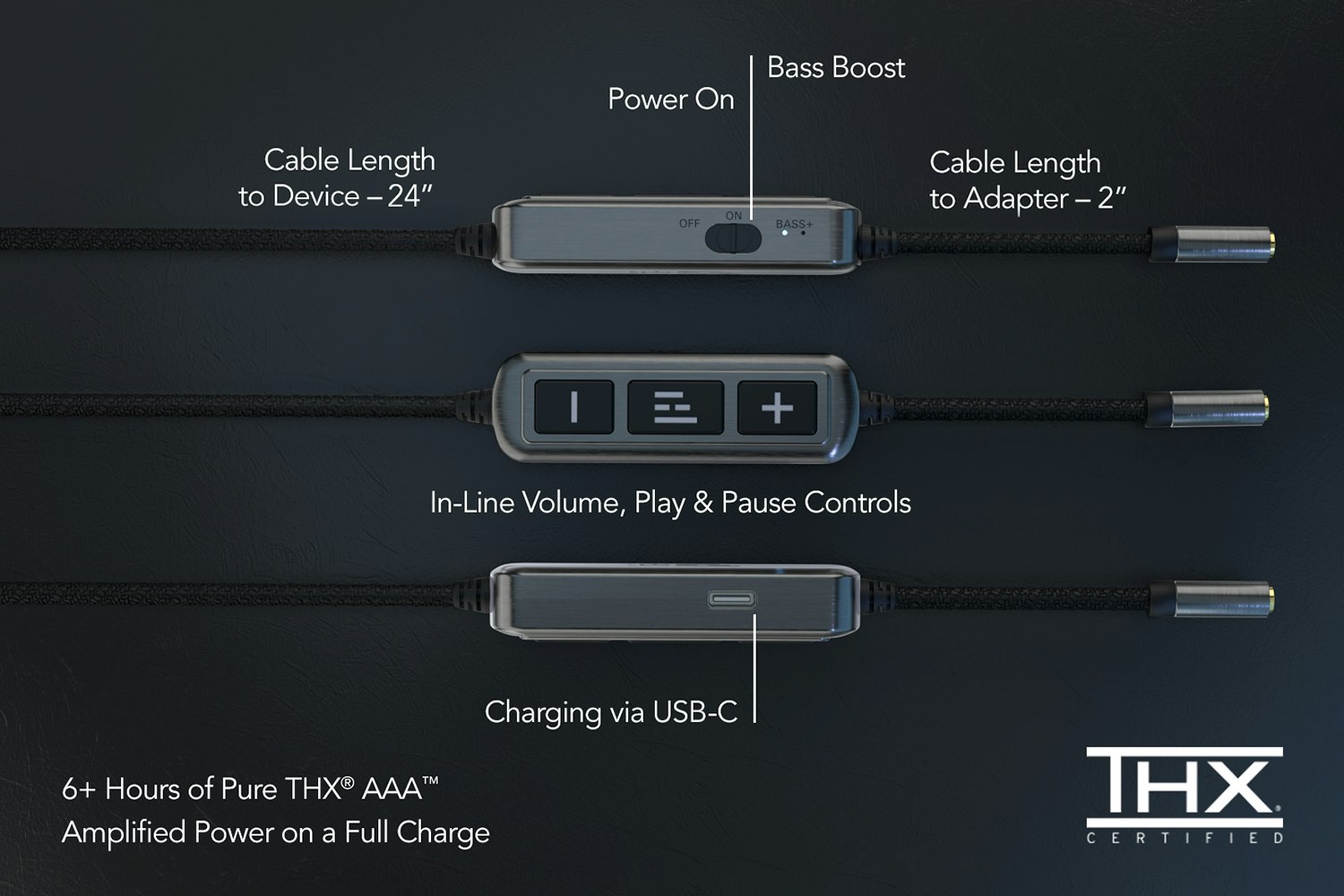

Listening to headphones through a THX AAA™ amplifier is game-changing. Now, you can do it on the go. Fitting THX AAA™ technology into a key-fob-sized form factor, the HELM Audio DB12 AAAMP brings audiophile-grade sound to any setting. Enjoy an ultra-clean 12-decibel gain boost, plus the ability to boost your low-end frequencies by an additional 6 decibels. You can also control your smartphone volume, and play/pause your music thanks to onboard controls. Plus, THX AAA™ technology passes its best-in-class energy savings on to your battery: the USB-C chargeable DB12 AAAMP provides over 6 hours of continuous use. THX Certified to ensure studio-grade audio performance, the DB12 AAAMP is ready to elevate your listening experience from anywhere.

HELM Audio DB12 AAAMP THX Amp
HELM Audio DB12 AAAMP THX Amp

El Jefe's Review

Specs

  • HELM Audio
  • THX Certified
  • Amplifier: THX’s AAA™ amplifier
  • Material: Aluminum
  • Input: Stereo TRRS 3.5 mm male connector
  • Output: Stereo TRRS 3.5 mm female connector
  • Frequency response: +0.01 / -0.2 dB 20 Hz – 20 kHz with 32 ohm load
  • Output impedance: <0.4 ohms
  • Output power: 109 mW at 16 ohms with <0.1% THD (watts per channel,) 111 mW at 32 ohms with <0.1% THD (watts per channel)
  • Output impedance:  < 0.4 ohms
  • THD: -102 dB, 16 ohms, 10 mW: 0.0008%
  • THD: -102 dB, 32 ohms, 5 mW: 0.0008%
  • THD: -109 dB, 10 Kohms, 0.049 mW: 0.00035%
  • IMD: -70 dB, SMPTE 70 Hz + 70 kHz, 16 ohms: 0.03%
  • IMD: -80 dB, SMPTE 70 Hz + 70 kHz, 32 ohms: 0.01%
  • IMD: -80 dB, SMPTE 70 Hz + 70 kHz, 10K ohms: 0.01%
  • Crosstalk: - 91 dB, 10K ohms: 0.0028184 %
  • Noise (A-wt): 10 uV, potentiometer at nil
  • SNR: 114 dB, 300 ohms, <1% THD
  • Gain: +12 dB (full range), +12 dB and +6 dB on 60–100 Hz frequencies (Bass Boost)
  • Power supply: Internal USB rechargeable battery
  • Battery life: 6+ hours in use
  • Weight: 1.08 oz (30.55 g)

Included

  • Manufacturer's 1-year warranty

Shipping

Estimated ship date is Dec 1, 2021 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Top Customer Questions7
search
close
Question
Hi, can someone please confirm if the cables are braided or not? I am seeing different types in the photos. Has the item also been updated? There are people complaining about the buttons being difficult to press.
Apr 4, 2021
Top Answer
Tappaz
40
Braided in terms of the cord being wrapped in a cris-cross pattern? Or the cord being sleeved? It is definitely sleeved but I wouldn't say braided. Buttons weren't an issue for me but you can read...Read More
Apr 6, 2021
Question
can it be powered just through the headphone port or does it need to be continually charged?
Oct 2, 2021
Top Answer
jgillingham
121
It needs to be recharged after every 6 hours of use via its USB charging port.Read More
Oct 7, 2021
Showing 2 of 7 questions
View All Questions
User Photos15
JackG02
Powers HIFIMAN HE4xx
Hifidude
Works great! Easy Sub Boost!
hansdtg
Great sound!
eesparza
Package contents
eesparza
DB12 AAAMP - back of box
eesparza

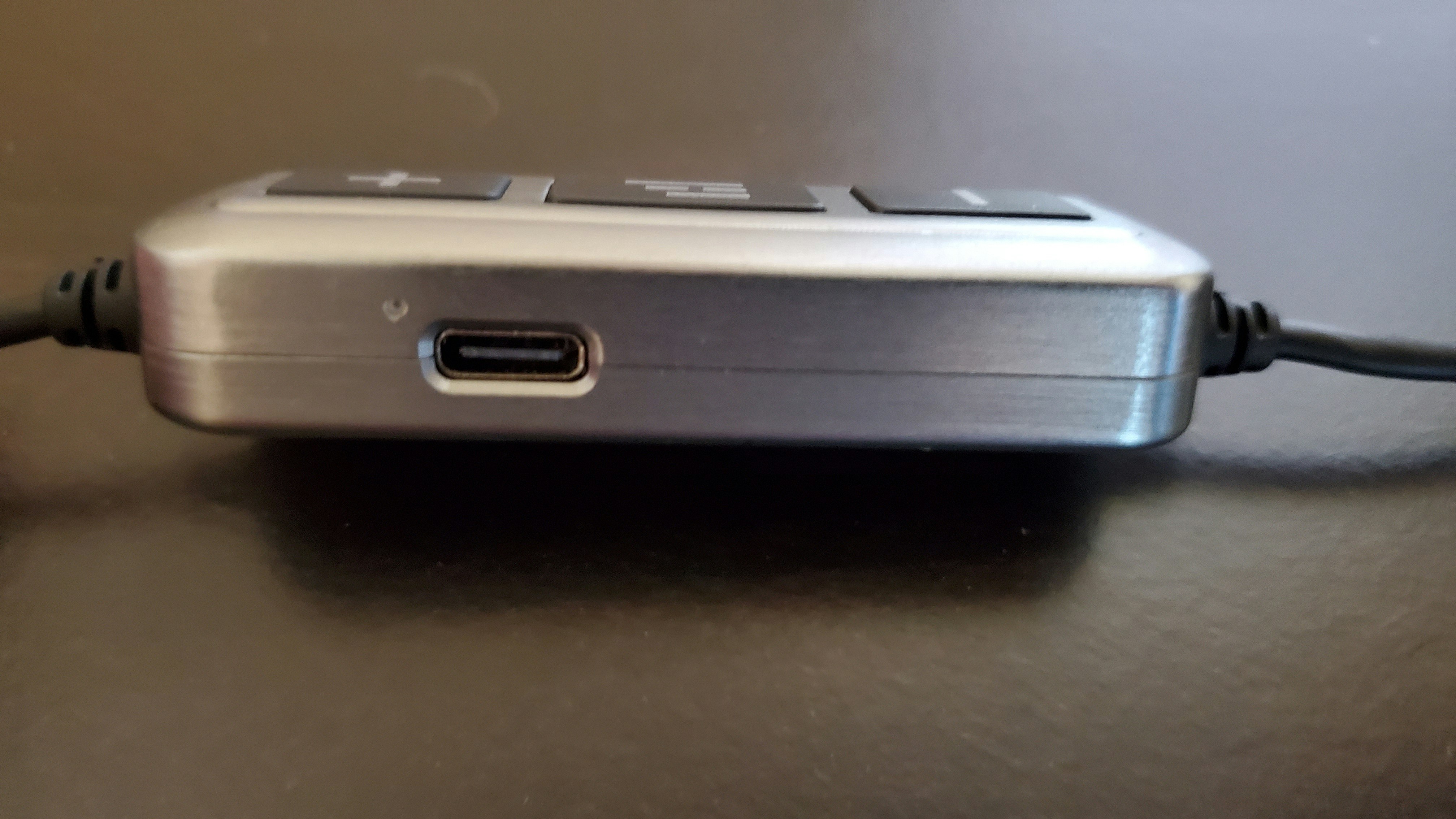

USB-C charging port
oO_..-33-.._Oo
extra oomph
AndrasWatzker
HELM AUDIO DB12 AAAMP THX AMP 04
AndrasWatzker
HELM AUDIO DB12 AAAMP THX AMP 03
AndrasWatzker
HELM AUDIO DB12 AAAMP THX AMP 02
AndrasWatzker
HELM AUDIO DB12 AAAMP THX AMP 01
