Singxer SA-1 Balanced Headphone Amplifier

Singxer SA-1 Balanced Headphone Amplifier

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
12 Sold
Product Description
For headphones in need of classic tube amplification with modern performance, the SA-1 balanced headphone amp from Singxer is a class-leading fit. Equipped with Singxer’s own custom, four-way fully discrete Class A amplifier circuit, the SA-1 is all analog—from the internals all the way to the controls Read More

All Analog, No Distortion

For headphones in need of classic tube amplification with modern performance, the SA-1 balanced headphone amp from Singxer is a class-leading fit. Equipped with Singxer’s own custom, four-way fully discrete Class A amplifier circuit, the SA-1 is all analog—from the internals all the way to the controls. A precision-matched, ultra-low-noise dedicated tube from ROHM handles the differential input, while consistent SWD twin tubes take care of amplification elsewhere. The final output circuit uses multi-stage current amplification, with two pairs of ON Semiconductor's 4A mid-power tubes to drive any pair of headphones with ease. This pure analog design delivers warm and expressive amplification devoid of any EMI interference caused by digital components, making the SA-1 loud, and quiet, in all the right ways.

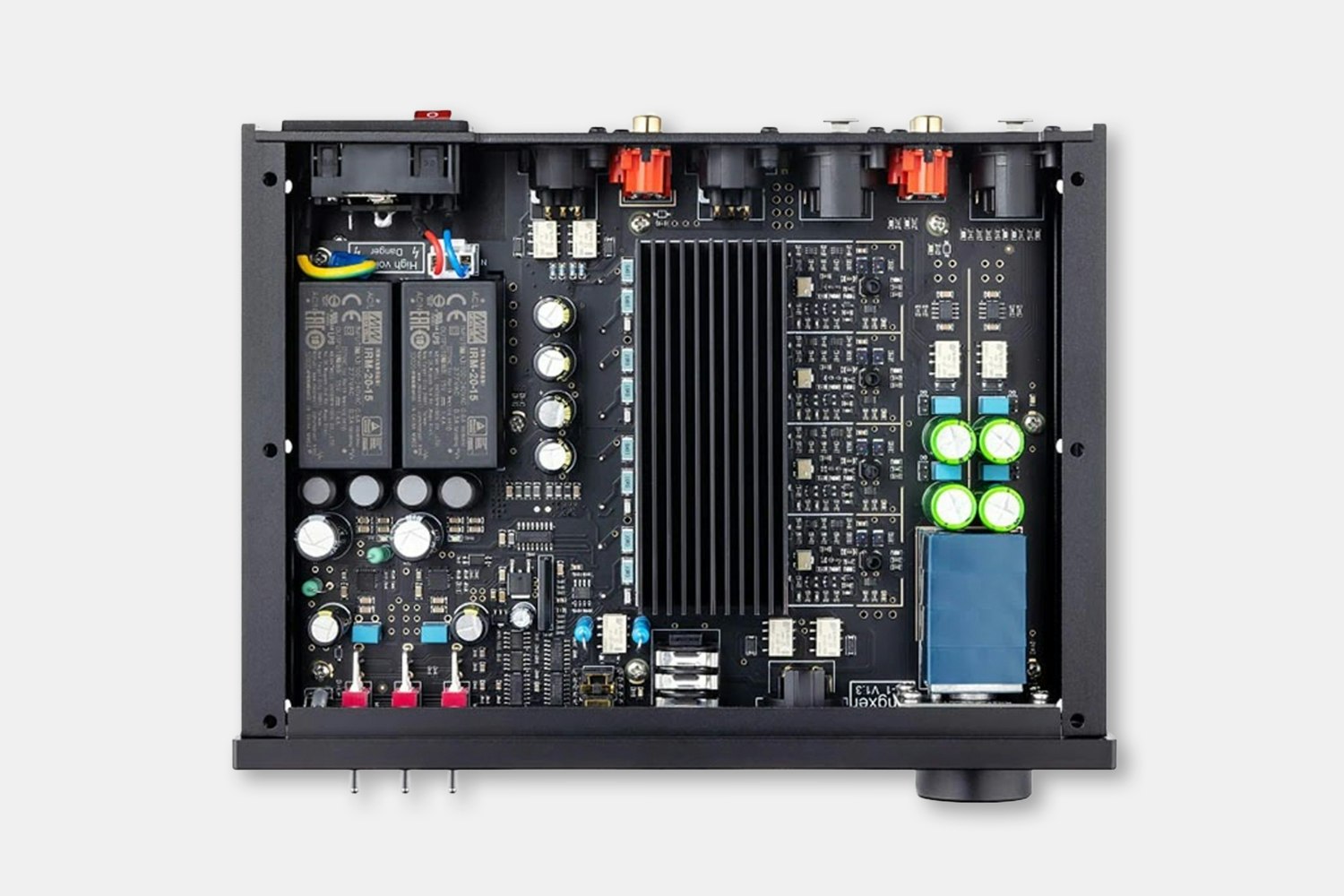

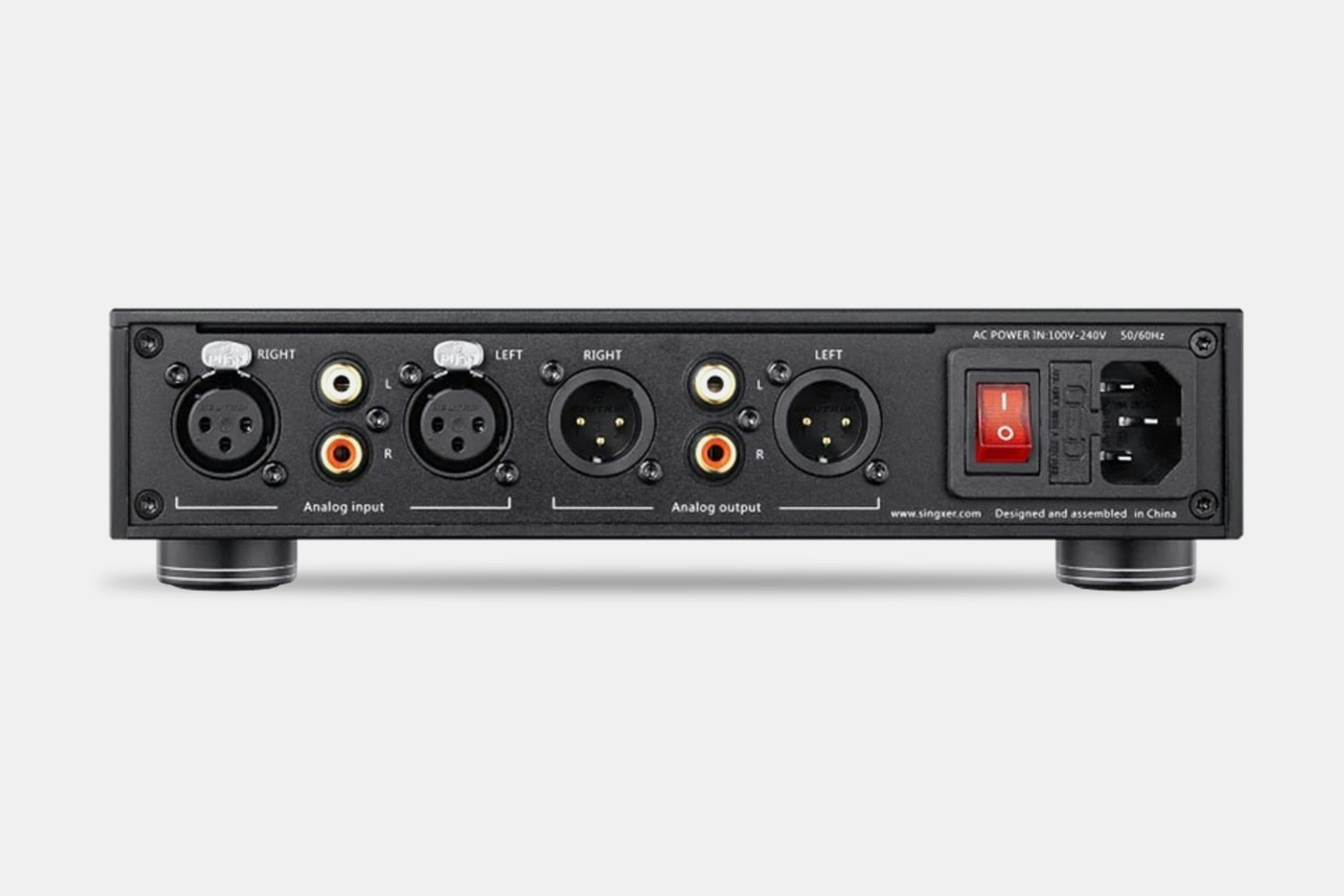

Singxer SA-1 Balanced Headphone Amplifier
Singxer SA-1 Balanced Headphone Amplifier
Singxer SA-1 Balanced Headphone Amplifier

Specs

  • Singxer
  • Headphone amplifier and preamplifier
  • Amplification type: Class A
  • ROHM differential input tube, SWD twin tubes, two pairs of ON Semiconductor 4A mid-power tubes
  • Housing material: Aluminum
  • Inputs: (1) balanced XLR, (1) single-ended RCA
  • Outputs: (1) Balanced XLR, (1) single-ended RCA, (1) balanced 4.4 mm headphone out, (1) balanced XLR 4-pole headphone output, (1) single-ended 6.35 mm headphone output
  • THD+N: -120 dB (1 kHz, A-Weighting, 20Hz – 22kHz); -96 dB (low gain, 1 kHz, A-Weighting, 20Hz – 22kHz)
  • Noise level: 0.66µV (maximum output, SNR / DNR 147 dB), 300nV RMS (low gain, A-Weighting, 20Hz – 22kHz)
  • Output power: 6480 mW at 32 ohms, 2000 mW at 120 ohms, 380 mW at 600 ohms
  • Power supply: 100 – 240V AC, 50 / 60 Hz
  • Dimensions: 9.2 x 6.7 x 1.8 in (23.4 x 17 x 4.6 cm)
  • Weight: 4 lbs (1.8 kg)

Included

  • US power plug

Shipping

All orders will be shipped by Drop.

Estimated ship date is Aug 27, 2021 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Top Customer Questions

Want to know something about this product or how to use it?
Ask the Community!
Get Answers Now
User Photos4
mikechw

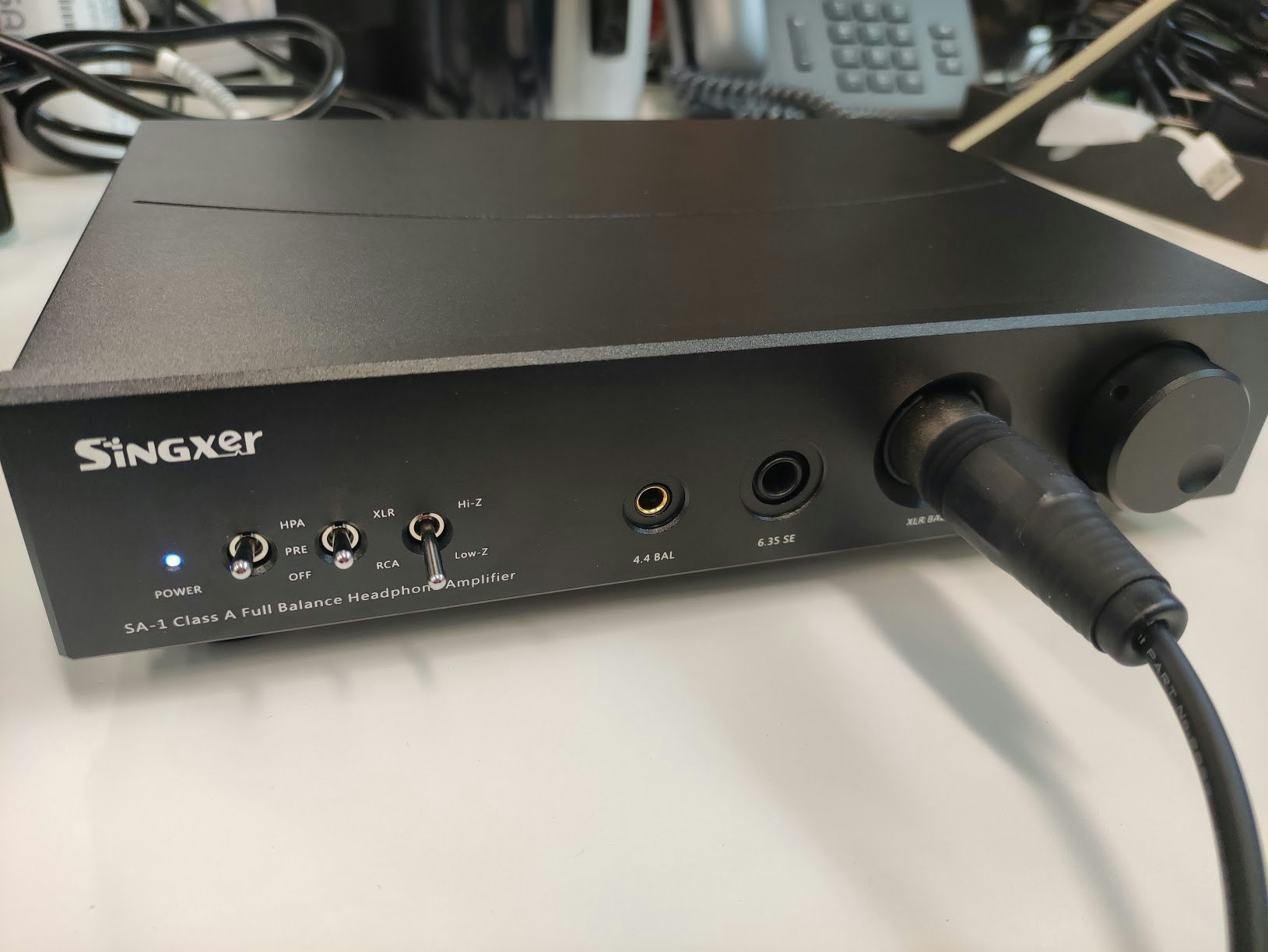

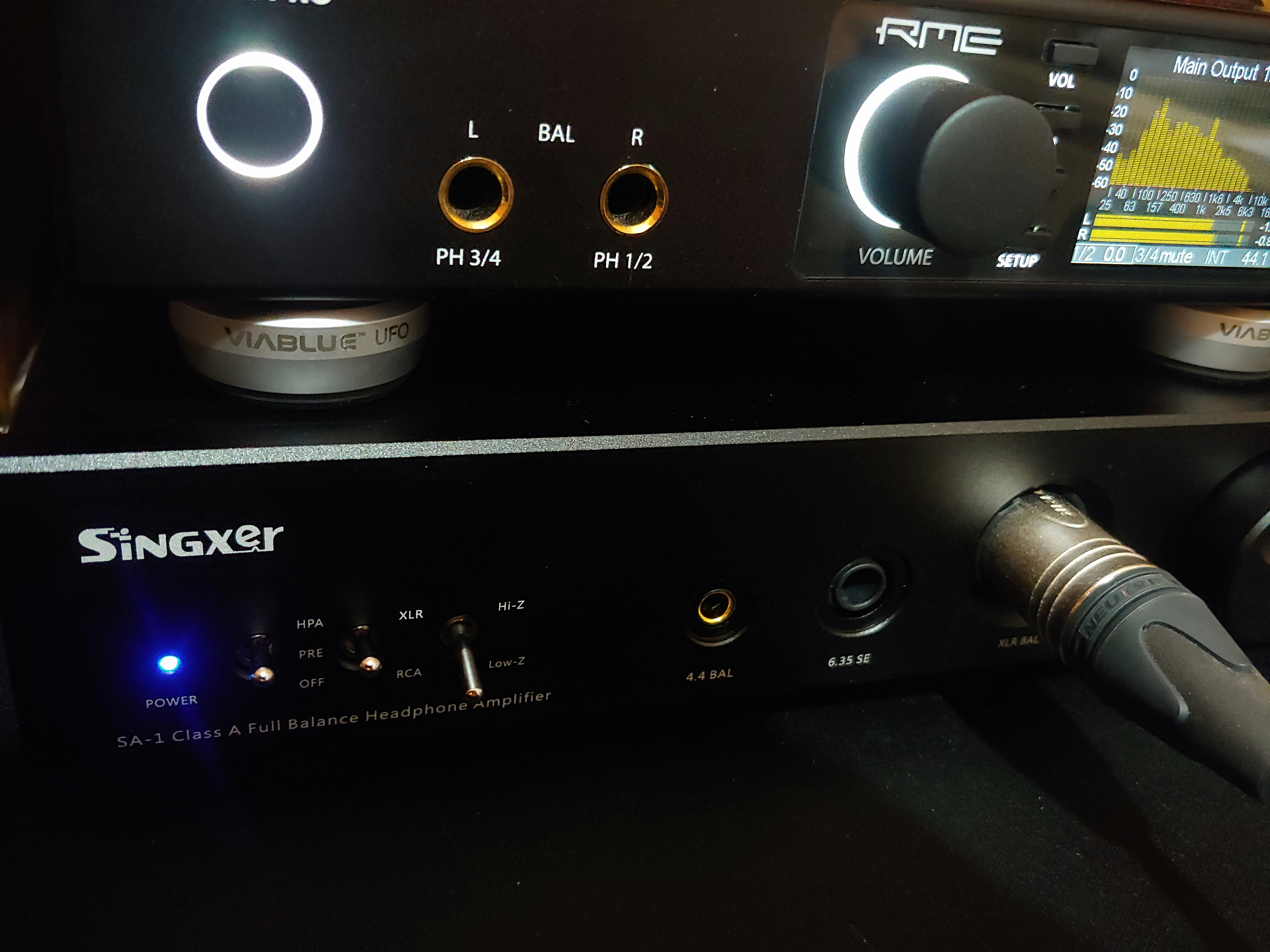

Singxer SA-1
lexterminator

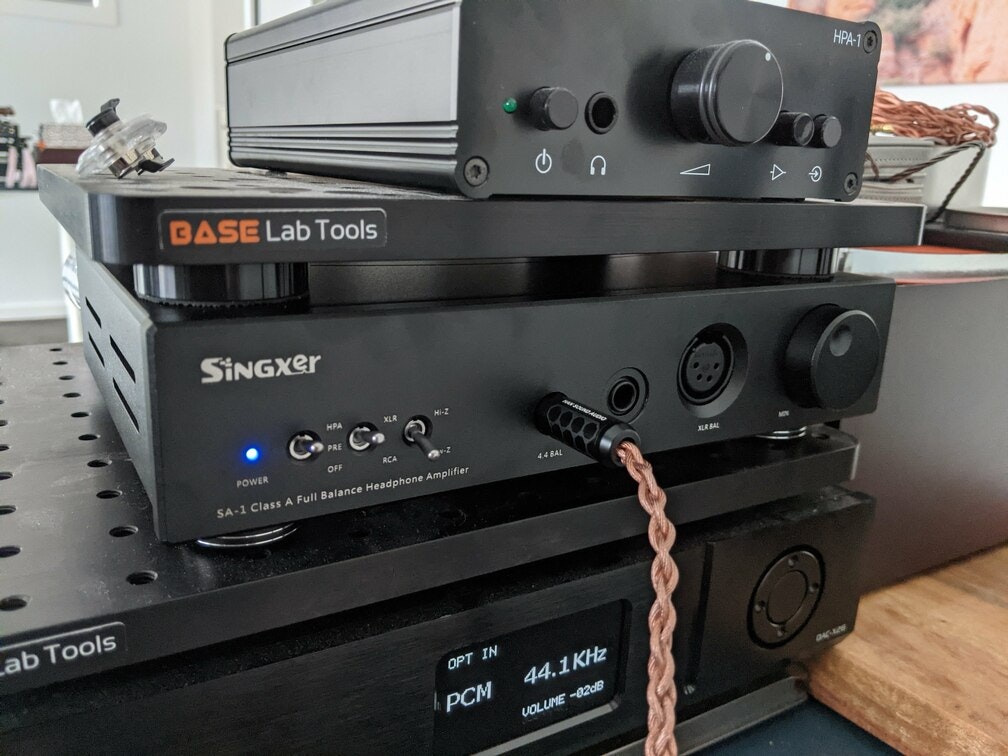

SA-1, SDA-6, T1.3
